Minimum Board Blue Pill RTOS Development for STM32 Development Board

The STM32F103 "Blue Pill" Development Board is a compact microcontroller board designed for embedded system development. It features the STM32F103C8T6 processor with a 32-bit ARM Cortex-M3 core, running at 72MHz. This board includes 128KB of flash memory, 20KB of RAM, and various I/O interfaces like UART, SPI, I2C, and USB. It supports RTOS development, making it ideal for learning real-time systems, prototyping, and creating custom firmware. With its small size, versatility, and open-source resources, it is perfect for students, hobbyists, and developers looking to explore STM32 platforms.

Parameters

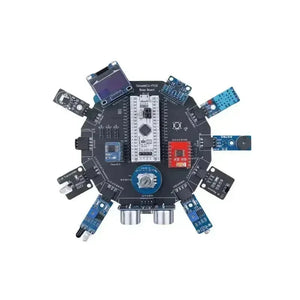

RTOS Swiss Army Knife Hardware Kit

• Infrared Remote Controller
• Micro-USB Data Cable
• RGB LED Module (Round Head)
• USB-to-Serial Module (CH340G)
• ST-Link Debugging Module
• DShanMCU-F103 Development Board
• Jumper Wires: Female-to-Female, Male-to-Female, Male-to-Male (10cm each)
• Temperature Sensor Module: DHT11
• Temperature Sensor Module: DS18B20
• Buzzer Module: Active and Passive
• Infrared Obstacle Avoidance Module: LM393
• Ultrasonic Sensor Module: HC-SR04
• Infrared Receiver Module: 1838×1
• Infrared Transmitter Module: 38KHz×1
• Rotary Encoder Module: EC11×1
• IIC OLED Display: SSD1306 (128×64, Blue & Yellow) ×1
• IIC Gyroscope & Accelerometer: MPU6050×1
• SPI Flash Module: W25Q64×1
• DC Motor Driver: DRV8833×1
• DC Motor ×1
• DC Motor Propeller (Red) ×1
• Stepper Motor Driver Board ×1
• Servo Motor: SG90 90° ×1
• Photoresistor Module: Plug-in Type (4-pin) ×1
