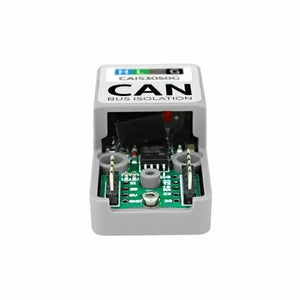

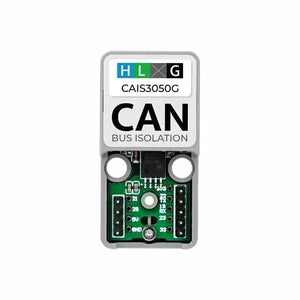

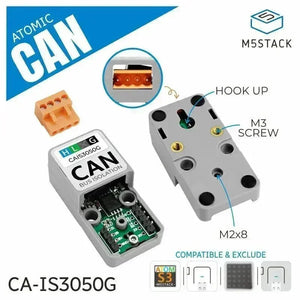

ATOMIC CANBus Base
ATOMIC CAN Base is a CAN bus communication unit designed to be compatible with the ATOM series controllers. It adopts the CA-IS3050G transceiver solution and features a built-in DC-DC isolated power chip that effectively isolates interference and prevents damage to sensitive circuits. It is intended for use with Atom Matrix, Atom Lite, AtomS3, and AtomS3 Lite, making it suitable for applications such as vehicle transportation and security systems.
The communication bus of ATOMIC CAN Base supports up to 110 nodes, allowing for excellent scalability in large-scale systems. It offers a signal transmission rate of up to 1Mbps, providing high-speed and reliable data transfer capabilities.
ATOMIC CAN Base also incorporates various electrical circuit protection features. It meets a common-mode voltage range of -12V to +12V and includes characteristics such as over-voltage protection, failure protection, and over-temperature protection. These features effectively defend against electromagnetic interference, overvoltage, current peaks, and other unfavorable factors, ensuring the stability and reliability of communication signals.
Features
- Fits ATOM Matrix/ATOM Lite/ATOMS3/ATOMS3 Lite
- CAN bus multipoint communication
- Built-in isolation DC-DC
- Signal rates up to 1Mbps
- Signal rates up to 1Mbps
- Protection function

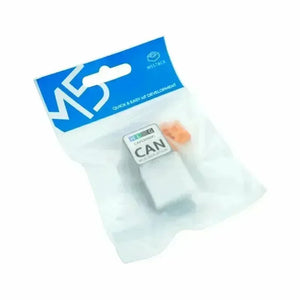

Includes
- 1x ATOMIC CAN Base

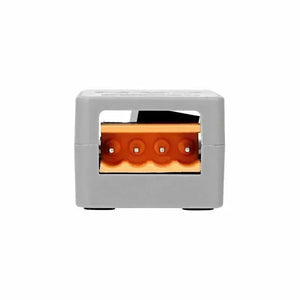

- 1x 3.96-4P terminal
Applications
- CAN bus communication
- Vehicle equipment control
- Industrial site control
Specification
| Resources | Parameters |
|---|---|
| External port | VH-3.96-4P |
| CAN transceiver type | CA-IS3050G |
| Highest rate | 1Mbps |
| Number of supported nodes | 110 |
| Low loop delay | 150ns |
| common mode voltage | -12V ~ 12V |
| Operating temperature | 0-40°C |
| Shell material | Plastic ( PC ) |
| Product Size | 24*48*18mm |
| Package Size | 136* 92*20mm |
| Product Weight | 11.1g |
| Package Weight | 15.6g |
