Arduino Nano 33 BLE Sense Rev2

Arduino Nano 33 BLE Sense Rev2

€79,90

Description

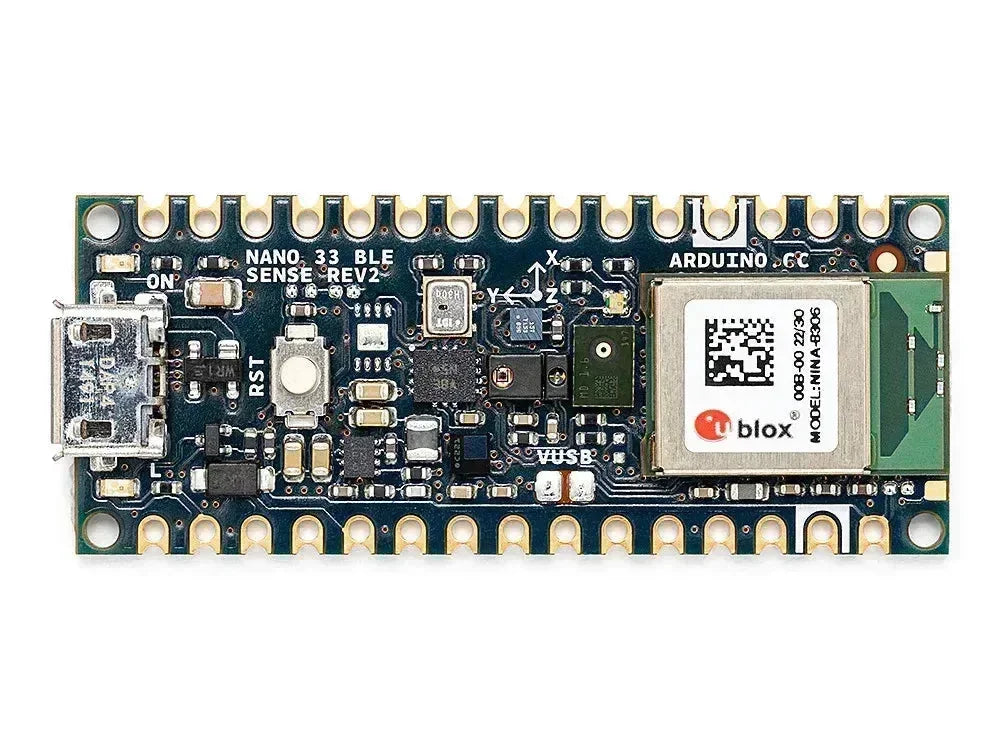

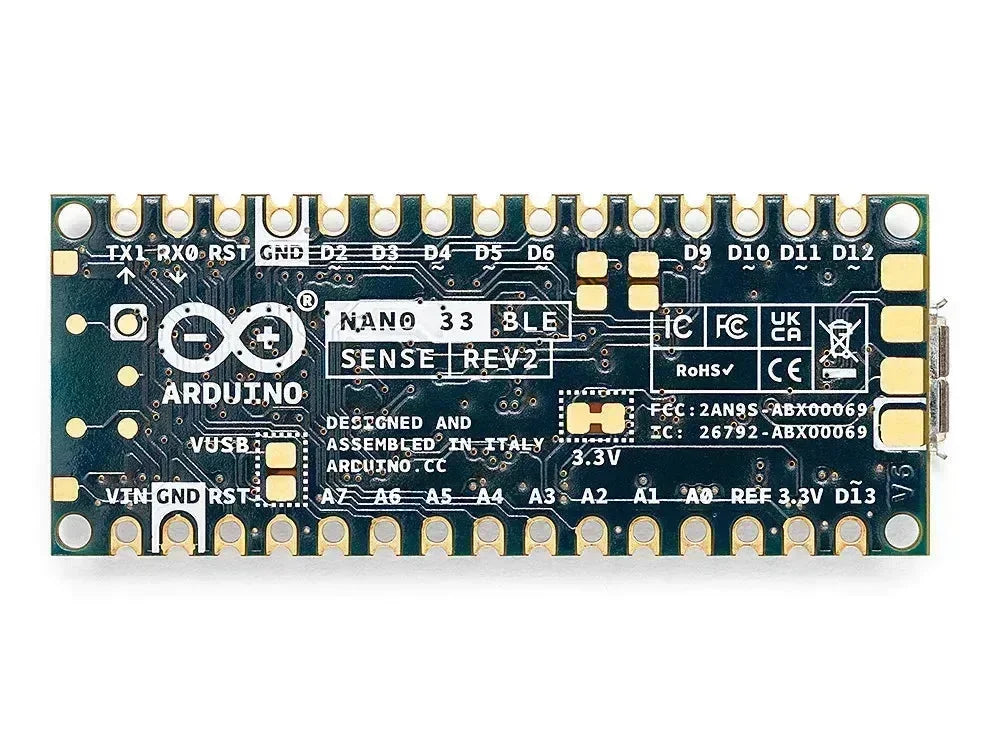

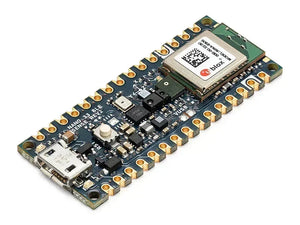

Arduino Nano 33 BLE Sense Rev2 is an AI-enabled, finger-size development board, built upon the nRF52840 microcontroller, assembled with various sensing modules, carrying Bluetooth Low Energy wireless capability, which can be programmed by both Arduino and Python. It provides great convenience for the realization of Embedded AI and IoT, which can be your great learning tool.



Feature

  • AI-enabled Arduino Development Board: Build upon the nRF52840 microcontroller and runs on Arm® Mbed™ OS, competent for embedded ML
  • Bluetooth Wireless Capability: Equip a 2.4 GHz Bluetooth® 5 low-energy module, and assembled an internal antenna
  • All-in-one Sensing Functionality: Assemble multiple modules for the detection of motion, audio, proximity, gesture, barometric pressure, temperature, and humidity
  • Finger-size Board: Portable, suited for anywhere
  • Multiple Development Approaches: Python support, Lauterbach TRACE32 debugger support



Specification



Board



Name



Arduino® Nano 33 BLE Sense Rev2



Microcontroller



nRF52840



USB connector



Micro USB



Pins



Built-in LED Pin



13



Digital I/O Pins



14



Analog input pins



8



PWM pins



5



External interrupts



All digital pins



Connectivity



Bluetooth®



NINA-B306



Sensors



IMU



BMI270 (3-axis accelerometer + 3-axis gyroscope) + BMM150 (3-axis Magnetometer)



Microphone



MP34DT06JTR



Gesture, light, proximity



APDS9960



Barometric pressure



LPS22HB



Temperature, humidity



HS3003



Communication



UART



RX/TX



I2C



A4 (SDA), A5 (SCL)



SPI



D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS).



Power



I/O Voltage



3.3V



Input voltage (nominal)



5-18V



DC Current per I/O Pin



10 mA



Clock speed



Processor



nRF52840 64MHz



Memory



nRF52840



256 KB SRAM, 1MB flash



Dimensions



Weight



5gr



Width



18 mm



Length



45 mm



Application

  • Enable Embedded AI with Edge Impulse or Tensor Flow Lite
  • Wearable Devices
  • Movements Recognization
  • Room Temperature Monitoring and Controlling
  • Gesture or Voice Recognition Device
