AntennaHome SMA Female Outer Thread Inner Pin Pigtail RG1.13 120mm

AntennaHome SMA Female Outer Thread Inner Pin Pigtail RG1.13 120mm

2,95 €

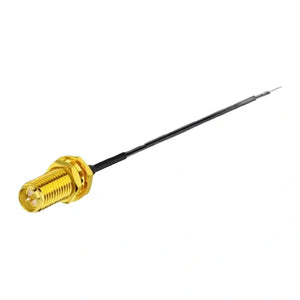

The AntennaHome SMA Female Outer Thread Inner Pin Pigtail (RG1.13, 120 mm) is a premium RF coaxial pigtail cable engineered for precise antenna extension, RF module integration, and high-performance wireless communication systems. Featuring an SMA‑K (female, outer thread, inner pin) connector and low‑loss RG1.13 coaxial cable, this pigtail ensures stable, low‑attenuation signal transmission across a massive frequency range from DC to 6000 MHz. Its compact 120 mm length, low VSWR, and durable copper construction make it the professional choice for IoT devices, routers, FPV drones, and embedded RF ecosystems.

AntennaHome SMA Female RG1.13 Pigtail



Features

  • Wideband support: Reliable performance across DC–6000 MHz

  • SMA‑K Connector: Female, outer thread, inner pin configuration for universal RF compatibility

  • High Efficiency: Low VSWR (≤1.3) ensures optimized RF performance

  • Minimal Signal Loss: Ultra-low 0.5 dB insertion loss

  • RG1.13 Coaxial Cable: Premium low‑loss shielding for stable signal integrity

  • Compact Design: 120 mm length ideal for tight device integration

  • Robust Build: High-quality copper + coaxial cable structure

  • Lightweight: Only 3.3 g per piece

  • Industrial-Grade Endurance: Operates from –40 °C to +85 °C

  • Compatible with all RF transmitter/receiver communication systems


Technical Specifications

Electrical Properties

Parameter Specification
Frequency Range DC–6000 MHz
Impedance 50 Ω
VSWR ≤ 1.3
Insertion Loss 0.5 dB
Polarization N/A

Mechanical Properties

Parameter Specification
Connector Type SMA‑K (Female, Outer thread, Inner pin)

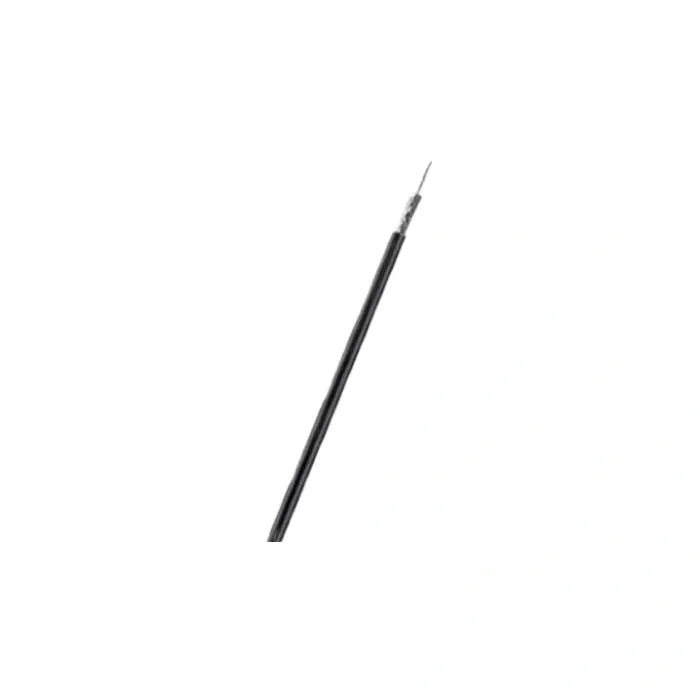

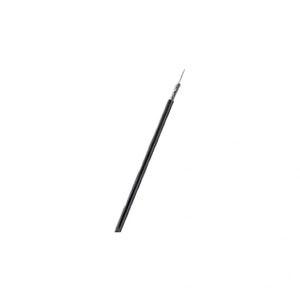

Cable Type RG1.13
Material Copper / Coaxial Shielding
Mounting Style SMA Connector Mount

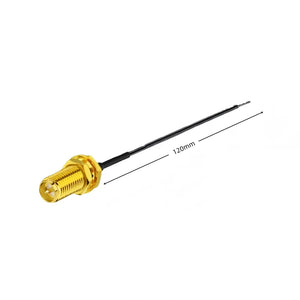

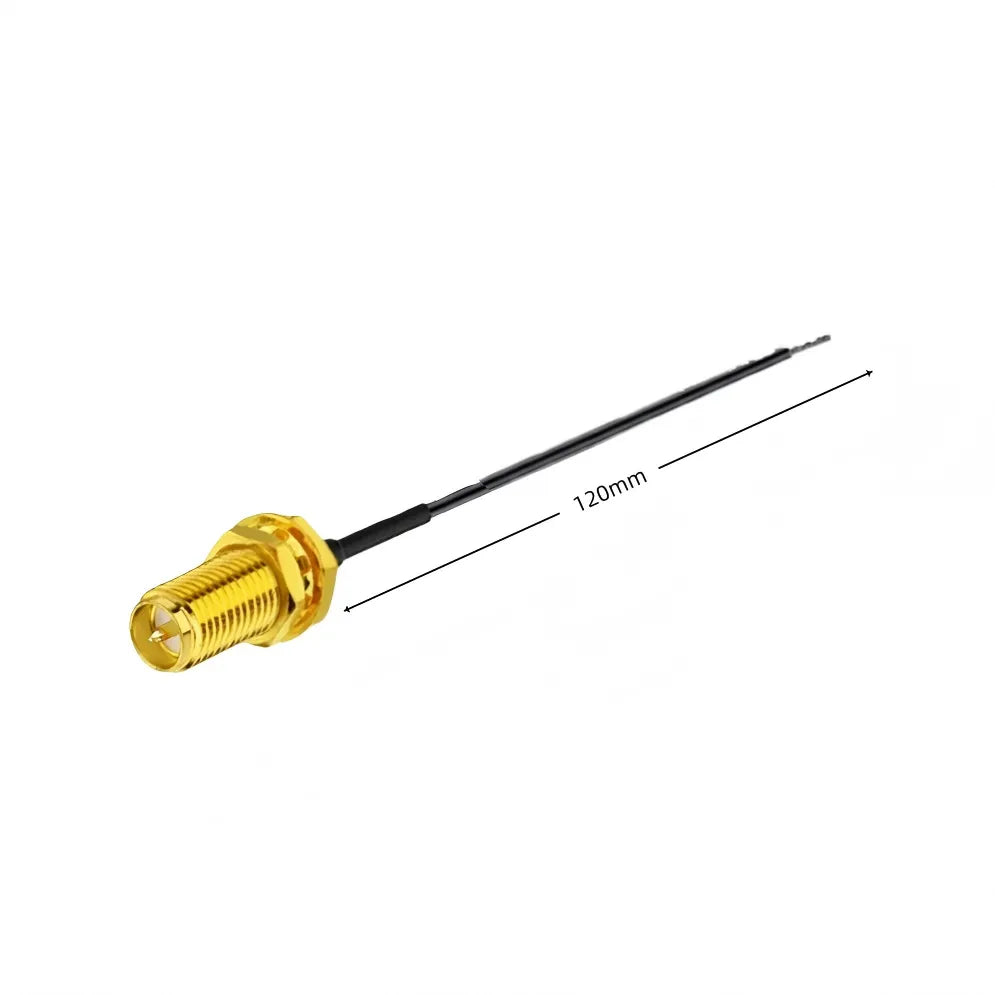

Total Length 120 mm
Unit Weight 3.3 g/pcs
Operating Temperature –40 °C to +85 °C


Application Scenarios

  • High-performance RF transmitter / receiver modules

  • IoT devices and smart wireless communication terminals

  • Seamless integration for Wi‑Fi, Bluetooth, Zigbee, LoRa, and UWB

  • FPV drones, UAVs, and RC aircraft builds

  • Network routers, gateways, and embedded RF circuit boards

  • Professional antenna extension and port adaptation

  • Precision RF testing, prototyping, and laboratory setups


Packing List

  • 1 × AHCG.101RP (Antenna)
