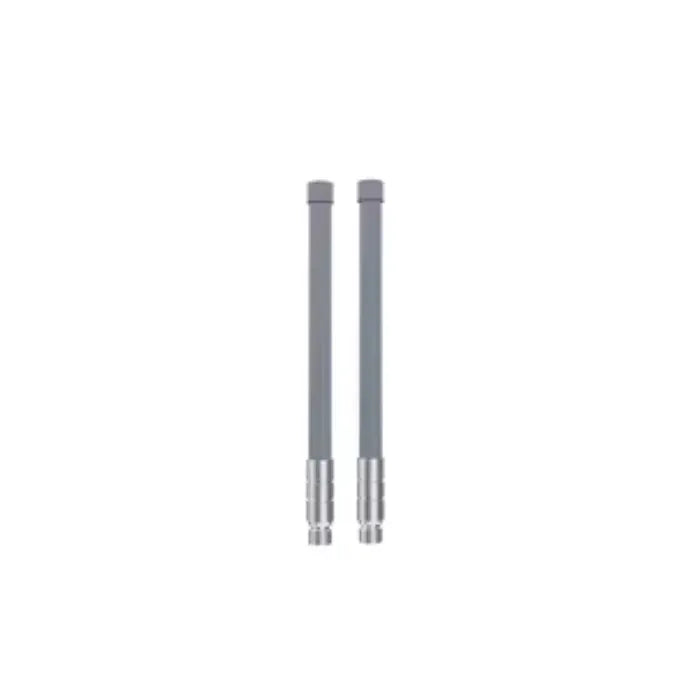

AntennaHome Fiberglass Antenna 433MHz N Male H480

SKU: AH-1G501
Sale price 28,85 €
incl. VAT
excl. VAT

Shipping within 72 hours

*Excluding pre-order items

Visa
PayPal
Mastercard
American Express
Shop Pay
📦 From 50€ in Germany, 100€ in the EU, 45€ in the US!
  • • EU & US Delivery:  10 working days
  • • Other Countries:  15 working days
🚀
Express Shipping Available:
Need it faster? Contact us via phone or email for expedited delivery.

Ask a question

Guarantee & Return Policy

Effective Date: December 10, 2025

At OpenELAB, we are committed to providing accurate product descriptions and high-quality electronics. The following policy outlines your rights and obligations, designed to be fair to both our customers and our business operations globally.

1. Warranty Policy

A. Standard Limited Warranty (Global & US)

For customers in the United States, Asia, and other non-EU regions:

  • Warranty Period: OpenELAB provides a 12-month warranty from the date of delivery.

  • Coverage: This warranty covers defects in material and workmanship under normal use.

  • Resolution: We will repair or replace defective units at no charge.

B. Statutory Rights for EU/UK Customers (EU Compliance)

If you are a consumer residing in the European Union or the UK purchasing from our global site:

  • Statutory Guarantee: You are entitled to a 24-month statutory guarantee for conformity defects present at the time of delivery, in accordance with EU consumer protection laws.

  • Relation: The Standard Limited Warranty (Section 1.A) applies in addition to, and does not replace, your statutory rights.

C. Warranty Exclusions (Applies to ALL Regions)

Warranty coverage is VOID if the damage is caused by:

  1. Misuse: Incorrect installation, reverse polarity, or exceeding voltage limits.

  2. Unauthorized Modification: This explicitly includes soldering, cutting pins, modifying the PCB, or flashing unauthorized/beta firmware that "bricks" the device.

  3. Physical Damage: Drops, moisture/water damage, or electrical surges (lightning).

  4. Normal Wear & Tear: Consumable parts (e.g., batteries), unless defective upon arrival.

Note: For non-warranty repairs (e.g., customer-induced damage), we may offer repair services for a fee. Shipping and diagnostic costs will be borne by the customer.

2. Return & Refund Policy

A. Return Window

  • Standard: You may request a return within 31 days of receiving your order.

B. Refund Conditions & Restocking Fees

To protect against policy abuse, the refund amount is strictly determined by the condition of the returned item.

1. Full Refund (100%)

  • The item is Brand New, Unopened, and Unused.

  • The original packaging is intact and sealed.

  • All accessories are present.

2. Partial Refund (Restocking Fee / Value Depreciation)
If the item is returned in a condition that prevents it from being sold as new, OpenELAB reserves the right to deduct a Restocking Fee (for US/Global) or Compensation for Loss of Value (for EU) from the refund amount.
Deductions apply if:

  • Signs of Use: Visible scratches, mounting marks on screw holes, or fingerprints.

  • Damaged Packaging: Original box is torn, written on, or missing.

  • Technical Modification: The device has been soldered, permanently installed, or flashed with unauthorized firmware.

  • Broken Seals: Anti-static bags or security seals have been opened.

Depending on the severity of the usage/damage, the deduction may range from 15% to 50% of the product price. Items damaged beyond repair due to misuse will not be refunded.

C. Shipping Costs

  • Defective / Wrong Item: OpenELAB covers the return shipping cost.

  • Customer Remorse (Changed Mind / Ordered Wrong Item): The customer is responsible for all return shipping costs to our designated return center (located in the US, Germany, or China, depending on your region). Original shipping fees are non-refundable unless required by local law.

3. Return Process (RMA)

To ensure a smooth return process, please follow these steps:

  1. Authorization: Contact us at info@openelab.io before returning any item. Returns without prior authorization will not be accepted.

  2. RMA Number: We will provide you with a Return Merchandise Authorization (RMA) number and the correct return address.

  3. Packing: Ship the item back in its original packaging with the RMA number clearly marked on the shipping label (not on the product box).

  4. Tracking: We strongly recommend using a trackable shipping method. OpenELAB is not responsible for returns lost in transit.
Share
AntennaHome Fiberglass Antenna 433MHz N Male H480

AntennaHome Fiberglass Antenna 433MHz N Male H480

28,85 €

The GN503A Active GNSS Antenna by AntennaHome delivers exceptional satellite positioning performance with integrated high-gain 28dB LNA and 480mm cable. This professional-grade active GPS antenna combines compact waterproof housing, powerful signal amplification, and versatile mounting options, making it the ideal solution for vehicle tracking systems, timing applications, and navigation devices requiring enhanced reception in challenging environments.

Features

  • High-Performance 28dB LNA: Integrated low-noise amplifier with exceptional 1.0dB noise figure dramatically improves reception sensitivity and range
  • GPS L1 Optimized: Precisely tuned for 1575.42MHz GPS L1 band with support for GPS, GLONASS, Galileo, BeiDou, and QZSS constellations
  • IP67 Waterproof Housing: Fully sealed design provides complete protection against water and dust for reliable outdoor operation
  • Versatile Mounting System: Powerful magnetic base with additional 3M adhesive option for secure installation on various surfaces
  • Premium 480mm Cable: High-quality RG174 coaxial cable with gold-plated SMA male connector ensures reliable signal transmission
  • Compact Form Factor: Space-efficient 45.5×45.5×13.6mm design allows for discreet installation on vehicles and equipment
  • Right-Hand Circular Polarization: Optimal RHCP design ensures maximum satellite signal reception regardless of antenna orientation
  • Stable DC Power: Operates on standard 3-5V DC power supplied through the coaxial cable for simplified installation
  • Superior Filtering: Built-in band-pass filter rejects out-of-band interference for clean signal reception
  • Extended Temperature Range: Reliable operation from -40°C to +85°C for demanding industrial and automotive applications

Specifications

  • Product Model: GN503A Active GNSS Antenna with 480mm Cable
  • Part Number: AH1G.501.L480
  • Frequency Range: 1575.42±3MHz (GPS L1 band)
  • Satellite System Compatibility: GPS, GLONASS, Galileo, BeiDou, QZSS (L1/E1/B1 bands)
  • LNA Gain: 28dB (typical)
  • Noise Figure: 1.0dB (typical)
  • VSWR: ≤2.0
  • Polarization: RHCP (Right Hand Circular Polarized)
  • Axial Ratio: ≤3.0dB
  • Power Supply: 3-5V DC via coaxial center conductor
  • Current Consumption: 10mA (typical)
  • Connector Type: SMA Male (gold-plated)
  • Cable Type: RG174 coaxial cable
  • Cable Length: 480mm (18.9in)
  • Dimensions: 45.5×45.5×13.6mm (1.79×1.79×0.54in)
  • Weight: 82g including cable and connector
  • Housing Material: ABS plastic, UV resistant
  • Mounting: Magnetic base with 3M adhesive option
  • Magnet Strength: 5kg pull force
  • Operating Temperature: -40°C to +85°C (-40°F to +185°F)
  • Storage Temperature: -40°C to +125°C (-40°F to +257°F)
  • Water/Dust Protection: IP67
  • RoHS Compliant: Yes

Applications

The GN503A Active GNSS Antenna is ideal for:

  • Vehicle Tracking Systems: Fleet management, stolen vehicle recovery, and logistics optimization
  • Precision Timing: Network synchronization, financial systems, and critical infrastructure timing
  • Telematics: Insurance telematics, driver behavior monitoring, and connected vehicle systems
  • Navigation Devices: Automotive navigation, marine chartplotters, and portable GPS units
  • IoT Location Services: Asset tracking, smart city applications, and infrastructure monitoring
  • Security Systems: Mobile surveillance platforms, emergency service vehicles, and security monitoring
  • Agricultural Equipment: Tractors, harvesters, and farm management systems
  • Railway Applications: Train positioning, railway management, and level crossing systems
  • Marine Systems: Vessel tracking, navigation aids, and maritime safety equipment
  • Timing Servers: NTP/PTP time sources, telecommunications infrastructure, and broadcast systems

Key Advantages

  • Enhanced Reception Sensitivity: 28dB amplification allows reliable positioning even in areas with weak satellite signals
  • Simple Powered Installation: Direct powering through the RF cable eliminates the need for separate power connections
  • Weatherproof Durability: IP67-rated housing ensures long-term reliability in outdoor and mobile applications
  • Interference Rejection: Integrated filtering minimizes the impact of cellular, Wi-Fi, and other RF sources
  • Flexible Mounting Options: Secure magnetic attachment with optional adhesive backing for non-metallic surfaces

Shipping List

Each order includes:

  • GN503A Active GNSS Antenna with 480mm cable and SMA Male connector
  • Technical specification sheet with detailed electrical parameters
  • Installation guide with mounting recommendations and power requirements
  • Certificate of Compliance for material composition and manufacturing standards
  • Protective packaging to prevent damage during shipping and storage

Note: Requires 3-5V DC power supplied through the center conductor of the coaxial cable. Compatible with most GNSS receivers that provide DC voltage on the antenna input. For receivers without DC bias, an external bias-tee is required (sold separately).

The GN503A Active GNSS Antenna represents AntennaHome's commitment to delivering high-performance satellite positioning solutions for professional applications. This premium active GPS antenna combines advanced LNA technology, weatherproof construction, and flexible mounting options to ensure reliable satellite reception for navigation, timing, and location-based services in even the most challenging environments.
