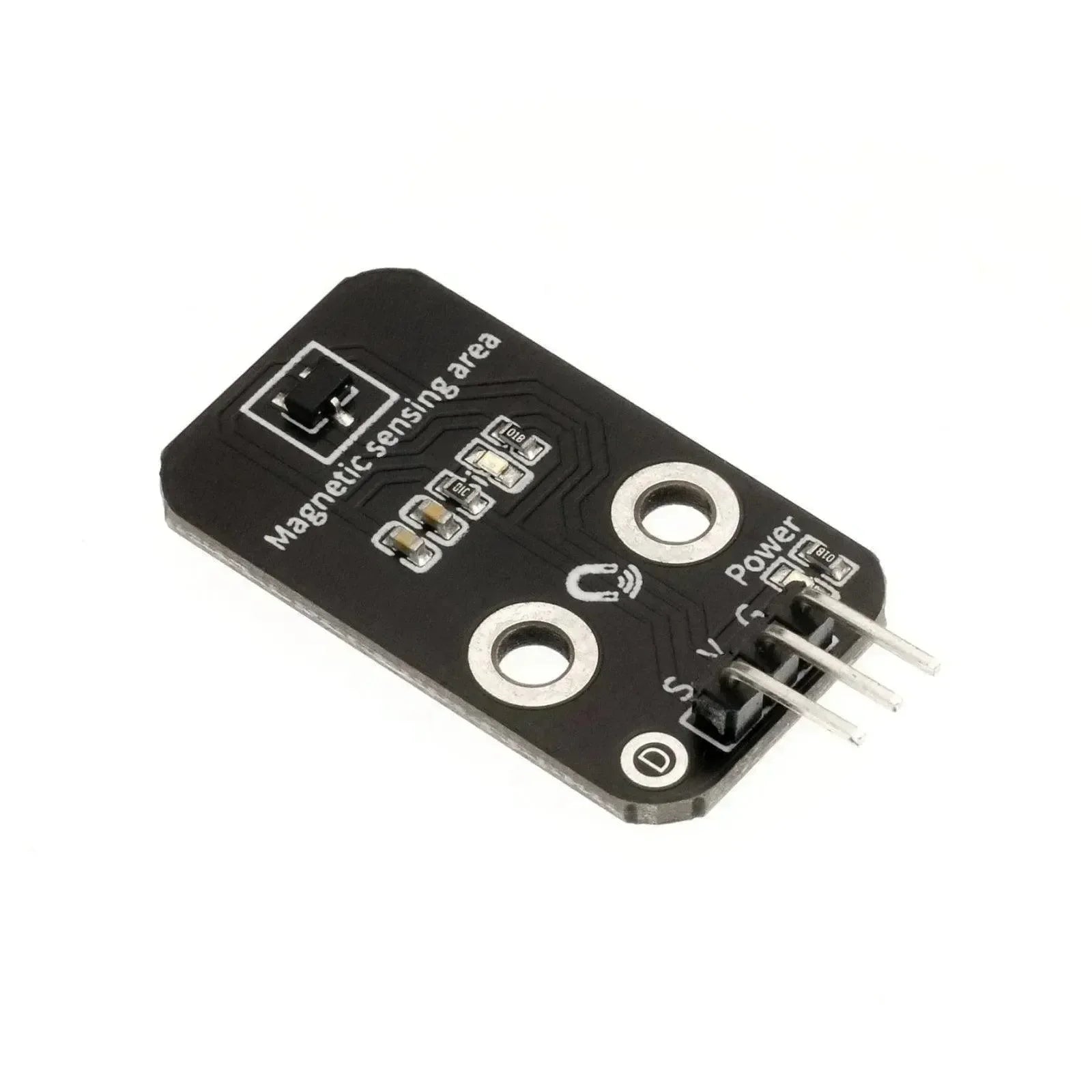

An omnipolar Hall magnetic sensor is a magnetic field sensor based on the Hall effect. The Hall effect is a type of magnetoelectric effect. When a magnet approaches the sensor's active area, the switch outputs a low-level signal; when the magnet moves away, the switch outputs a high-level signal.
Module Parameters
Pin Descriptions:
| Pin Name | Description |
|---|---|
| G | GND (Power Input Ground) |
| V | VCC (Power Input Positive) |
| S | Signal Output Pin |
Specifications:
- Supply Voltage: 3.3V / 5V
- Connection Method: 2.54mm Pin Header
- Mounting Method: Fixed with Double Screws
Schematic Diagram
