Air Quality Kit w/ M5StampS3 (SEN55, SCD40)
AirQ is an integrated, low-power air quality monitoring device designed to provide comprehensive air quality monitoring solutions. It features multiple components, including the SEN55 air quality sensor and the SCD40 CO2 sensor, enabling the monitoring of PM1.0, PM2.5, PM4, PM10 particles, temperature, humidity, VOC, and CO2 concentrations. Powered by the StampS3 main controller and equipped with 8M Flash memory, AirQ ensures efficient data processing and storage capabilities.

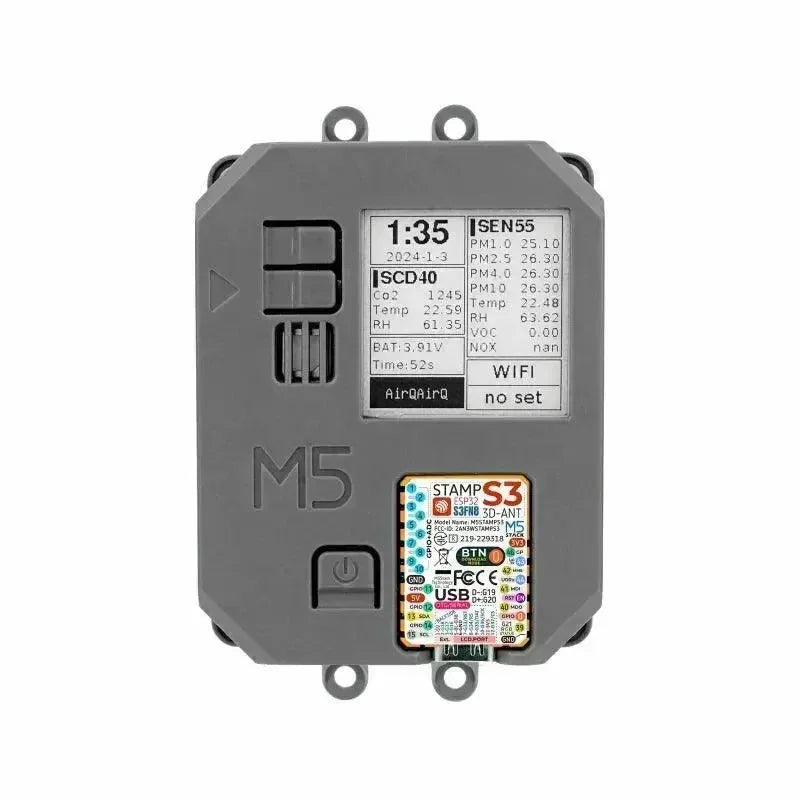

The device comes with a 1.54-inch e-ink display with a resolution of 200x200, providing a clear visual representation of the data. Even in the event of a power outage, the final data screen will remain visible, ensuring continuous visualization. To extend monitoring capabilities, AirQ is equipped with a 450mAh battery and an RTC low-power power management circuit. This allows the device to enter sleep mode and be awakened on a scheduled basis, conserving energy and prolonging battery life.
Out of the box, AirQ's firmware is preconfigured to upload data to M5's EZDATA cloud platform, which automatically generates monitoring pages, providing users with convenient remote access and data management. Users can monitor air quality data anytime, anywhere through the cloud-based access.
For versatile installation options, AirQ features LEGO mounting holes, adhesive magnets, and four detachable mounting ears. This allows for flexible and secure installation in various settings, including homes, schools, industrial facilities, and hospitals, enabling long-term online air quality monitoring.
To enter download mode, press and hold the G0 button on the StampS3 before powering on, and release it after powering up.
Power On:
- You can power on the device by pressing the "WAKE" button or through the RTC-triggered IRQ signal for wake-up. After completing the wake-up signal, in the program initialization, it is necessary to set the hold (G46) pin to a high level (1) to maintain power; otherwise, the device will re-enter sleep mode.
Power Off:

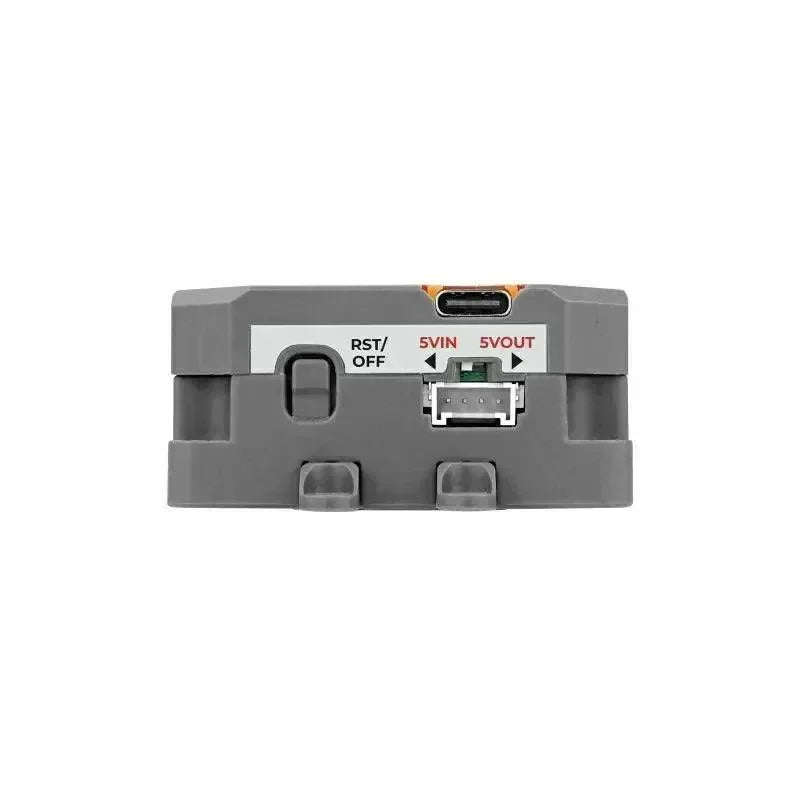

- To power off when not externally powered via USB, press the RST button. Alternatively, when running the program without external USB power, set HOLD (GPIO46) to 0 to achieve a power-off shutdown.
Features
- SEN55 and SCD40 sensors
- 1.54 inch ink screen (resolution 200*200)
- Built-in 450mAh battery
- Grove interface
- Access the EZDATA cloud platform
- The RTC wakes up periodically
Includes
- 1x AirQ
- 1x Operating Instructions
Applications
- Home environment monitoring
- Automation in industry
- Medical locations
- Research laboratory
- Remote monitoring application
- Air-conditioning system optimization
- Construction site
Specification
| Resources | Parameters |
|---|---|

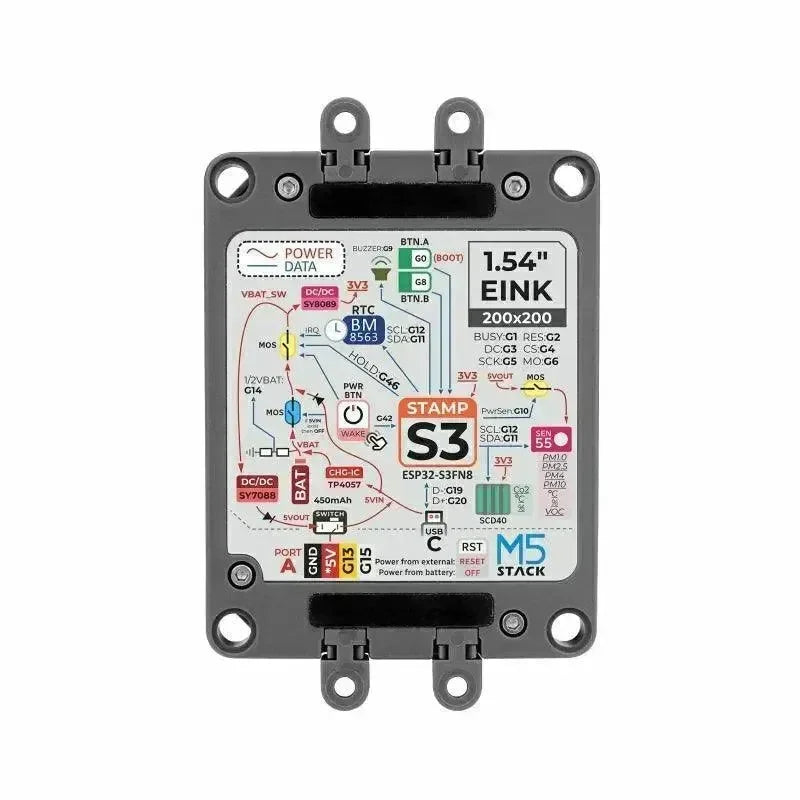

| MCU | StampS3（ESP32S3FN8@8M Flash，240Mhz，2.4GHz Wi-Fi） |
| Screen | GDEW0154M091 200*200@1.54" SPI interface Dpi:184 1-bit Black/white display (gray scale :2) Field of view size (mm):27.6x27.6 Point spacing (mm) 0.138x0.138 Refresh time (s) 0.82 Office brush time (s) 0.24 |
| Resolution | 200*200px |
| SEN55 | I2C address: 0x69 |
| SCD40 | I2C address: 0x62 |
| Environmental detection type | PM1.0, PM2.5, PM4, PM10 particles, temperature, humidity, VOC and CO2 concentrations |
| RTC | RTC8563 |
| Battery | 450mAh@3.7V |
| Button | Key A(G0), key B(G8), Start Button, Reset and Shutdown |
| Grove interface | HY2.0-4P |
| Buzzer | Onboard passive buzzer |
| Fixed Structure | Lego mounting holes, adsorption magnets and 4 M3 plug-in mounting ears |
| Operating Temperature | 0-40°C |
| Product Size | 72*56*24.1mm |
| Package Size | 103*75*30mm |
| Product Weight | 91.1g |
| Package Weight | 119.3g |
