Ai-Thinker BW20-12F WIFI+BLE Module

Sale price €3,30

📦 Location of the warehouse: China

Type: Onboard Antenna
Add to Wishlist Add to Compare

Free shipping for you

Free Shipping from 30€ in Germany, 50€ in the EU!

Trustpilot rating: 4/5

Thank you for your support - rate us on Trustpilot!

Visa
PayPal
Mastercard
American Express
Shop Pay

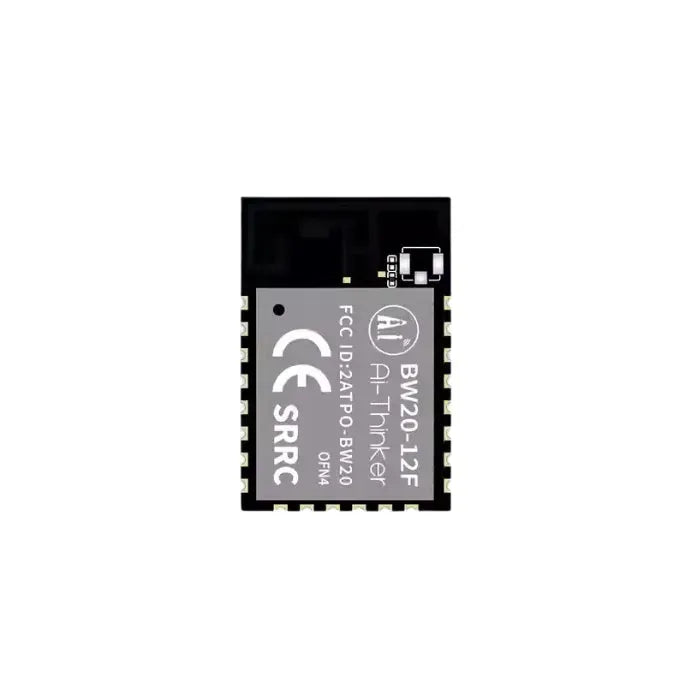

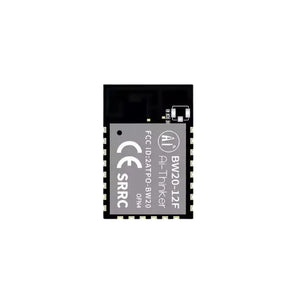

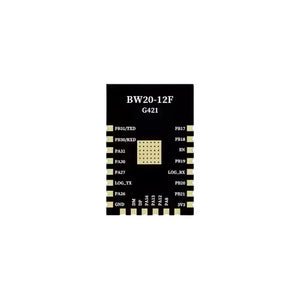

BW20-12F-1

Ai-Thinker BW20-12F WIFI+BLE Module

BW20-12F is a dual-band Wi-Fi + BLE SoC module based on RTL8711 series chips, which supports dual-frequency (2.4 GHz cr5 GHz)802.11a/b/g/n WLAN protocol and Bluetooth 5.0 protocol.

The BW 20-12F integrates dual-core MCU, an ARM V8.1 (Cortex-M4F compatible) high-performance MCU with a maximum frequency of 330 MHz; an ARM V8M (Cortex-M0 compatible) low-power MCU.
The BW20-12F module has rich peripheral interfaces, including UART/ GPIO / ADC/PWM/
IIC / SPI / SDIO / IR / SWD / USB etc. It can be widely used in the Internet of Things (IoT),
mobile devices, wearable electronic devices, smart homes, and other fields.



Product Details

bw20-12f-product_specification



Product Parameters

Parameter Details
Model BW20-12F
Package SMD-22
Size 24163.2(±0.2)MM

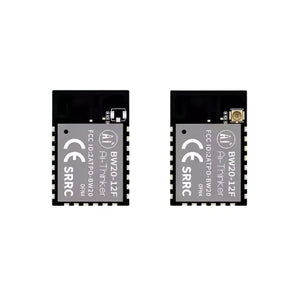

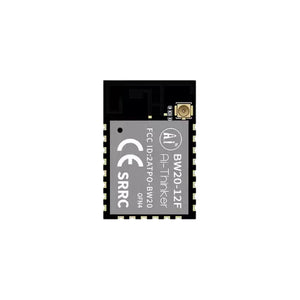

Antenna on-board PCB antenna、IPEX connector(1st generation)
Frequency range 2400~2483.5MHz or 5180~5825MHz
Operating temperature -40 °C~85 °C
Storage temperature -40 °C~125 °C, <90%RH
Power supply Voltage 3.0V~3.6V, typical value 3.3V. Current supply≥500mA
Support interface UART/GPIO/ADC/PWM/IIC/SPI/SDIO/IR/SWD/USB
Available IO Default 17
UART rate Default 115200bps
Bluetooth BLE 5.0
SPI flash Default 4MByte, Maximum support is 16MByte


Characteristic

  • Support for the 802.11a/b/g/n protocol
  • Support for dual-frequency 2.4GHz or 5GHz
  • Supports the HT20 / HT40 mode
  • Support for Bluetooth 5.0
  • Support for BLE Long-Range
  • The Bluetooth supports a high-power mode LE data length extension
  • Support for link layer privacy
  • Support for the hardware encryption engine Integrated dual-core MICU, up to 330 MHz
  • Abundant interfaces, with 17 flexible IO ports
  • Wi-Fi and Bluetooth share the same antenna
  • Support secondary development, support programming in Linux environments
