Ai-Thinker Ai-WS1-CBE WiFi6+BLE5.2+SLE1.0

Sale price €2,15

📦 Location of the warehouse: China

Type: Module
Add to Wishlist Add to Compare

Free shipping for you

Free Shipping from 30€ in Germany, 50€ in the EU!

Trustpilot rating: 4.4/5.0

Thank you for your support - rate us on Trustpilot!

Visa
PayPal
Mastercard
American Express
Shop Pay
Ai-WS1-CBE-1

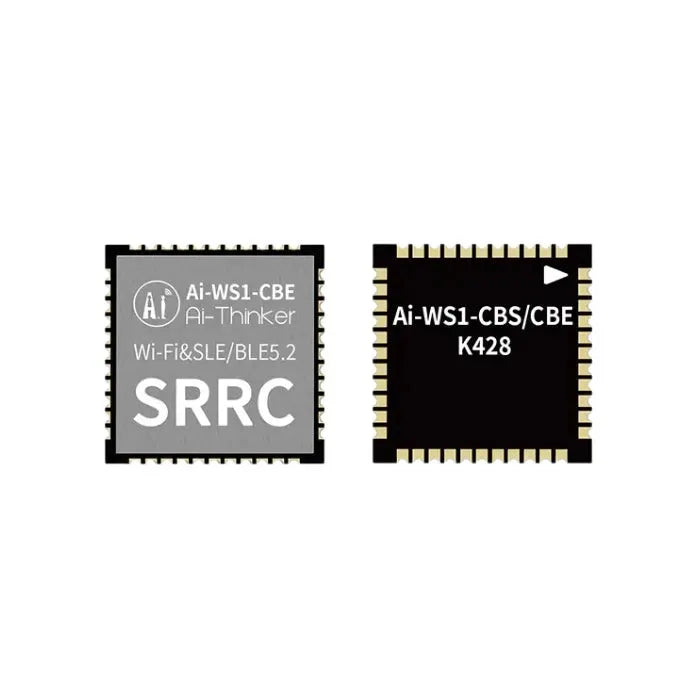

Ai-Thinker Ai-WS1-CBE WiFi6+BLE5.2+SLE1.0

Ai-WS1-CBE is a Wi-Fi 6+BLE5.2+SLE1.0 module. The module is equipped with a Hi3873E chip as the core processor, supporting Wi-Fi 802.11b/g/n/ax protocol, BLE protocol, and SLE protocol. Hi3873E built-in high-performance self-developed 32bit CPU, up to 240MHz main frequency.
Hi3873E chip integrates a high-performance 32-bit microprocessor and a security processing engine. Provide UART and GPIO interfaces, while supporting USB2.0 interface, the highest speed of 480Mbps; As a slave machine, the chip is built to the host MCU through the USB interface to run.



Product Details

Ai-WS1-CBE Specification

Ai-WS1-CBE-Kit Specification



Characteristics

  • SMD-44 package
  • Support 2.4GHz operating frequency band
  • Support IEEE 802.11b/g/n/ax
  • Support BLE4.0/4.1/4.2/5.0/5.1/5.2
  • Support SLE1.0
  • Wi-Fi Security Support WPA/WPA2/WPA3 Personal/WPS2.0
  • Supports 20/40MHz bandwidth, 1T1R, up to 150Mbps
  • Support STA、SoftAP、STA+SoftAP and STA+PTP co-existence model
  • Support UART、USB2.0 and GPIO etc.
  • Radio Frequency Integrated Balun、PA/LNA



Main parameter

Model Ai-WS1-CBE
Package SMD-44
Size 12.012.02.4(±0.2)mm
Antenna Stamp perforating machine
Frequency 2400 ~ 2483.5MHz
Operating temperature -40°C ~ 85°C
Storage temperature -40°C ~ 125°C, < 90%RH
Power supply The power supply voltage is 3V to 3.6V, and the power supply current is ≥500mA
Interface UART, USB 2.0, and GPIO, etc.
IO 12
Security WPA/WPA2/WPA3 Personal/WPS2.0
Flash Without Flash



Model Ai-WS1-CBE-Kit
Package DIP-16
Size 26.030.0(±0.2)mm No plug-in section
Antenna On-Board
Frequency 2400 ~ 2483.5MHz
Operating temperature -40°C ~ 85°C
Storage temperature -40°C ~ 125°C, < 90%RH
Power supply The power supply voltage is 3V to 3.6V, and the power supply current is ≥500mA
Interface UART, USB2.0, and GPIO, etc.
IO 12
Security WPA/WPA2/WPA3 Personal/WPS2.0
Flash Without Flash
