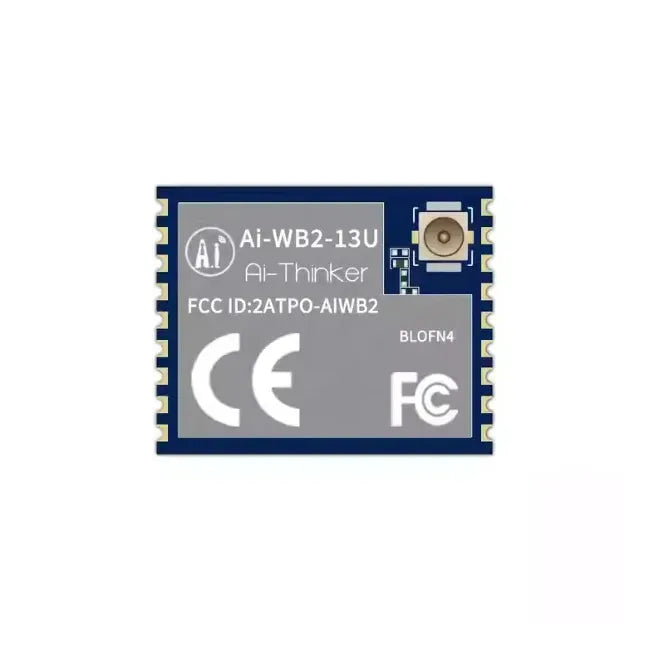

Ai-Thinker Ai-WB2-13U-BLOFN4 WIFI6+BLE5.3+Thread
Ai-WB2-13U is a Wi-Fi&BT module.
The module is equipped with BL602 chip as the core processor and supports Wi-Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chijphas a low-power 32-bit RISC CPU, 276KB R.AM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR and GPIO etc. It can be widelyy used in Internet of Things(IoT), mobile devices, wearable electronic devices, smart home andd other fields.
Product Details
Product Parameters
| Parameter | Details |
|---|---|
| Model | Ai-WB2-13U |
| Package | SMD-18 |
| Size | 14.018.03.1(±0.2)mm |
| Antenna | IPEX connector |
| Frequency | 2400 - 2483.5MHz |
| Operating temperature | -40°C - 85°C |
| Storage temperature | -40°C - 125°C, < 90%RH |
| Power supply | Support voltage 2.7V - 3.6V, supply current ≥500mA |
| Interface | UART/GPIO/ADC/PWM/I2C/SPI |
| IO | 11 |
| UART rate | Default 115200 bps |
| Security | WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3 |
| Flash | Default 4MByte, Support expansion |
Characteristic
- The package is SMD-18
- Support IEEE 802.11 b/g/n protocol
- Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 EEnterprise/WPA3
- Supports 20MHz bandwidth and Max rate is 72.2 Mbps
- Bluetooth BLE 5.0, Bluetooth Mesh
- Support Station + BLE mode、Station + SoftAP + BLE mode
- Support 32-bit RISC CPU, 276KB RAM
- Secure start-up supports mirroring with ECC-256 signature
- Support QSPI/SPI Flash On-The-Fly AES Decryption, support AEIS 128 CTR mode
- Support AES 128/192/256-bit encryption engine
- Support SHA-1/224/256
- Support true Random number generator (TRNG)
- Public key Accelerator (PKA), supports a large number of basic operations, the software provides
signature, verification, and other application program interface
- Support SDIO, SPI, UART, I2C, IR remote, PWM, ADC, DAC, PIR,GPIO etc
- Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
- Support a variety of sleep modes, deep sleep current 12uA
- Universal AT instruction for quick start
- Support secondary development, integrated Windows, Linuix dévelopment environment
