Ai-Thinker Ai-WB2-13-BLOFN4 WIFI6+BLE5.3+Thread

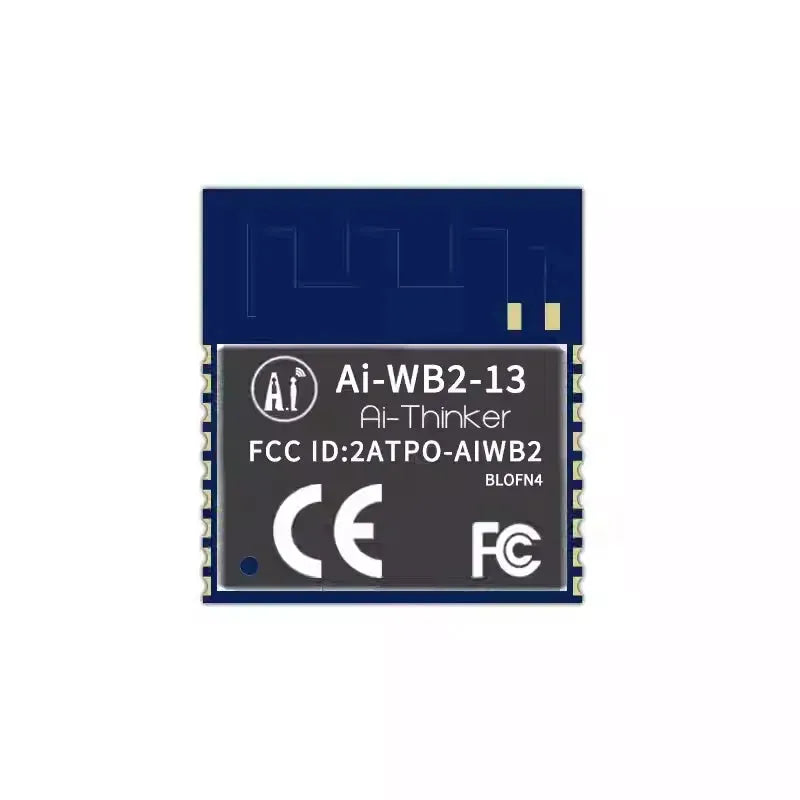

Ai-WB2-13 is a Wi-Fi& BT module.
The module is equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol.

The BL602 chip has a low-power 32-bit IRISC CPU,276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR, and GPIO. It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields.

Product Details

Ai-WB2-13 Specification

Main parameters

Characteristic

• The package is SMD-18

• Support IEEE 802.11 b/g/n protocol

• Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WFPA3

• Supports 20MHz bandwidth and the Max rate is 72.2 Mbps

• Bluetooth BLE 5.0.Bluetooth Mesh

• Support Station + BLE、Station + SoftAP+BLE

• Support 32-bit RISC CPU, 276KB RAM

• The secure start-up supports mirroring with ECC-256 signature

• Support QSPI/SPI Flash On-The-Fly AES Decryption (OTFAD), supporAES 128 CTR

• Support AES 128/192/256-bit encryption engine

• Support SHA-1/224/256

• Support true Random number generator (TRNG)

• Public key Accelerator (PKA), supports a large number of basic operations, and software provides signature, verification, and other application program interface

• Support SDIO, SPI, UART, I2C, IR remote, PWM, ADC, DACPIR, GPIO, etc

• Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT

• Support a variety of sleep modes, deep sleep current 12μA

• Universal AT instruction for a quick start

• Support secondary development, integrated Windows, Linux development environment


Product Size
