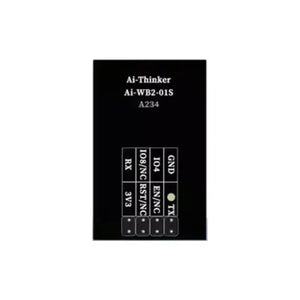

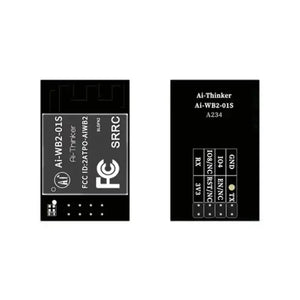

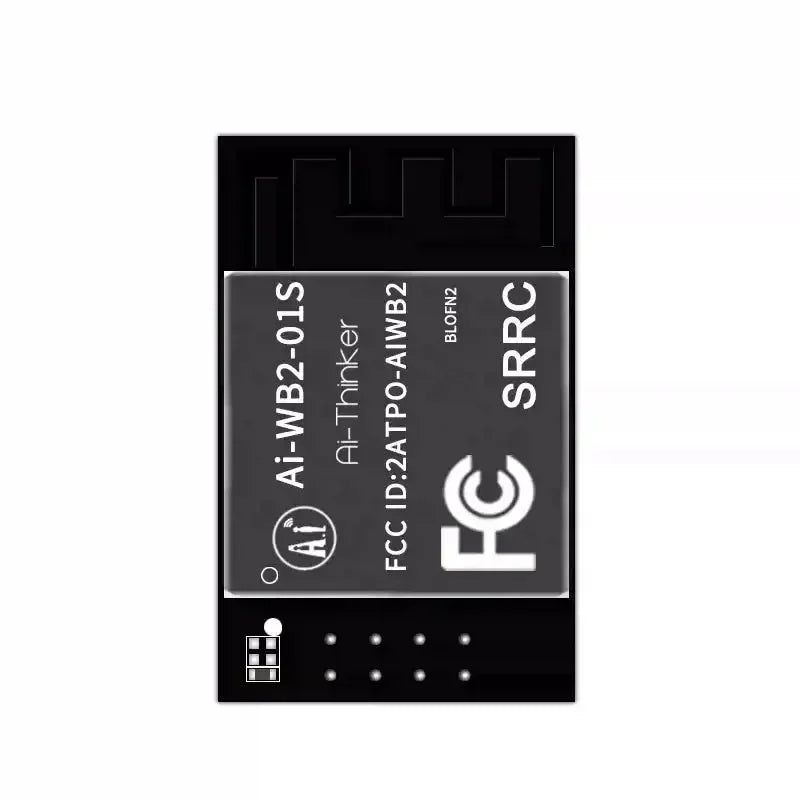

Ai-WB2-01S is a Wi-Fi and BLE module. It is equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip has a built-in 32-bit RISC CPU with low power consumption and 276KB RAM.
It can be widely used in the Internet of Things(IoT), mobile devices, wearable electronic devices, smart homes, etc.
Product Details
Features
- DIP-8 package
- Supports IEEE 802.11 B/g/n protocol
- Wi-Fi security supports WPS/WEP/WPA/WPA2
- Personal/WPA2 Enterprise/WPA3
- Supports 20MHz bandwidth with a maximum speed of 72.2 Mbps.
- Bluetooth 5.0, Bluetooth Mesh
- Supports Station + BLE mode, Station + SoftAP+BLE mode
- Supports 32-bit RISC CPU and 276KB RAM
- Secure Startup supports Images with ECC-256 signatures
- Supports real-time AES decryption (OTFAD) in QSPI and SPI Flash, and supports AES
- 128 CTR mode
- Supports AES 128, 192, and 256-bit encryption engines
- Supports SHA-1/224/256
- Support True Random Number Generator (TRNG)
- Public Key Accelerator (PKA), supports a large number of basic operations, and software provides
- signature, verification and other application program interface
- Supports UART, and PWM.ADC, and GPIO
- Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
- Supports multiple sleep modes with a deep sleep current of 12μA
- Universal AT instruction for a quick start
- Supports secondary development and integrates Windows and Linux development environments
Main parameters
| Parameter | Specification |
|---|---|
| Model | Ai-WB2-01S |
| Package | DIP - 8 |
| Size | 14.5 * 24.5 * 11.2 (±0.2) mm |
| Antenna | on-board PCB antenna |
| Frequency | 2400 ~ 2483.5MHz |
| Operating temperature | - 40°C ~ 85°C |
| Storage temperature | - 40°C ~ 125°C, < 90% RH |
| Power supply | Power supply voltage 2.7V ~ 3.6V, power supply current ≥500mA |
| Interface | UART / GPIO / ADC / PWM |
| IO | 3 |
| UART rate | Default value: 115200 bps |
| Security | WPS / WEP / WPA / WPA2 Personal / WPA2 Enterprise / WPA3 |
| Flash | Default 2MByte Support expansion |
