Ai-Thinker Ai-WB2-01M-BLIFN2 WIFI6+BLE5.3+Thread

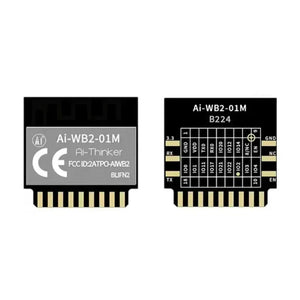

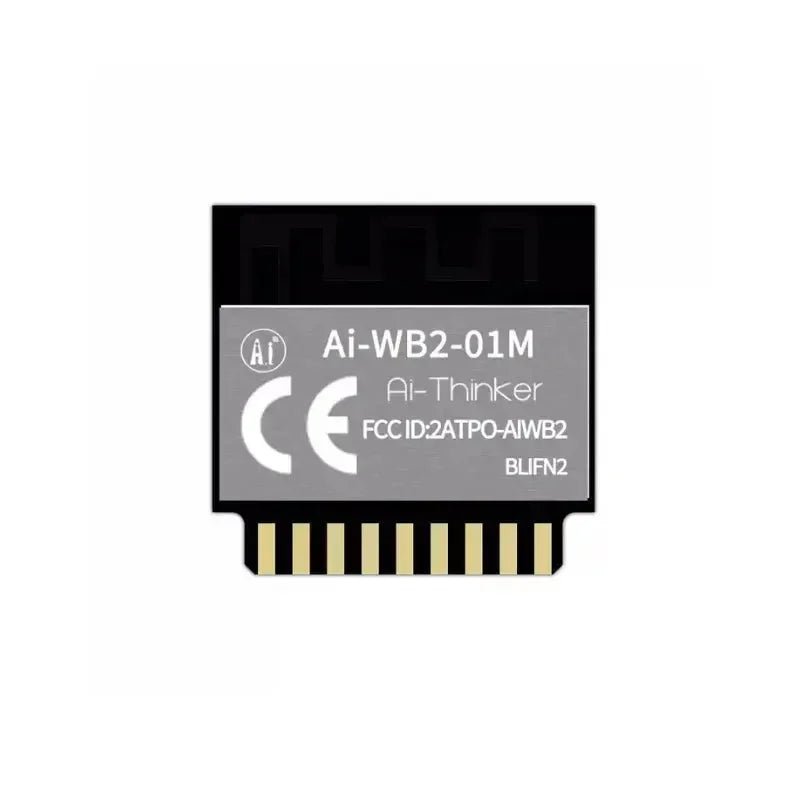

Ai-WB2-01M is a Wi-Fi&BT module.
The module is equipped with a BL602 chip as the core processor and supports Wi-Fi802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low-power 32-bit RISC CPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR GPIO, etc. It can be widely used in the Internet of Things(IoT), mobile devices, wearable electronic devices, smart homes, and other fields.

Product Details

Ai-WB2-01M Specification

Product parameter

Features

• The package is DIP-18

• Support IEEE 802.11 b/g/n protocol

• Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3

• Support 20MHz bandwidth and the Max rate is 72.2 Mbps

• Bluetooth BLE 5.0, Bluetooth Mesh

• Support Station + BLE mode、Station + SoftAP+BLE mode

• Support 32-bit RISC CPU, 276KB RAM

• Secure start-up supports mirroring with ECC-256 signature

• Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128CTR mode

• Support AES 128/192/256-bit encryption engine

• Support SHA-1/224/256

• Support true Random number generator (TRNG)

• Public key Accelerator (PKA), supports a large number of basic operations, and software provides signature, verification, and other application program interface

• Support SDIO, SPI, UART, I2C, IR remote, PWM, ADC, DAOC, PIR, GPIO, etc

• Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT

• Support a variety of sleep modes, deep sleep current 12μA

• Universal AT instruction for quick start

• Support secondary development, integrated Windows, and Linux development environment

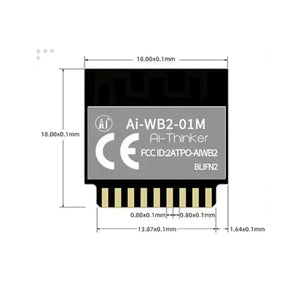

Product Size
