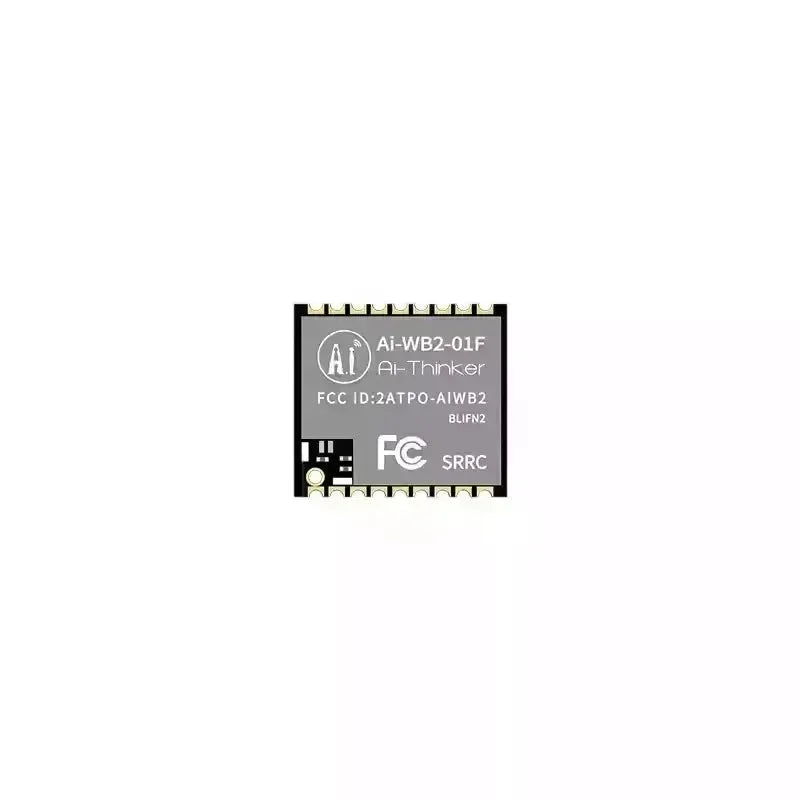

Ai-Thinker Ai-WB2-01F-BLIFN2 WIFI6+BLE5.3+Thread

Ai-WB2-01F is a Wi-Fi&BT module.
The module is equipped with a BL602 chip as the core processor and supports Wi-Fi802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip is equipped with a 32-bit RISC CPU with low power consumption, 192 Hz main frequency, 276KB RAM, and abundant peripheral interfaces, including SPI, UART, I2C, PWM, ADC, DAC, and GPIO.
It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields.

Product Details

Ai-WB2-01F Specification

Features

• The package is SMD-18

• Support IEEE 802.11 b/g/n protocol

• Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2Enterprise/WPA3

• Supports 20MHz bandwidth and the Max rate is 72.2 Mbps

• Bluetooth BLE 5.0, Bluetooth Mesh

• Support Station + BLE mode、Station + SoftAP+BLE mode

• Support 32-bit RISC CPU, 276KB RAM

• Secure start-up supports mirroring with ECC-256 signature

• Support QSPI/SPI Flash instant AES decryption (OTFAD), support either AES128 CTR mode

• Support AES 128/192/256-bit encryption engine

• Support SHA-1/224/256

• Support true Random number generator (TRNG)

• Public key Accelerator (PKA), supports a large number of basic operations, software provides a signature, verification, and other application program interface

• Support SPI, UART, I2C, PWM, ADC, DAC, GPIO, etc

• Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT

• Support a variety of sleep modes, deep sleep current 12μA

• Universal AT instruction for a quick start

• Support secondary development, integrated Windows, Linux development environment

Main parameters
