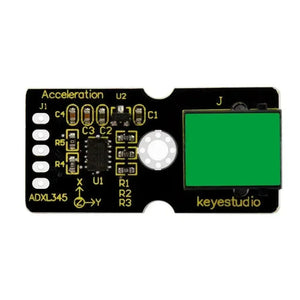

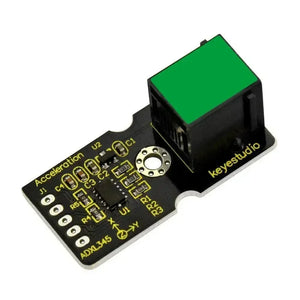

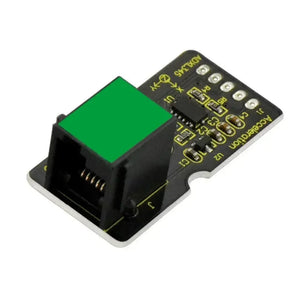

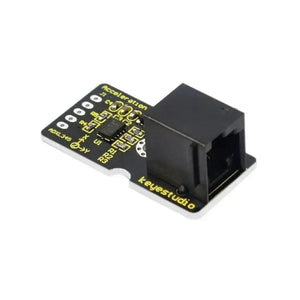

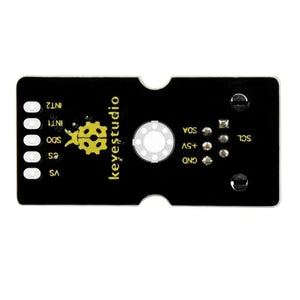

EASY PLUG ADXL345 Three Axis Acceleration Module - OpenELAB

The ADXL345 module is a low power, 3-axis MEMS accelerometer with high resolution (13-bit) and measurement at up to ±16g (gravitational force).
Digital output data is formatted as 16-bit twos complement, and is accessible through either a SPI or I2C digital interface.
The ADXL345 is well suited to measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock.

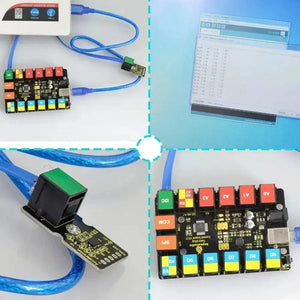

This module needs to be used together with EASY plug control board.

Features

• Connector: Easy plug

• Working Voltage: 2.0-3.6V

• Ultra Low Power @2.5v: 40uA /working mode; 0.1uA / standby mode

• Communication interface: I2C / SPI

• Tap/Double Tap Detection

• Free-Fall Detection

• Dimensions: 41mm*20mm*18mm

• Weight: 4.6g
