M5Stack M5StickC 8-Channel Servo Driver HAT
- €7,95 EUR
€7,95 EUR- €7,95 EUR
- Unit price
- per
Save €0,00
Free Shipping from 50€ in EU / 80€ Worldwide
- All products are tax-inclusive.
- Product Inventory Location: China
- EU Countries Delivery Time: 1.5 weeks.
- Other Countries Delivery Time: 2 ~ 2.5 weeks.
Note: All products are tax-inclusive.

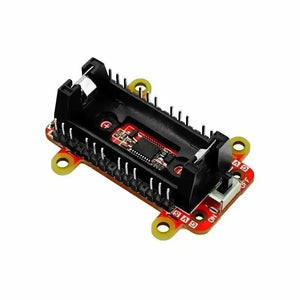

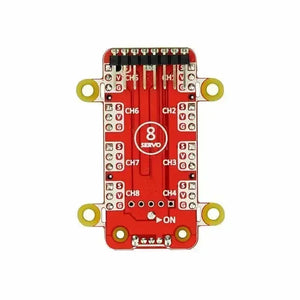

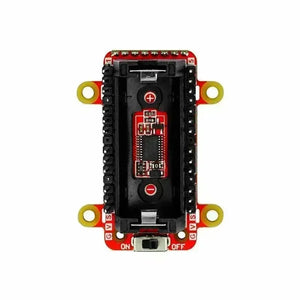

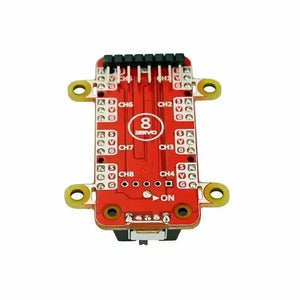

8Servos HAT v1.1 is an 8-channel servo driver module designed specifically for use with the M5StickC/C Plus series. It utilizes an STM32F030F4 microcontroller as the main controller to generate PWM (Pulse Width Modulation) signals for driving servos.
The module communicates with the M5StickC/C Plus via the I2C communication protocol, allowing for easy integration and control. This enables the M5StickC/C Plus to send commands and control the movement of up to eight servos connected to the module.
8Servos HAT v1.1 features an embedded power management circuit, which allows for servo ON/OFF control through programming. This means that the M5StickC/C Plus can selectively activate or deactivate individual servos as needed, providing fine-grained control over servo movements and power consumption.

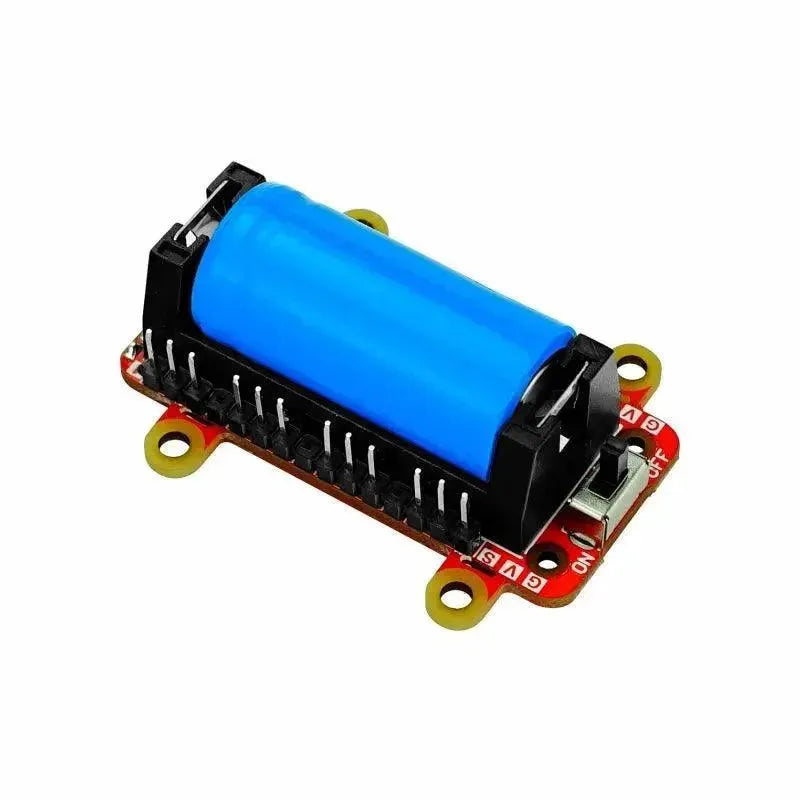

To power the module, it is equipped with a rechargeable 16340 lithium battery with a capacity of 700mAh. This battery provides sufficient power to support a maximum load of 1.3A, ensuring reliable and consistent servo operation.
8Servos HAT v1.1 is well-suited for robotic and DIY projects that require precise control of multiple servos. It enables the M5StickC/C Plus to drive up to eight servos simultaneously, making it ideal for applications such as robotic arm control, animatronics, or other projects that involve mechanical movements.
Product Comparison
| Specification | 8Servos HAT | 8Servos HAT v1.1 |
|---|---|---|
| Motor power control | / | MOS tube control power on/off |
| Reverse Battery Protection | / | With circuit protection |
| Fixing hole | / | 4x fixing holes |
| Programmable RGB LEDs | SK6812 | / |
| I2C ADDR | 0x38 | 0x36 |
Product Features
- 8-channel servo driver
- Programmable servo power control
- 16340 lithium battery
- I2C protocol control (0x36)
- Reverse Battery Protection
Included

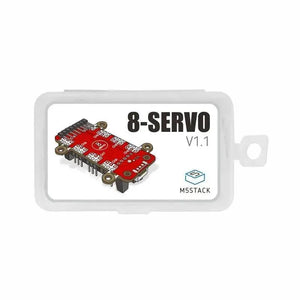

- 1x 8Servos HAT v1.1
- 1x 16340 battery (700mAh)
Applications
- Servo controller
- Robot control
Specification
| Specification | Parameters |
|---|---|
| Lithium Battery | Specification: 16340, Capacity: 700mAh |
| Servo drive channel | 8-channel |
| Maximum drive load capacity | 8-channel maximum load capacity: DC4.2V@1.3A |
| Driver no-load standby current | DC4.2V@2.2uA |
| Fixing hole | M3 |
| Communication Protocol | I2C:0x36 |
| Net weight | 28.3g |
| Gross weight | 39.7g |
| Product Size | 52*38*19mm |
| Package Size | 75*46*29mm |
