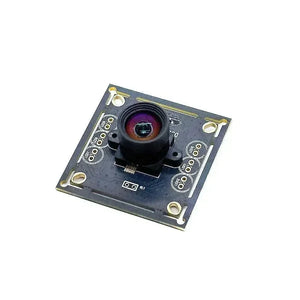

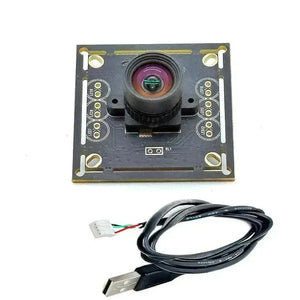

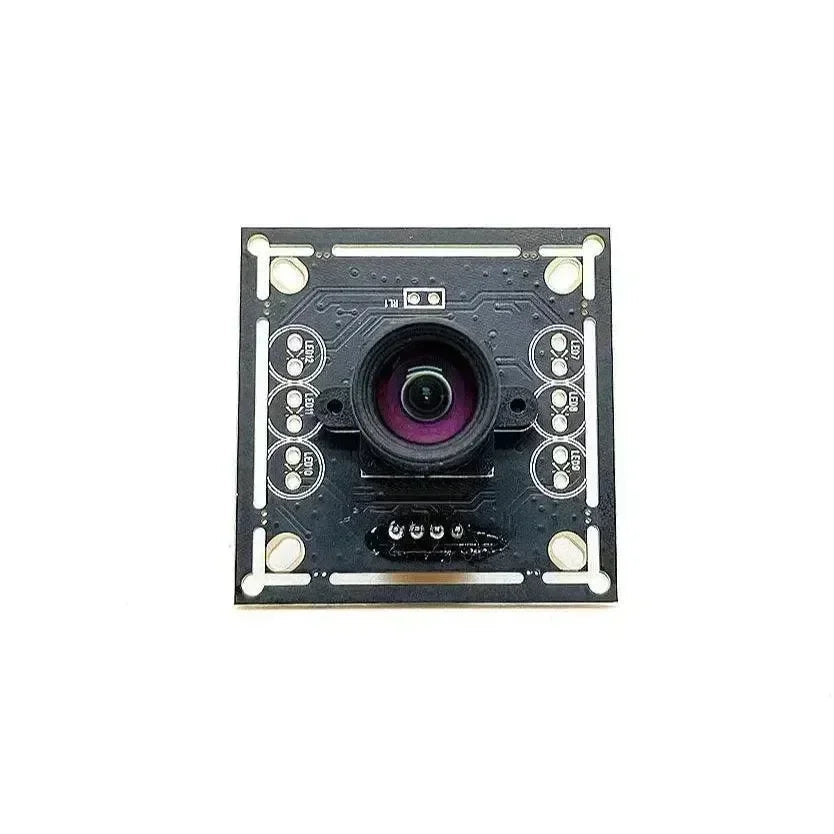

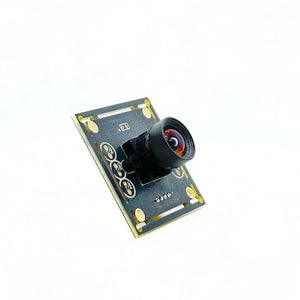

720P USB Camera Module for Face Recognition Image Acquisition
📦 Location of the warehouse: China
Free shipping for you
Free Shipping from 30€ in Germany, 50€ in the EU!
Trustpilot rating: 4.4/5.0
Thank you for your support - rate us on Trustpilot!
720P USB Camera Module for Face Recognition Image Acquisition
Product Parameters
Sensor: 720P CMOS
Lens Size: 1/4
The most effective pixel: FULL HD 1280(H)X720(V)
Output image format: MJPEG / YUV2 (YUYV)
Supported resolution:
320*240 MJPEG@30fps 352*288 YUV2@30fps
352*288 MJPEG@30fps 640*480 YUV2@25fps
800*600 MJPEG@30fps 320*240 YUV2@30fps
1280*720 MJPEG@25fps 800*600 YUV2@15fps
640*480 MJPEG@25fps 1280*720 YUV2@10fps
Special function: Lens correction/ Defective pixel correction/ Black sun cancellation
Minimum illumination: 0.051lux
Shutter type: Electronic rolling shutter / Frame exposure
USB protocol: USB2.0 HS/FS
Interface type: USB2.0 High Speed
Support OTG protocol: USB2.0 OTG
Support free drive protocol: USB Video Class (UVC)
Automatic exposure control AEC: Support
Automatic white balance AEB: Support
Automatic gain control AGC: support
Adjustable parameters: brightness, contrast, color saturation, hue, clarity
Gamma White balance Backlight contrast Exposure
Lens: 2.8/3.6/6/8/2/16/2.8-12(Manual)mm for optional
Night vision function: support, need to cooperate with infrared lens 850 or 940nm, with infrared light board to achieve
Infrared light board power supply interface: support 2P-2.0mm socket
Power supply mode: USB BUS POWER 4P-2.0mm socket
Working voltage: DC 5V
Working current: 120mA~220mA
Working temperature: 0～60℃

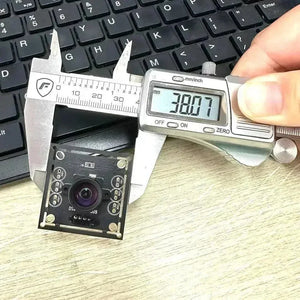

Board size/weight: 38X38mm (compatible with 32X32mm) / about 30g

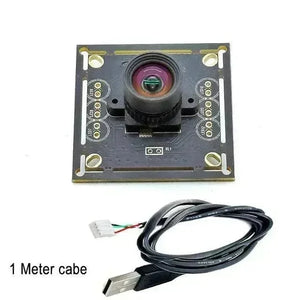

Cable length: standard 1 meter / cable
Supported systems:
WinXP/Vista/Win7/Win8
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
