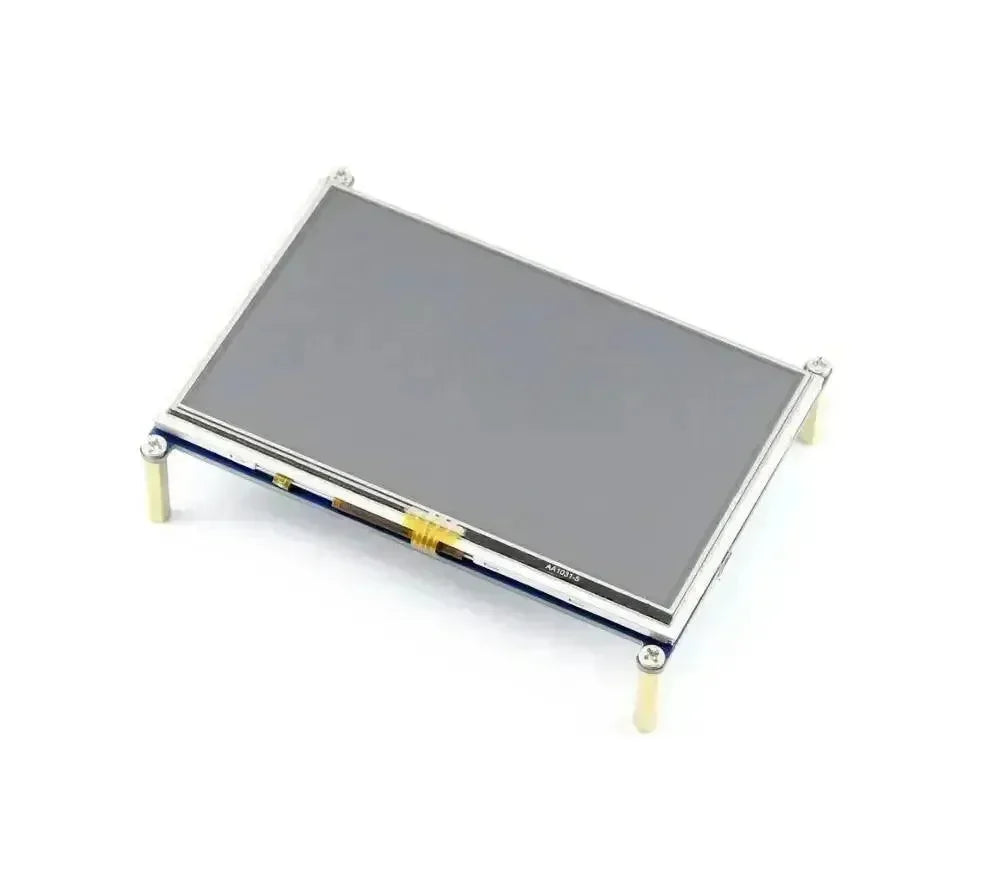

Waveshare 5 inch LCD Touch Screen 800*480 LCD Display for Raspberry Pi
Pre-order
Free Shipping from 30€ in Germany, 50€ in the EU!
- Pre-orders will be shipped in 5 working days.
- EU & US Countries Delivery Time: 10 working days.
- Other Countries Delivery Time: 15 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished. For specific delivery times, please feel free to contact us for inquiries.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
Waveshare 5 inch LCD Touch Screen 800*480 LCD Display for Raspberry Pi
Features
- 480x320 hardware resolution, software configurable up to 1920x1080
- Resistive touch control
- IPS technology, high quality and perfect displaying from very wide viewing angle

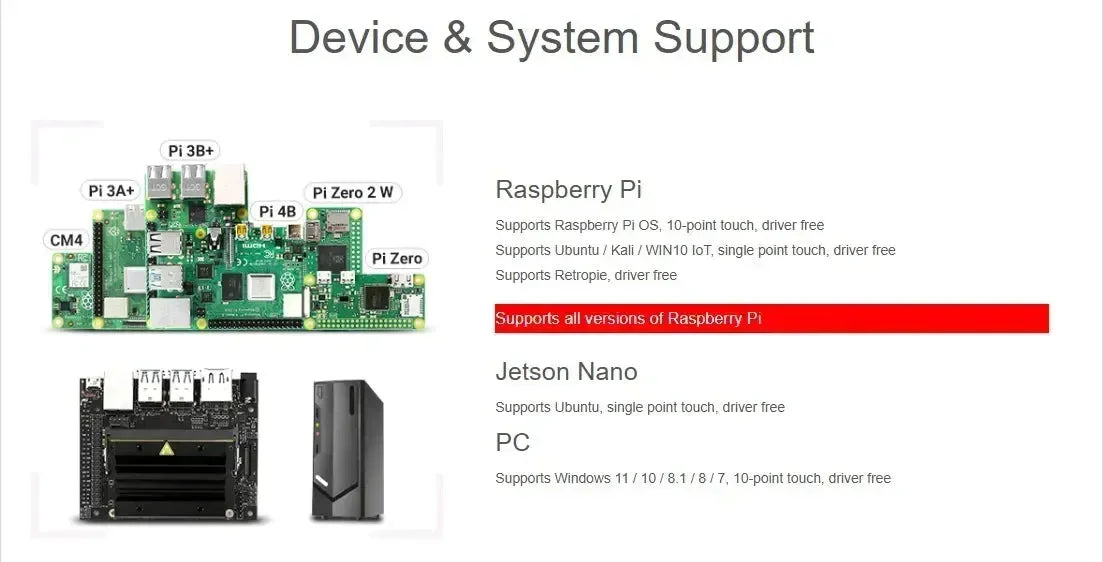

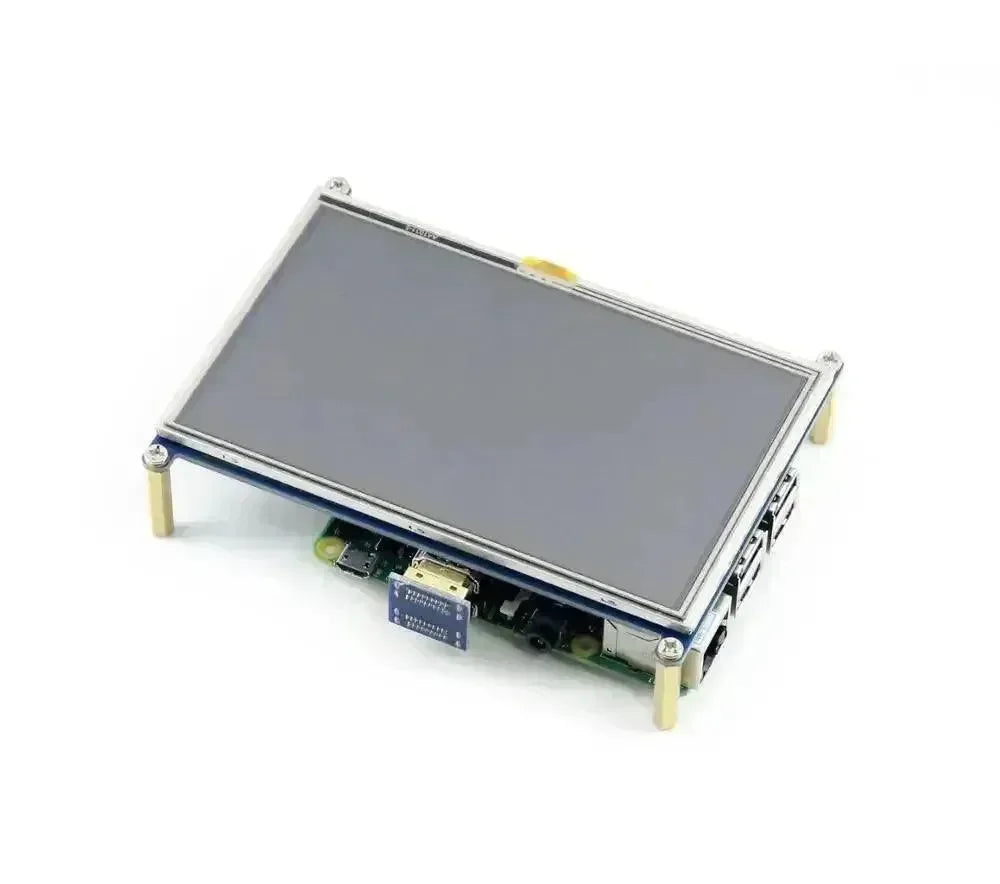

- Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
- Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
- Supports FBCP software driver as well, allows to config software resolution and set up dual-display
- Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
- HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
- Multi-languages OSD menu, for power management, brightness adjustment, contrast adjustment, etc.
- Supports 100-level backlight adjustment
- Supports HDMI audio output
Using with Game Consoles
|
PART NUMBER |
MICROSOFT XBOX |
SONY PS4 |
NINTENDO SWITCH |
|||
|
DISPLAY |
SOUND |
DISPLAY |
SOUND |
DISPLAY |
SOUND |
|
|
√ |
√ |
√ |
√ |
√ |
√ |
|
|
√ |
√ |
√ |
√ |
√ |
√ |
|
|
√ |
√ |
√ |
√ |
√ |
√ |
|
|
√ |
√ |
√ |
√ |
√ |
√ |
|
|
√ |
× |
√ |
× |
√ |
× |
|
|
√ |
√ |
√ |
√ |
√ |
√ |
|
|
√ |
× |
√ |
× |
√ |
× |
|
|
× |
× |
× |
× |
√ |
× |
|
|
√ |
√ |
× |
× |
√ |
√ |
|
|
√ |
√ |
√ |
√ |
√ |
√ |
|
|
√ |
√ |
√ |
√ |
√ |
√ |
|
|
√ |
√ |
√ |
√ |
√ |
√ |
|
Note:
- Limited by the game console OS, the touch function is unavailable.
- Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.
Interface
|
PIN NO. |
SYMBOL |
DESCRIPTION |
|
1, 17 |
3.3V |
Power positive (3.3V power input) |
|
2, 4 |
5V |
Power positive (5V power input) |
|
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 |
NC |
NC |
|
6, 9, 14, 20, 25 |
GND |
Ground |
|
19 |
TP_SI |
SPI data input of Touch Panel |
|
21 |
TP_SO |
SPI data output of Touch Panel |
|
22 |
TP_IRQ |
Touch Panel interrupt, low level while the Touch Panel detects touching |
|
23 |
TP_SCK |
SPI clock of Touch Panel |
|
26 |
TP_CS |
Touch Panel chip selection, low active |
