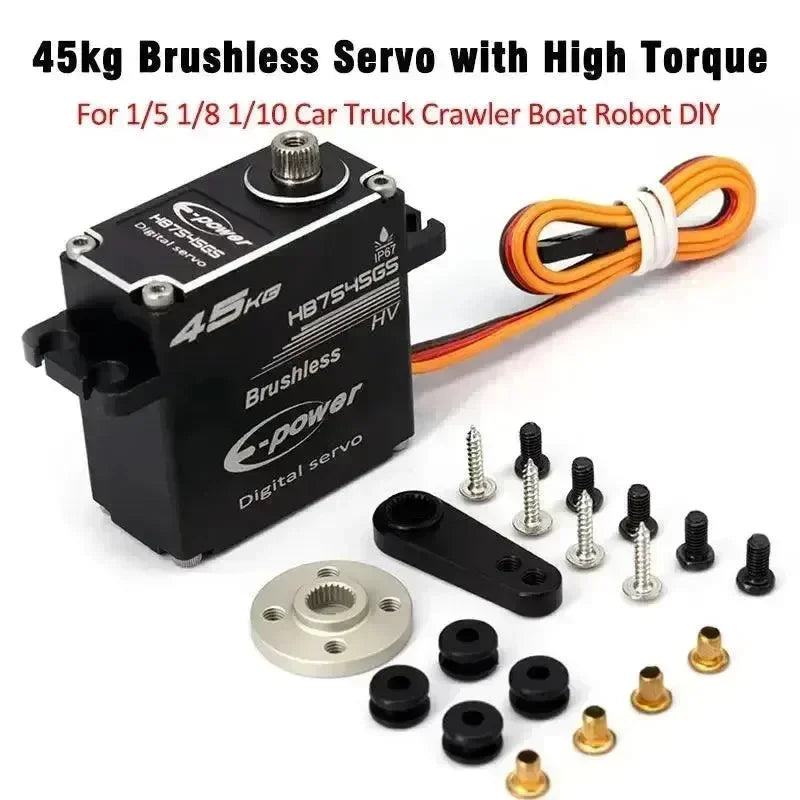

E-POWERRC 45KG Digital Servo
E-Power 45KG Monster Torque 0.11s High Speed Magnetic Waterproof Digital Brushless Servo For 1/8 1/10 RC Model Cars
Specifications:
Brand: E-power
Model: HB7545GS
Ball Bearing: 2BB
Diver type: Mos Drive
Motor Type: Brushless motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Dead band width: 1 usec
Gear Material: Metal Gear

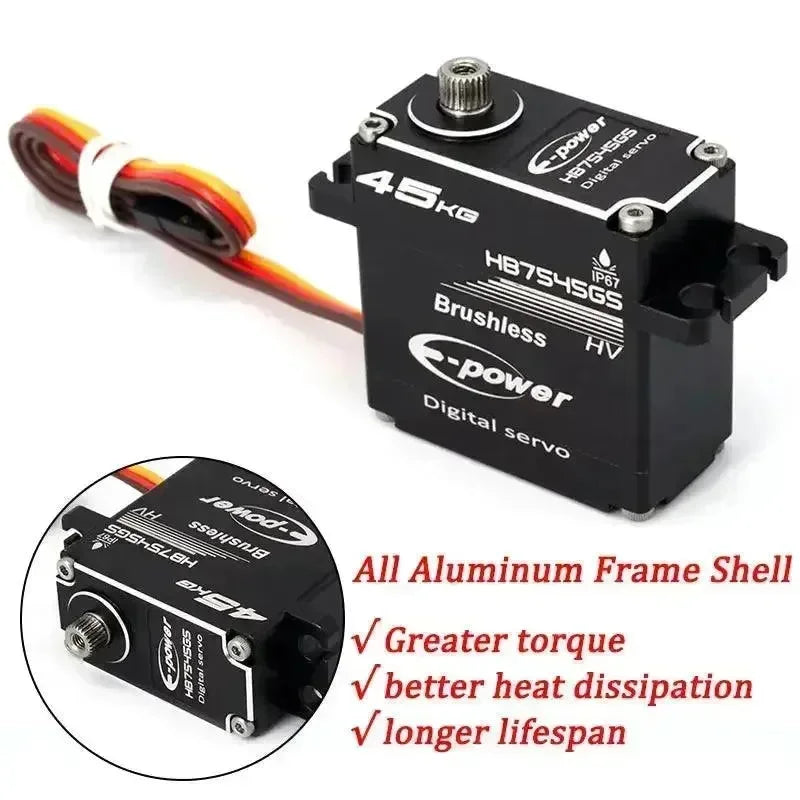

Case Material: Aluminum Case
Operation Voltage Range: 6.0V ~8.4V
Operation Temperature Range: -20C°~ +60C°

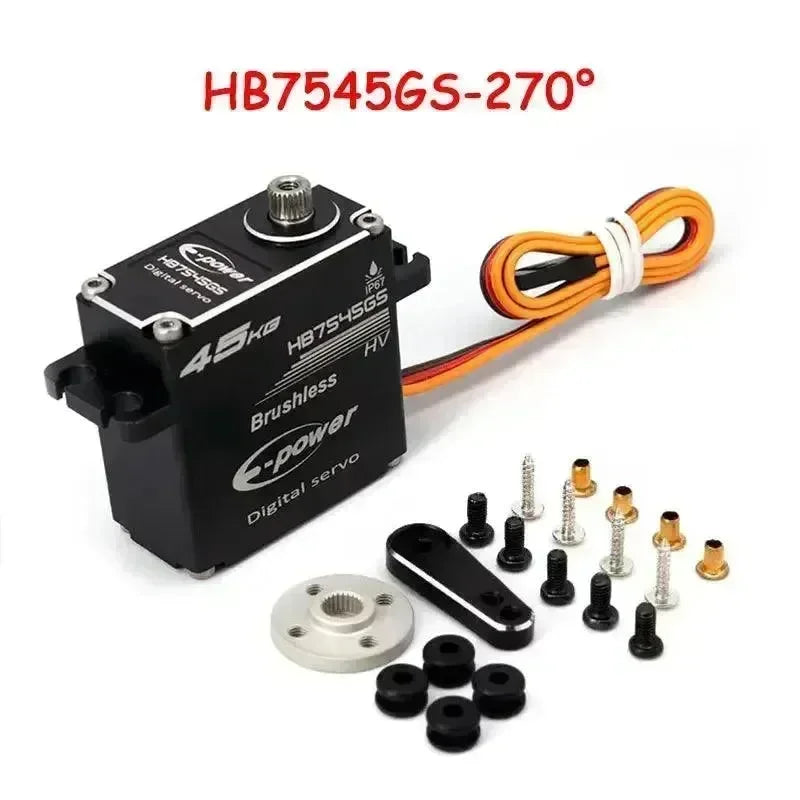

Control Angle: 180°/270°/360° Optional
Direction: Re-clock wise/ Pulse Travel 500→2500 μsec
Control System: PWM Control (1500usec in the central point)
Circle: ＞100 milion times without load
Operation Travel: 60°±1
Limit angle: 180°± 1
Dimensions: 40x20x40.50mm
Weight: 78g (without servo horn)
Standing Torque: 0.12sec/60°,34kg-cm-@6.00V ;0.09sec/60°,41kg-cm-@7.4V
Idle Current: 300mA-@6.00V ; 320mA-@7.4V
Running Current: 4500mA-@6.00V ; 5500mA-@7.4V
Connector Wire Length: 300MMJR JST Plug
Connector Wire Gauge: 22AWG
Wire Info (Brown): Negative
Wire Info (Red): Positive
Wire Info (Black): Negative
Wire Info (Yellow): S Sinqle
Package included:
1 x Servo
1 x Servo Accessories
Note:
Due to the different monitor and light effect, the actual color maybe a slight different from the picture color.
Please allow 1-3mm differs due to manual measurement.
