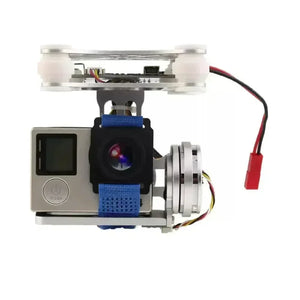

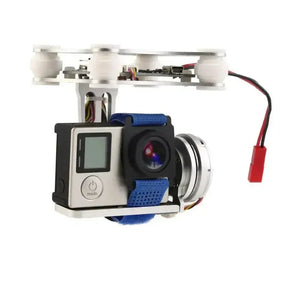

2-Axis Brushless Gimbal Frame With Motors & Storm32 Controller

🏭 Product Inventory Location: China

€48,59 EUR
€36,14 EUR
€48,59 EUR
Please hurry! Only 200 left in stock
Type: Black without camera
Subtotal: €48,59

Free Shipping from 30€ in Germany, 50€ in the EU & US!

- All products are tax-inclusive.

- EU Countries & US Delivery Time: 2 weeks.

- Other Countries Delivery Time: 2.5 ~ 3 weeks.

RUSH TANK MAX SOLO 5.8GHz VTX Video Transmitter - OpenELAB

2-Axis Brushless Gimbal Frame With Motors & Storm32 Controller

€36,14 €48,59

2-Axis Brushless Gimbal Frame With Motors & Storm32 Controller

€36,14 €48,59
Type: Black without camera

note: This product does not include a camera.

Product Specifications(without camera)

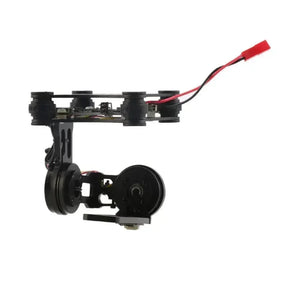

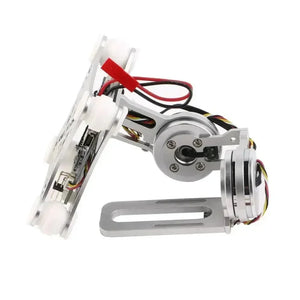

  • Colors: Black or Silver

  • Material: CNC Aluminum Alloy

  • Motor: 2208 KV80 Brushless Motor

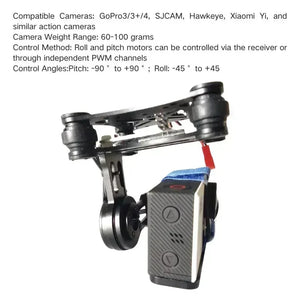

  • Control Angles: Pitch (-90° to +90°) / Roll (-45° to +45°)

  • Control Mode: Roll/Pitch

  • Camera Compatibility: GoPro 3/3+/4, SJCAM, Hawkeye, Xiaomi Yi, etc. (60-100g cameras)

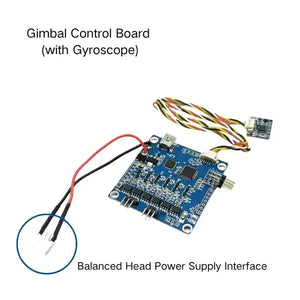

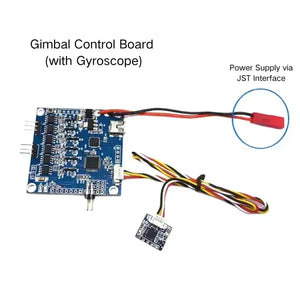

  • Control Board: BGC3.0 Brushless Controller

  • Software: BGC2.2

  • Battery Connector: JST/XH-2.54

  • Power: 12V (3-cell LiPo battery)

  • Compatibility: DJI Phantom 1/2, DIY drones

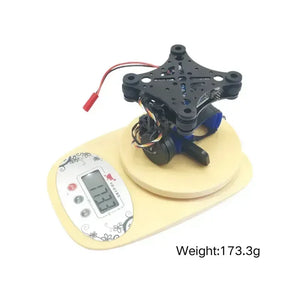

  • Weight: 170g

  • Package Size: 125mm × 125mm × 105mm

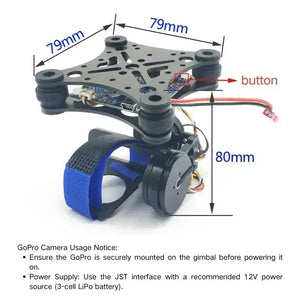

Precautions:

  1. Recommended Power Supply: 12V (3-cell LiPo battery).

  2. Secure Camera Mounting: Ensure the GoPro is firmly fixed on the gimbal, with no looseness.

  3. Camera Alignment: Adjust the GoPro left or right until it is level.

  4. Important: Do not power on the gimbal before mounting the GoPro securely.

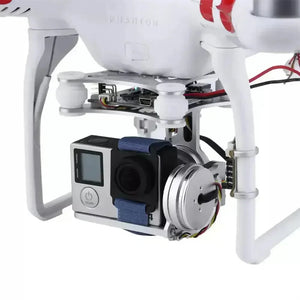

Installation Process (Usage Instructions):

  1. Remove the shock-absorbing balls and open the top cover of the mounting plate.

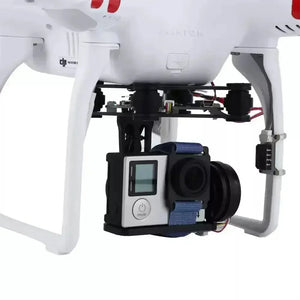

  2. Mount the gimbal’s upper plate to the bottom of the DJI Phantom and secure it with screws.
  3. Reinstall the shock-absorbing balls.
  4. Attach your GoPro camera and secure it with straps.

Usage Notes:

  • Always mount the camera firmly before powering on to avoid shaking and damage to the control board.
  • Keep the gimbal suspended before powering on; it will auto-level upon startup.
  • Red LED indicates power, yellow LED flashes and stays lit when the gyroscope functions correctly.
  • Control pitch and roll motors via the receiver or individual PWM channels.
