1MP HBVCAM-2346 V11, 100 degree - distortion free large lens
Features
-
High-Performance Sensor: Equipped with a 1MP OV9782 (1/4") image sensor, supporting color global shutter.
-
High Resolution and Frame Rate: Supports 1280×720 resolution, MJPEG format, with a maximum frame rate of 120FPS.
-
Ultra-Wide Field of View: Features a 100° field of view with distortion-free imaging.
-

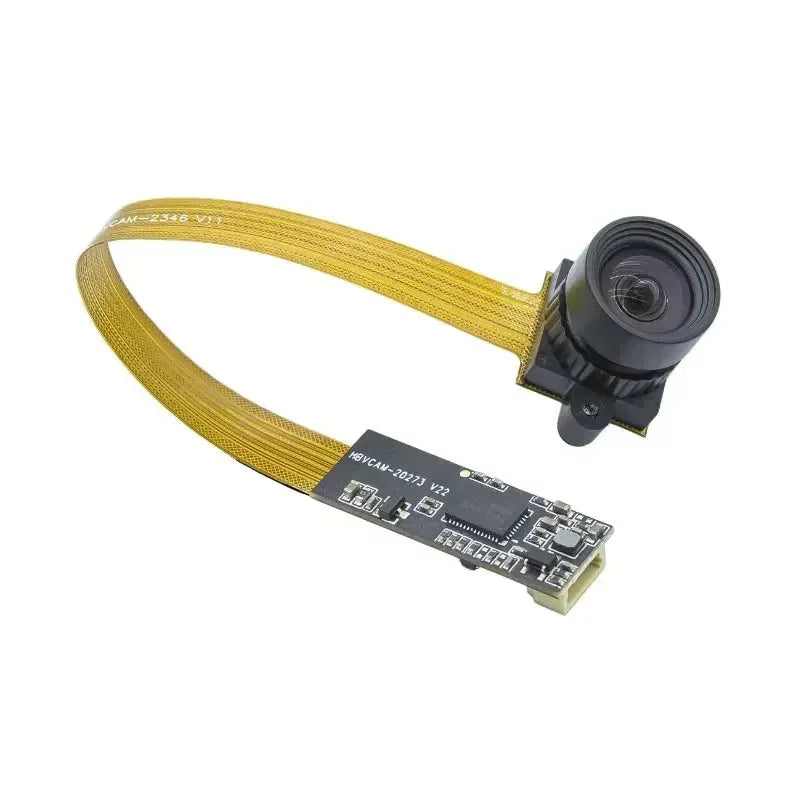

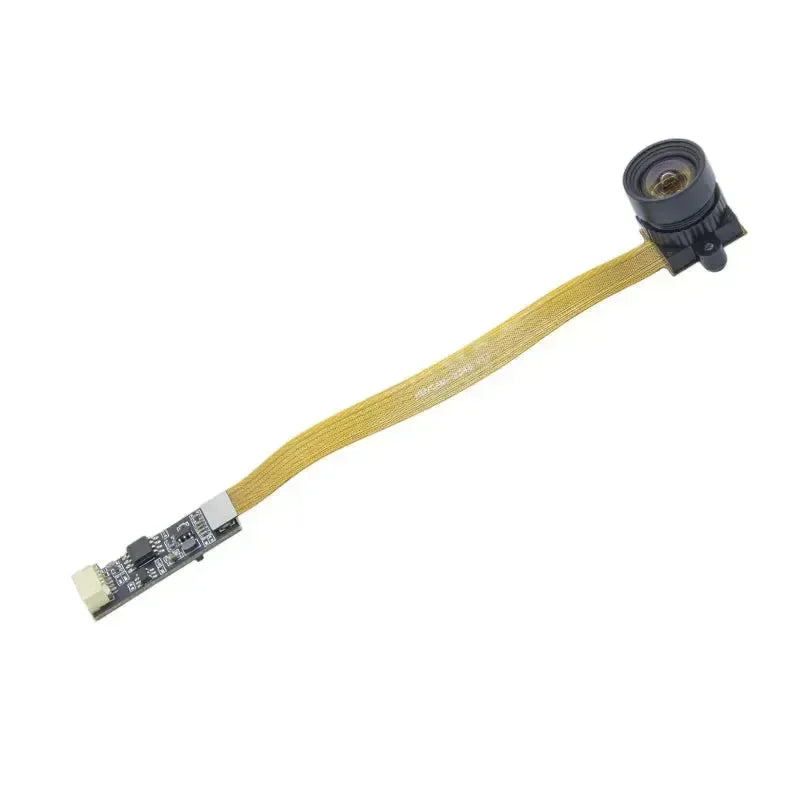

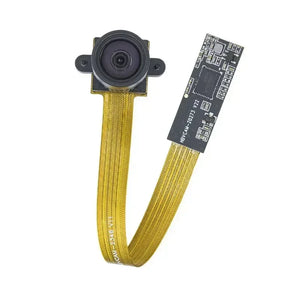

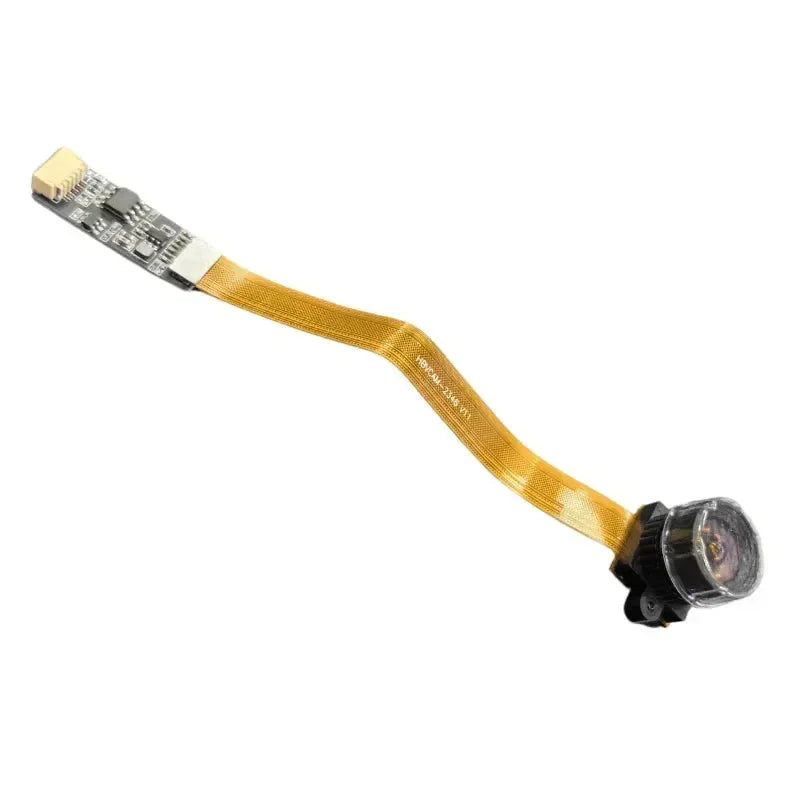

Flexible Design: Split structure with soft and hard boards; the FPC (flexible printed circuit) is foldable, allowing for versatile installation in various embedded devices.
-
Versatile Applications: Ideal for high-speed light scanning, barcode recognition, and other embedded device applications.
-
Premium Build Quality: The camera head measures 17×17mm with 18 mounting holes for screws, ensuring flexible fixation. The hardboard measures 28×10mm.
Camera Module Specifications
| Parameter | Value |
| Module No. | HBVCAM-2346 V11 |
| Module Size | 123.5mm × 22mm × 15.2mm ± 0.5mm |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| Interface | USB 2.0 |
| Power supply | USB bus power |
| Supply voltage | DC 5V ± 5% |
| Maximum Power consumption | 640 mW |
| Operating system request | Win XP/Win 7/8/Vista/Android 4.0/Mac/Linux with UVC |
| Sensor | OV9782 (1/4") |
| Sensor Package | CSP, Bare Die |
| Maximum resolution | 1280×720 |
| Sensitivity | 1300mV (lux-sec) |
| Pixel Size | 3μm × 3μm |
| Maximum Image Transfer Rate | 320×240@120FPS/640×480@120FPS/800×600@100FPS/1280×720@120FPS |
| S/N Ratio | 38 dB |
| Max Dynamic Range | 68 dB |
| Shutter type | Global shutter colors |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | No |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.7 mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
Module Mechanical Dimension
Specifications
-
FPC Length: 100mm
-
FPC Thickness: 15.2mm ± 0.5
-
Test Cable: Supports 5P-1.0MM interface, 50CM length.
