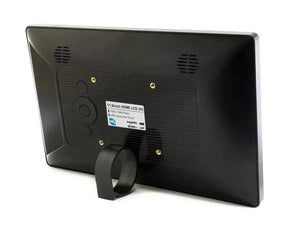

Waveshare 11.6 inch HDMI touch display back view

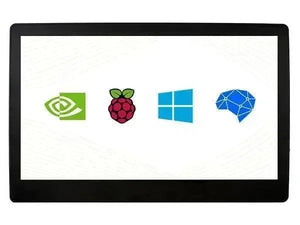

Waveshare 11.6 inch HDMI touch display front view
Waveshare 11.6 inch HDMI touch display front view with stand

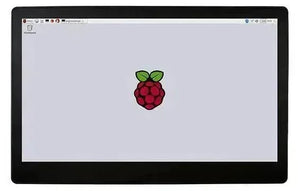

Waveshare 11.6 inch HDMI touch display product image

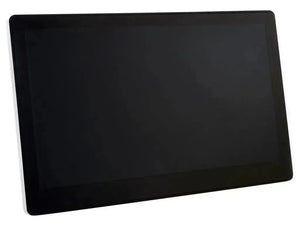

Waveshare 11.6 inch HDMI touch display side angle
Waveshare 11.6 inch HDMI touch display back view
Waveshare 11.6 inch HDMI touch display front view
Waveshare 11.6 inch HDMI touch display front view with stand
Waveshare 11.6 inch HDMI touch display product image
Waveshare 11.6 inch HDMI touch display side angle

Waveshare 11.6" HDMI Touch Display | 1920x1080 IPS | USB Touch

SKU: Waveshare-15492
Sale price 230,84 €
incl. VAT

Shipping within 72 hours

*Excluding pre-order items

Visa
PayPal
Mastercard
American Express
Shop Pay
Waveshare 11.6" HDMI Touch Display | 1920x1080 IPS | USB Touch

Waveshare 11.6" HDMI Touch Display | 1920x1080 IPS | USB Touch

230,84 €

Waveshare 11.6 inch HDMI Touch Display is a 1920 x 1080 IPS capacitive touch monitor designed for Raspberry Pi, Jetson Nano, Windows PCs, mini PCs, and other HDMI hosts. Based on official Waveshare materials, this 11.6inch HDMI LCD (H) (with case) combines a Full HD IPS panel, 10-point capacitive touch, optical bonding, toughened glass, and an integrated enclosure with stand and wall-mount support.

The strongest value of this display is its balance between image clarity, touch usability, and broad compatibility. It fits well into Raspberry Pi dashboards, smart home control panels, industrial HMI, Jetson demo systems, and compact desktop touchscreen setups where 1080p detail, wide viewing angles, and driver-free operation matter.

Waveshare 11.6 inch HDMI LCD front view

Features

  • 11.6-inch IPS panel with 1920 x 1080 Full HD resolution
  • 10-point capacitive touch with USB touch interface on supported systems
  • Toughened glass touch panel with up to 6H hardness
  • Optical bonding structure for reduced internal reflection and improved viewing quality
  • Supports Raspberry Pi OS, Ubuntu, Kali, and Retropie when used with Raspberry Pi
  • Supports Windows 11 / 10 / 8.1 / 8 / 7 as a computer monitor with driver-free touch
  • Supports Jetson Nano with Ubuntu and touch support according to official Waveshare guidance
  • HDMI input plus VGA support on the with-case version
  • 3.5mm audio jack and embedded Hi-Fi speaker for HDMI audio output
  • OSD menu, 75 x 75mm wall mount, and 75 degree tilt stand for flexible installation

Specifications

Parameter Details
Brand Waveshare
Model 11.6inch HDMI LCD (H) (with case)
Screen Size 11.6 inch
Resolution 1920 x 1080
Panel Type IPS
Viewing Angle 178 degree
Display Interface HDMI / VGA
Touch Type Capacitive, 10-point
Touch Interface USB
Touch Panel Material Toughened glass
Surface Hardness Up to 6H
Touch Panel Technology Optical bonding
Audio Embedded Hi-Fi speaker
Audio Output 3.5mm audio jack
OSD Functions Power management, brightness, contrast adjustment
Mounting 75 x 75mm wall-mount holes, M4
Stand 75 degree tilt angle stand
Power Adapter 12V / 1A
Certification CE, HDMI Certified
Actual Weight 1.079 kg

Waveshare 11.6 inch HDMI LCD with Raspberry Pi 4

Applications

  • Raspberry Pi touchscreen dashboards for kiosk systems, smart home panels, and desktop projects
  • Embedded industrial HMI with capacitive touch and enclosure-ready mounting support
  • Jetson Nano demo platforms for AI visualization and interactive prototype displays
  • Mini PC and desktop touch monitor use for secondary screens, control panels, and test benches
  • Game console display use with HDMI hosts such as Xbox 360, PS4, and Nintendo Switch
  • Multimedia terminals needing integrated speaker, audio jack, and Full HD IPS clarity

Packing List

  • 11.6inch HDMI LCD (H) (with case) x1
  • Ring stand x1
  • 12V power adapter x1
  • HDMI cable x1
  • HDMI to Micro HDMI adapter x1
  • USB-A to Micro-B cable x1

Other Content

This display follows the typical Waveshare HDMI LCD design logic, but the main advantage of the 11.6 inch version is that it gives you a larger Full HD IPS workspace without becoming oversized for compact embedded projects. The official guide also shows direct setup paths for Raspberry Pi and PC use, including USB touch connection, HDMI display connection, and Raspberry Pi timing settings when needed.

Waveshare 11.6 inch HDMI LCD with Raspberry Pi Zero

Waveshare 11.6 inch HDMI LCD detail image

Waveshare 11.6 inch HDMI LCD side and interface image

Waveshare 11.6 inch HDMI LCD mounting image

Resources

FAQ

Does this display work with Raspberry Pi boards?

Yes. Official Waveshare documentation lists support for Raspberry Pi OS, Ubuntu, Kali, and Retropie when used with Raspberry Pi.

Does the touch function require a separate connection?

Yes. Display data is carried over HDMI or VGA, while touch data is transmitted through the USB touch interface.

How many touch points are supported?

On supported systems such as Windows, the panel supports up to 10-point capacitive touch. Waveshare also notes Raspberry Pi support in the official guide.

Does this version support VGA?

Yes. The with-case version supports VGA input, and Waveshare notes that a specific cable is required and sold separately for VGA use.

Can I mount this display on equipment or brackets?

Yes. The rear enclosure provides 75 x 75mm wall-mount holes with M4 support for bracket or equipment installation.

Does it include audio output?

Yes. It includes an embedded Hi-Fi speaker and a 3.5mm audio jack for HDMI audio output scenarios.
