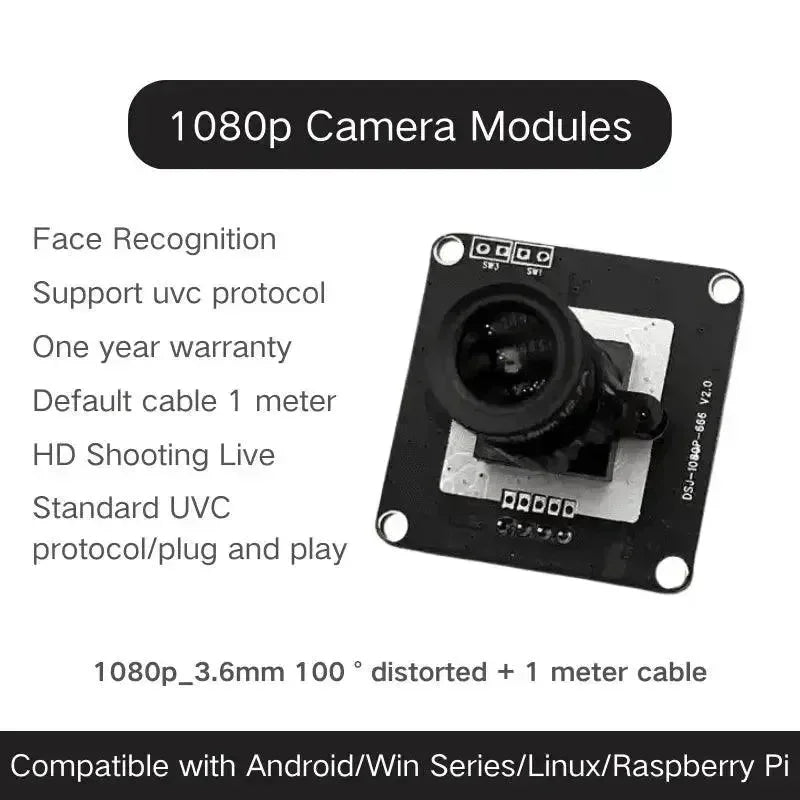

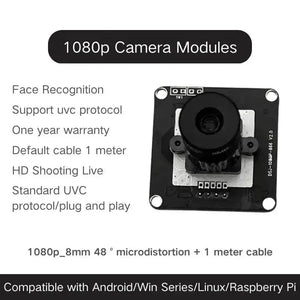

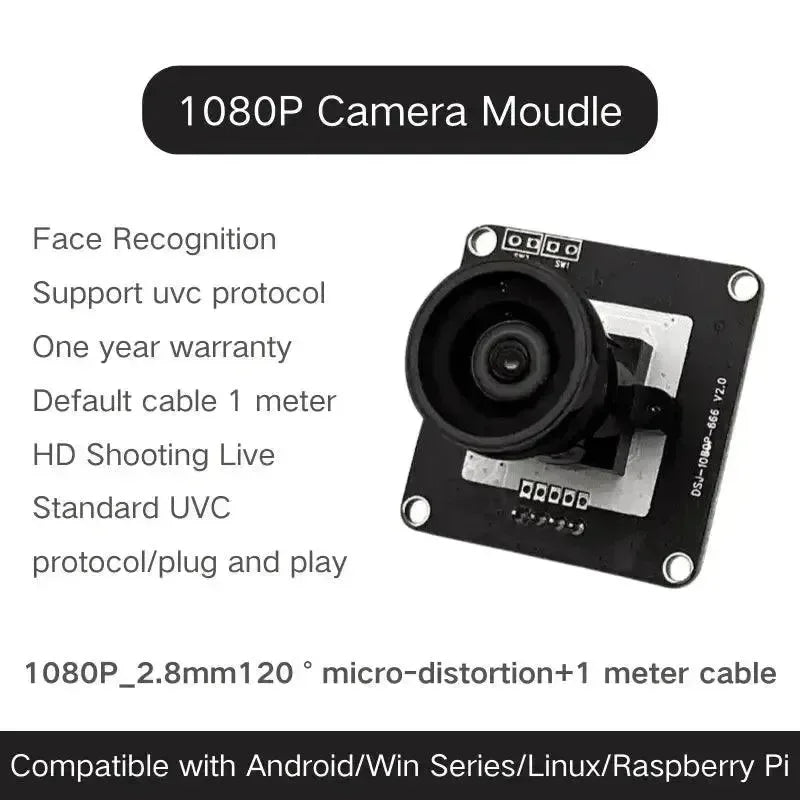

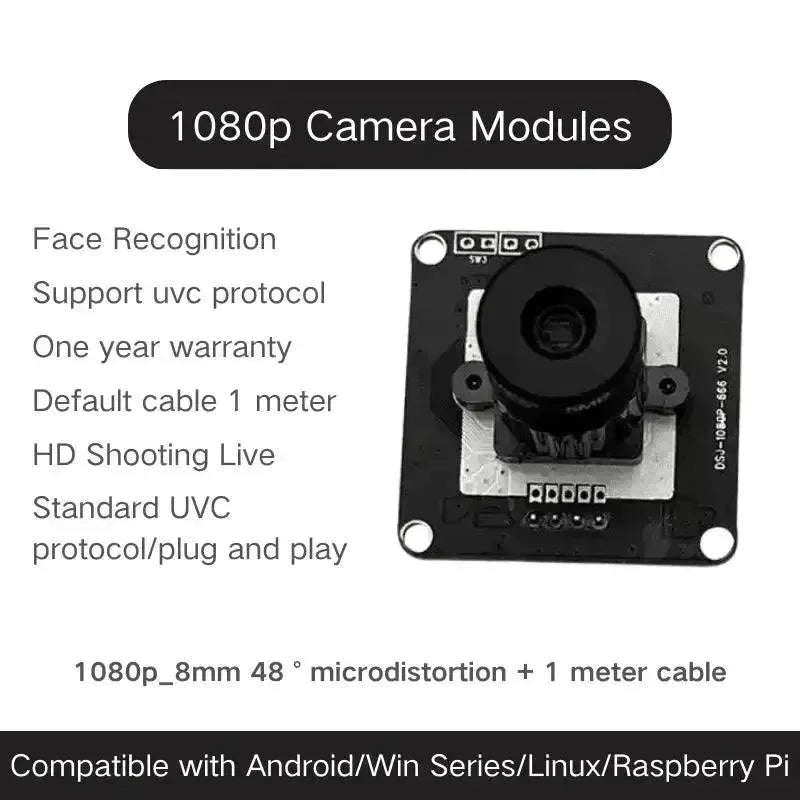

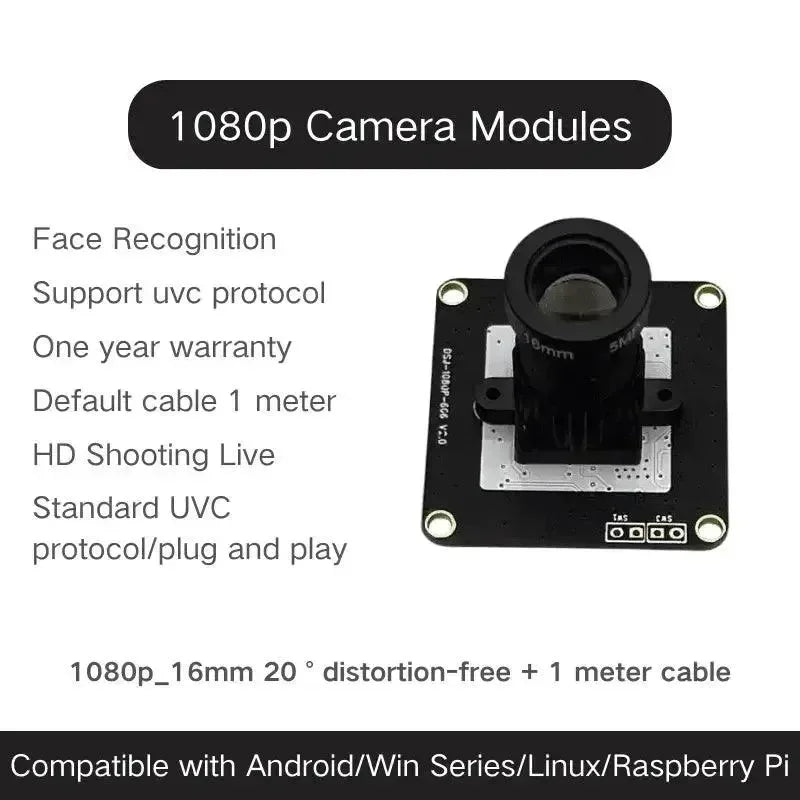

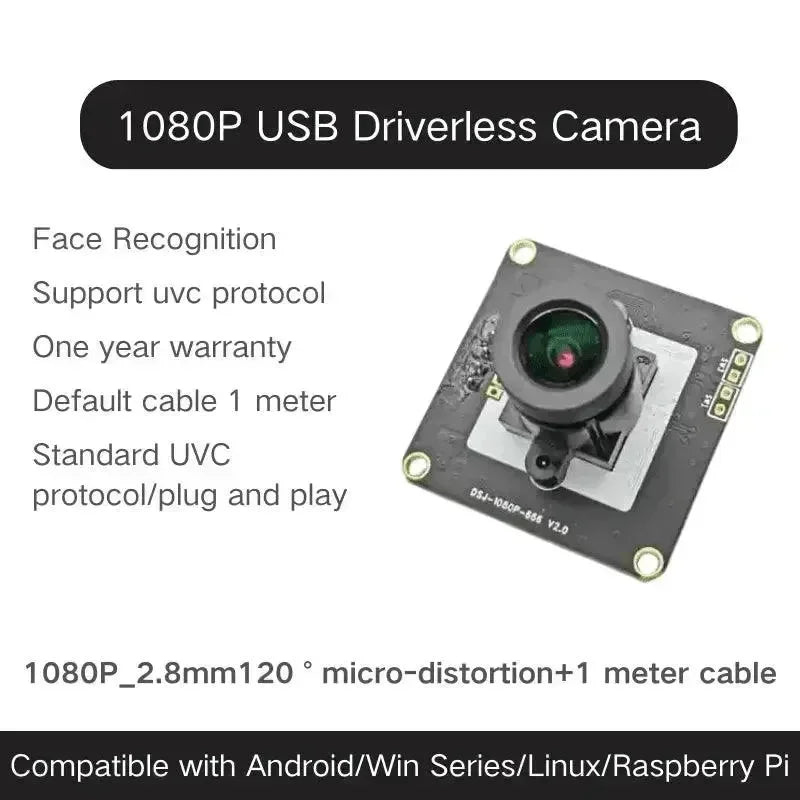

1080P USB Wide Angle Camera Module 1080P OV2710

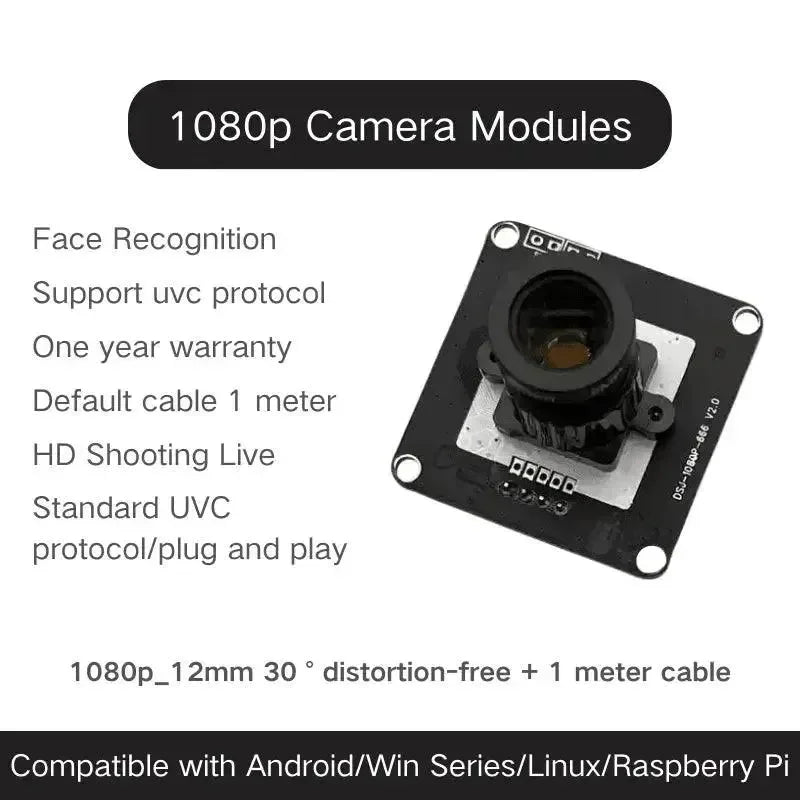

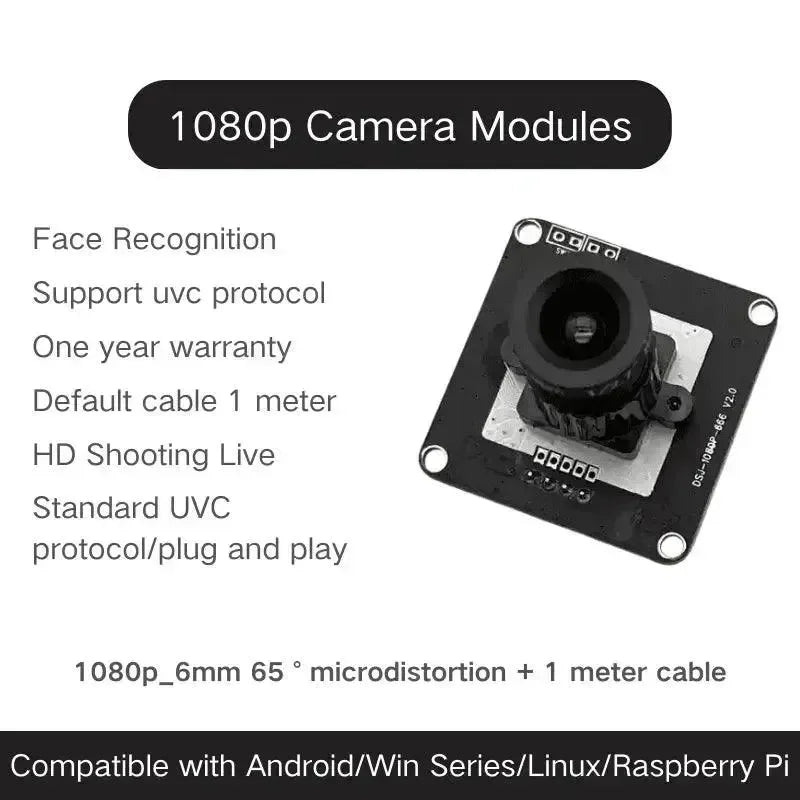

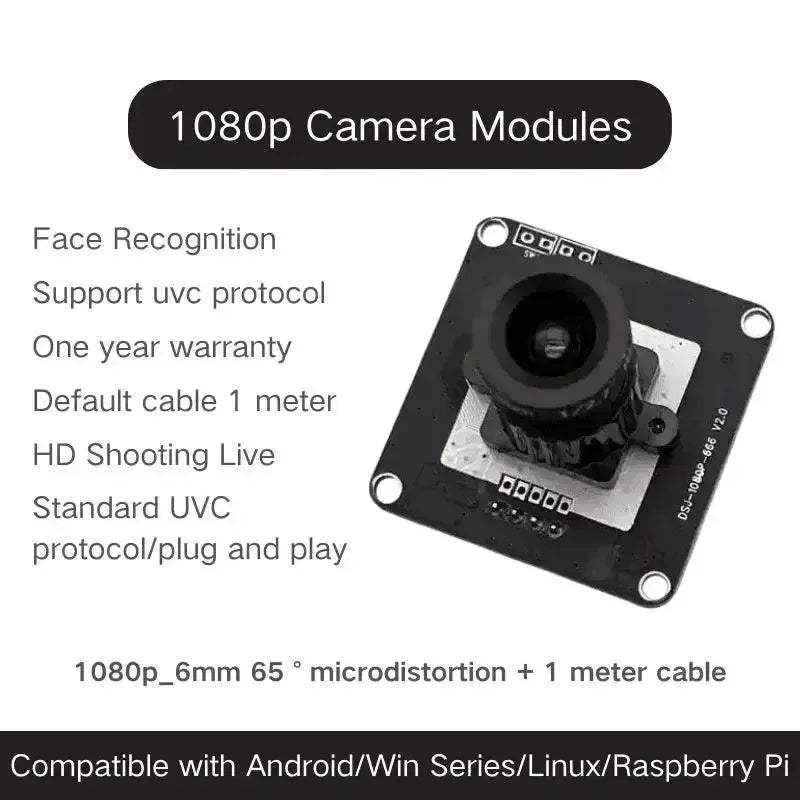

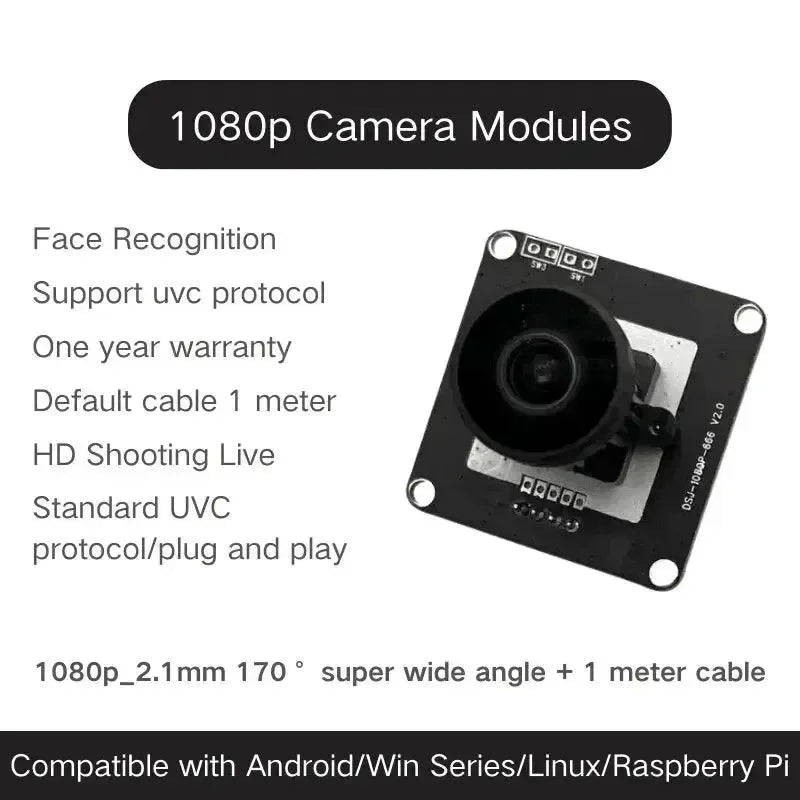

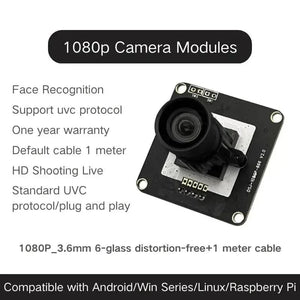

2MP Usb Wide Angle Camera Module 1080P Ov2710 FOV 140/170 Degree Micro Module 30fps For Commercial And Industrial Equipment
Support OEM Order, Drop Shipping and wholesale order:
2.Pixel Optional : 0.3MP，1MP，2MP，5MP，8MP and 13MP;
3.Viewing angle Optional: 68°，80°，90°，100°, 120°, 150°, 170° or as per your request;

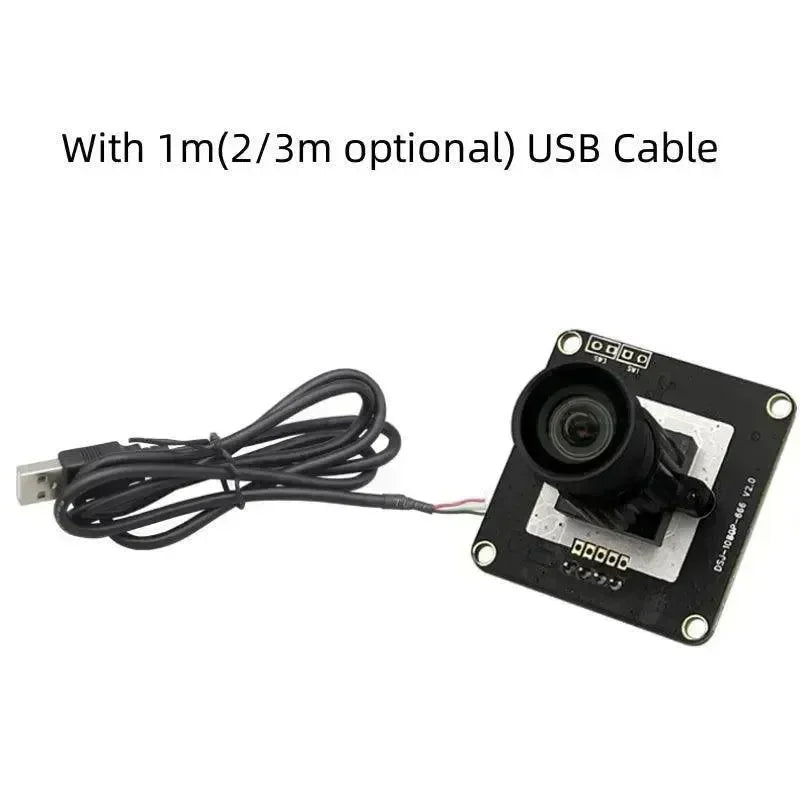

4.With 1m(2/3m optional) USB Cable;
5.Customized logo ≥100PCS
6.Customized packaging ≥100PCS;
7.Graphic customizationb≥100PCS.
Product parameters:
CMOS/photosensitive model: OV2710
Photosensitive size: 1/2.7 inch
Single pixel size: 3μm x 3μm
Photosensitive signal-to-noise ratio: TBD
USB interface type: USB2.0
Effective maximum resolution & frame rate: 1920(H)X1080(V)/30fps.MJPG
Common Resolutions & Frame Rates:
1920X1080 FHD MJPEG@30fps
1280X1024 SXGA MJPEG@30fps
1280X720 HD MJPEG@30fps
1024X768 XGA MJPEG@30fps
800X600 SVGA MJPEG@30fps
640X480 VGA MJPEG @30fps
480X320 MJPEG@30fps
320X 240MJPEG@30fps
Working voltage and current: 5V*120mA~220mA
Adapt to the working environment temperature: 0 to 60 degrees
Storage temperature, humidity: minus 20 to plus 75 degrees

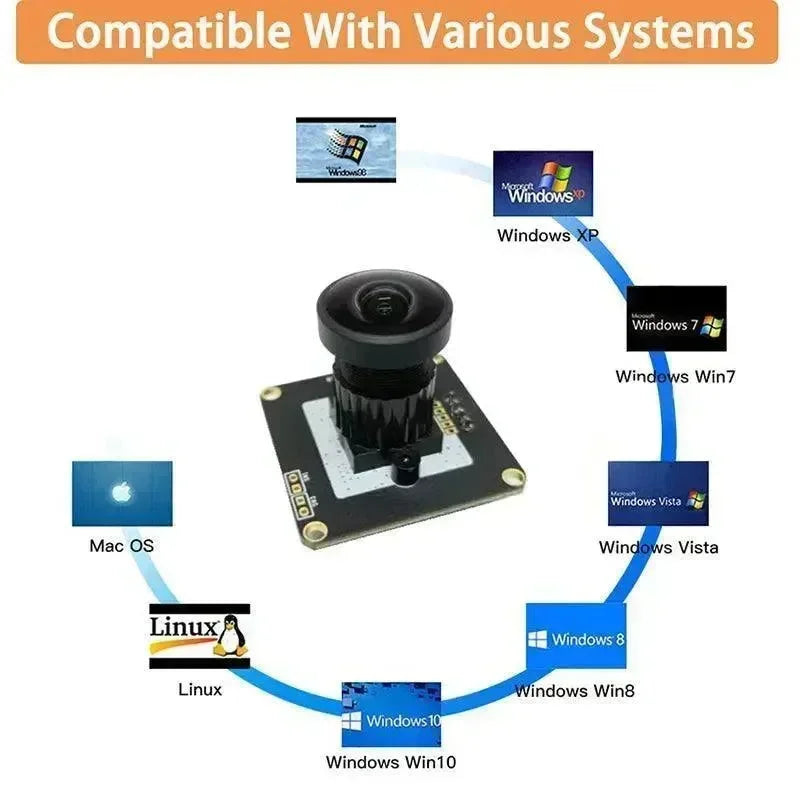

Support system: Microsoft windows2000 sp2/ XP/Vista/windows7/windows8/windows10 etc.
Mac-OSx10.4.8 or above (Compliant with UVC protocol)
Linux,Android, etc. (Compliant with UVC protocol)
Application fields: Express station face camera. Scanning camera. High camera. Mobile OTG. Access control attendance, advertising machine, face recognition. Conference video. Industrial vision. Visual inspection. USB microscope. Express cabinet camera. Smart vending machine camera. Electronic weighing item identification. Dishes identification. USB Raspberry Pi camera. Etc...
Support driver-free protocol: USB Video Class (UVC)
Support OTG protocol: USB 2.0 OTG

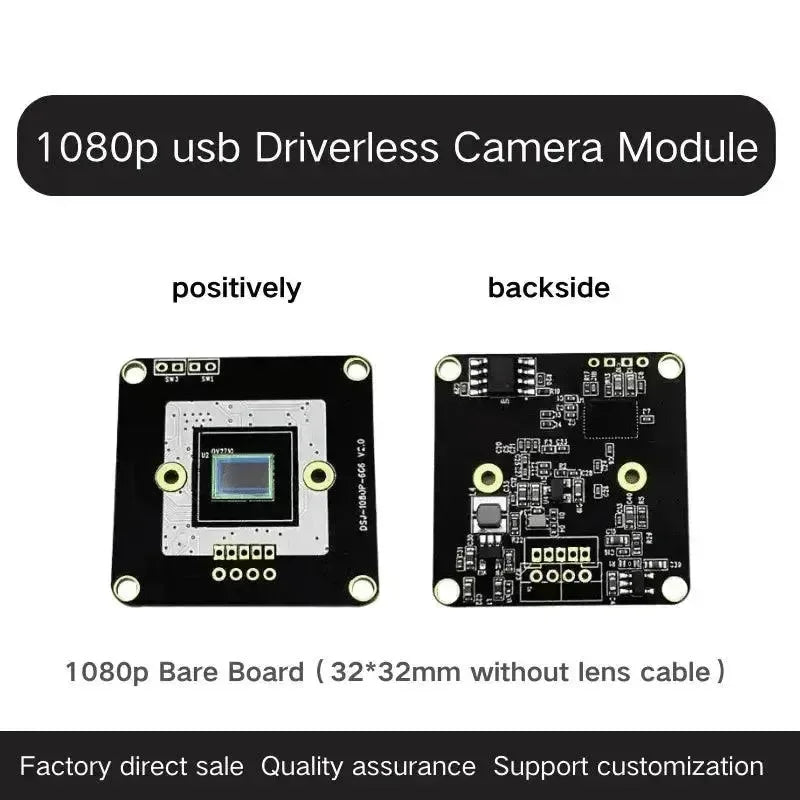

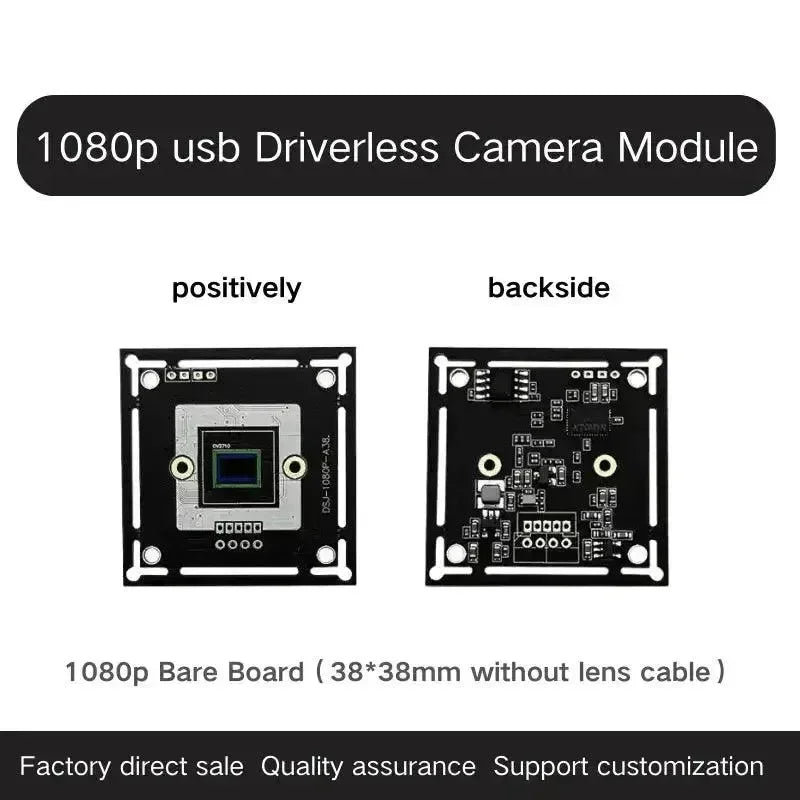

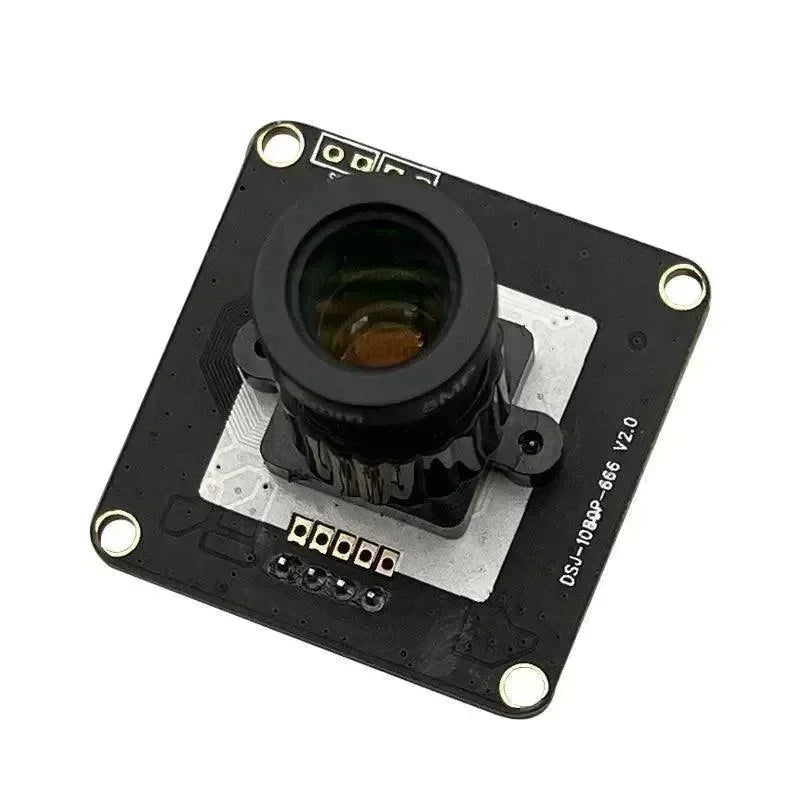

PCB (board frame) size: 38*38mm(compatible with 32*32)
