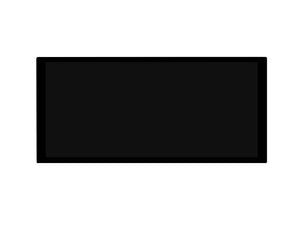

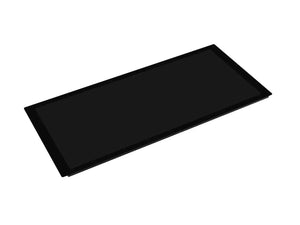

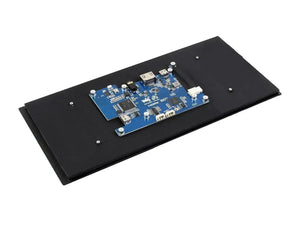

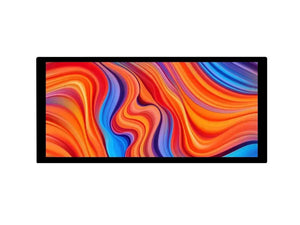

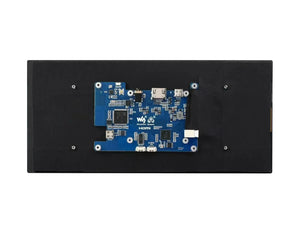

Waveshare 10.4 inch QLED Touch Display, 1600×720 HDMI
📦 Location of the warehouse: China
Free shipping for you
Free Shipping from 30€ in Germany, 50€ in the EU!
Trustpilot rating: 4.4/5.0
Thank you for your support - rate us on Trustpilot!
Waveshare 10.4 inch QLED Touch Display, 1600×720 HDMI
-
Size
10.4″
-
Resolution
1600×720
-
Display Interface
HDMI
-
Display Panel
QLED Quantum Dot
-
Viewing Angle
178°
-
Touch Type
Capacitive
-
Touch Points
10-Point
-
Touch Port
USB Type-C
-
Touch Panel
Toughened Glass
-
Touch Panel Tech
Optical Bonding
-
OSD Menu
Brightness/Contrast
-
Brightness
Supports DCC/CI
control
-
Brightness
600cd/m²
-
Audio Output 1
3.5mm Jack
-
Audio Output 2
4PIN Header
Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi

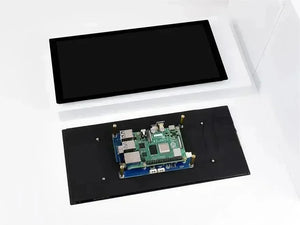

Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working With Jetson Nano
Working With PC
Excellent Display Performance With 178° Wide Viewing Angle
Wider Color Gamut
Color Gamut Of This QLED Display Is Up To: SRGB 94%, NTSC 94%
More Pure Chroma
Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid
Longer Lifetime
Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation
Weight: 0.762 kg
- 10.4HP-CAPQLED ×1
- HDMI flat cable ~1m ×1
- USB-A to USB-C cable ~1m ×1
- Button board ×1
- Button board cable ×1
- USB to Type-C adapter (B) ×1
- USB to Type-C adapter (C) ×1
- HDMI to Micro HDMI adapter ×1
- HDMI adapter ×1
- Screws pack ×1
-
OPTIONS 5V 3A Type C Power supply ×1
