Waveshare 10.1 inch IPS Capacitive Touch Display, 1280×800 HDMI

SKU: Waveshare-23739
Sale price 119,95 €
incl. VAT
excl. VAT
In Stock & Ready to Ship
Waveshare 10.1 inch IPS Capacitive Touch Display, 1280×800 HDMI - OpenELAB

Waveshare 10.1 inch IPS Capacitive Touch Display, 1280×800 HDMI

119,95 €

Waveshare 10.1 inch IPS Capacitive Touch Display, 1280×800 HDMI is a versatile high-definition screen designed for a wide range of applications. Featuring a 10.1-inch IPS panel with 1280×800 resolution, it delivers clear visuals and wide viewing angles. The toughened glass capacitive touch panel supports smooth 10-point multi-touch, offering durability with hardness up to 6H. Lightweight and thin, it is easy to integrate into projects, and the baseboard with fixing nuts ensures convenient installation for embedded or all-in-one designs. This display is ideal for use with Raspberry Pi, computers, and other HDMI devices, making it suitable for industrial, educational, and DIY environments.

Waveshare 10.1 inch IPS Capacitive Touch Display



Features

  • 10.1-inch IPS screen with hardware resolution of 1280×800
  • 10-point capacitive touch with tempered glass panel, hardness up to 6H
  • Optical bonding touch technology for improved display performance
  • Supports Raspberry Pi OS, Ubuntu, Kali, and Retropie when used with Raspberry Pi
  • Compatible with Windows 11 / 10 / 8.1 / 8 / 7 as a computer monitor
  • Multi-language OSD menu for power control, brightness, and contrast adjustment
  • Supports HDMI audio output, onboard 3.5mm headphone jack, and 4PIN speaker connector


Parameters

Item Description Unit
Model 10.1DP-CAPLCD /
Size 10.1 Inch
Viewing angle 178 Deg
Resolution 1280 x 800 Pixels
Touch panel dimensions 239.00 (H) × 147.00 (V) × 2 (D) mm
Display panel dimensions 228.6 (H) × 143.0 (V) × 2.60 (D) mm
Display area 135.36 (H) × 216.58 (V) mm
Pixel pitch 0.1175 (H) × 0.1088 (V) mm
Color gamut 58% NTSC
Maximum brightness 350 cd/m²
Contrast 800:1 /
Backlight adjustment OSD menu adjustment /
Refresh rate 60 Hz
DSI port Standard HDMI port /
Power port 5V Type-C /
Power consumption 4 Watt
Weight 538 g



Electrical Specifications

Parameter Minimum Value Standard Maximum Value Unit Note
Input Voltage 4.75 5.00 5.25 V Note 1
Input Current 750 800 TBD mA Note 2
Operating Temperature 0 25 60 Note 3
Storage Temperature -10 25 70 Note 3



•Note 1: Input voltage exceeding the maximum value or improper operation may cause permanent damage to the device.
•Note 2: The input current must be ≥750mA, otherwise, it will cause startup failure or abnormal display, and it may cause permanent damage to the device if it is in an abnormal state for a long time.
•Note 3: Please do not store the display in a high-temperature and high-humidity environment for a long time. The display must work within the limited value range, otherwise, the display may be damaged.



Part List

  • 10.1DP-CAPLCD ×1
  • HDMI flat cable ~1m ×1
  • USB-A to USB-C cable ~1m ×1
  • Button board ×1
  • Button board cable ×1
  • USB to Type-C adapter (B) ×1
  • USB to Type-C adapter (C) ×1
  • HDMI to Micro HDMI adapter ×1
  • HDMI adapter ×1
  • Screwspack ×1



EDID Sequence Parameter

If the system of the main control board can automatically identify the EDID for display, there is no need to additionally set related sequence parameters.
Otherwise, you can refer to the following EDID settings:

Pixel Clock H Addressable H Blanking V Addressable V Blanking H Front Porch H Sync Width V Front Porch V Sync Width H Image Size V Image Size H Border V Border
77.00 1280 232 800 56 160 32 20 6 294 165 0 0

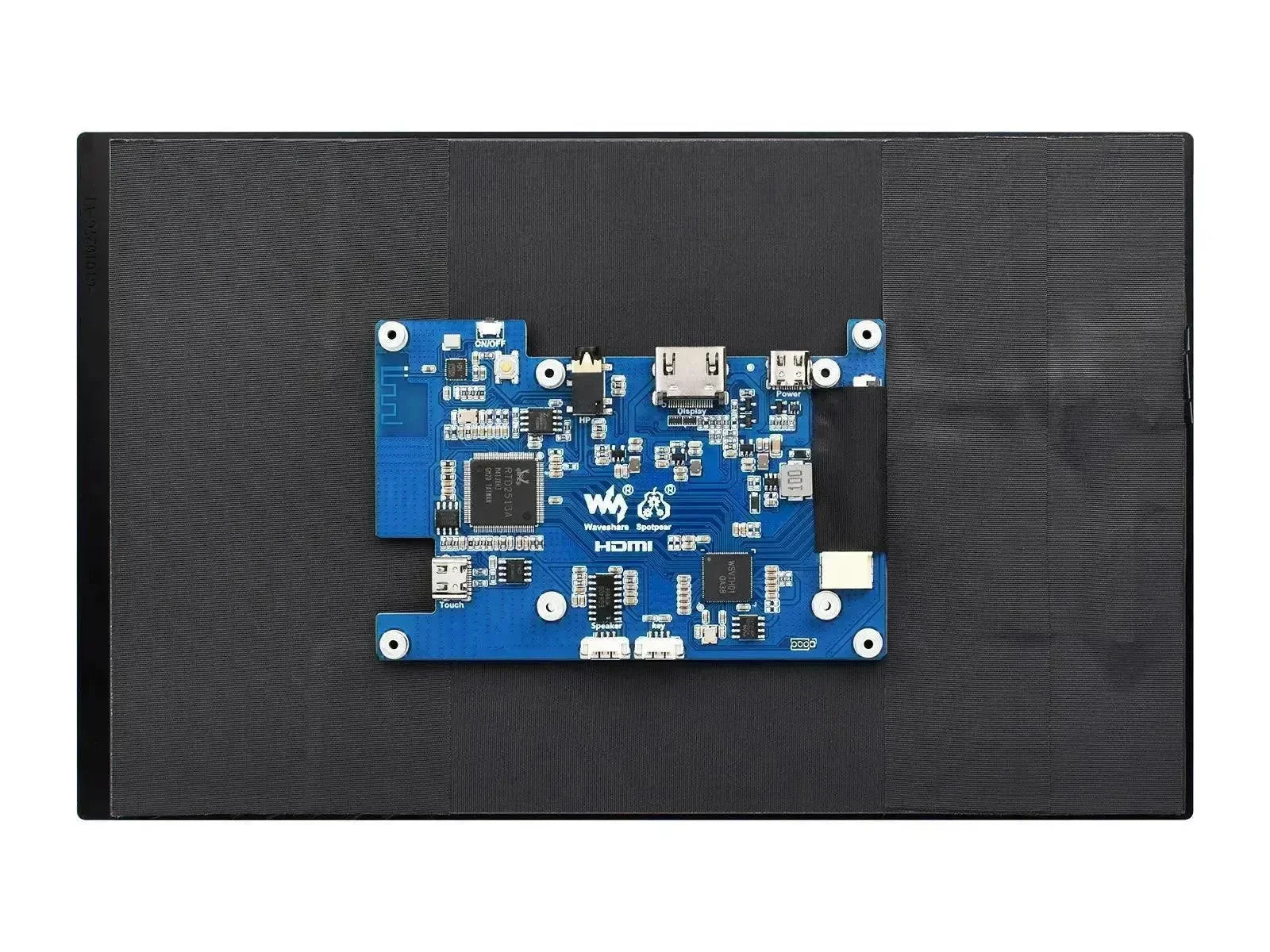

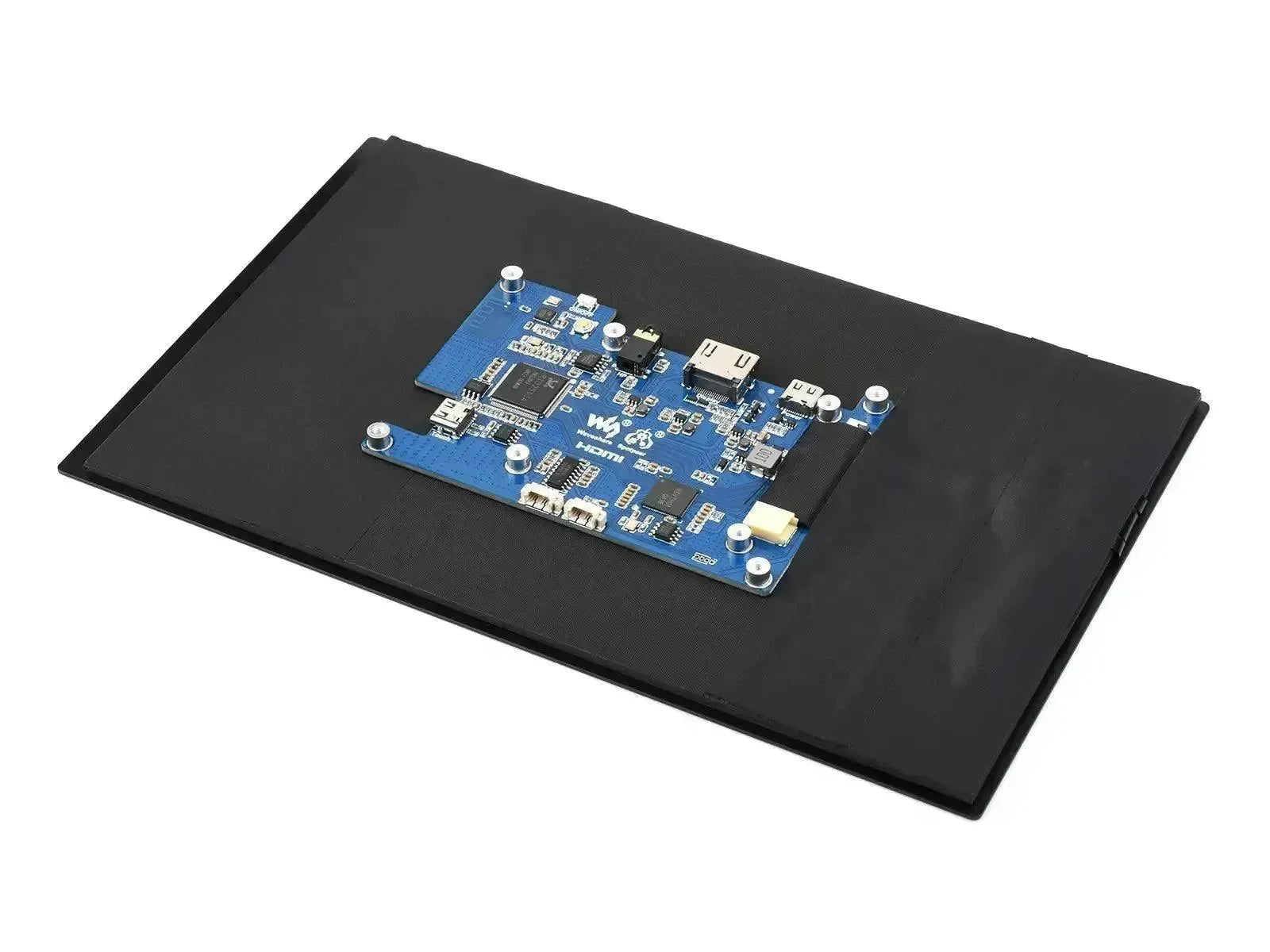

Interface Introduction


Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free



Connection Examples

Working with Raspberry Pi 4B

Working with Raspberry Pi 3B+

Working with Raspberry Pi Zero 2W

  • additional mini HMDI adapter and USB cable are requied

Working with Jetson Nano

Working with mini PC



Capacitive 10-Point Touch

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof

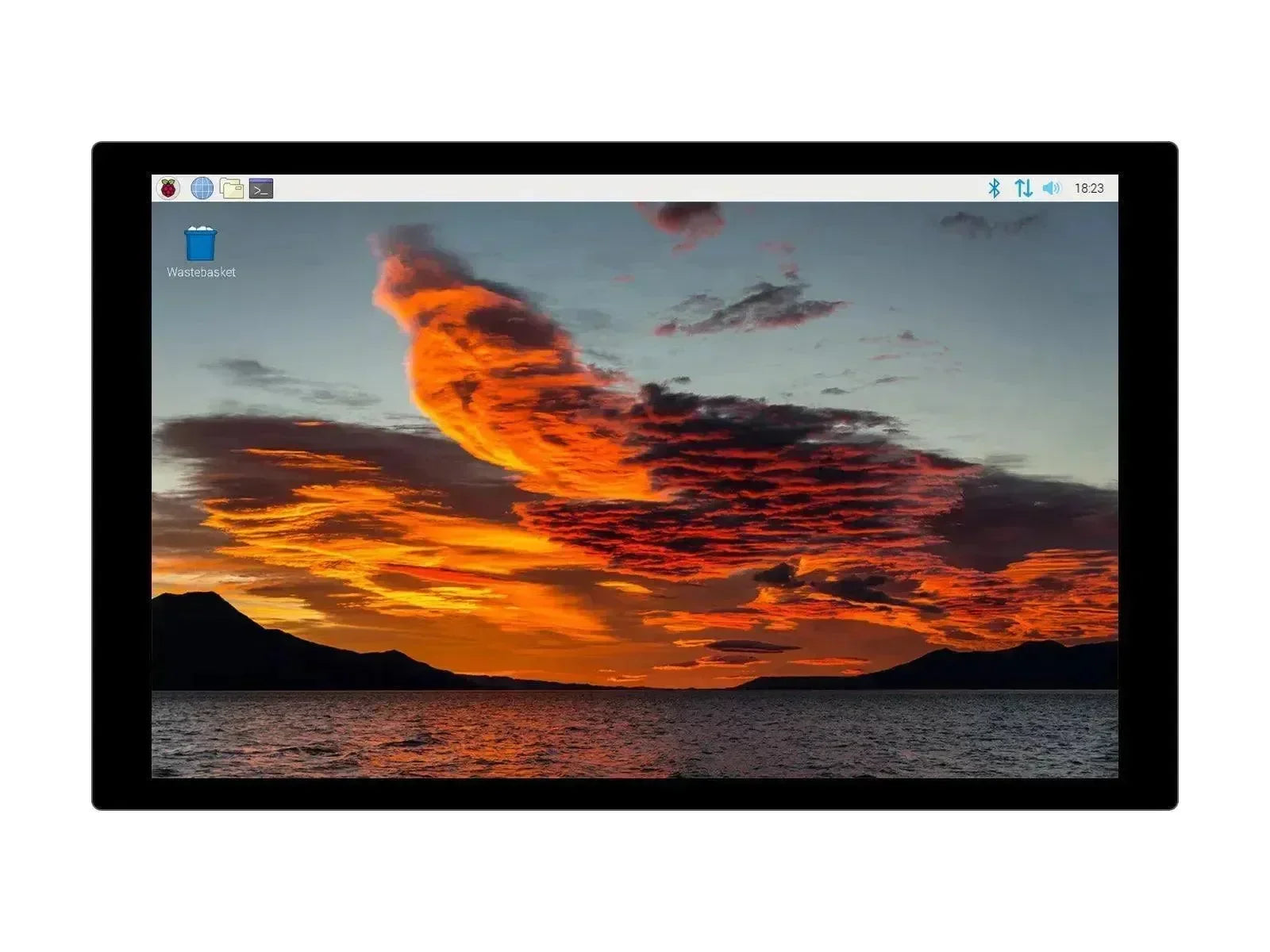

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle



Adjustable brightness via software

Dimensions



Part List

10.1inch Capacitive Touch Display * 1
