Waveshare 1.47 inch LCD Display Module 172x320 SPI
Description

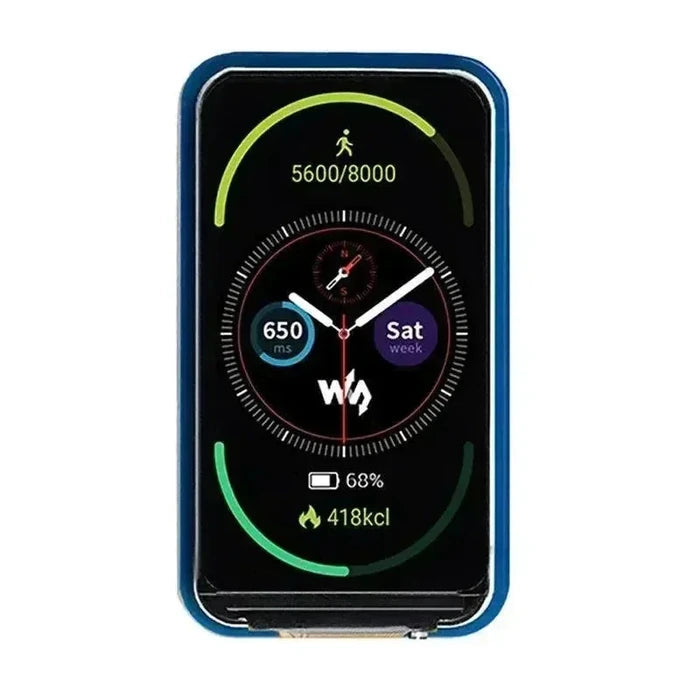

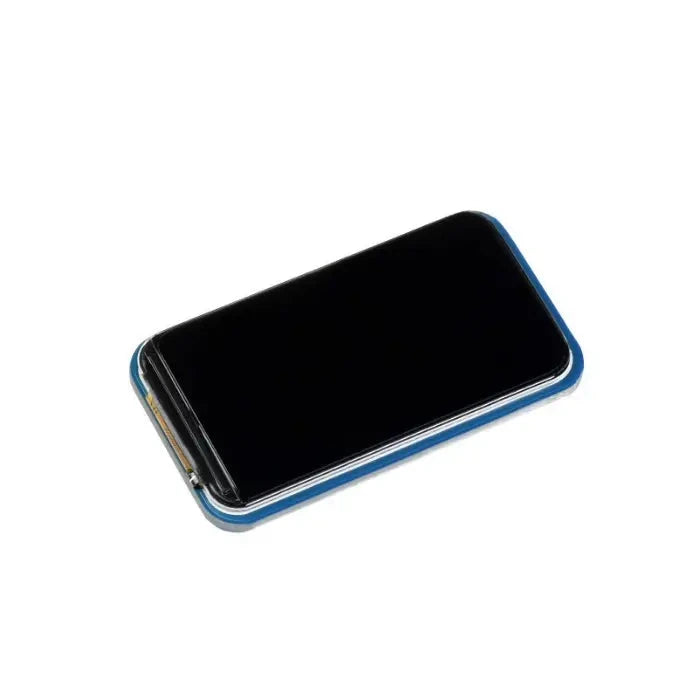

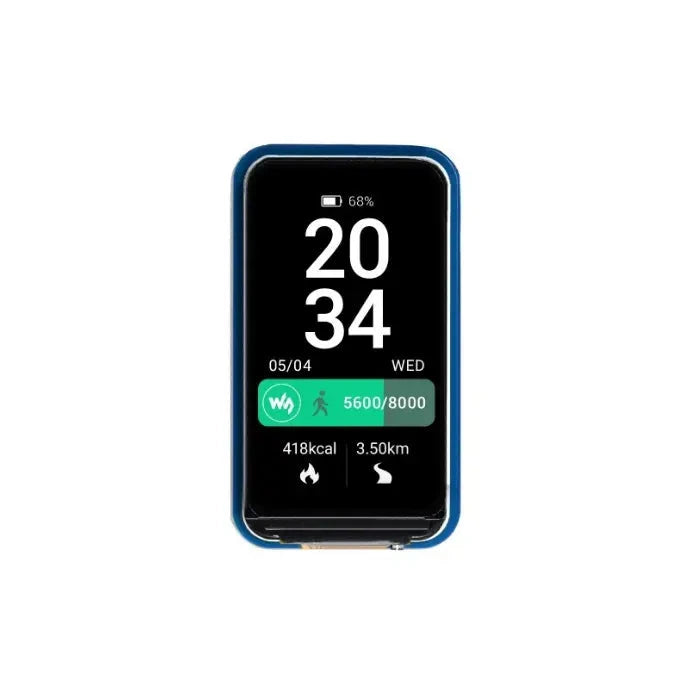

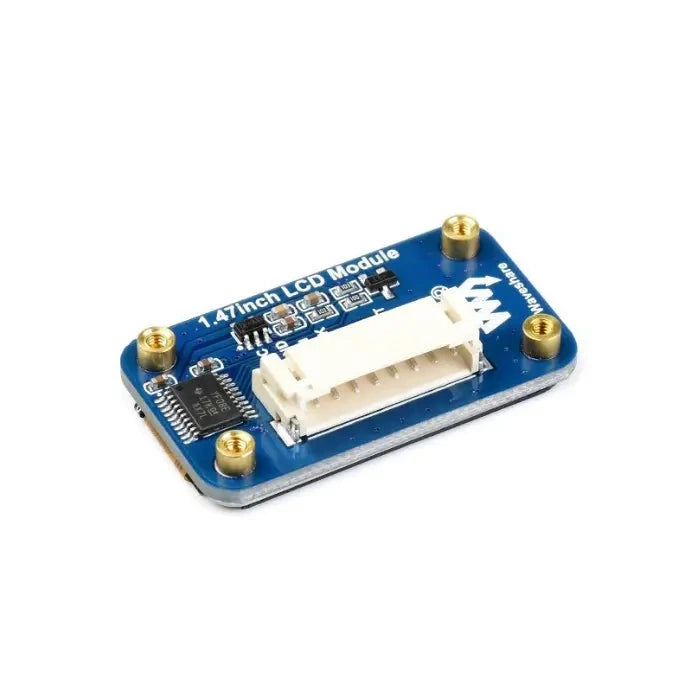

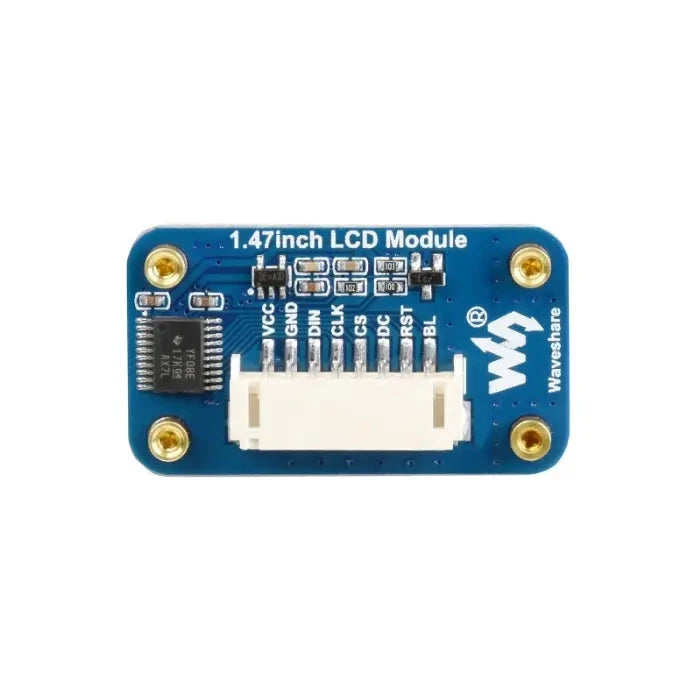

Waveshare 1.47 inch LCD Display Module 172×320 SPI is a compact color display module with rounded-corner style and a high pixel density panel. It is suitable for embedded UI, wearable-style interface demos, and small-form-factor control displays.
With 172×320 resolution and SPI communication, it works well in MCU and SBC projects that require lightweight graphical output in limited space.
Features
- 1.47-inch compact display for space-limited product designs.
- 172×320 resolution for clear text and icon rendering.
- SPI interface for efficient embedded integration.
- Rounded-corner visual style for modern UI prototypes.
- Low-profile module structure for custom enclosures and handhelds.
Specifications
| Item | Details |
|---|---|
| Brand | Waveshare |
| Display Size | 1.47 inch |
| Resolution | 172 × 320 |
| Interface | SPI |
| Driver Chip | ST7789V3 |
| Form Factor | LCD module with rounded-corner style panel |
Applications
- Wearable-style dashboard interfaces
- IoT status display panels
- Portable meter and control UI
- Embedded product prototypes
- Maker and education display projects
Product List
- 1.47 inch LCD Display Module × 1
Other Content

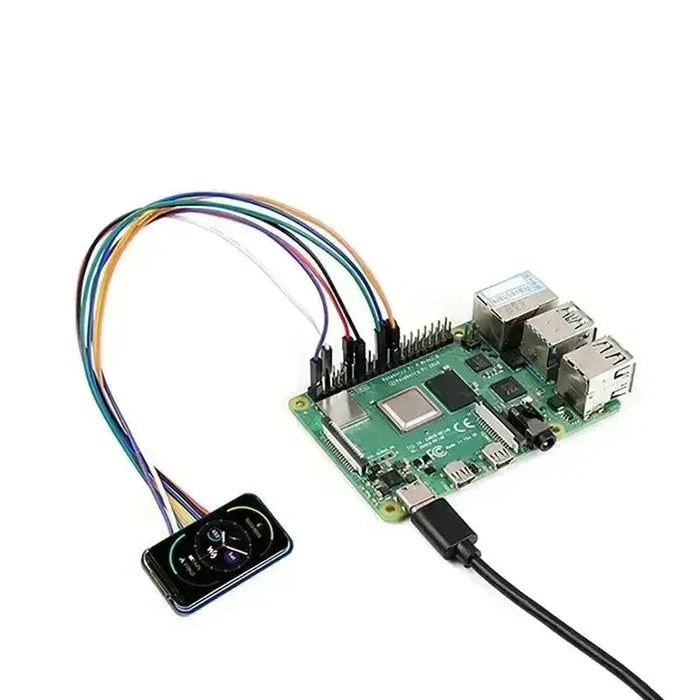

Integration note: this module is commonly paired with MCU development boards through SPI for compact GUI pages, data cards, and sensor visualization interfaces.
![]()
Resources
FAQ
What kind of projects is this display best for?
It is ideal for compact embedded interfaces such as wearable-like dashboards, portable tools, and IoT status screens.
What communication interface does it use?
The module uses an SPI interface for display communication.
Is it suitable for custom enclosure products?
Yes. Its compact size and module profile are suitable for small custom hardware builds.
