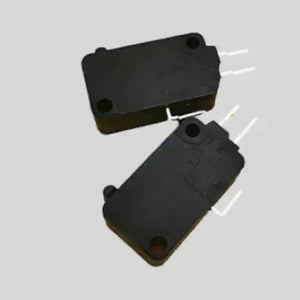

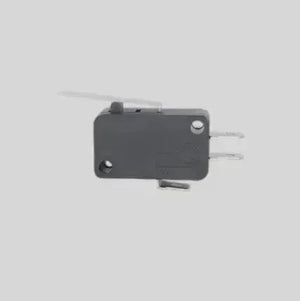

ZW7-1 type micro switch series

€0,39

Safe,reliable miniature switch

  • Nice  appearance,tight  configuration.Characteristic : small  contact clearance,quick  action,high  sensitivityand small operating travel.

  • Long life,high  reliability.

  • Variety of contact terminals

  • A variety of models with low operating force to high operating force are available

  • Variety of temperature degrees

  • Varity of levers

  • Adopt thermosetting plastic or thermoplastic

  • Widely  used  in  appliance,electronic  equipment,automatic  machine,communication  equipment,car electric,apparatus  and  instrument,electric  motion  tool  etc.



Specifications

Item

Value

Operating speed

0.1mm~1m/s(Related with actuator forms)

Operating Frequency

Mechanical 60 cycles/min;Electrical 25cycles/min

Insulation resistance

≥100MQ(500VDC)

Contactresistance

≤30mQ(Initial value)

Test

voltage

Between terminals of the same polarity

AC1000V,50/60Hz,1min



Test

voltage

Between current-carrying metal parts and ground (case),and between each teminal and non-current -carrying metal parts



AC1500V,50/60Hz,1min

Vibration resistance

10~55Hz,1.5mmDouble amplitude





Shock resistance

Destruction:OF>0.5N:1000m/s(approx.100G)max OF≤0.5N:400m/s(approx.40G)max

Malfunction:OF>0.5N:200m/s(approx.20G)max

OF≤0.5N:100m/s²(approx.10G)max

Life expectancy Mechanical ≥1000000 cycles

Electrical ≥100000cycles

Weight

Approx.1.6g(No lever)
