ZD850 850mm Compact Folding Hexacopter Drone Frame Kit Full Carbon Fiber - OpenELAB

ZD850 Plastic bracket

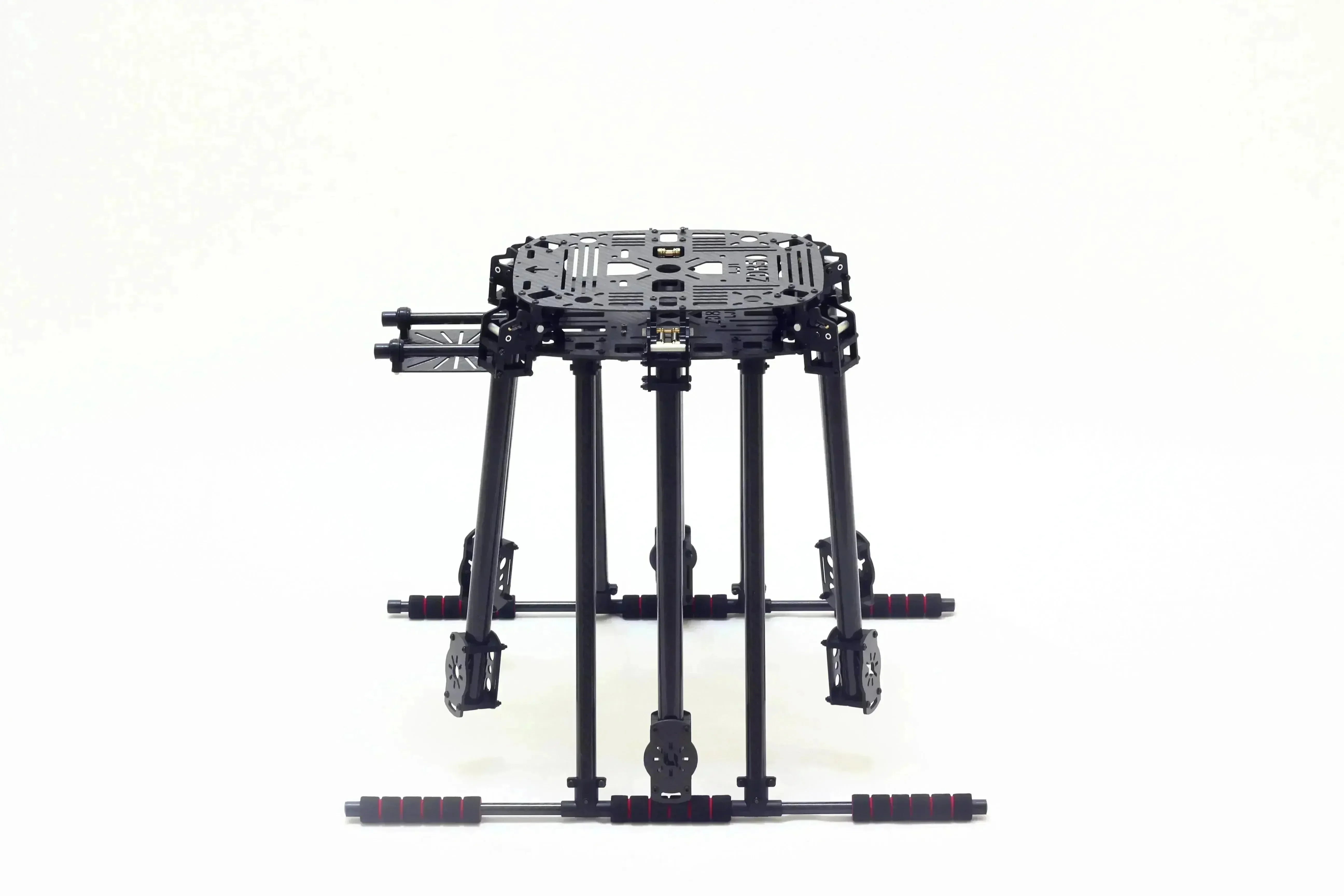

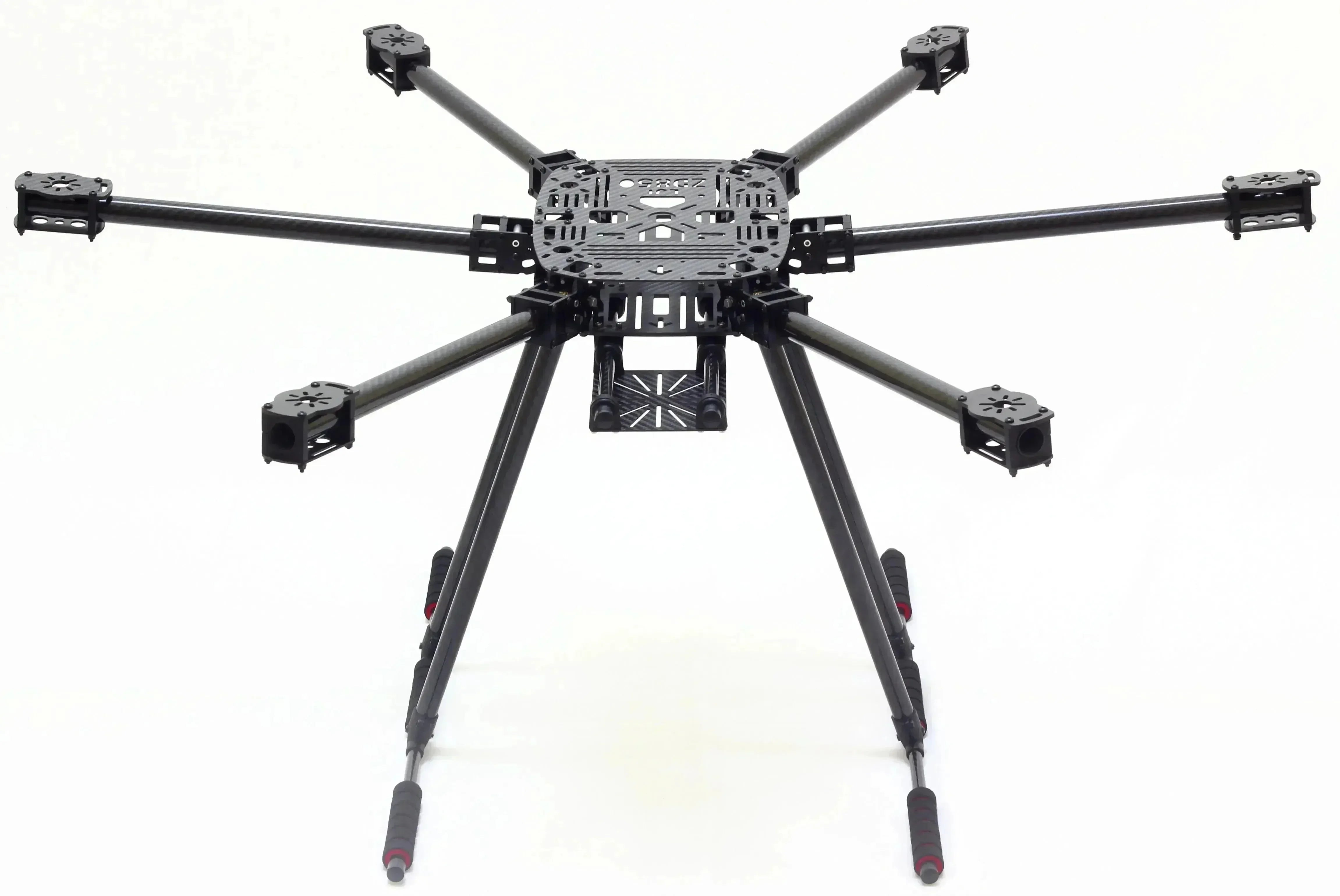

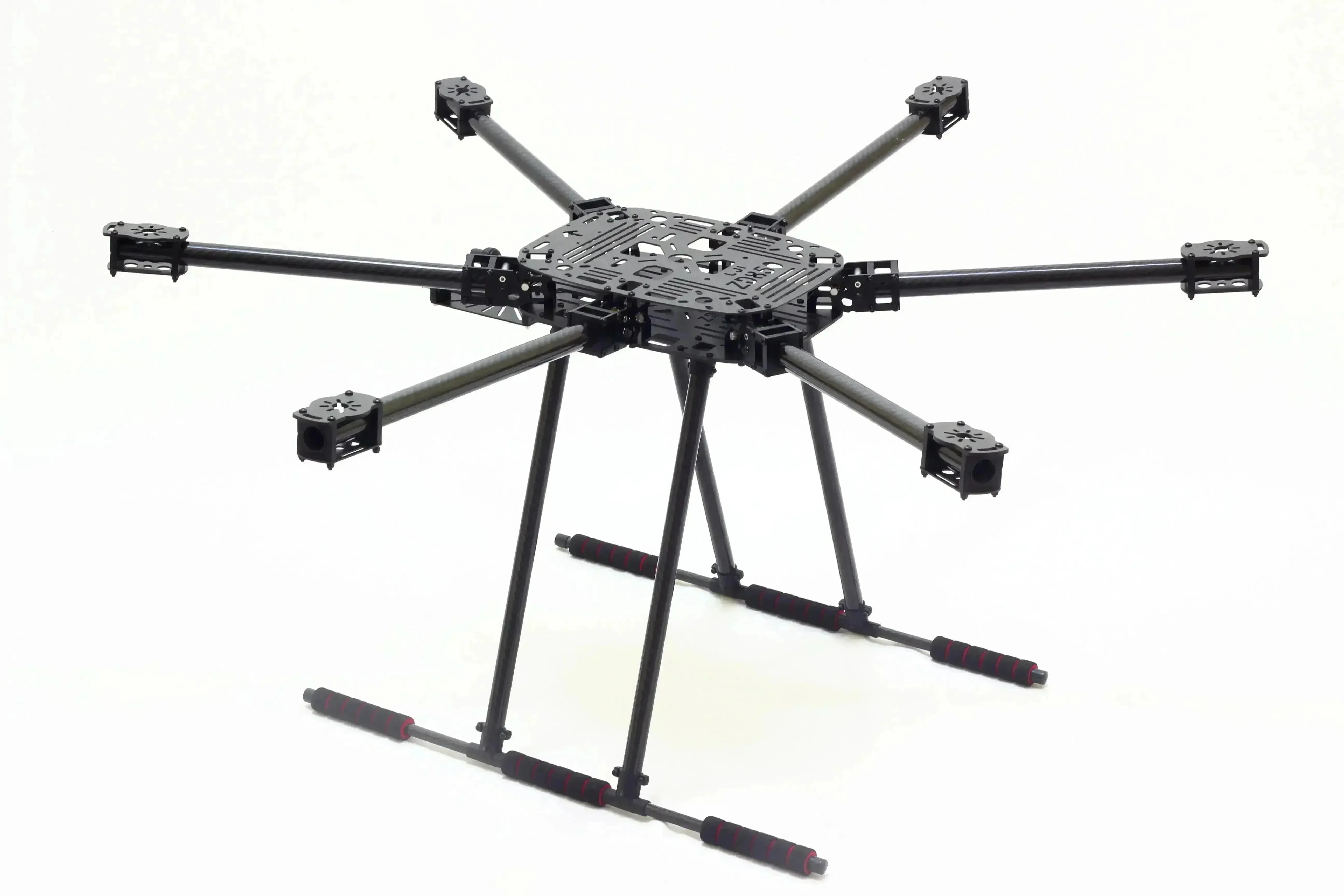

This is a wonderful folding frame made from full carbon fiber components. All tubes and plates contain no fiberglass and provide an extremely strong and lightweight flying platform for aerial photography, industry or other uses.

Each frame measures 850mm diagonally motor-to-motor. The arms lock in the upward position with a 5-degree upward angle, allowing for improved handling when carrying additional payload. The folding brackets are constructed of aluminum with metal hardware.

 The frame does not come with a battery mounting plate. If you need a battery plate, please purchase it separately.



Frame Features:

  1. Battery Plate Thickness: 1.5mm

  2. Tilted Arm Design: The drone arms are tilted upward by 5° to improve stability, using sturdy 20mm carbon tubes.

  3. Durable Aluminum Alloy Folding Parts: Made with strong nylon clamps, featuring an 8-hole motor mount compatible with multiple motors.

  4. Motor Mount: The diagonal motor mount distance is 850mm, supporting up to 16-inch propellers.

  5. Central Plate Dimensions: Measures 245mm x 180mm with extra space; the plate has a height clearance of approximately 35mm.

  6. Gimbal Mounting Rod: Uses a 10mm x 330mm carbon tube, allowing adjustable length for different setups, compatible with multi-hole gimbal plates.

  7. Landing Gear: Made with 16mm carbon tubes, with a height of 350mm and width of 500mm, providing a larger and more stable contact area.

  8. Dual Carbon Fiber Landing Support: The landing gear can support over 50kg

Recommended Parts (Not Included) Specifications:

  • Motor: 38-42 motor (recommended at least 3508 motor)

  • Prop: 12-16 inch CW CCW

  • ESC: 40-50A(2-6s) ; 40A (2-4S)

  • Flight control: DJI Naze-M Lite, DJI Naza-M V2, PixHawk, APM, 32-Bit CC3D/Naze using iNav (GPS required)

  • Battery: 2-6S Lipo



Package Contents:

  • - ZD850 Folding Hexacopter Frame Kit
