ZD550/ZD680 550mm 4-axis Drone with 3kg Payload
📦 Location of the warehouse: China
🚚 We will ship your order within 1-3 working days after the order is taken.
Free Shipping from 30€ in Germany, 50€ in the EU!
- EU & US Countries Delivery Time: 5~10 working days.
- Other Countries Delivery Time: 2~2.5 weeks.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished. For specific delivery times, please feel free to contact us for inquiries.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
ZD550/ZD680 550mm 4-axis Drone with 3kg Payload
ZD550/ZD680 Drone Set - High-Performance UAV for Professionals
Take your flying experience to the next level with the ZD550/Z680, a highly capable drone set designed for aerial photography, surveying, agriculture, and other professional applications. Equipped with top-tier hardware and precision technology, the ZD550/ZD680 ensures outstanding performance, flexibility, and reliability.
Package Includes:

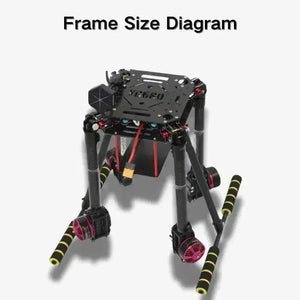

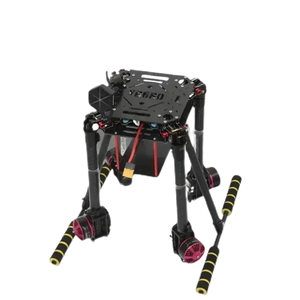

- ZD550/ZD680 Frame: Durable, lightweight, and expertly engineered for stability and smooth flights.

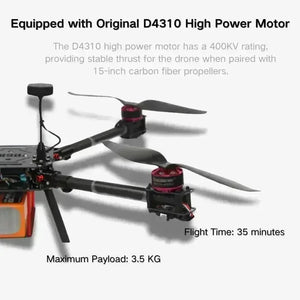

- D4310 400KV Motors (x4): High-efficiency brushless motors for smooth operation and superior power output.
- Hobbywing 40A ESCs (x4): Reliable electronic speed controllers to ensure optimized performance and heat dissipation.
- 12V PDB: Highly efficient Power Distribution Board for seamless power management.

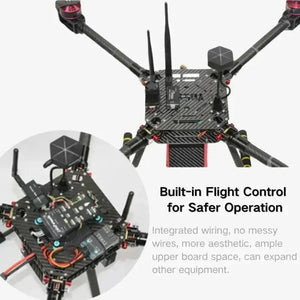

- Flight Controller: Choose from APM 2.8, PIX 2.4.8, PIXHAWK 4 or DJI LIT Industry-standard flight control system for precision navigation and stability.
- M8N GPS Module: Advanced GPS system for accurate positioning and enhanced flight path planning.
- 6S 8000mAh Li-po Battery: A high-capacity battery offering extended flight times.
- B6AC Battery Charger: Versatile charger designed for safe and quick battery charging.
- 15-inch Propellers (x4): Aerodynamic propellers for smooth and efficient flight.
- Flight Controller Suspension Board: Designed to reduce vibrations and ensure smooth operation.
- GPS Stand: Secure mount for optimal GPS module positioning.
- ESC Module: Compact and efficient for streamlined ESC integration.

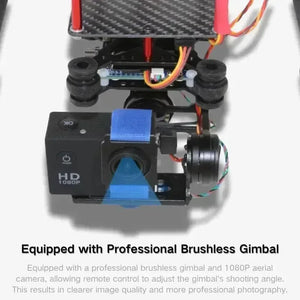

- For 4K 1080p Camera Version: Hawkeye Little Pilot 4.5inch Monitor, TS832 Transmitter module, 4K 1080p action camera, 2-axis gimbal
- For Radio Controller Version: Radiolink AT9S controller with receiver
Why Choose the ZD550/ZD680 Drone Set?
- Professional-grade components for reliable performance.
- Supports long flight times and heavy payloads.
- Highly customizable for various applications (agriculture, surveying, inspections, etc.).
- Easy-to-use flight system and GPS integration for precise control.
| Item | ZD550 Quad-Copter Drone | ZD680 Quad-Copter Drone |
|---|---|---|
| Model | ZD550 Quad-Copter Drone | ZD680 Quad-Copter Drone |
| Frame Size | 550 mm | 680 mm |
| Max Takeoff Weight | 2.15 kg | 2.3 kg |
| Payload Capacity | 2 kg (excluding drone weight) | 3 kg (excluding drone weight & expandable to 4 kg) |
| Flight Time | 30-40 minutes (cruising speed, no load) | 30-40 minutes (up to 45 mins with high-energy lithium battery and no load) |
| Range | 12 km | 14 km (up to 16 km with upgraded battery) |
| Max Speed | 90 km/h (sea level, no wind, in manual mode) | 90 km/h (sea level, no wind, in manual mode) |
| Drone Size (Folded) | 33 x 29 x 32.5 cm (L x W x H) | 35 x 34 x 45.5 cm (L x W x H) |
| Obstacle Avoidance Distance | 2 km (open area, no obstructions, expandable up to 5 km) | 2 km (open area, no obstructions, expandable up to 5 km) |
| Hovering Accuracy | ±1.0 m (horizontal, no load, open sky) | ±1.0 m (horizontal, no load, open sky) |
| Landing Accuracy | ±1.5 m (horizontal, no load, open sky) | ±1.5 m (horizontal, no load, open sky) |
| Max Flight Altitude | 2000 m | 2000 m |
| Operating Environment | Indoors/Outdoors (-40°C to +50°C, humidity ≤95%) | Indoors/Outdoors (-40°C to +50°C, humidity ≤95%) |

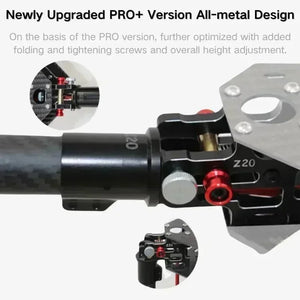

| Material | Pure 3K carbon fiber, folding parts are aluminum alloy | Pure 3K carbon fiber, folding parts are aluminum alloy |
| Propeller Size | 14 inches | 15 inches |
| Battery | 6S 22.2V 8000mAh | 6S 22.2V 8000mAh |
| Supported Flight Controllers | API / PIX / Dajiang LITE | API / PIX / Dajiang LITE |
| Return Accuracy | Within ±40 cm | Within ±40 cm |
| Intelligent Features | Return-to-home, loss connection return, follow me | Return-to-home, loss connection return, follow me |
| Flight Zone Limit | No limitation | No limitation |
| Applications | Aerial photography, mapping, inspection, surveying, and agricultural use | Aerial photography, mapping, inspection, surveying, and agricultural use |
| Expandable Accessories | Gimbals, hyperspectral cameras, infrared sensors, etc. | Gimbals, hyperspectral cameras, infrared sensors, etc. |
Order Now and Experience Excellence in Aerial Performance!
The ZD550 Drone Set is your perfect partner for challenging aerial tasks. Whether you’re a professional pilot, surveyor, or enthusiast, this drone provides everything you need for success in the sky.
