WS2812B RGB LED Strip Light 5050 SMD 150 Pixels Bare Board

Important Notice: The LED strip requires DC 5V power and must be used with a full-color controller.

• Product Name: WS2812B Full Color LED Strip

• Model: SMD 5050 LED

• Operating Voltage: DC 5V

• PCB/Connector: PCB Board/Pin Connector

• IC: 1 x WS2812B control LED chip

• Max Power: 0.3W

• Number of LEDs: 256

• Operating Temperature: -15℃~50℃

• Viewing Angle: 180°

• Dimensions: Based on model

• Light Color: Full RGB Color, with light guide strip effect

• Operating Current: 60mA (for 60 LEDs)

• Applications:

  • Wide (30 LEDs/60 LEDs/96 LEDs/144 LEDs): 12mm

  • Narrow (30 LEDs/60 LEDs/96 LEDs/144 LEDs): 14mm

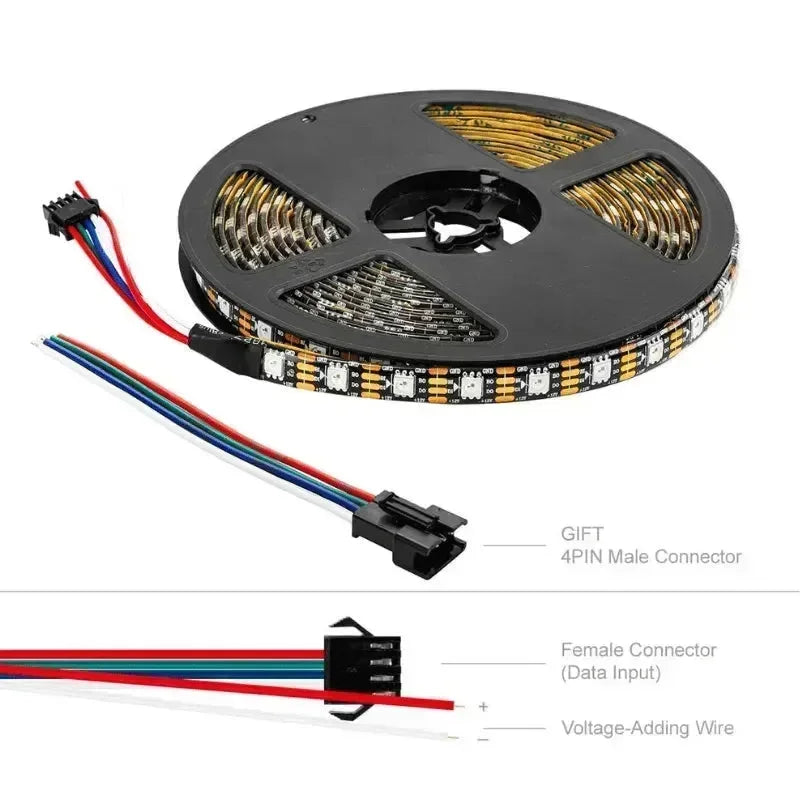

• Connector Type: SM 3-pin single header or socket

• Output Voltage: 5V (VCC)/ 5V (GND)/ Signal output (DATA)

  (Ensure the power cable for the LED strip is thick enough to handle the current. Voltage must be controlled properly to avoid damage, and it’s recommended to use a 5V voltage to prevent any issues.)

• Waterproof Rating: IP30 (low waterproof level). Waterproof LED strips are available, or you can apply a transparent waterproof coating for additional protection.

• Luminous Intensity: Can provide high brightness as needed, with adjustable brightness to create both bright and dim effects.

• Control Mode: DMX512 digital signal, supporting remote digital control to reduce manual control errors.

• Applications: Suitable for lighting decoration, stage lighting, LED display peripherals, and more. It helps enhance products, create dynamic effects, and allows flexible control.

• Suitable Environments: Ideal for indoor and outdoor LED displays, mall advertisements, and design-related applications.

Differences Between Sleeve, Epoxy Coated, and Bare LED Strips

1. Sleeve LED Strip:

   • Protection: The LED strip is enclosed in a silicone sleeve.

   • Water Resistance: Offers rain resistance.

   • Waterproof Rating: IP67 (can withstand immersion in water for a limited time).

   • Applications: Suitable for outdoor use, where protection from rain and UV exposure is required.

2. Epoxy Coated LED Strip:

   • Protection: The LED strip is coated with high-transparency epoxy resin.

   • Water Resistance: Provides moisture-proof and splash resistance.

   • Waterproof Rating: IP65 (protection against water jets but not immersion).

   • Applications: Ideal for indoor and outdoor use where exposure to dust, moisture, or light splashes is possible.

3. Bare LED Strip:

   • Protection: The LED beads are exposed without any coating.

   • Water Resistance: Not waterproof.

   • Waterproof Rating: None (exposed components can be damaged by water).

   • Applications: Best for dry indoor environments where no direct exposure to moisture or water is expected.

Key Features

Each LED is controlled by an individual IC chip, forming a loop. The controller manages the IC chip to control the circuit on the FPCB board, enabling various lighting effects such as chasing, flowing, running, color-changing, breathing, strobing, clockwise/anticlockwise running effects, simulated lightning, and more.

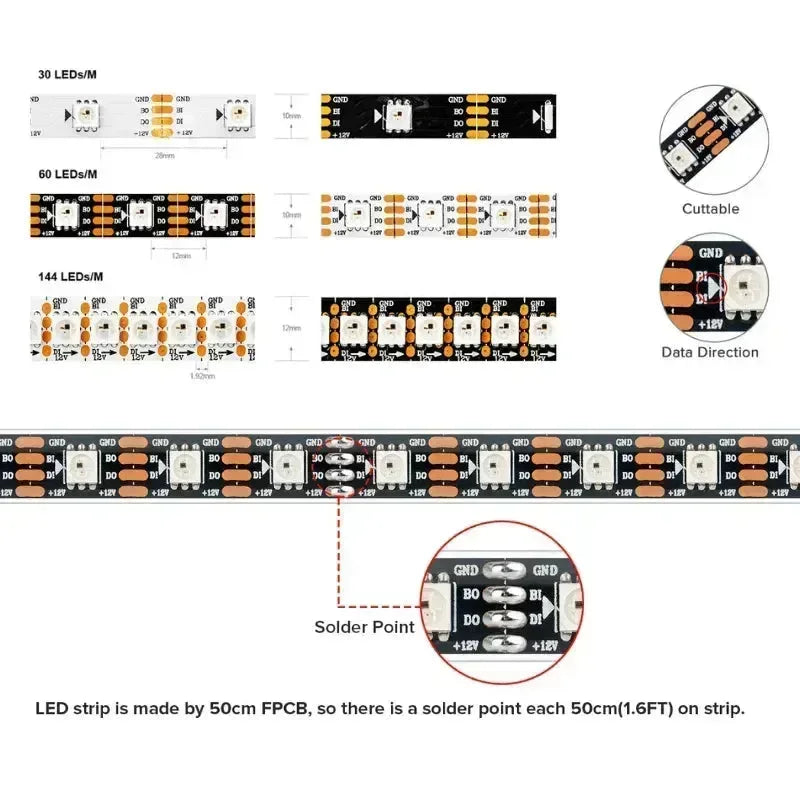

• Flexible Cutting and Soldering: Each LED operates as an independent loop, allowing for easy cutting and soldering without disrupting the circuit. This flexibility enables customization to any required length for the LED strip.

Applications

1. Home Decor: Enhance colorful home lighting, DIY corridor and staircase lighting, windows, and more.

2. Commercial Use: Ideal for hotel decoration, theaters, KTV bars, stage lighting, clubs, festivals, and shopping malls.

3. Architectural Lighting: Perfect for building lighting, arches, crown bridges, edge lighting, safety lighting, and emergency lighting.

4. Signage and Advertising: Widely used for illuminated signage, backlighting for letters, and advertising displays.

5. Model and Vehicle Decoration: Suitable for automotive and airplane model lighting, contour lighting, or border lighting.
