Waveshare SIM8200EA-M2 5G HAT for Raspberry Pi 5G/4G/3G Support

Unleash High-Speed 5G Connectivity with Multi-Mode, Multi-Band Support

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

The SIM8200EA-M2 5G HAT empowers your Raspberry Pi with cutting-edge 5G/4G/3G communication capabilities. Featuring the powerful Snapdragon X55 onboard, this HAT supports both 5G SA and NSA networking, delivering ultra-fast data rates. It's engineered for regions with extensive 5G Sub-6G signal coverage (excluding the Americas), making it a versatile solution for advanced wireless projects.

Designed with an M.2 connector, this HAT is compatible with various 4G or 5G communication modules, offering flexibility for your specific needs. It integrates essential features like a USB 3.1 port for seamless PC or Raspberry Pi connection, an audio jack with a decoder, and a convenient SIM card slot. With comprehensive configuration scripts and development resources, integrating high-speed 5G into your Raspberry Pi or computer becomes effortless. This 5G HAT is perfect for rapid 5G module evaluation and integration into applications demanding robust 5G connectivity.

Key Features

Standard Raspberry Pi 40PIN GPIO extension header, supporting Raspberry Pi series boards and Jetson Nano.
Equipped with the SIM8200EA-M2 core module, built on the Qualcomm Snapdragon X55 platform, offering multi-mode and multi-band support.
Comprehensive 5G/4G/3G communication support.
USB 3.1 port for AT command testing, messaging, cloud communication, phone calls, and GNSS positioning.
SIM card slot for 1.8V / 3V SIM cards.
Dual LED indicators for easy monitoring of module status.
Supports AT commands based on 3GPP TS 27.007, 27.005, and V.25TER command sets.
Onboard audio jack and audio decoder for voice operations, including phone calls.
Multi-constellation dual-band positioning: GPS, GLONASS, BeiDou, Galileo, and QZSS.
Wide operating system compatibility: Windows/Linux/Android.

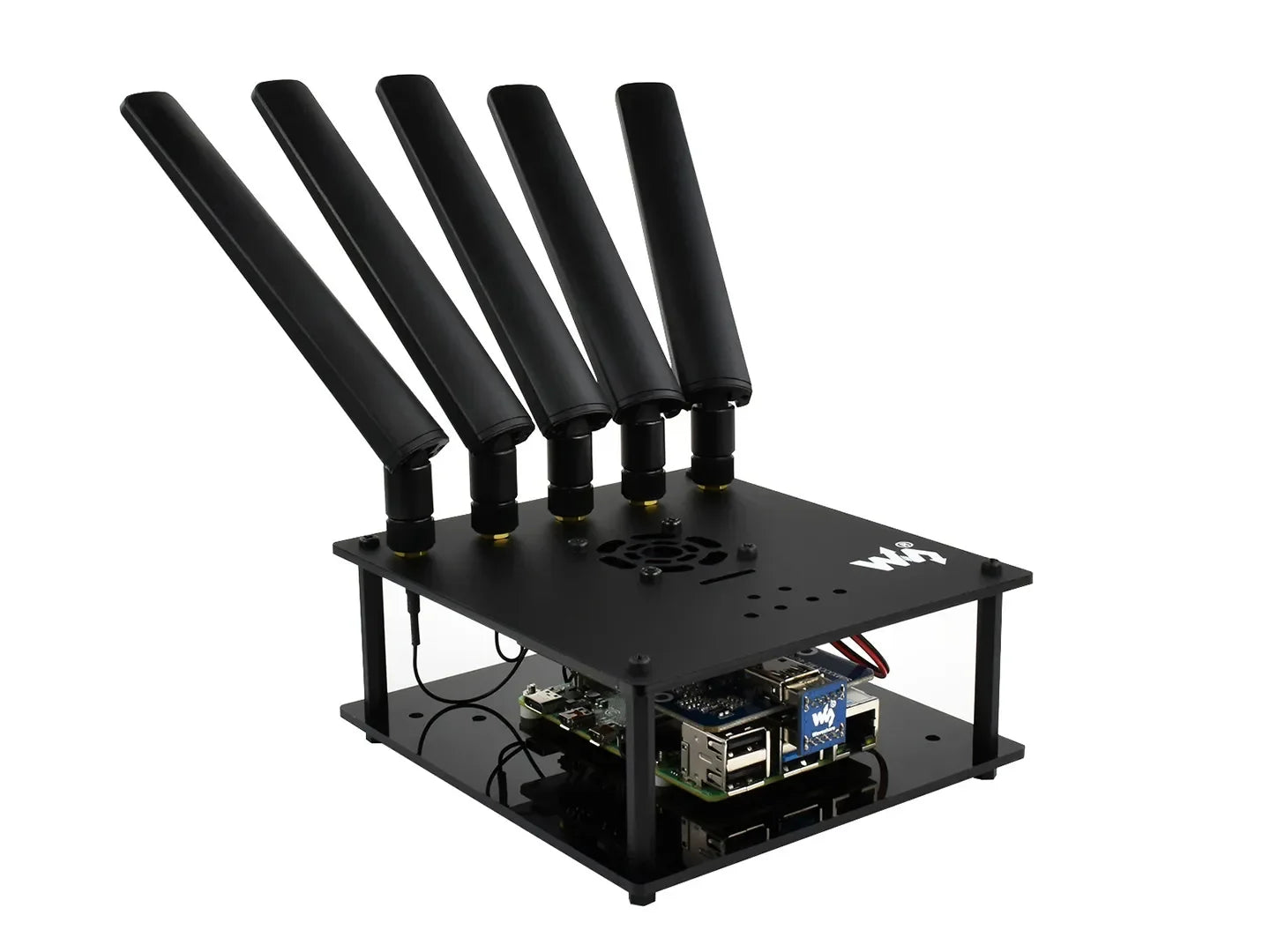

Includes a high-quality acrylic case and cooling fan for a sleek appearance and superior heat dissipation.

Technical Specifications

	SIM8200EA-M2	SIM8202G-M2	RM520N-GL
Frequency band
Sub-6G	SA: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 (n79 is only available for SIM8202G-M2)		n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Sub-6G	NSA: n41, n77, n78, n79 (n79 is only available for SIM8202G-M2)
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48
WCDMA	B1, B2, B3, B4, B5, B8		B1, B2, B4, B5, B8, B19
GNSS	GPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
Sub-6G	2.4 Gbps (DL) / 500 Mbps (UL)		SA: 2.4 Gbps (DL) / 900 Mbps (UL) NSA: 3.4 Gbps (DL) / 550 Mbps (UL)
LTE	1 Gbps (DL) / 200 Mbps (UL)		1.6 Gbps (DL) / 200 Mbps (UL)
HSPA	42 Mbps (DL) / 5.76 Mbps (UL)
Hardware info
SIM card	1.8V/3.0V
Power supply	5V 3A

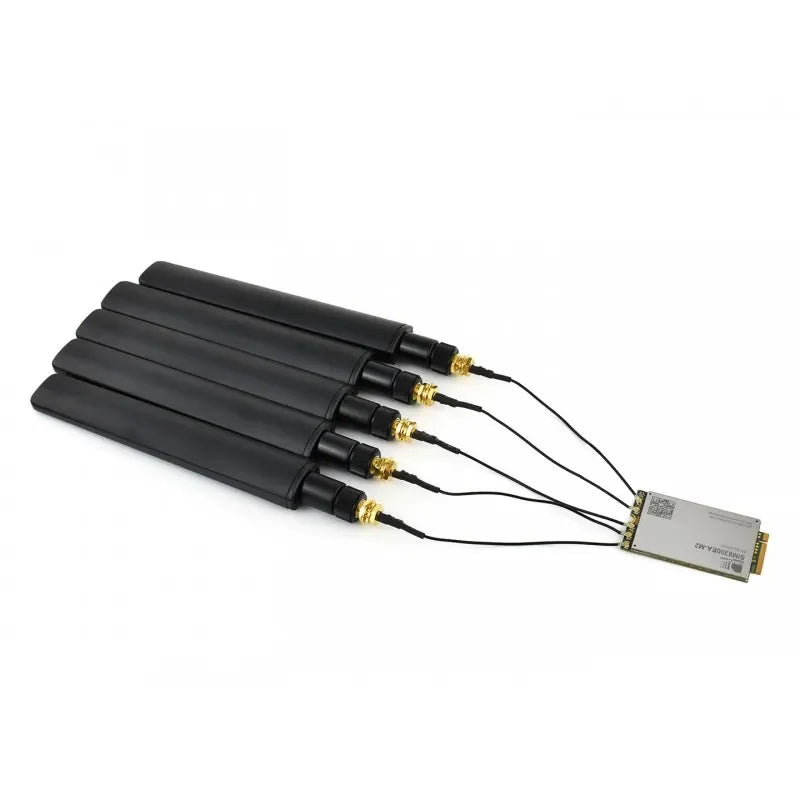

Antenna connector	6x IPEX-4 connector	4x IPEX-4 connector
Module dimensions	52.0×30.0×2.3mm	42.0×30.0×2.3mm	52.0×30.0×2.3mm
Applications
Applicable regions	Regions with 5G Sub-6G signal coverage except the Americas		Global
Application examples	CPE, Smart gateway, Live streaming, Remote medical treatment, Intelligent security

5G Module Comparison

Compatible Hardware Interface

SIM8200EA-M2
6x antennas version

SIM8202G-M2
4x antennas version

RM520N-GL
4x antennas version

Multi-Mode, Multi-Band Connectivity

Applicable for most countries and regions worldwide.

Built on the Qualcomm Snapdragon X55 platform, this HAT supports diverse modes and bands. It's designed for areas with 5G Sub-6G signal coverage (excluding the Americas), offering both 5G NSA (4G+5G common networking) and SA (5G standalone networking) capabilities.

* The frequency band diagram above is for reference only; please confirm supported bands with your local service provider.

Extensive System Support

Compatible with Windows, Android, and Linux operating systems.

Simply plug it into a USB port, complete a straightforward driver installation and basic configuration, and your high-speed 5G network connection will be ready to use.

Versatile Host Support

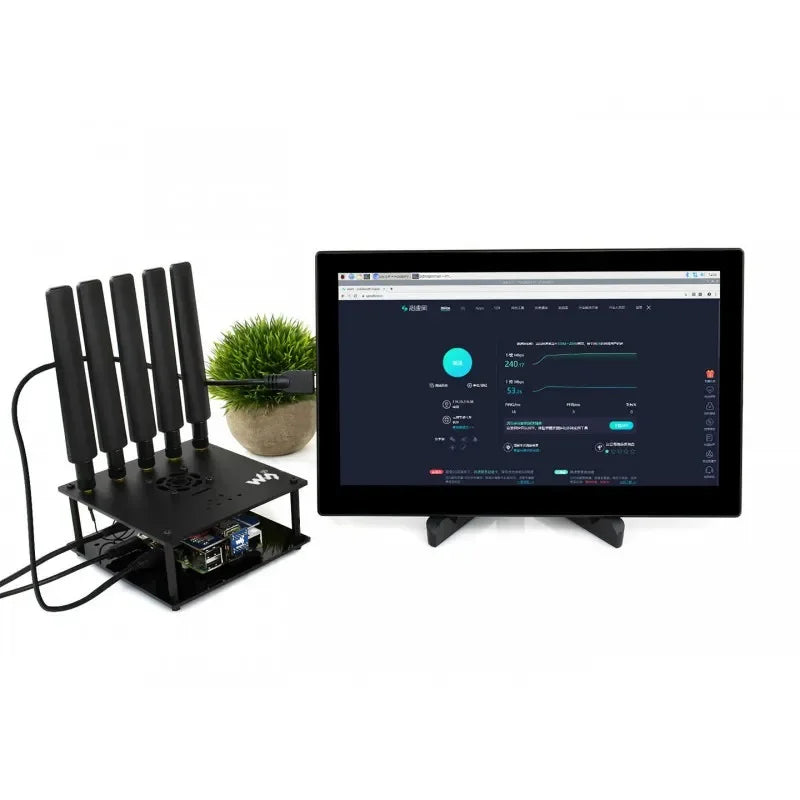

Enabling high-speed 5G connectivity for Raspberry Pi and Windows computers.

Sub-6G: Up to 2.4 Gbps (downlink) / Up to 500 Mbps (uplink)*
LTE: Up to 1 Gbps (downlink) / Up to 200 Mbps (uplink)*
HSPA+: Up to 42 Mbps (downlink) / Up to 5.76 Mbps (uplink)*

* Idealized data rates; actual performance depends on factors like network coverage, traffic, and base station conditions.

Robust Cloud Communication

Supports a wide array of communication protocols:

TCP / IP / IPV4 / IPV6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0

Phone Call & SMS Functionality

Facilitates phone calls and SMS messaging using AT commands.

Setup Introduction

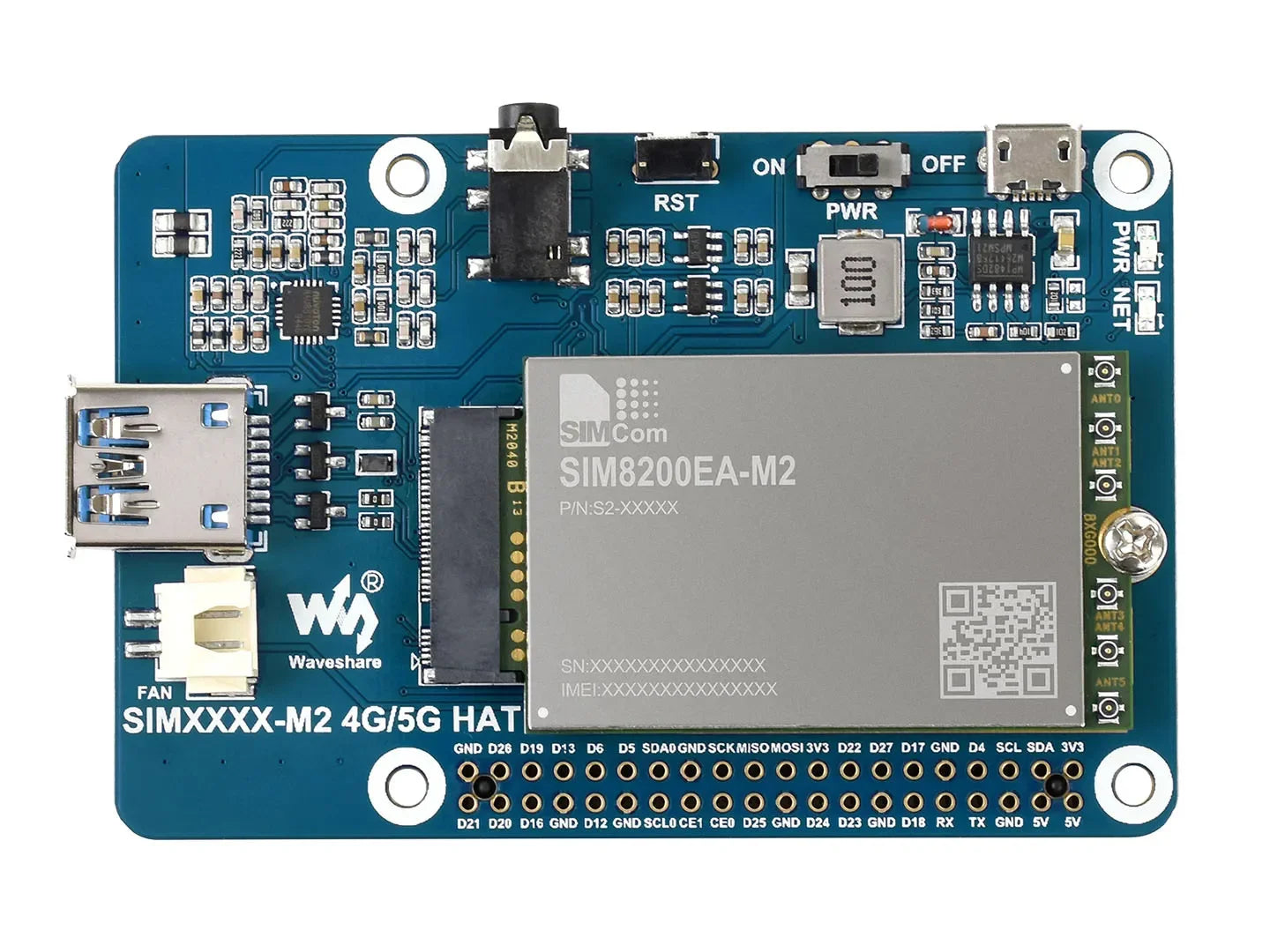

Onboard Components

Raspberry Pi GPIO header
USB 3.1 port
Audio drive circuit
Audio jack
Reset button
Power switch
5V 3A input
5V to 3.3V translator

5V to 1.8V translator
5V to 4.3V translator
Power indicator LED
Network indicator LED
M.2 connector
SIM8200EA-M2 module
Antenna connectors
Fan connector
SIM card slot

Outline Dimensions
