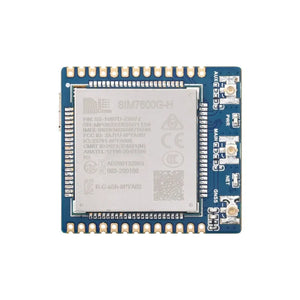

Waveshare SIM7600X 4G Communication Module 4G/3G/2G GNSS Positioning

Waveshare SIM7600X 4G Communication Module 4G/3G/2G GNSS Positioning

57,95 €

Waveshare SIM7600X 4G Communication Module is a compact, multi‑band solution supporting 4G LTE Cat‑4, 3G, and 2G networks with integrated GNSS positioning (GPS, BeiDou, GLONASS, Galileo, QZSS, LBS). It delivers high‑speed mobile broadband up to 150 Mbps downlink and 50 Mbps uplink, enabling reliable cloud communication, SMS, voice call, and data transmission. Designed for Raspberry Pi, Jetson Nano, Arduino, STM32, ESP32, and other embedded platforms, the module features USB and UART interfaces, Nano SIM card slot, and flexible IPEX/SMA antenna connectors. With wide voltage support (5–26V), multiple protection circuits, and compact castellated design, it is easy to integrate into IoT and industrial systems.

Note: GNSS antenna is NOT included



Features

  • Multi‑band 4G/3G/2G connectivity

  • GNSS positioning: GPS, BeiDou, GLONASS, Galileo, QZSS, LBS

  • Supports TCP, UDP, MQTT, HTTP, FTP, HTTPS protocols

  • USB/UART interfaces for PC, Raspberry Pi, Jetson Nano, MCU boards

  • Nano SIM card slot (1.8V/3V)

  • Wide voltage input: 5–26V, 3A high current output

  • Multiple protection circuits for SIM card and power supply

  • Compact castellated design, easy to embed

  • Antenna options: IPEX or SMA connectors



Specifications


SIM7600G-H 4G Module SIM7600E-H 4G Module
Applicable regions Global Europe/Southeast Asia/West Asia/Africa/China/Korea
Frequency band
LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18
/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41
LTE-TDD: B38/B40/B41
LTE-FDD: B1/B3/B5/B7/B8/B20
3G UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 UMTS/HSPA+: B2/B5
2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz GSM/GPRS/EDGE: 900/1800MHz
GNSS
Frequency band GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver type C/A Code
16-channel
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
Software Features
Network protocol TCP/IP/IPV4/IPV6/MQTT/MQTTS/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Internet access PPP/NDIS/RNDIS
USB driver Windows XP/7/8/10/11, Linux (driver free on Raspberry Pi Raspbian system)
SMS Supported types: MT, MO, CB, Text, PDU
Hardware Interface
USB interface Can be used to access PC/Raspberry Pi/Jetson Nano and other hosts for 4G networking, positioning, AT command sending and receiving test, firmware upgrade, etc.
UART interface Can be used to access MCU for 4G networking, positioning, AT command sending and receiving test, etc., compatible with 3.3V/5V working level
SIM card slot Onboard Nano SIM card slot, adapting related pins, compatible with 1.8V and 3V SIM card

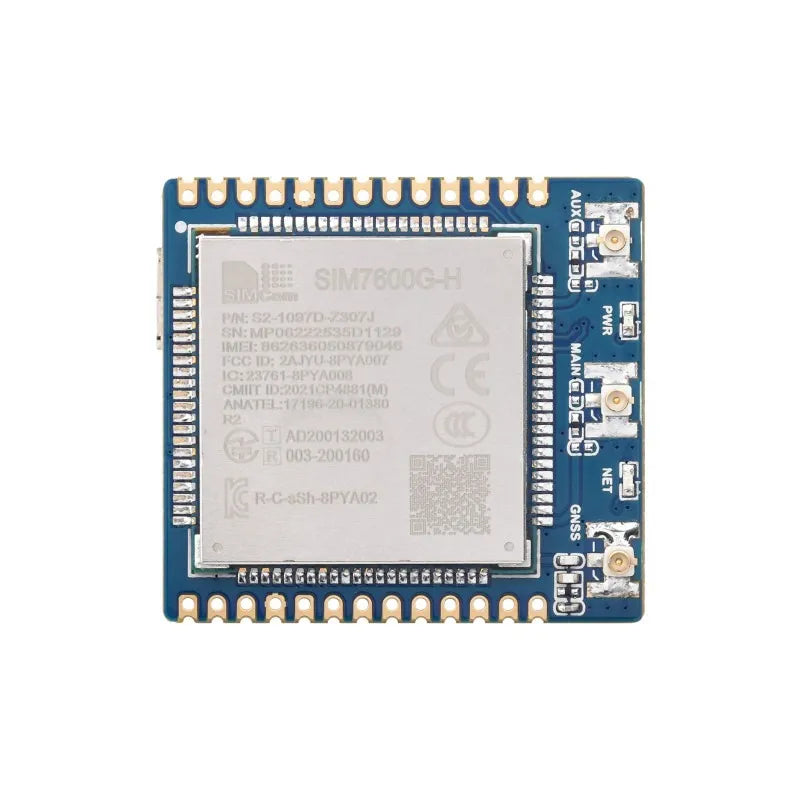

Antenna connectors MAIN: 4G main antenna (optional SMA connector or IPEX 1 connector version)
AUX: 4G auxiliary antenna (IPEX 1 connector by default, can be mass-customized as SMA connector)
GNSS: Positioning antenna (IPEX 1 connector by default, can be mass-customized as SMA connector)
Other interface Adapting other common control pins such as GPIO, PWR, RST, FLT
Other
Power supply USB port or VBUS - GND pin: 5V power supply
VIN - GND pin: 5V~26V wide-range voltage power supply
BAT - GND pin: 3.7V lithium battery power supply
Operating voltage 3.3V by default (configurable as 3.8V-5V via VIO pin by connecting external voltage)
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C
Dimensions 38.8 x 42.0mm



Application

  • IoT & Smart Industry: Remote monitoring, energy management, smart agriculture

  • Fleet Management & Tracking: Vehicle tracking, logistics, asset management with GNSS

  • Smart Payment & Healthcare: Secure LTE connectivity for POS terminals and telemedicine devices

  • Environmental Monitoring: Sensors transmitting data via 4G Cat‑4 networks

  • Embedded Communication: SMS, voice call, and cloud platform integration for Raspberry Pi and Arduino projects



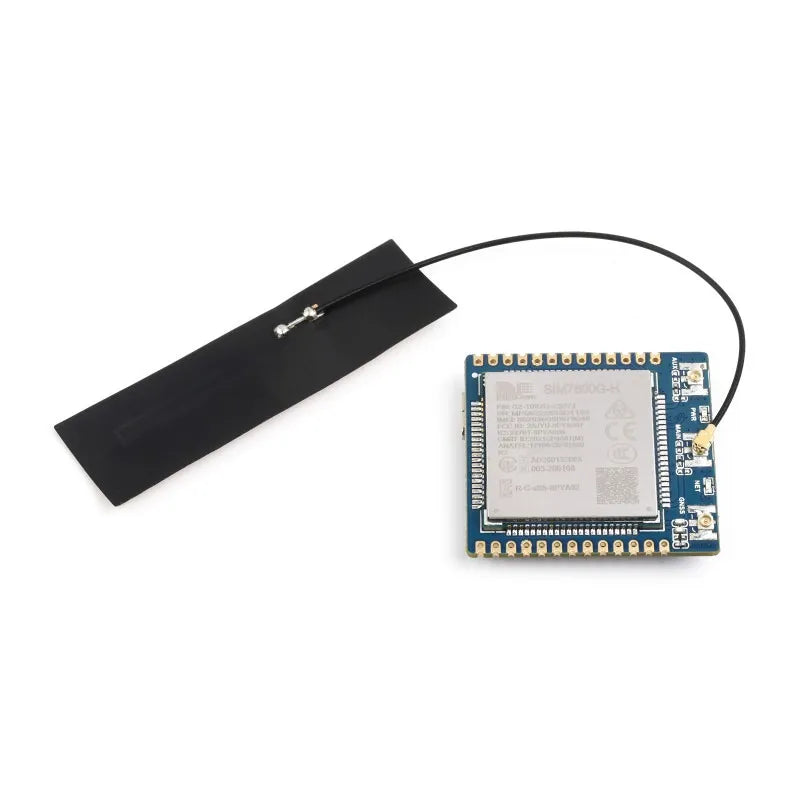

Part List

SIM7600X 4G Module

  • SIM7600X 4G Module standard version x1

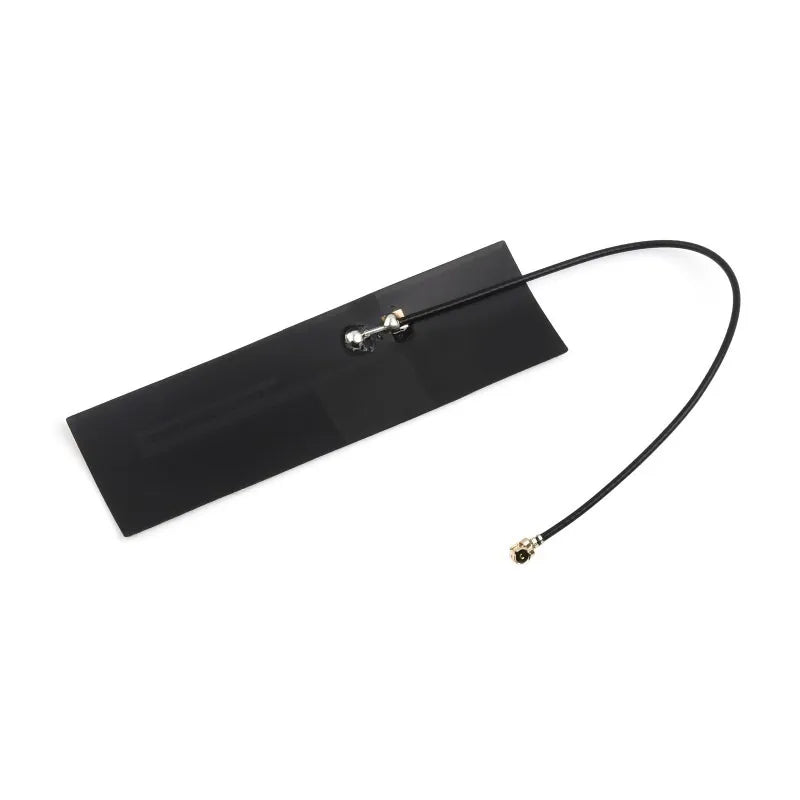

  • FPC antenna x1
  • 13PIN straight pin header x2

SIM7600X 4G Module (B)

  • SIM7600X 4G Module pre-soldered version x1
  • 4G antenna x1



4G / 3G / 2G Support



Dial-up on Windows/Linux

LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink)
3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink)



Compatible With Multiple Platforms

Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32 Demos
And User Manuals, Easier To Develop And Integrate, And Better Expansibility



Cloud Communication

Supports communication protocols including TCP, UDP, MQTT, MQTTS, FTP, FTPS, HTTP, HTTPS...



GNSS positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning





SMS sending and receiving Support

Making Telephone Call* Or Sending SMS By AT Commands

Note: SIM7600X module supports telephone call function, since without adapting PCM and audio jack onboard, the AT commands and USB AUDIO development are required to realize telephone call via USB port



Small and easy integration

Castellated design, small size, high integration
Adapting most of the common interfaces, easy to DIY and embed into the device



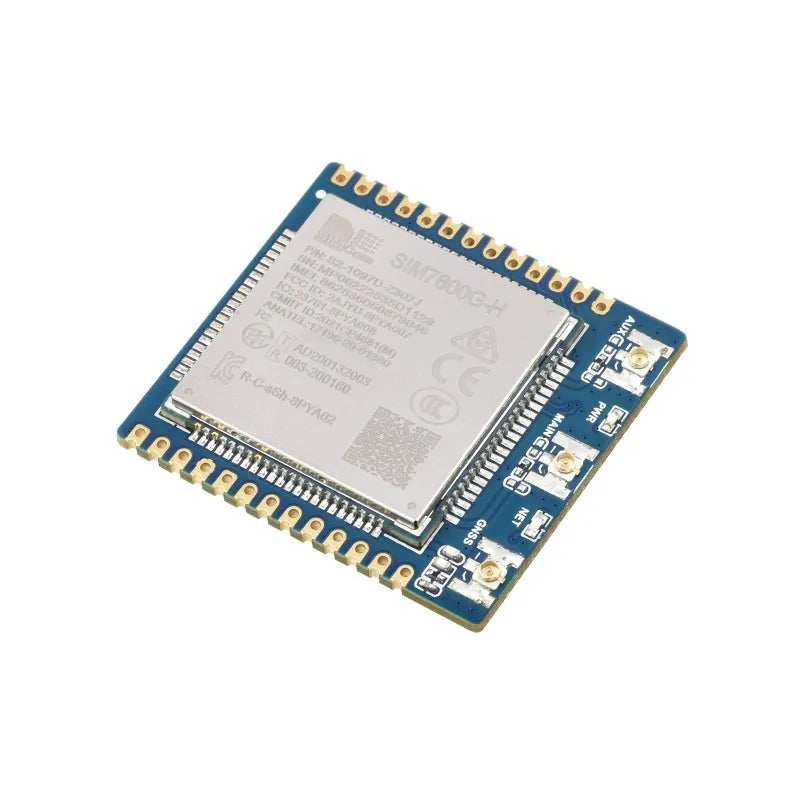

Onboard Resources

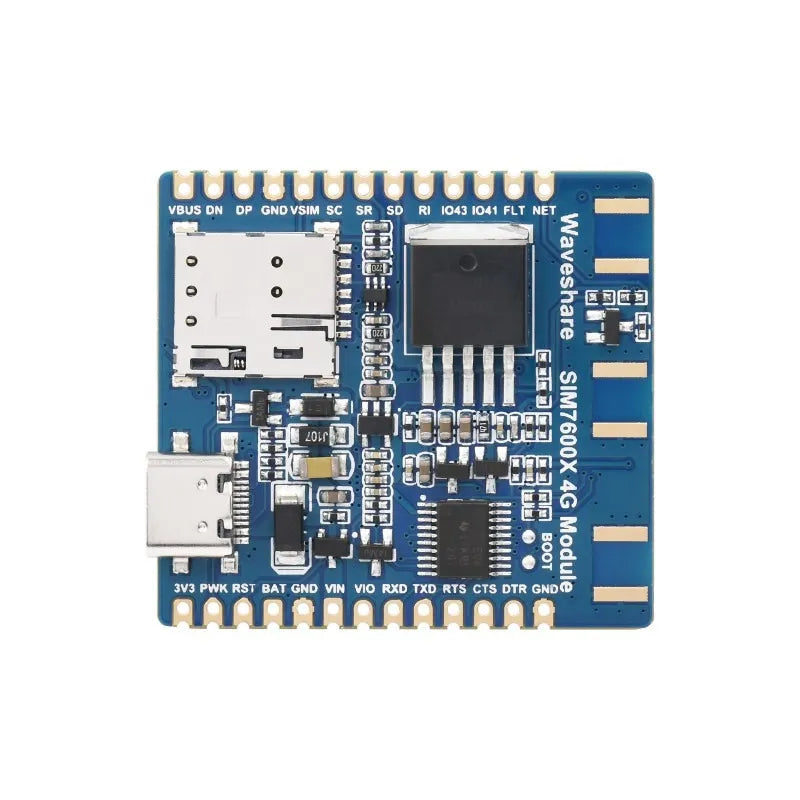

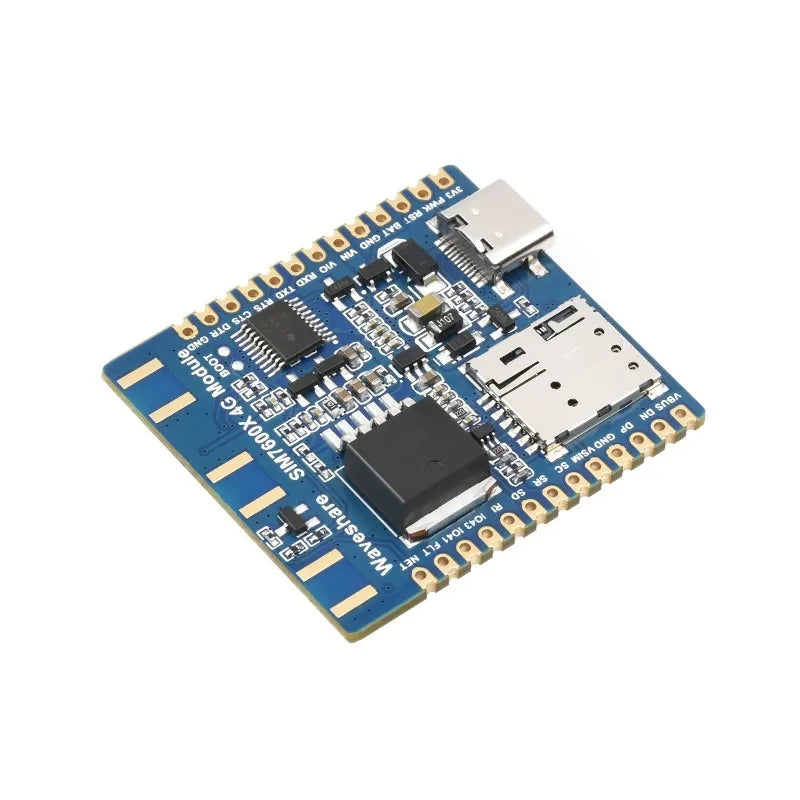

Pinout Definition

Pin Description Pin Description
NET Network Indicator GND Power Ground
FLT Flight mode DTR Sleep mode wake up
IO41 Controll GPIO41 high or low level output by AT command CTS UART flow control
IO43 Controll GPIO43 high or low level output by AT command RTS UART flow control
RI Voice call wake up TXD UART Sending
SD SIM card data RXD UART Receiving
SR SIM card reset VIO VCCIO, default 3.3V when is not connected, configurable as 3.8V-5V via VIO pin by connecting external voltage
SC SIM card clock VIN wide voltage input, 5V~26V
VSIM SIM card power supply GND Power Ground
GND Power ground BAT 3.7V Lithium battery power input
DP USB signal cable Data+ RTS Module reset pin
DN USB signal cable Data- PWK module power on/off pin
VBUS USB power supply cable 3V3 power supply output



Hardware Connection Reference

Connected to PC / Raspberry Pi / Jetson Nano boards via USB

Connected to 5V* MCU such as Arduino via UART and VIN power supply header

Note: the VIO needs to be connected to 5V when the operating level of Arduino is 5V;
and not connected when the operating level is 3.3V

Connected to 3.3V MCU such as ESP32 via UART and 3V3 power output header

With VBAT 3.7V Lithium battery power input



Outline Dimensions
