Waveshare PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5
Waveshare PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5
Shipping & Delivery Information
🚚 In-Stock Items: Orders for in-stock products are shipped within 24 hours after the order is placed.
📦 Pre-order Items: If a product is marked as "Pre-order", it means it is currently out of stock. We'll dispatch your order once we have restocked, usually within 10 working days. For special pre-sale items, the expected arrival date will be noted in the product description.
✈️ Express Shipping: Need your order urgently? Please contact us via email or live chat, and we’ll help arrange express delivery for you.

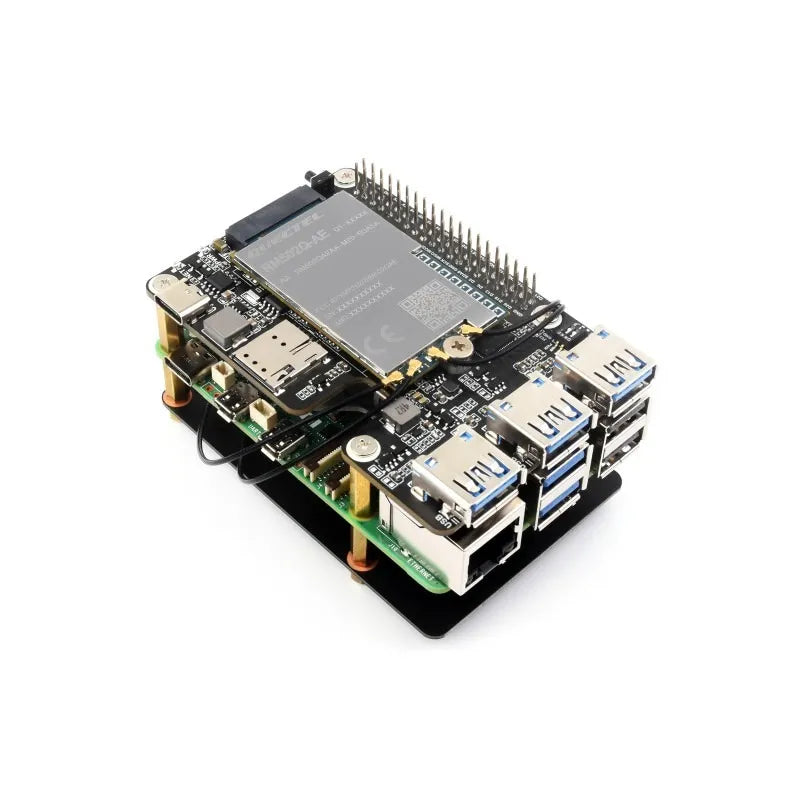

🚀 PCIe to M.2 4G/5G + USB 3.2 HAT for Raspberry Pi 5 Designed specifically for the 🧠 Raspberry Pi 5, this powerful HAT unlocks blazing-fast 🌐 4G/5G networking and expands your 🔌 USB connectivity.
✅ Compatible with a wide range of SIMCom and Quectel 4G/5G modules via the M.2 Key B interface 📡 Includes a high-performance 5G-4IN1-PCB Antenna for optimal signal strength and stability ⚡ Perfect for edge computing, IoT gateways, mobile routers, and high-speed data applications

Note: Raspberry Pi 5 and 5G module are NOT included and are for reference only.
Features
🧠 Designed for Raspberry Pi 5
Built on the HAT+ standard with onboard I²C EEPROM, this module supports stackable expansion via the 40PIN GPIO header — fully compatible with Raspberry Pi 5.
⚡ Expanded USB 3.2 Gen1 Ports
Adds three high-speed USB 3.2 Gen1 ports for connecting peripherals such as cameras, storage devices, or sensors.
📶 M.2 Key B Slot
Supports SIMCom SIM7600XX-M.2, SIM82XX, and Quectel RM5XX series 4G/5G modules. Compatible with 3042/3052 form factors for flexible cellular integration.
🔌 Type-C Interface
Enables 4G/5G networking for Raspberry Pi or PC via USB cable. Also supports firmware flashing, debugging, and external power input.
🔍 Power Monitoring
Integrated power management chip provides real-time readings of voltage, current, and power consumption — ideal for diagnostics and optimization.
📱 Nano SIM Card Slot
Onboard SIM slot for quick and secure SIM card installation — no external adapters required.
🛠️ Diagnostic Tools
Includes onboard Reset button, Power LED, and Network status indicators for intuitive debugging and live monitoring.
📡 Customized Antenna
Comes with a 5G-4IN1-PCB antenna for clean cable management. Supports both top and bottom mounting for flexible enclosure design.
❄️ Enhanced Cooling
Features reserved airflow vents and fan mounting holes to improve heat dissipation and maintain stable operation under load.
Designed for Raspberry Pi 5, HAT+ Standard
Utilizes an onboard PCIe interface for direct connection to the Raspberry Pi 5 via a 16PIN cable.

More USB Capability For Raspberry Pi 5
Extends the PCIe interface to three high-speed USB 3.2 Gen1 ports, allowing for the connection of more peripherals.

Compatible With Multiple SIMCom/Quectel 4G/5G Modules
The onboard M.2 (NGFF) Key B slot supports a range of modules including SIM7600XX-M.2, SIM82XX, and RM5XX series, compatible with 3042/3052 packages. Refer to the table below for detailed specifications of tested modules.
| 5G Module | RM502Q-AE | RM520N-GL | RM530N-GL | SIM8262E-M2 | SIM8262A-M2 | SIM7600G-H-M.2 |
|---|---|---|---|---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
| 5G Standard | 3GPP R15 | 3GPP R16 | - | |||
| 5G | Sub-6 GHz | Sub-6G & mmWave | Sub-6 GHz | - | ||
| Applicable Region | Global (except China) | Global | except Americas | Americas | Global | |
| Dimensions | 30.0 × 52.0 × 2.3 (mm) | 30.0 × 42.0 × 2.3 (mm) | 42.0 × 31.4 × 3.8 (mm) | |||
| Frequency Band | ||||||
| 5G NR | - | n257, n258, n260, n261 | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79 | n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 | - | |
| 5G NR NSA | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | ||||
| 5G NR SA | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | ||||
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 | B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 | ||
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B48 | B38, B39, B40, B41, B42, B43 | B41, B46, B48 | B34, B38, B39, B40, B41 | ||
| LAA | B46 | - | ||||
| UMTS WCDMA | B1, B2, B3, B4, B5, B6, B8, B19 | B1, B2, B4, B5, B8, B19 | B1, B5, B8 | B2, B4, B5 | B1, B2, B4, B5, B6, B8, B19 | |
| GNSS | GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (QZSS is not supported on RM502Q-AE) | GPS / GLONASS / BeiDou / Galileo / QZSS | ||||
| Data Rate | ||||||
| 5G mmWave | - | downlink 4 Gbps; uplink 1.4 Gbps |
- | |||
| 5G SA Sub-6 | downlink 4.2 Gbps; uplink 450 Mbps |
downlink 2.4 Gbps; uplink 900 Mbps |
downlink 2.4 Gbps; uplink 500 Mbps |
- | ||
| 5G NSA Sub-6 | downlink 5 Gbps; uplink 650 Mbps |
downlink 3.4 Gbps; uplink 550 Mbps |
downlink 2.4 Gbps; uplink 500 Mbps |
- | ||
| LTE | downlink 2 Gbps; uplink 200 Mbps |
downlink 1.6 Gbps; uplink 200 Mbps |
downlink 1.0 Gbps; uplink 200 Mbps |
downlink 150 Mbps; uplink 50 Mbps |
||
| UMTS | downlink 42 Mbps; uplink 5.76 Mbps |
|||||
| Note: The 4G/5G module is NOT included; please purchase separately. The above are the supported modules after testing. If you need to use other modules, please confirm interface compatibility with the module manufacturer. | ||||||
Multi-system Support
Supports operating systems such as Raspberry Pi OS, Ubuntu, and OpenWRT.
Raspberry Pi OS

OpenWRT

Ubuntu

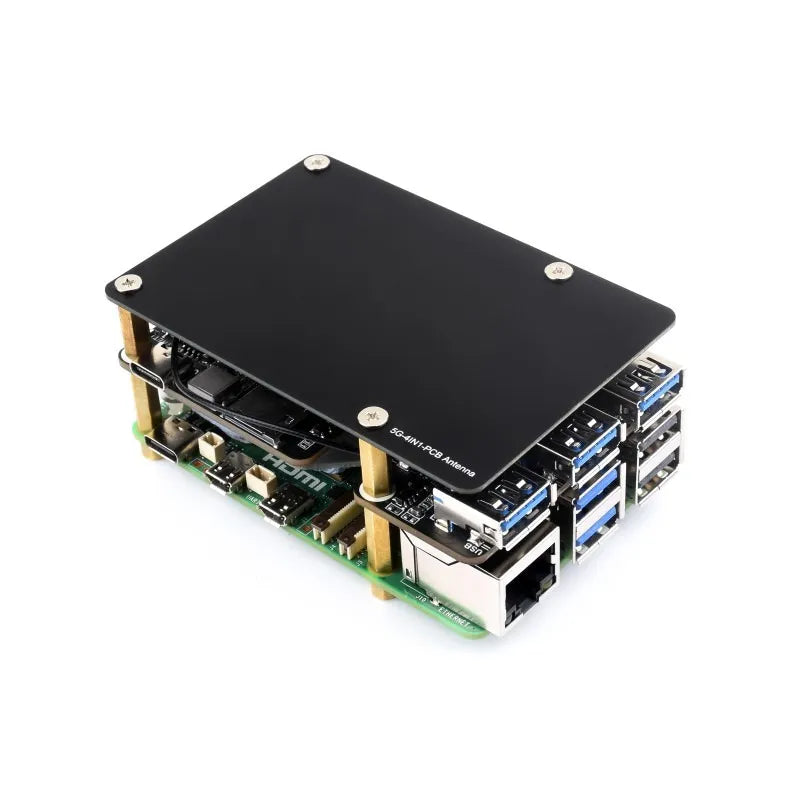

Comes with 5G-4IN1-PCB Antenna
The antenna supports both top and bottom mounting, ensuring easy installation and effective communication.

Install on the Bottom
Install on the Top
Note: For reference only, please refer to the Package Content for detailed part list.
Onboard Power Monitoring Chip and EEPROM
Features an integrated power monitoring chip for real-time tracking of voltage, current, and power via I2C. The EEPROM supports saving HAT ID and product information, complying with the HAT+ standard.

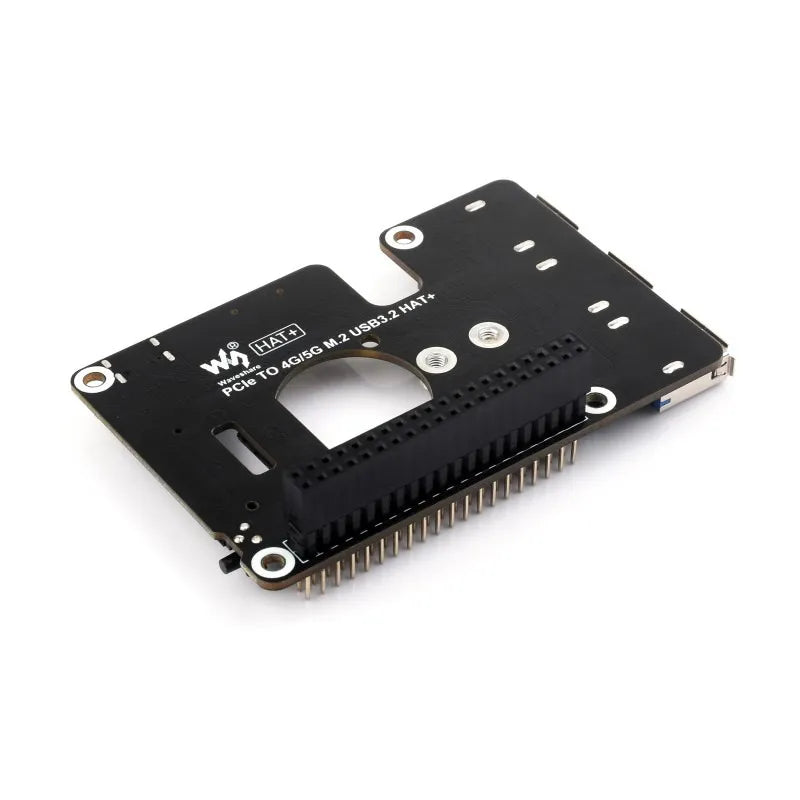

Reserved Airflow Vent For Cooling Fan
Designed with an airflow vent and mounting holes to accommodate a cooling fan, ensuring better heat dissipation and more stable operation for your Raspberry Pi 5.

How to Install

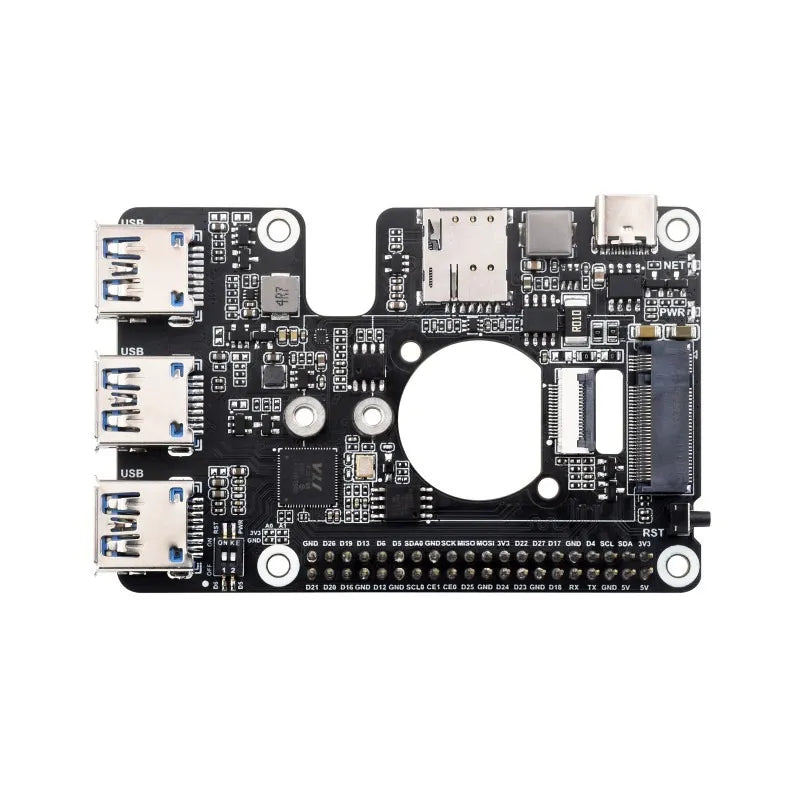

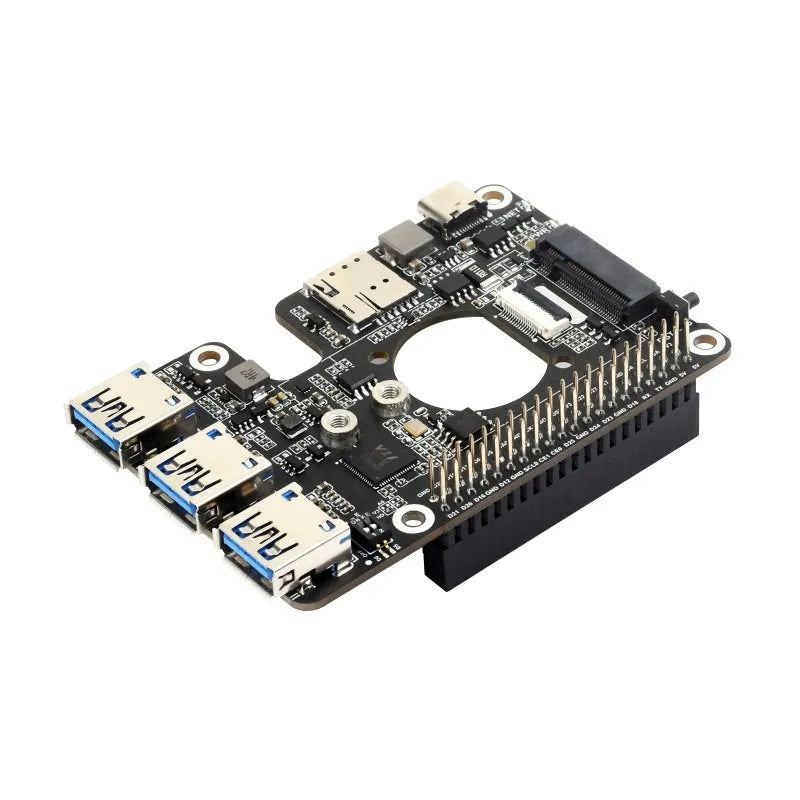

What's On Board

- VL805: PCIe to USB 3.2 Gen1 HUB chip
- EEPROM: For saving HAT ID and product information
- INA219: Power monitoring chip
- 16PIN PCIe interface: For connecting to the PCIe interface of Raspberry Pi 5
- M.2(NGFF) Key B slot: Compatible with 3042/3052 packages M.2 4G/5G modules
- Raspberry Pi GPIO header: For connecting Raspberry Pi 5
- USB 3.2 Gen1 expanded ports: USB1~USB3
- Nano SIM card slot: For installing Nano-SIM card
- Type-C interface: For 4G/5G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
- DIP switch: For switching to use GPIO pins to control power on/off and reset of the module
- Reset button: Press it to reset the module
- PWR indicator: Power indicator
- NET indicator: Module Network status indicator
Pinout Definition

Application Scenarios
Ideal for Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, and Digital Signage, among others.

Outline Dimensions
