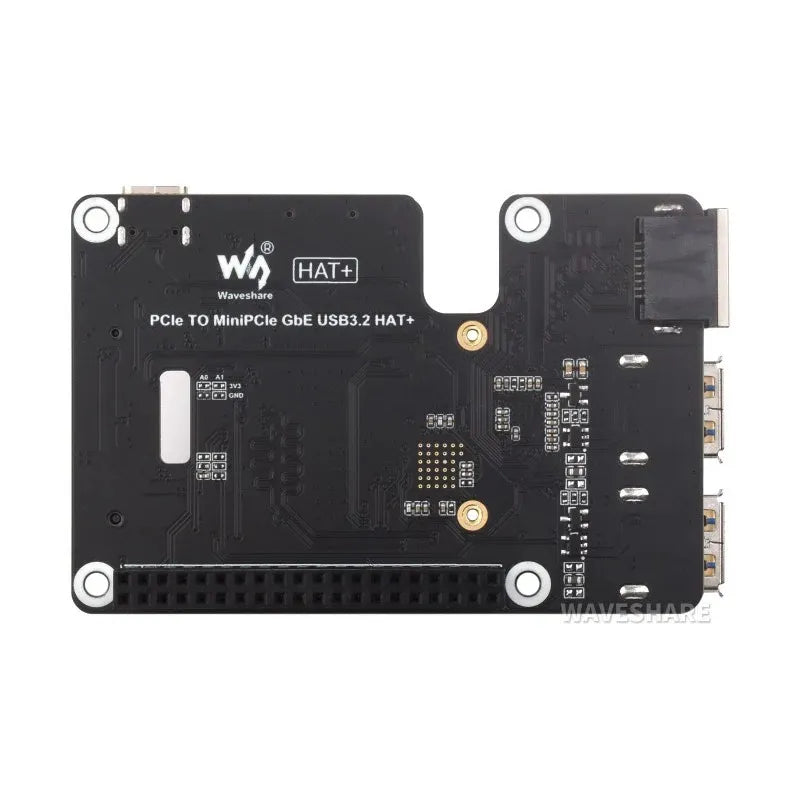

Waveshare PCIe to MiniPCIe/Gigabit Ethernet/USB 3.2 Gen1 HAT for Raspberry Pi 5

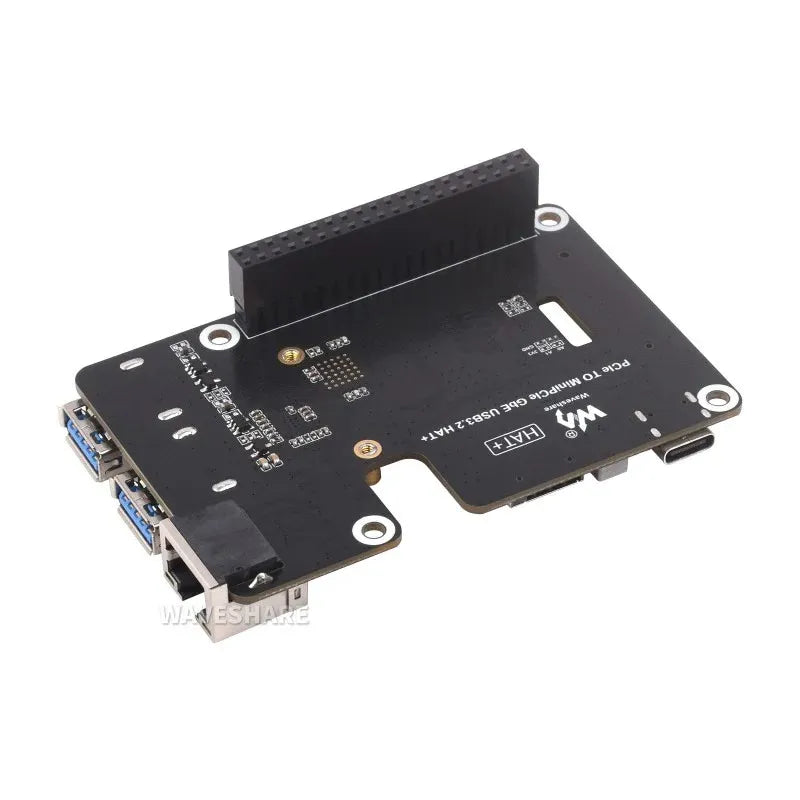

This HAT for Raspberry Pi 5 extends a MiniPCIe slot, a Gigabit Ethernet port, and USB 3.2 Gen1 ports. It supports MiniPCIe interface 4G modules, offering high-speed networking and broad OS compatibility. Driver-free, plug and play for seamless integration.

Version Options

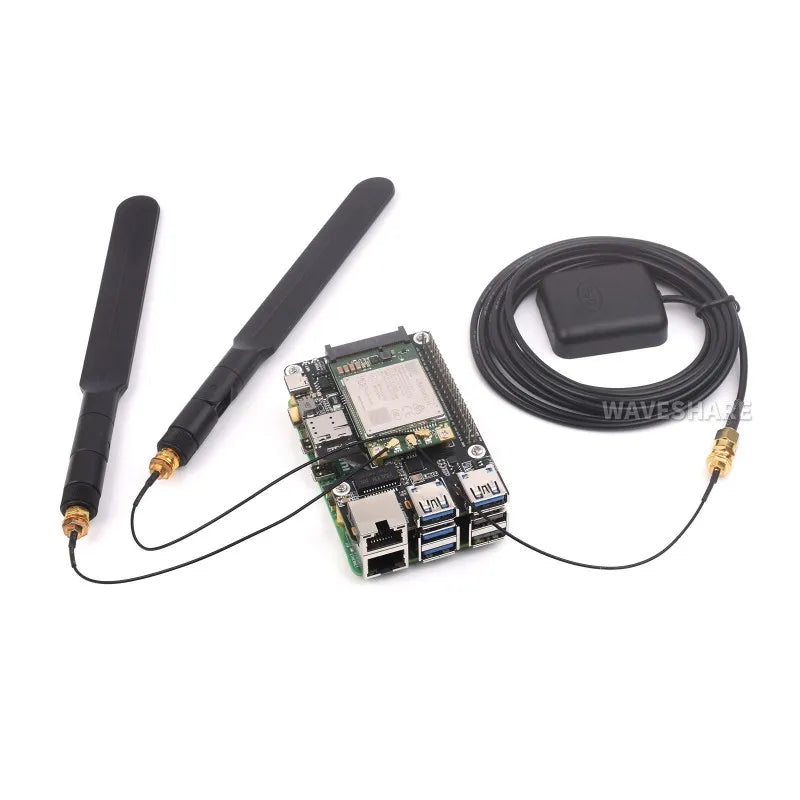

PCIe TO MiniPCIe GbE USB3.2 HAT+

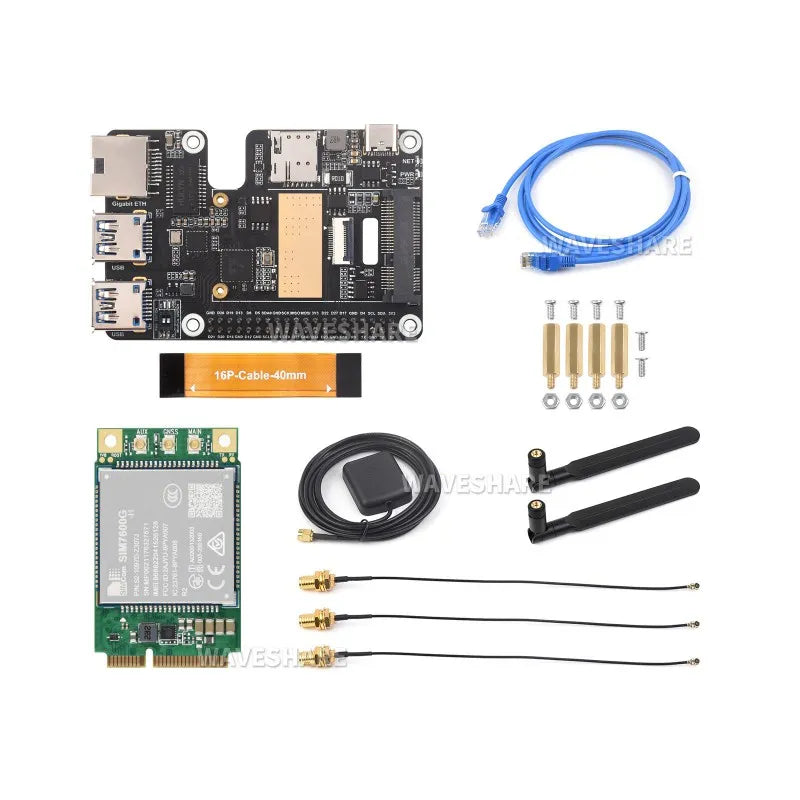

The PCIe HAT + accessories

SIM7600G-H 4G GbE USB3.2 HAT+
PCIe HAT + SIM7600G-H-PCIE module + accessories

EG25-G 4G GbE USB3.2 HAT+
PCIe HAT + EG25-G mPCIe module + accessories
Module Parameters Comparison

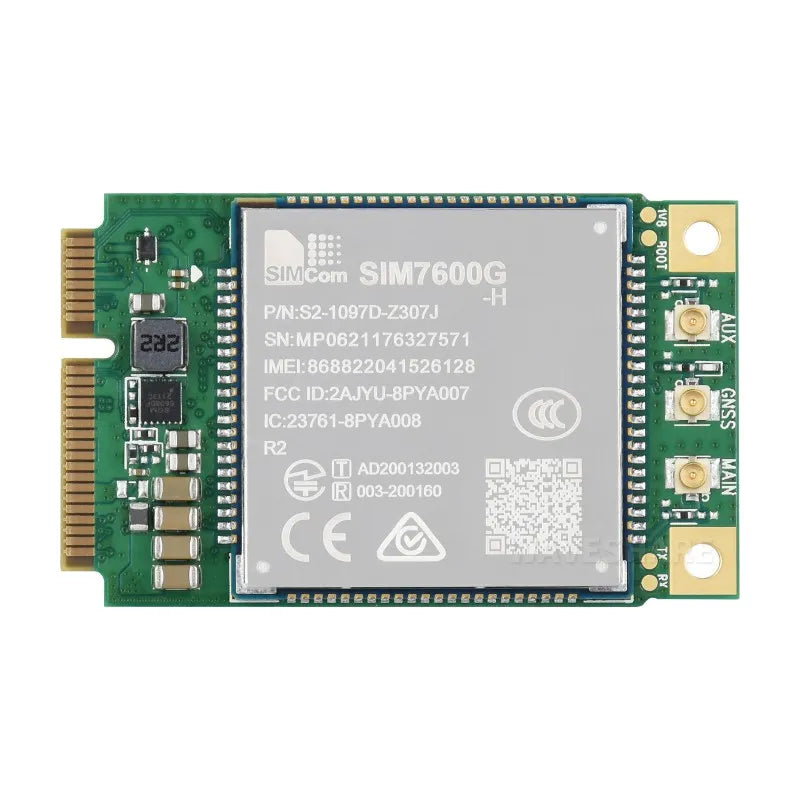

Onboard MiniPCIe slot, compatible with SIM7600G-H-PCIE / EG25-G mPCIe series 4G modules.
| 4G module | SIM7600G-H-PCIE | EG25-G mPCIe |
|---|---|---|
![]() |
![]() |
|
| Frequency band | ||
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 |
| LTE-TDD | B34, B38, B39, B40, B41 | B38, B39, B40, B41 |
| WCDMA | B1, B2, B4, B5, B6, B8, B19 | |
| GSM | 850, 900, 1800, 1900 MHz | |
| GNSS | GPS, Beidou, GLONASS, GALILEO, QZSS | |
| Data Transfer | ||
| LTE-FDD | 150 Mbps (DL) / 50 Mbps (UL) | |
| LTE-TDD | 130 Mbps(DL) / 35 Mbps(UL) | 130 Mbps(DL) / 30 Mbps(UL) |
| HSPA+ | 42 Mbps (DL) / 5.76 Mbps (UL) | |
| WCDMA | 384 Kbps (DL) / 384 Kbps (UL) | |
| EDGE | 236.8 Kbps (DL) / 236.8 Kbps (UL) | 296 Kbps (DL) / 236.8 Kbps (UL) |
| GPRS | 85.6 Kbps (DL) / 85.6 Kbps (UL) | 107 Kbps (DL) / 85.6 Kbps (UL) |
| Software Features | ||
| Operating system | Windows / Linux / Android | |
| Communication protocols | TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS | TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MQTT, CMUX, HTTPS, FTPS, SMTPS, SSL, MMS, FILE |
| SMS | Supports MT, MO, CB, Text, PDU | |
| Firmware upgrade | USB/FOTA | USB/DFOTA |
| Hardware Specifications | ||
| SIM card | 1.8V / 3.0V | |
| Antenna interface | IPEX-1 connector (LTE main antenna + LTE diversity antenna + GNSS antenna) | |
| Power supply | 3V ~ 3.6V | |
| Form factor | Mini-PCIe | |
| Dimensions | 50.8 × 31.0 × 5.5 mm | 51.0 × 30.0 × 4.9 mm |
| Operating temperature | -40℃ ~ +80℃ | |
| Applications | ||
| Applicable regions | global coverage | |
| Note: The 4G module is optional, please refer to the Package Content for detailed part list. The above are the supported modules after testing; If you need to use with other modules, please confirm the interface compatibility of your module. | ||
Designed for Raspberry Pi 5, HAT+ Standard
Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable.

For reference only, please refer to the Package Content for detailed part list.
More USB Capability For Raspberry Pi 5
Extends the PCIe interface to two high-speed USB 3.2 Gen1 ports for connecting more peripherals.

For reference only, please refer to the Package Content for detailed part list.
Extends 1x Gigabit Ethernet Port
Equipped with an RTL8153B high-performance Gigabit ETH chip and a sinking design network port for neat and beautiful integration.

Network Speed Measurement
Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., providing stable and reliable network speeds.

Multi-System Support
Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.

Global Band 4G / 3G / 2G Support
LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink)
3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink)
2G (GPRS/EDGE): up to 236.8Kbps (uplink) / up to 236.8Kbps (downlink)

Note: A 4G module such as SIM7600G-H-PCIE or EG25-G mPCIe is required to enable this function.
GNSS Positioning
Supports GPS, BeiDou, Glonass, GALILEO, QZSS, and LBS base station positioning.

Note: A 4G module such as SIM7600G-H-PCIE or EG25-G mPCIe is required to enable this function.
Onboard Power Monitoring Chip and EEPROM
Real-time monitoring of power status, supports USB port power control via software.

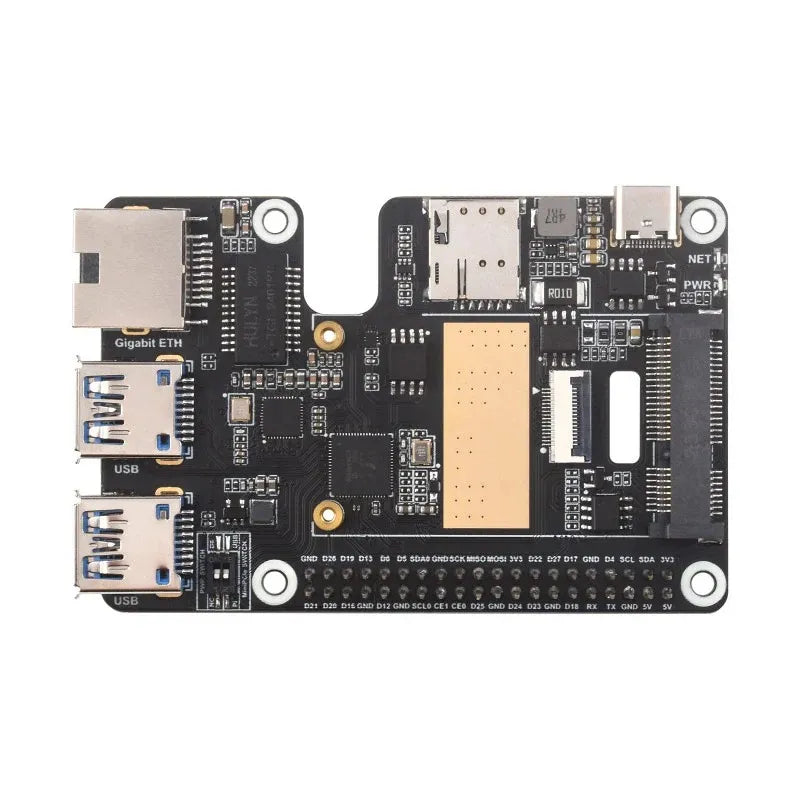

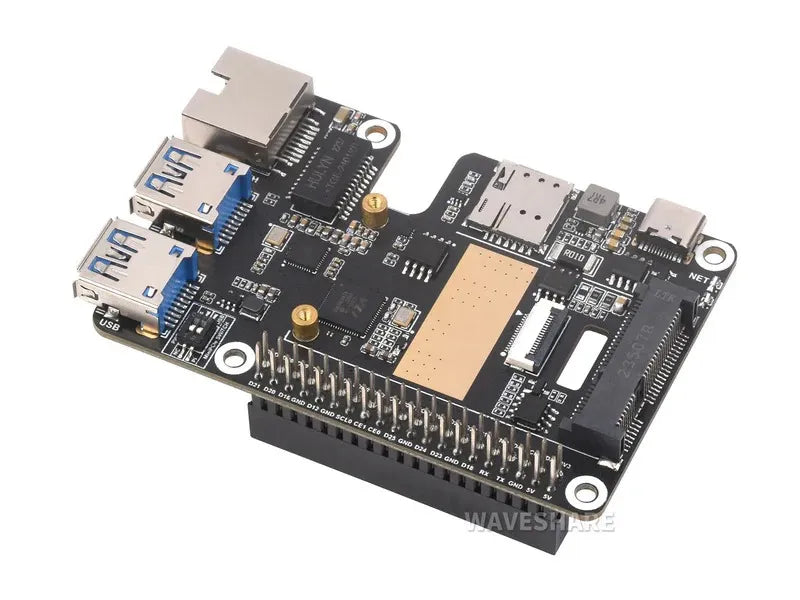

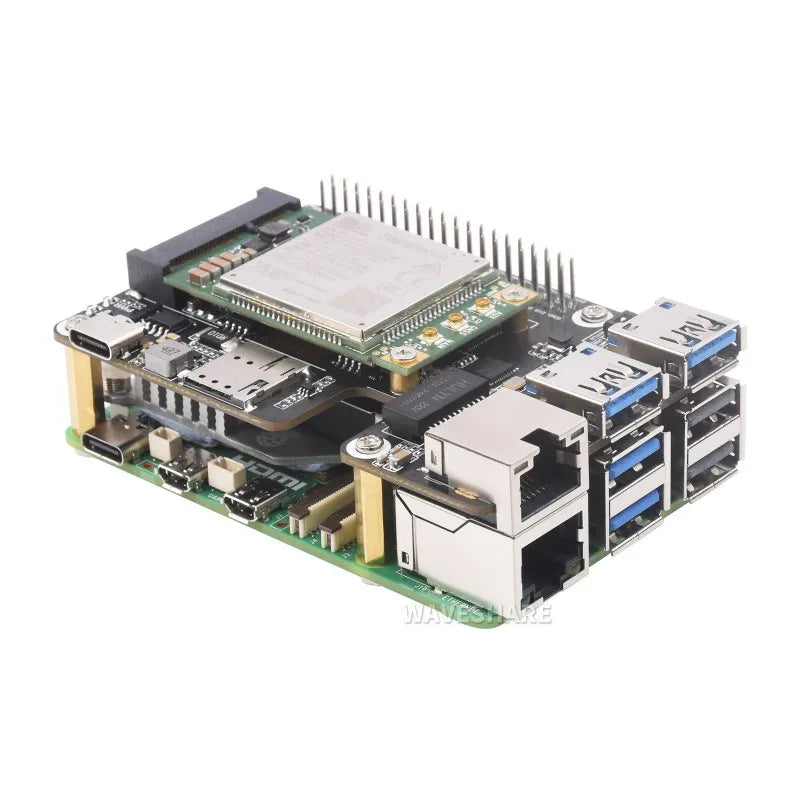

What's On Board

- RTL8153B: USB to Gigabit ETH
- VL805: PCIe to USB 3.2 Gen1 HUB chip
- INA219: Power monitoring chip
- EEPROM: For saving HAT ID and product information
- Raspberry Pi GPIO header: For connecting Raspberry Pi 5
- MiniPCIe slot: For connecting the 4G module with MiniPCIe interface
- 16PIN PCIe interface: For connecting to the PCIe interface of Raspberry Pi 5
- Type-C interface: For 4G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
- Nano SIM card slot: For installing Nano-SIM card
- Gigabit Ethernet port: Up to 1000Mbps data rate, compatible with 100Mbps
- USB 3.2 Gen1 expanded ports: USB1~USB2
- DIP switches: For switching to use GPIO D6 pin to control power ON/OFF of the module and switching the module USB signal output direction
- NET indicator: Module Network status indicator
- PWR indicator: Power indicator
Pinout Definition

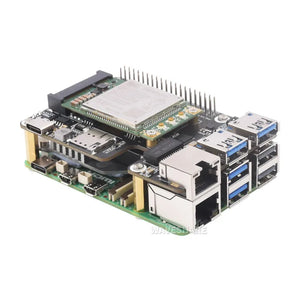

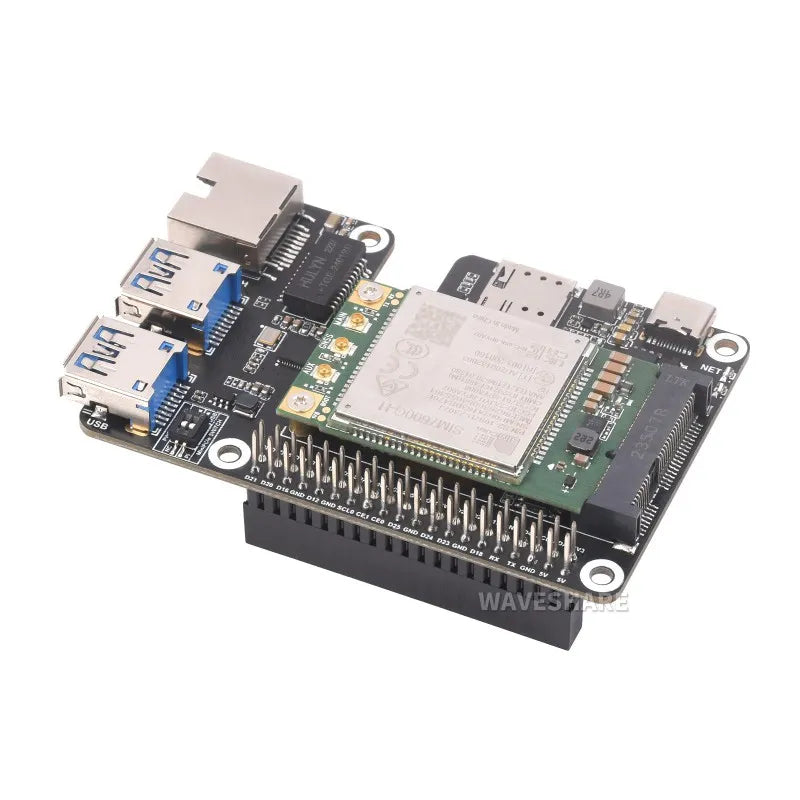

How to Install

For reference only, the Raspberry Pi 5 and Active Cooler are not included.
Application Scenarios
Ideal for Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, and Digital Signage.

Outline Dimensions
