Waveshare PCIe to SIMCom/Quectel 5G/4G/3G HAT for Raspberry Pi 5 RM530N-GL
Details
Prohibited by the module manufacturer SIMCOM/QUECTEL, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
The RM530N-GL is currently certified only by T-Mobile and has not yet obtained certification from carriers such as Verizon or AT&T. If you require these certifications, please choose the RM520N-GL.

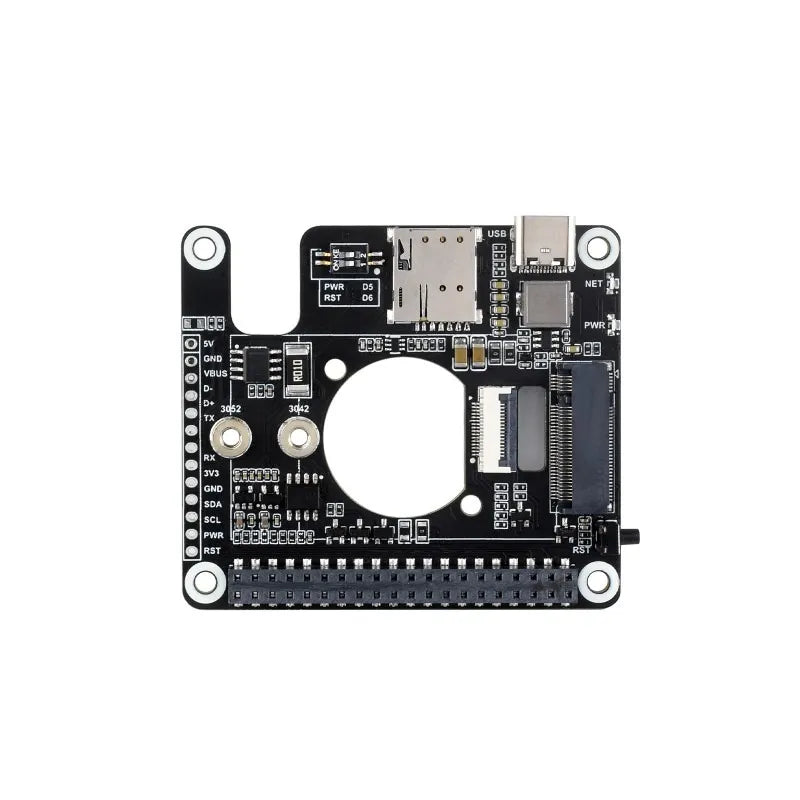

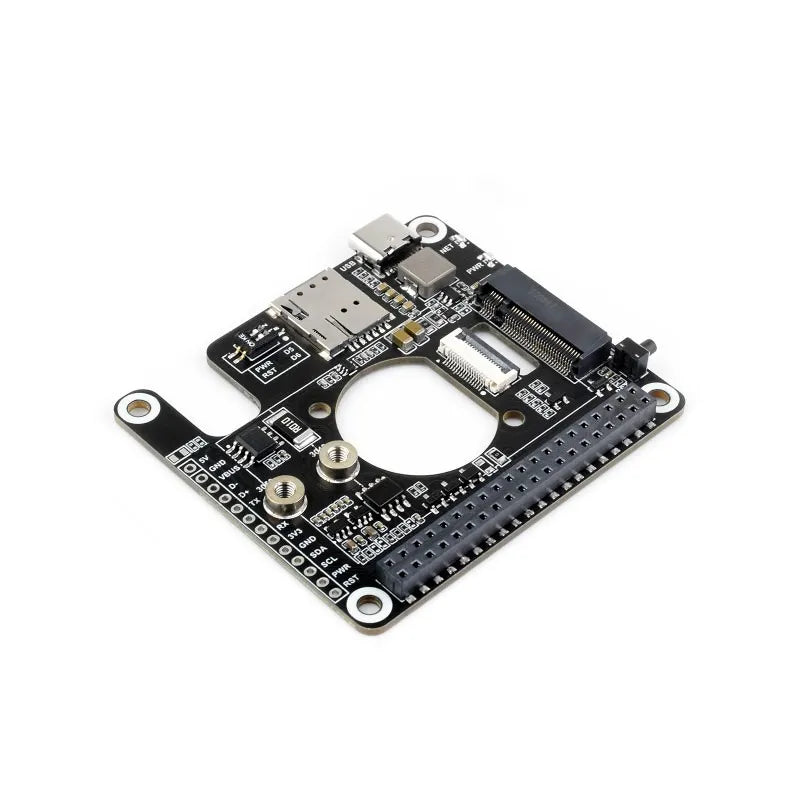

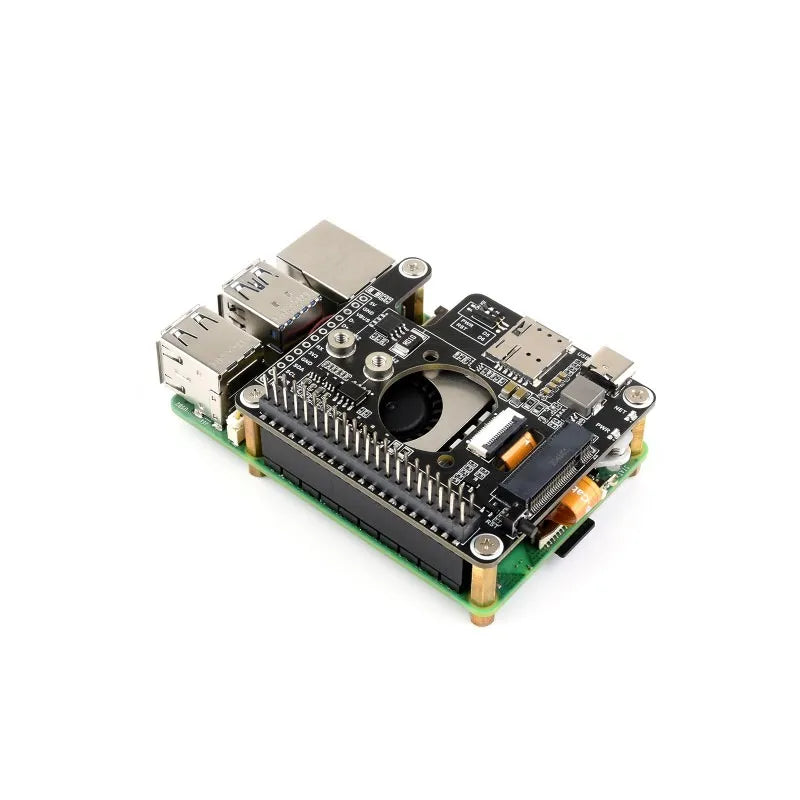

PCIe To 5G HAT for Raspberry Pi 5
PCIe protocol, supports 5G high-speed networking

for reference only, the Raspberry Pi 5 is NOT included.
Features at a glance
- Comes with PCIe TO 5G HAT+

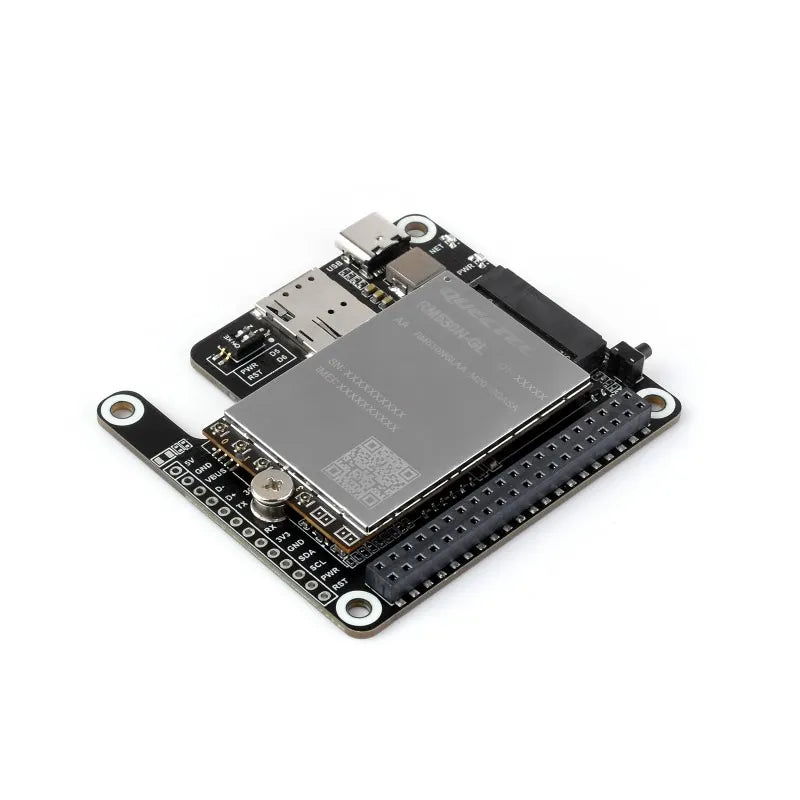

- Onboard M.2(NGFF) Key B slot, supports SIM82XX and RM5XX series 5G modules and is compatible with 3042/3052 packages
- Onboard PCIE connector, can be directly connected to Raspberry Pi 5 PCIe interface for 5G networking, supports Raspberry Pi OS and OpenWRT
- Onboard Type-C port for 5G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
- HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion
- Onboard power monitoring chip for real-time measurement of voltage, current and power
- Onboard SIM card slot for NANO SIM card
- Onboard Reset button, power and network indicators for easy debugging and monitoring the operating status
- Provides options for 5G module, please refer to the module specifications and applicable region below to choose your 5G HAT kit before placing order
- Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation
Options for SIMCom/Quectel 5G module
Tested to support multiple SIMCom/Quectel Qualcomm 5G modules
compatible with 3042 / 3052 size 5G M.2 modules
| Model | RM502Q-AE 5G HAT+ | RM520N-GL 5G HAT+ | RM530N-GL 5G HAT+ | SIM8262E-M2 5G HAT+ | SIM8262A-M2 5G HAT+ | ||||
|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
|||||
| 5G Module |
![]() RM502Q-AE |
![]() RM520N-GL |
![]() RM530N-GL |
![]() SIM8262E-M2 |
![]() SIM8262A-M2 |
||||
| 5G Standard | 3GPP R15 | 3GPP R16 | |||||||
| 5G | Sub-6 GHz | Sub-6G & mmWave | Sub-6 GHz | ||||||
| Applicable Region | Global (except China) | Global | except Americas | Americas | |||||
| Dimensions | 30.0 × 52.0 × 2.3 (mm) | 30.0 × 42.0 × 2.3 (mm) | |||||||
| Frequency band | |||||||||
| 5G | 5G NR | - | n257, n258, n260, n261 | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79 | n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 | ||||
| 5G NR NSA | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |||||||
| 5G NR SA | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |||||||
| LTE | LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 | B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 | |||||
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B48 | B38, B39, B40, B41, B42, B43 | B41, B46, B48 | ||||||
| LAA | B46 | - | |||||||
| UMTS | WCDMA | B1, B2, B3, B4, B5, B6, B8, B19 | B1, B2, B4, B5, B8, B19 | B1, B5, B8 | B2, B4, B5 | ||||
| GNSS | GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (QZSS is not supported on RM502Q-AE) | GPS / GLONASS / BeiDou / Galileo / QZSS | |||||||
| Data rate | |||||||||
| 5G mmWave | - | downlink 4 Gbps; uplink 1.4 Gbps |
- | ||||||
| 5G SA Sub-6 | downlink 4.2 Gbps; uplink 450 Mbps |
downlink 2.4 Gbps; uplink 900 Mbps |
downlink 2.4 Gbps; uplink 500 Mbps |
||||||
| 5G NSA Sub-6 | downlink 5 Gbps; uplink 650 Mbps |
downlink 3.4 Gbps; uplink 550 Mbps |
|||||||
| LTE | downlink 2 Gbps; uplink 200 Mbps |
downlink 1.6 Gbps; uplink 200 Mbps |
downlink 1.0 Gbps; uplink 200 Mbps |
||||||
| UMTS | downlink 42 Mbps; uplink 5.76 Mbps |
||||||||
| Note: The above are the supported 5G modules after testing; If you need to use with other 5G modules, please confirm with the module manufacturer for interface and mode compatibility. | |||||||||
Supports 5G/4G/3G Networking
Supports 5G NSA (4G And 5G Co-Networking) And SA (5G Separate Networking); Supports 4G/3G Internet

the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

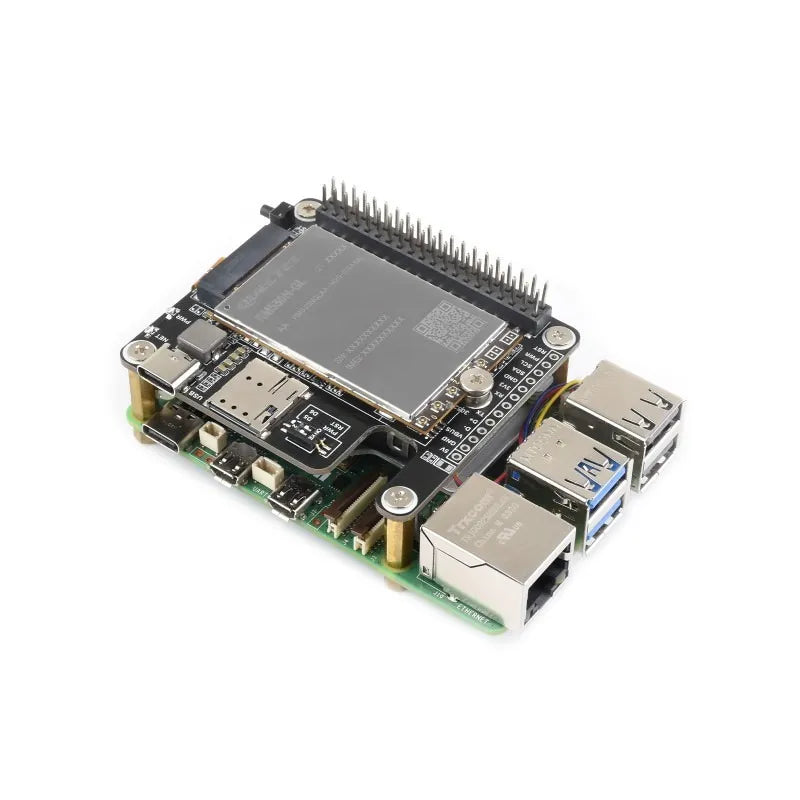

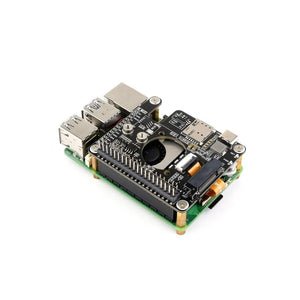

Connecting To PI5 Via PCIe Interface
Onboard PCIe connector, can be directly connected to Raspberry Pi 5 PCIe interface for 5G networking via 16PIN cable

for reference only, please refer to the Package Content for detailed part list
PCIe MHI driver porting
The Raspberry Pi 5 can load the module via PCIe MHI driver
compatible with the latest Raspberry Pi OS and OpenWRT system
Raspberry Pi OS

OpenWRT


Networking other devices via network cable

Individually powered and sharing WIFI
Connecting to Windows/Linux Host via USB
Onboard Type-C port, supports connecting to Windows/Linux host via USB cable for 5G networking, firmware updating or debugging

Connecting to the Raspberry Pi 4B

Connecting to the PC
supports Windows/Linux systems via USB port

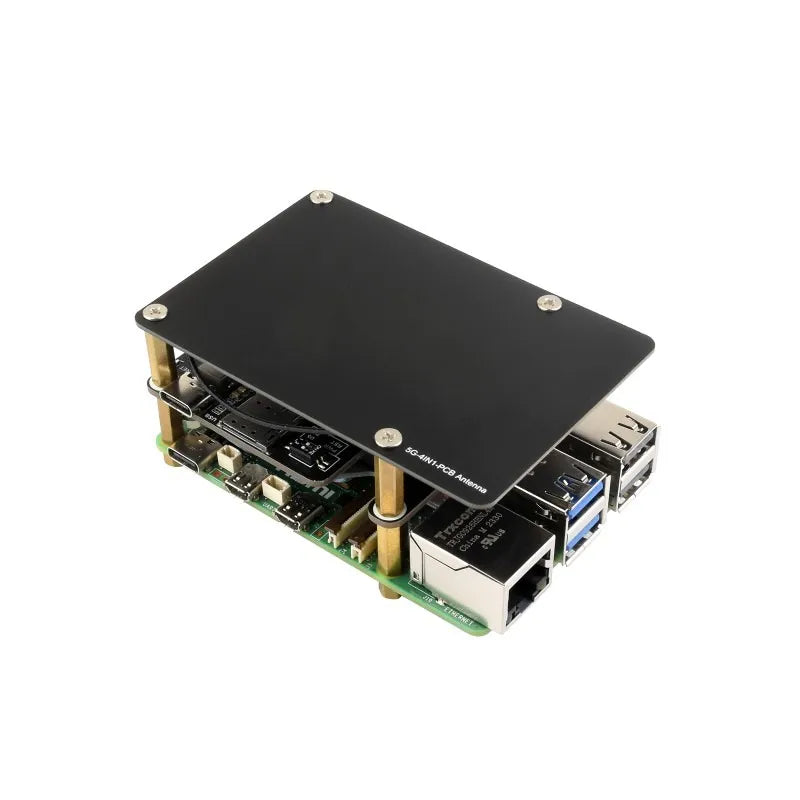

Comes with 5G-4IN1-PCB Antenna
Supports top and bottom mounting, easy to install, good communication effect

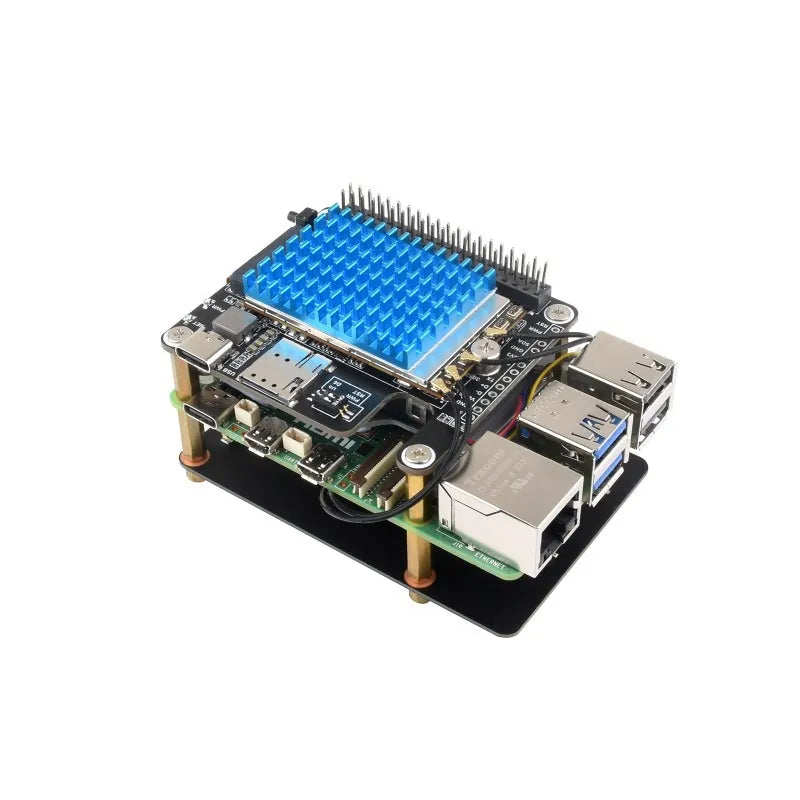

Install on the Bottom

Install on the Top

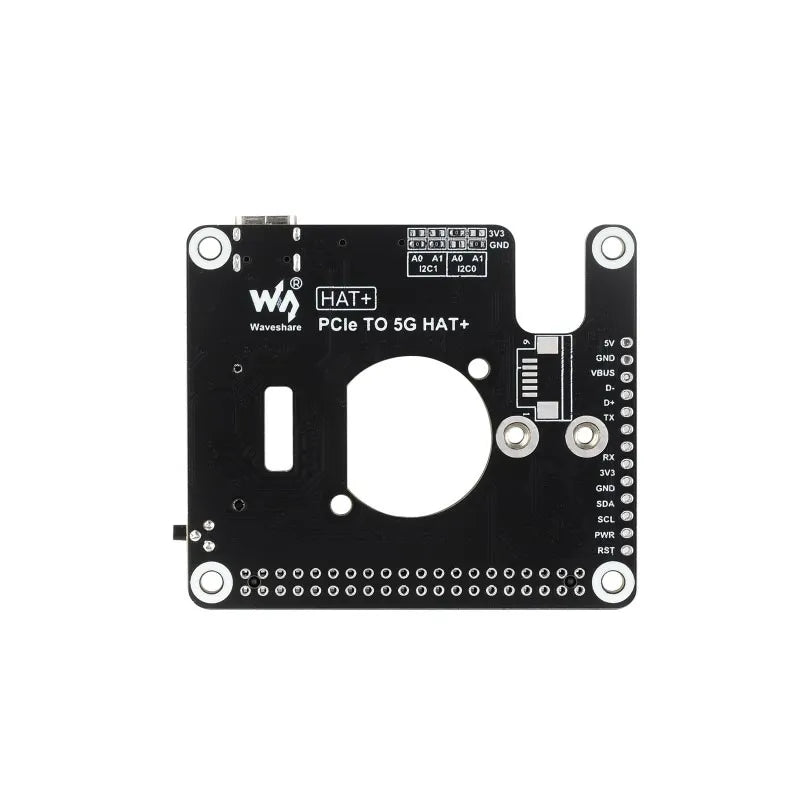

Onboard power monitoring chip and EEPROM
for real-time monitoring voltage, current and power of module Via I2C
supports saving HAT+ ID and product information, compatible with HAT+ standard

How to Install

Pinout definition

Application Scenarios
Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...

Outline dimensions
