Waveshare ESP32-C6 Mini Dev Board Based on ESP32-C6FH4

Waveshare ESP32-C6 Mini Dev Board Based on ESP32-C6FH4

5,45 €

ESP32-C6 Mini Development Board, Based on ESP32-C6FH4, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 and Bluetooth 5, ESP32 Development Board

Based on ESP32-C6FH4, onboard multi-function GPIO pins

Castellated Module, Suitable For SMD Applications

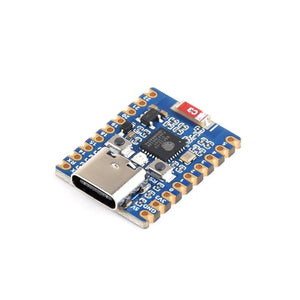

ESP32-C6-Zero mini development board, front view

Board Specifications

  • Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
  • Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory
  • Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
  • Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
  • Onboard USB Type-C port, 22 x GPIO pins allows flexibly configuring pin functions

Version Options

ESP32-C6-Zero, without pinheader

ESP32-C6-Zero
without pinheader

ESP32-C6-Zero-M, with pre-soldered header

ESP32-C6-Zero-M
with pre-soldered header

ESP32-C6 suitable for AIoT applications

Powered by a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability and Reliable security features

ESP32-C6 with high-performance 32-bit RISC-V processor

WIFI 6 and BLE 5 support

Supports WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

ESP32-C6-Zero, with WIFI 6 and BLE 5 support

Supports ESP-IDF, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

ESP-IDF and Arduino development platform

What's On Board

ESP32-C6-Zero, onboard components
  1. ESP32-C6FH4
    Built-in dual processors, main frequency is up to 160 MHz
  2. USB Type-C Port
    for downloading programme and debugging
  3. ME6217C33M5G
    low dropout LDO, 800mA (Max)
  4. WS2812 RGB LED
  1. 2.4G ceramic antenna
  2. BOOT button
    Press it and then press the RESET button to enter download mode
  3. RESET button
  4. ESP32-C6FH4 pins

Pin definition

ESP32-C6-Zero, pin definition

Outline dimensions

ESP32-C6-Zero outline dimensions
