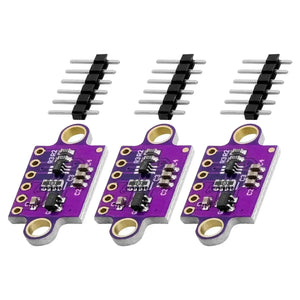

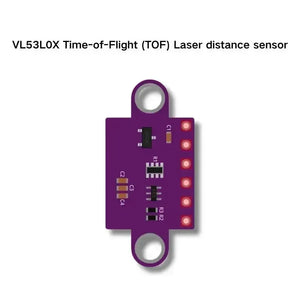

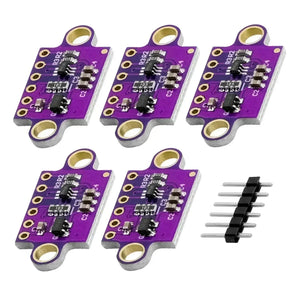

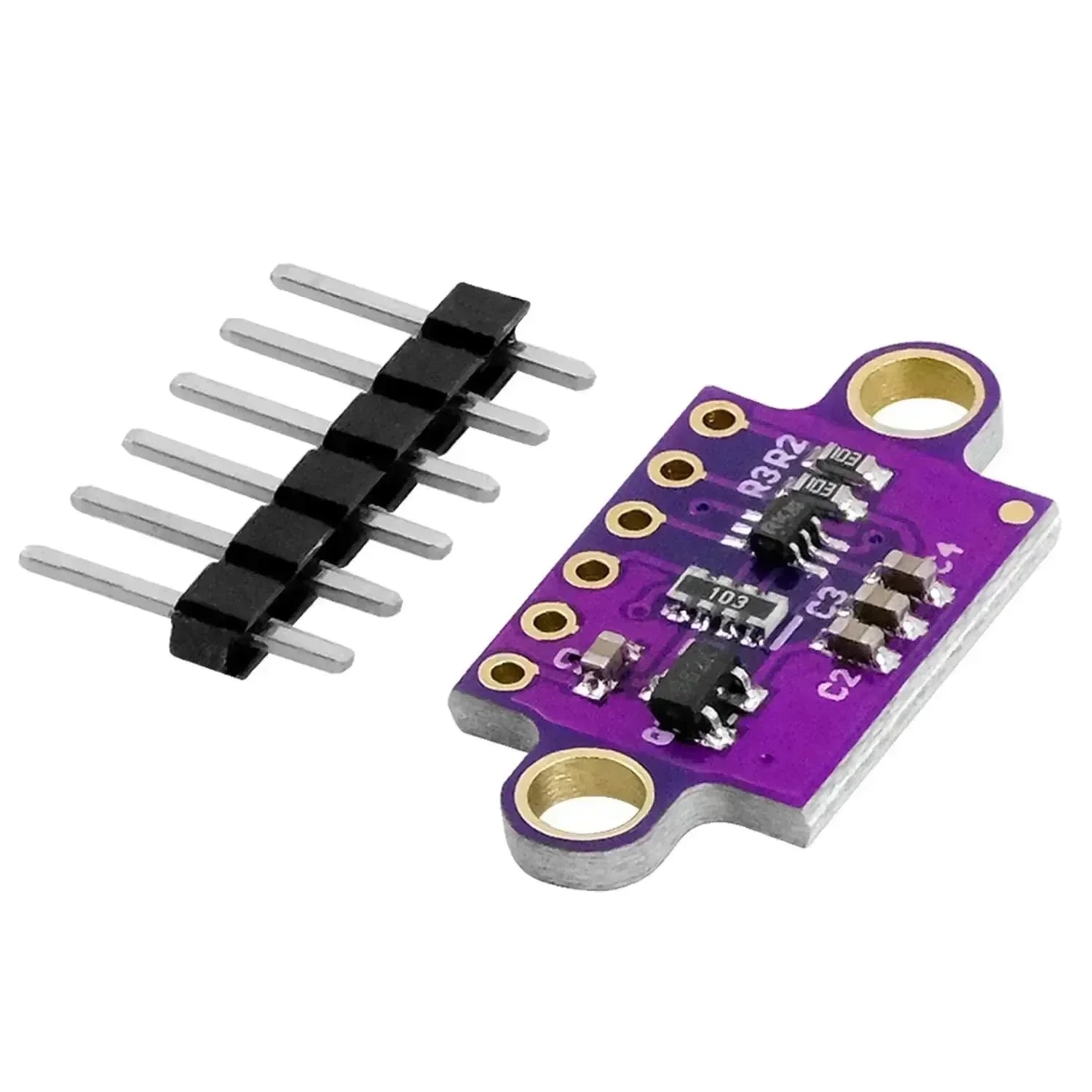

VL53L0X Time-of-Flight (TOF) Laser distance sensor

🏭 Product Inventory Location: China

€7,55 EUR
€7,55 EUR
€7,55 EUR
Please hurry! Only 2000 left in stock
Select quantity discount:: 1x Set
Subtotal: €7,55

Free Shipping from 30€ in Germany, 50€ in the EU & US!

- All products are tax-inclusive.

- EU Countries & US Delivery Time: 2 weeks.

- Other Countries Delivery Time: 2.5 ~ 3 weeks.

VL53L0X Time-of-Flight (TOF) Laser distance sensor - OpenELAB

VL53L0X Time-of-Flight (TOF) Laser distance sensor

€7,55
VL53L0X Time-of-Flight (TOF) Laser distance sensor - OpenELAB
VL53L0X Time-of-Flight (TOF) Laser distance sensor - OpenELAB
VL53L0X Time-of-Flight (TOF) Laser distance sensor - OpenELAB
VL53L0X Time-of-Flight (TOF) Laser distance sensor - OpenELAB
VL53L0X Time-of-Flight (TOF) Laser distance sensor - OpenELAB
VL53L0X Time-of-Flight (TOF) Laser distance sensor - OpenELAB
VL53L0X Time-of-Flight (TOF) Laser distance sensor - OpenELAB
VL53L0X Time-of-Flight (TOF) Laser distance sensor - OpenELAB
VL53L0X Time-of-Flight (TOF) Laser distance sensor - OpenELAB

VL53L0X Time-of-Flight (TOF) Laser distance sensor

€7,55
Select quantity discount:: 1x Set
Description

The M5StickC PLUS is a miniature development board based on the ESP32-PICO-D4 chip with a compact and powerful design. It integrates a wide range of sensors and modules and is ideal for rapid prototyping and developing Internet of Things (IoT) applications.Click on the link below for a preview.



ESP32 with VL53L0X Realizes IoT Artificial Intelligence Vehicle – OpenELAB


Our TOF sensor can report distances of up to 1 m with a resolution of 1mm in normal mode. In long range mode, the sensor can report distances up to 2m, but with much lower accuracy.

The range measurements are available through the sensors I2C (TWI) interface, which is also used to configure the sensor settings.

The sensor has two additional pins: a shutdown input and an interrupt output.

The sensor itself operates at a recommended voltage of 2.8V, but the module includes 3.3V and 5V voltage regulators, so the module can be used with both 3.3V and 5V microcontrollers.


Specifications:


Operating voltage 2.6V - 5V DC

Infrared light at 940 Nm

I2C interface

Very reaction fast (50 ms)

Range: normal mode 0 - 1000mm, remote mode 0 -2000mm

Deviation of 1% at distances up to 1 m (more than 10% at 2 m)
