Thermistors are a type of sensitive component that can be classified into Positive Temperature Coefficient (PTC) and Negative Temperature Coefficient (NTC) thermistors based on their temperature coefficients. The typical characteristic of thermistors is their sensitivity to temperature, showing different resistance values at different temperatures. A PTC thermistor increases its resistance as the temperature rises, while an NTC thermistor decreases its resistance as the temperature rises. Both types are semiconductor devices.
Schematic Diagram

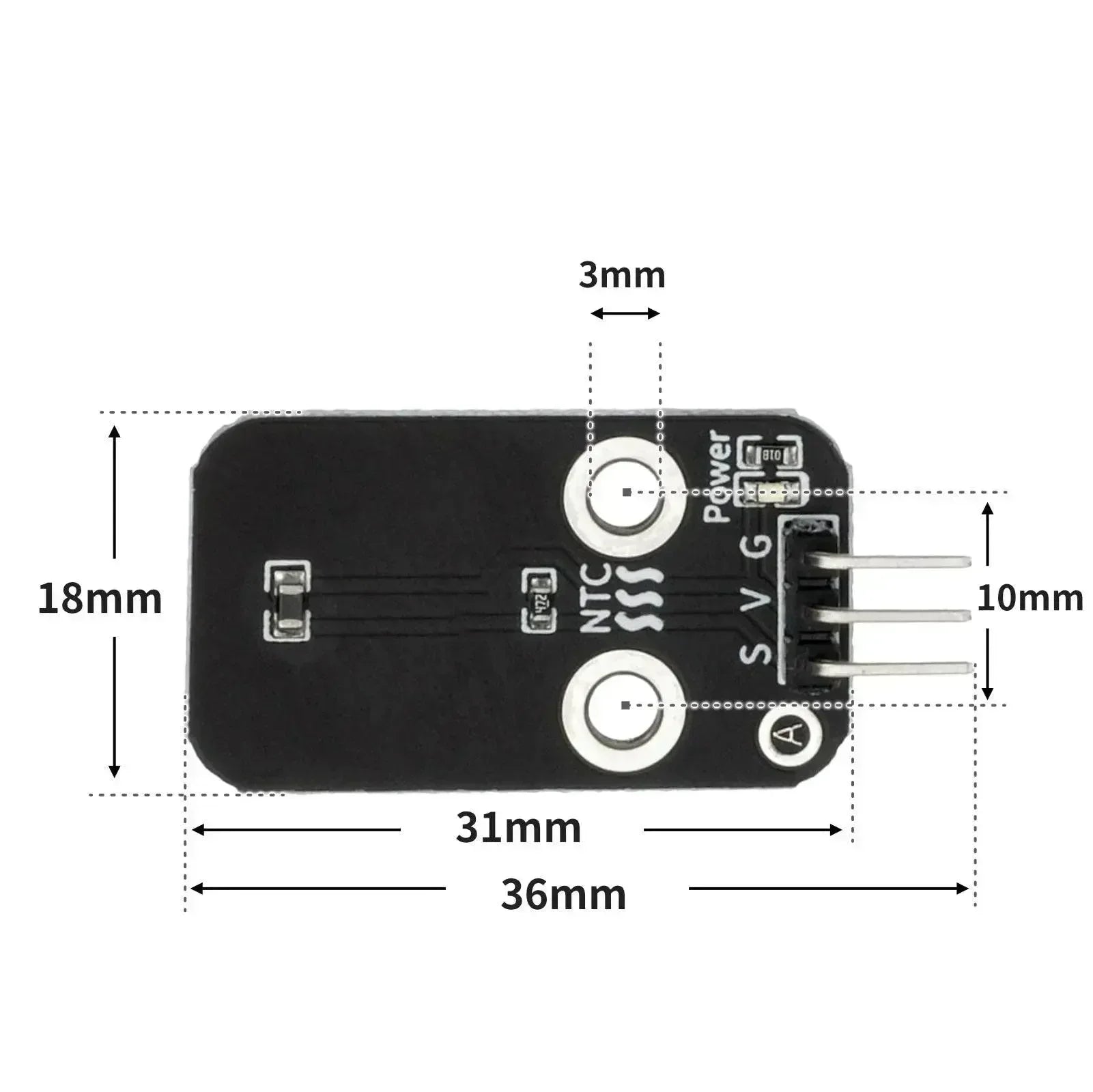

Module Parameters
Pin Descriptions:
| Pin Name | Description |
|---|---|
| G | GND (Power Input Ground) |
| V | VCC (Power Input Positive) |
| S | Analog Signal Pin |
Specifications:
- Supply Voltage: 3.3V / 5V
- Connection Method: 2.54mm Pin Header
- Mounting Method: Fixed with Double Screws
