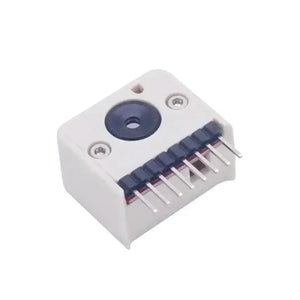

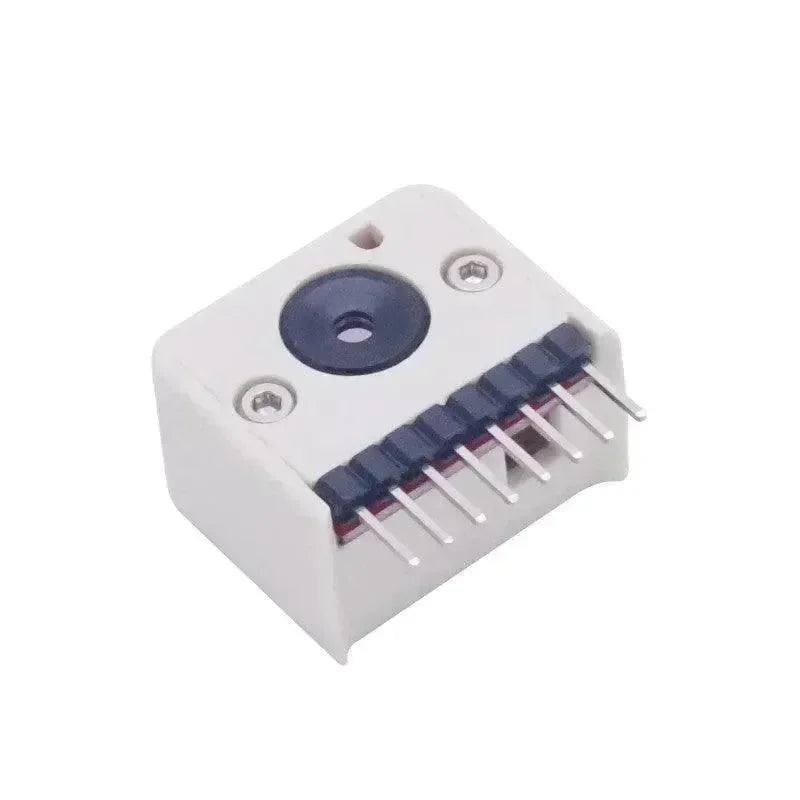

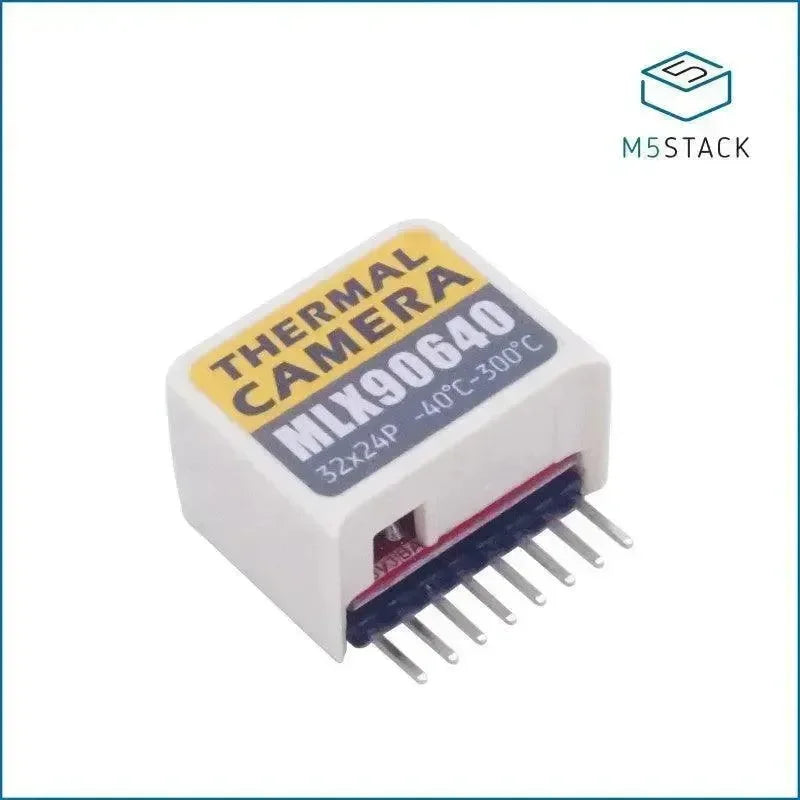

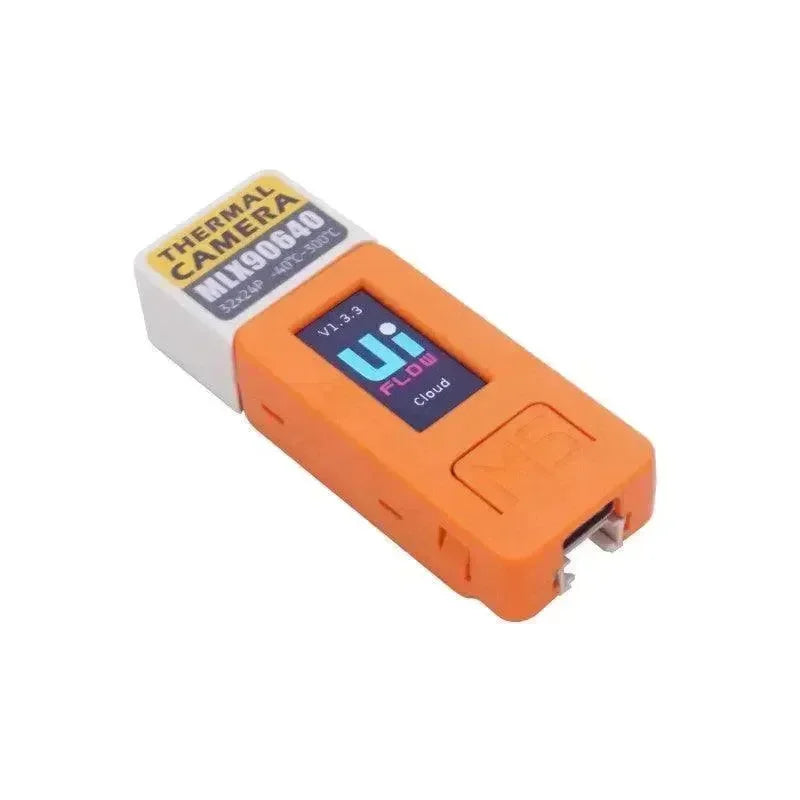

M5StickC Thermal Camera Hat
THERMAL HAT is an M5StickC-compatible human infrared thermal camera hat. Built-in MLX90640 thermopile sensor that measures the surface temperature of an object and generates a thermal image through a temperature gradient formed by the surface temperature. Resolution is 32 x 24)
MLX90640 Infrared (IR) sensor arrays offer high resolution and the ability to work reliably in harsh environments. Compared to expensive high-end thermal imaging cameras, Hat-Thermal is a cost-effective alternative. Relatively general Micro-bolometer, the advantage of this sensor is that it does not require frequent re-calibration, thus ensuring continuity of detection and reducing system maintenance costs. The field of view provides a wide-angle version (110 ° × 75 °).
Product Features
- I2C address:0x33. (GPIO 0/26)
- Current Consumption: 23mA
- Field of View: 110°x75°
- Measurement Range: -40°C ~ 300°C
- Resolution: ±1.5°C
- Refresh Rate: 0.5Hz-64Hz
- Operating temperature: -40°C ~ 85°C
Include
- 1x THERMAL CAMERA HAT
Applications
- High precision non-contact temperature measurements
- Intrusion / Movement detection
- Visual IR thermometers
Specification
| Resources | Parameter |
|---|---|
| Communication protocol | I2C:0x33 |
| Net weight | 8g |
| Gross weight | 13g |
| Product Size | 25*24*14m |
| Product Size | 40*42*30mm |
