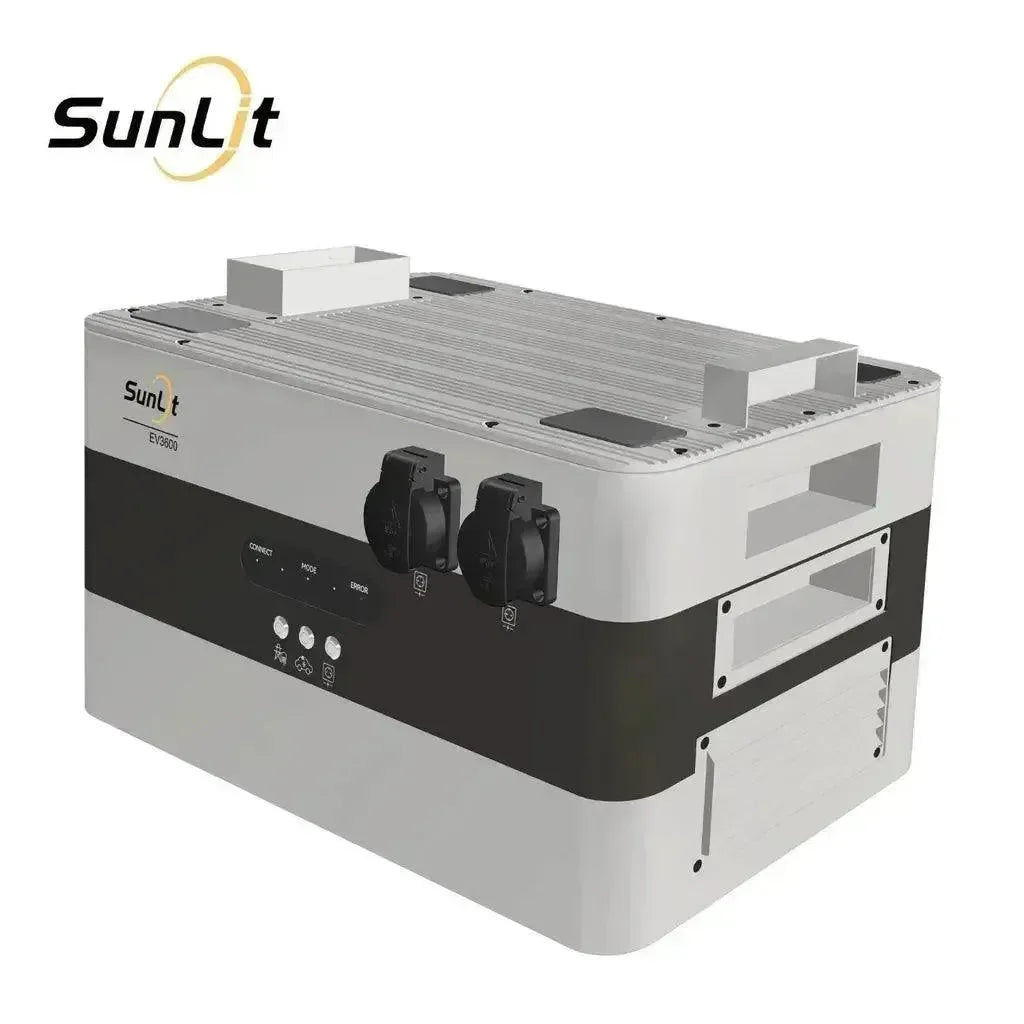

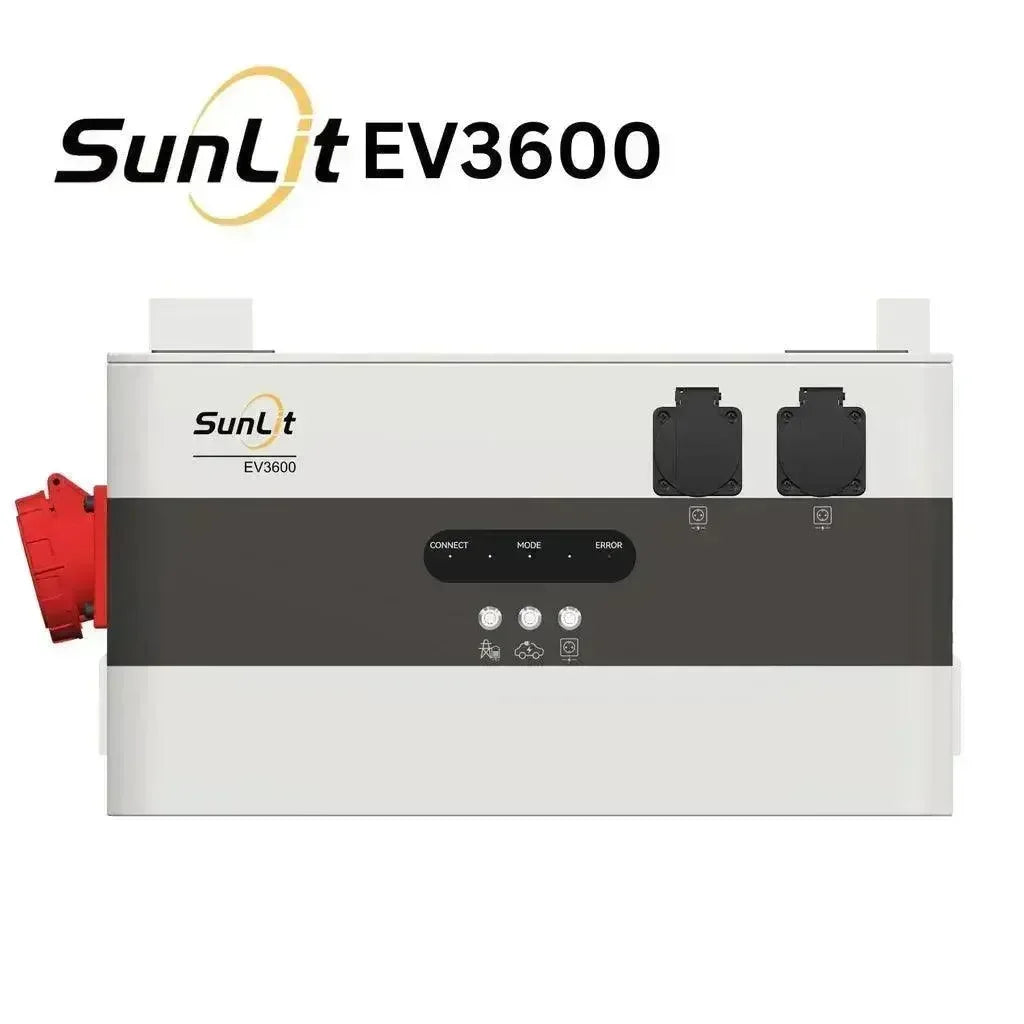

SunLit EV3600 stand-alone solution - The future of sustainable energy
Experience the perfect complement to your Sunlit BK215 balcony energy storage system with the Sunlit EV3600 stand-alone solution. This powerful, modular energy solution is specifically designed for households that want to maximize their energy efficiency while maintaining control over their electricity consumption.
Versatility and efficiency
The EV3600 impresses with its innovative bidirectional charging function. It not only enables the use of stored energy but also the charging of the energy storage system via the household grid - ideal for saving costs in times of low electricity prices. Two 230-volt connections offer flexible options for supplying power to household appliances with an output of up to 2400 watts. In addition, a special connection for the Sunlit Aurora Wallbox is integrated, which enables an output of 3.6 kW. This makes the EV3600 the ideal solution for combining solar power and electromobility.
Modular design for maximum flexibility

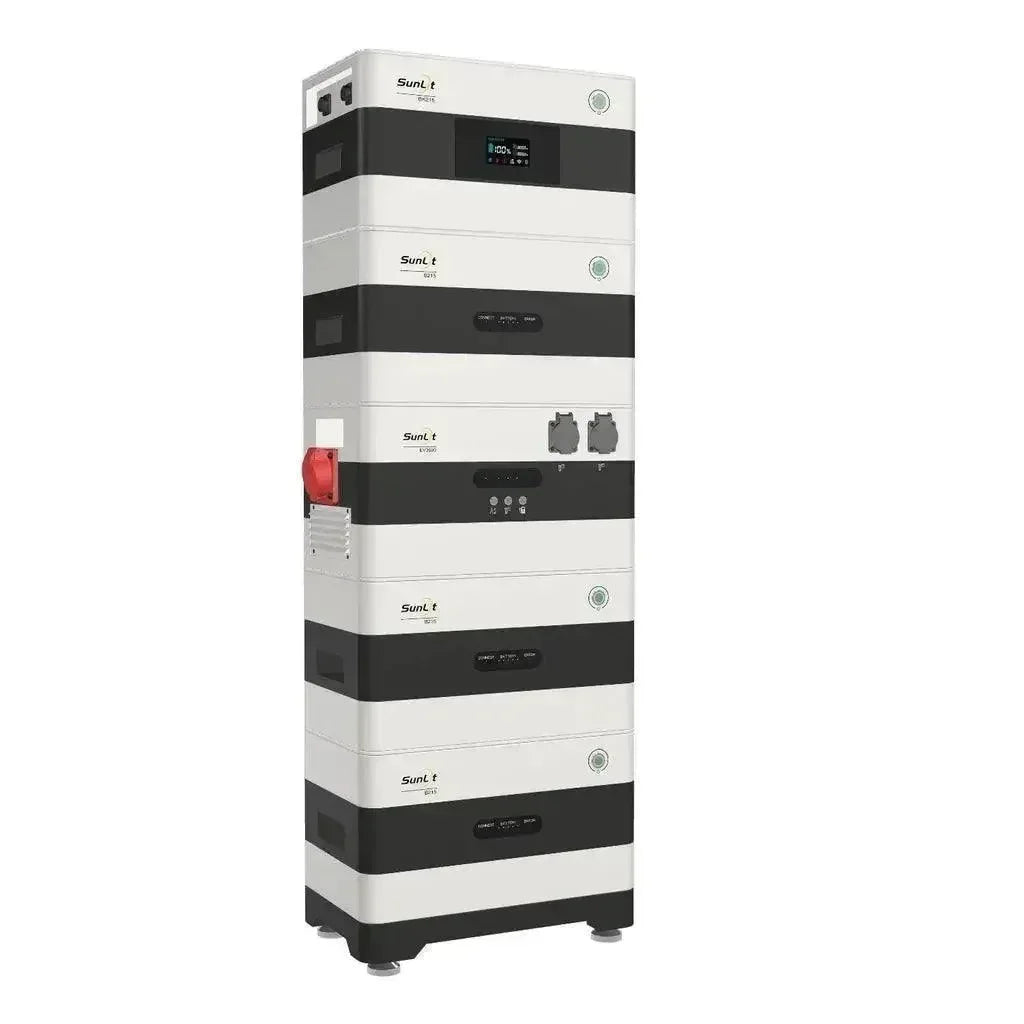

Thanks to its modular design, the EV3600 can be easily combined with the Sunlit BK215 balcony power station storage unit. It can simply be attached to the storage unit and is immediately ready for use. This system not only offers a powerful emergency power solution, but also maximum security and independence in the event of a power failure.
Smart energy management via APP
With the Sunlit Solar app, you have full control over your energy management at all times. Switch between different operating modes, monitor the charge status and optimize your power consumption - all from the comfort of your smartphone.
Technical data
- Weight: 18.8 kg
- Dimensions: 524 x 338 x 292 mm
- Protection class: IP44 (protected against splash water)
- Operating temperature: -20 to +45 °C
- Compatibility: Sunlit BK215 and B215 storage system, Aurora Wallbox
- Power: 230 V AC, 3680 W output power
- Heat dissipation: Air-cooled
Your benefits at a glance:
- Bidirectional charging for maximum energy efficiency
- 2x 230 V connections and 3.6 kW wallbox connection
- Modular design for easy expansion
- Control via the Sunlit Solar app
- Emergency power solution for more independence
Invest in a safe and sustainable energy future with the Sunlit EV3600 stand-alone solution!
