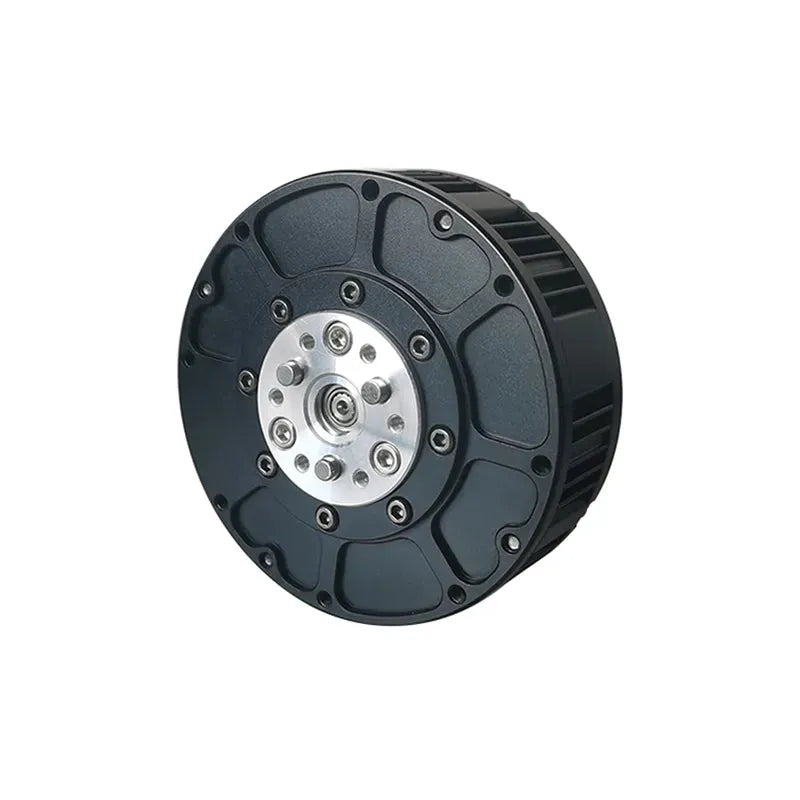

SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-2
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-3
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-1
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-4
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-5
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-6
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-7
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-2
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-3
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-1
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-4
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-5
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-6
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-7

SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor

EU
Regular price €99,95 Sale price €89,95
10% OFF
incl. VAT
SKU: SW-GIM6010-8-S68D
Driver: GDS68(24V)
Second Encoder: Dual Encoder
Add to Wishlist Add to Compare
Visa
PayPal
Mastercard
American Express
Shop Pay
SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor-2

SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor

Shipping & Delivery Information

🚚 In-Stock Items: Orders for in-stock products are shipped within 24 hours after the order is placed.

📦 Pre-order Items: If a product is marked as "Pre-order", it means it is currently out of stock. We'll dispatch your order once we have restocked, usually within 10 working days. For special pre-sale items, the expected arrival date will be noted in the product description.

✈️ Express Shipping: Need your order urgently? Please contact us via email or live chat, and we’ll help arrange express delivery for you.

💡 Note: This motor is available in Through‑Shaft and With Brake versions. For more information or to request these versions, please contact us at info@openelab.io.

⚙️ SteadyWin GIM6010-8 – Compact Brushless Planetary Gearmotor for Robotics & Automation

The SteadyWin GIM6010-8 is a high-performance 24V 252W brushless planetary gearmotor engineered for precision robotic joints, industrial automation, and space-constrained mechatronic systems 🤖.

With a rated torque of 5 N·m and a peak stall torque of 11 N·m, it delivers powerful motion control in a compact Ø80 mm form factor. Weighing just 388 g


Features

  • Brushless DC Motor with integrated planetary gearbox

  • 🔋 24V / 252W power output for efficient torque delivery

  • 🌀 5 N·m rated torque, 11 N·m stall torque for dynamic load handling

  • 🛡️ IP54 protection against dust and splashes

  • 🔌 CAN bus & USB Type-C connectivity for flexible control integration

  • 🧩 Optional custom brake module for enhanced safety and precision

  • 📦 Compact design: Ø80 mm diameter × low-profile housing

  • ⚖️ Lightweight: only 388 g, perfect for mobile and articulated systems


📊 GIM6010-8 Planetary Gearmotor – Technical Specifications

⚙️Parameter 24V (GDS68) 48V (GDS68)
Rated Voltage (V) 24 48
🔌 Voltage Range (V) 12~56 12~48
🔋 Rated Current (A) 10.5 2.8
🚦 Stall Current (A) 23.4 17.19
🌀 Rated Torque (N·m) 5.0 4.6
💪 Stall Torque (N·m) 11.0 17.91
⏱️ Rated Speed after Reduction (RPM) 120 200
🚀 Max Speed after Reduction (RPM) 420 280
🔄 Phase Resistance (Ω) 0.44 1.45
🧲 Phase Inductance (mH) 0.23 0.82
⚙️ Speed Constant (rpm/V) 11.54 5.83
📈 Torque Constant (N·m/A) 0.47 1.20
🔩 Pole Pairs 14 14
⚙️ Gear Ratio 8:1 8:1
🛠️ Gear Type Planetary Planetary
🪛 Gear Material Steel Steel
🎯 Gear Backlash (arcmin) 15 15
⚖️ Motor Weight w/o Driver (g) 370 370
⚖️ Motor Weight w/ Driver (g) 388 388
📏 Motor Size w/o Driver (mm) Ø80×29.5 Ø80×29.5
📏 Motor Size w/ Driver (mm) Ø80×40 Ø80×40
🏋️ Max Axial Load (N) 200 200
🏋️ Max Radial Load (N) 800 800
🔇 Noise (dB) <60 <60
🔗 Communication CAN CAN
🎛️ Second Encoder YES YES
🛡️ Protection Grade IP54 IP54
🌡️ Working Temperature (°C) -20 ~ +80 -20 ~ +80
🎚️ Encoder Resolution on Driver (Bit) 16-bit 16-bit
Separate Encoder Support NO NO
🛑 Custom Brake Support YES YES





Download

GIM6010-8 3D model

GIM6010-8 without shell 3D model

GIM6010-8 with out-shaft 3D model

GIM6010-8 with brake 3D model



🧩 SteadyWin GIM6010-8 Variant Comparison

Variant Name Driver Included Encoder Type Brake Module Shaft Type Price Range (€) Weight (g) Notes
Standard ❌ No ❌ None ❌ No Solid Shaft €58.00–132.99 388 g Base model, compact and lightweight
Through-Shaft Motor ❌ No ❌ None ❌ No Through Shaft €65.00–143.99 388 g Allows pass-through mounting
Motor with Brake ❌ No ❌ None ✅ Yes Solid Shaft €107.00–185.99 ~400 g Ideal for vertical or load-holding
Motor + DS6 Driver ✅ DS6 ❌ None ❌ No Solid Shaft Varies ~400 g Plug-and-play with DS6 controller
Motor + S68 Driver ✅ S68 ❌ None ❌ No Solid Shaft Varies ~400 g Higher-end driver option
Motor + Encoder + GDS6 ✅ GDS6 ✅ Magnetic ❌ No Solid Shaft Varies ~400 g For closed-loop control
Motor + Encoder + GDZ46 ✅ GDZ46 ✅ Magnetic ❌ No Solid Shaft Varies ~400 g Enhanced encoder resolution

🔍 Notes

  • All variants share the same core motor: 24V, 252W brushless, 5 N·m rated torque, 11 N·m stall torque, and IP54 protection.

  • The encoder-equipped versions are ideal for SLAM, inverse kinematics, and precision feedback.

  • Brake-equipped versions are recommended for vertical joints or safety-critical applications.

  • Driver modules (DS6/S68) simplify integration with CAN bus or USB Type-C control systems.



⚙️ What Is SteadyWin GIM6010-8?

The SteadyWin GIM6010-8 is a high-performance brushless planetary gearmotor designed for precision motion control in robotics 🤖, automation systems 🏭, and mechatronic platforms. It combines a 24V 252W brushless DC motor with an 8:1 reduction gearbox, delivering powerful torque in a compact and lightweight form factor.



🧠 What Makes It Special?

  • Compact & Lightweight: At just 388 g and 80 mm diameter, it’s ideal for space-constrained robotic joints and mobile platforms.

  • High Torque Density: Delivers strong torque with minimal footprint—perfect for articulated arms, wheeled robots, and precision actuators.

  • Smart Connectivity: Supports CAN bus and USB Type-C, making it easy to integrate into modern control systems.

  • Modular Options: Available with or without brake, encoder, and driver—giving you flexibility for different use cases.


🛠️ How to Use SteadyWin GIM6010-8

1. 🔌 Power & Communication Setup

  • Connect the motor to a 24V DC power supply.

  • Use CAN bus or USB Type-C for communication with your controller or PC.

  • If using a driver (e.g. DS6 or S68), configure it via the provided software or SDK.

2. 🧭 Encoder Integration

  • The built-in 16-bit encoder provides precise position feedback.

  • Ideal for closed-loop control, inverse kinematics, and trajectory planning.

3. 🛑 Brake Module (Optional)

  • For vertical or load-holding applications, install the custom brake module.

  • Prevents back-driving and improves safety during power loss or idle states.

4. 🤖 Application Scenarios

  • Robotic Arms: Use in shoulder, elbow, or wrist joints for smooth motion and torque control.

  • Mobile Robots: Integrate into wheel hubs or steering mechanisms.

  • Automation Systems: Perfect for conveyor drives, pick-and-place units, or collaborative robots (cobots).


🧪 Tips for Deployment

  • Use IP54 protection to shield against dust and light moisture in industrial settings.

  • Mount securely using the provided flange or through-shaft options.

  • Monitor temperature and current during high-load operations to prevent overheating.

  • Tune PID parameters if using closed-loop control for optimal responsiveness.


🚀 Conclusion

The SteadyWin GIM6010-8 is a versatile, compact, and powerful gearmotor built for modern robotics and automation. With its high torque output, smart connectivity, and modular design, it’s a go-to solution for engineers, makers, and developers building intelligent motion systems.
