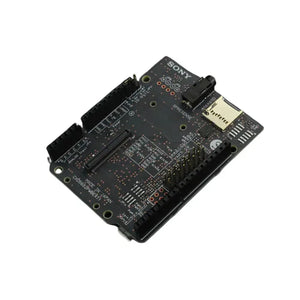

Sony Spresense Extension Board
The Sony Spresense Extension Board enhances the capability of your Spresense Main Board, offering a broad range of audio, storage, and interface expansions. Designed for IoT developers, edge AI engineers, and embedded system prototypers, this board delivers flexible connectivity options with digital/analog microphone support, microSD storage, headphone out, and USB MSC functionality.
Whether you're developing a voice-based interface, sensor gateway, or data logger, the Spresense Extension Board provides the critical features needed for advanced edge deployment.
Key Features
-
4 analog or 8 digital microphone input channels
-
3.5mm headphone jack with amplifier
-
microSD card slot for FAT32-formatted storage
-
Dual USB interfaces for MSC and programming
-
Selectable GPIO voltage (5V or 3.3V)
-
B2B connector for main board stacking
-
Includes spacers for stable board stacking
Specification
-
Model: CXD5602PWBEXT1
-

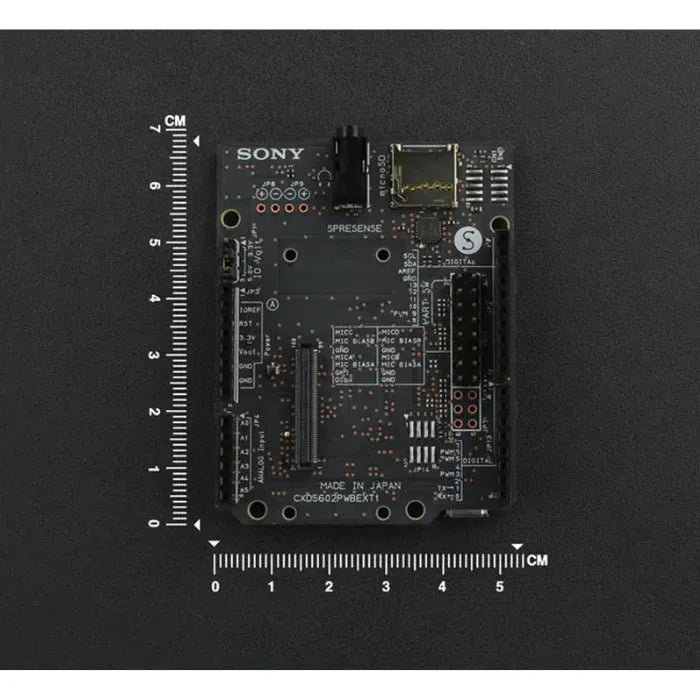

Size: 68.6 mm × 53.3 mm
-
Audio I/O: 4 ch analog mic input / 8 ch digital mic input / headphone out
-
Digital I/O: 3.3V or 5V logic
-
Analog Input: 6 channels (5V range)
-
External Storage: microSD slot (FAT32 required)
-
USB Support: Mass Storage Class via USB-B
-
Operating Temp: 10–40 °C, Humidity: 30%–80% (non-condensing)
-
Storage Temp: -20–60 °C, Humidity: 10%–80%

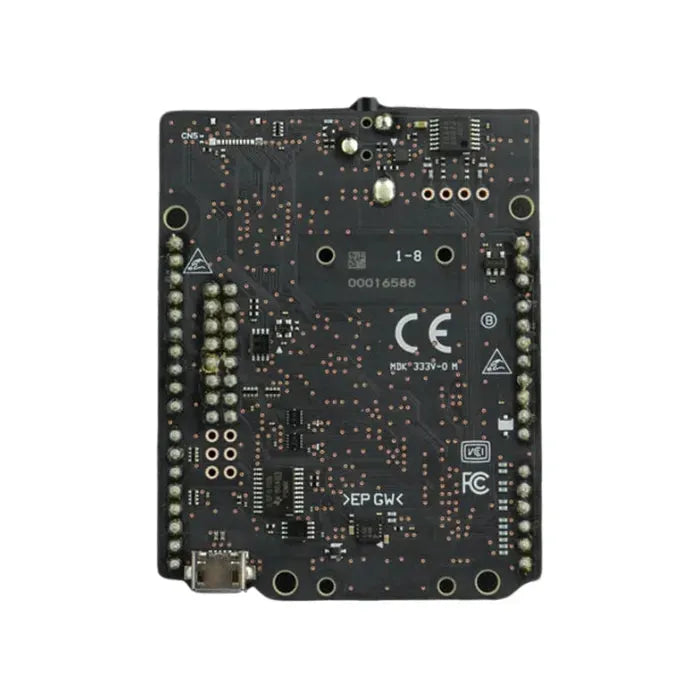

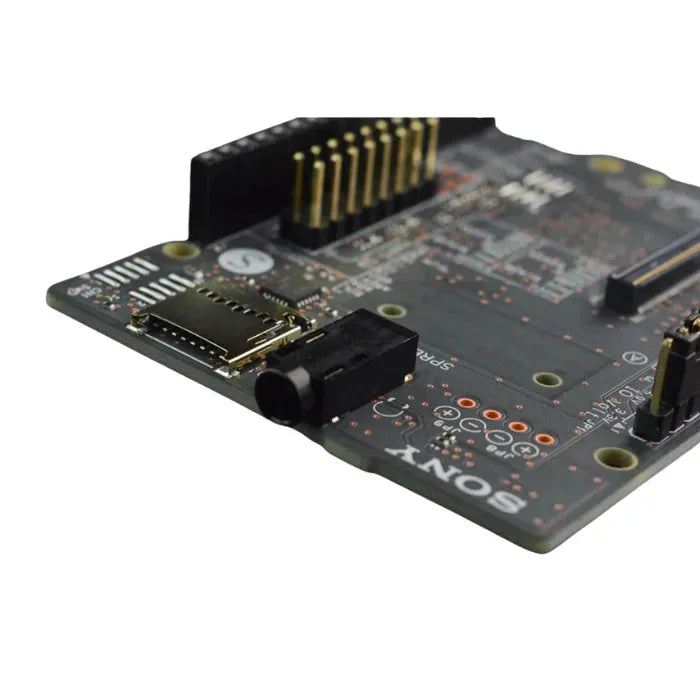

I/O & Interface Breakdown
| Name | Description |
|---|---|
| CN3 | B2B connector for main board |
| CN4 | microSD card slot |
| CN6 | Micro USB Type-B (MSC function) |
| CN7 | 3.5mm headphone jack |
| JP1 | Jumper to select 3.3V or 5V GPIO |
| JP10 | Microphone connector |
| JP14 | Digital mic jumper setting |
| microSD | FAT32 required format (for SDHC cards only) |
Mounting the Extension Board
The extension board includes 4 plastic spacers for secure installation.
To attach it:
-
Insert spacers into the four mounting holes on the extension board.
-
Align the USB connectors of both boards to face the same direction.
-
Stack the main board onto the extension board and press down to connect via the B2B socket.
Application Scenarios
-
Voice-enabled IoT devices
-
Smart audio edge processors
-
Sensor aggregation and storage nodes
-
Real-time data logging with SD backup
Shipping List
-

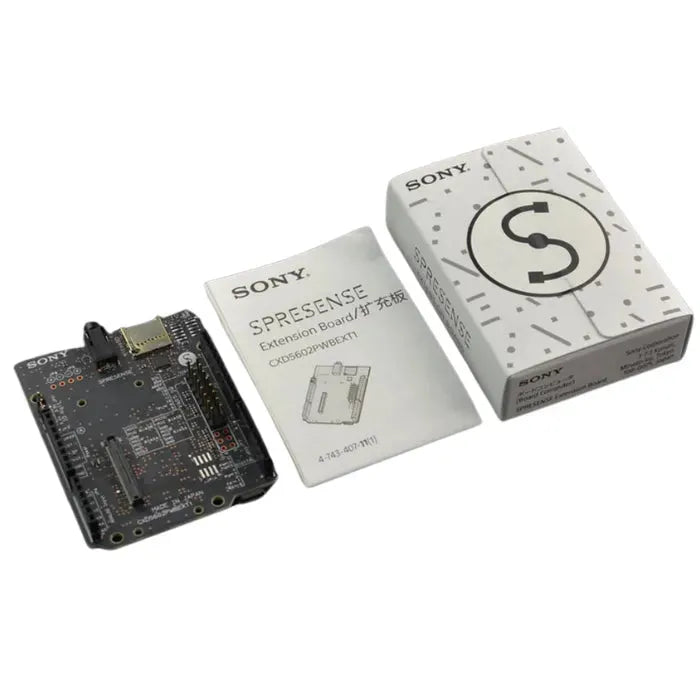

Sony Spresense Extension Board ×1
