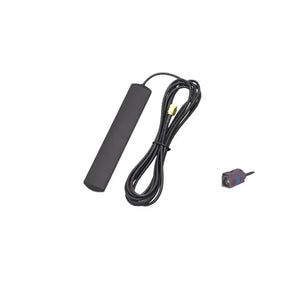

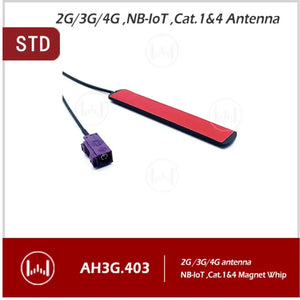

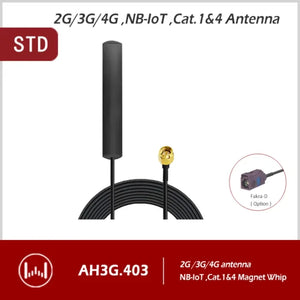

AntennaHome Chip SMD Antenna 2G/3G/4G NB-IoT CAT 1&4
The 2G/3G/4G NB-IoT L=2000 Plaster Antenna delivers exceptional cellular connectivity with wide frequency coverage from 800-2170 MHz. This high-performance adhesive mount antenna with a 2-meter flexible design is engineered specifically for remote transfer and receiver applications, providing reliable signal strength for IoT deployments, telemetry systems, and wireless communication networks.
Features
- Multi-Network Compatibility: Supports 2G/3G/4G, NB-IoT, and CAT.18.4 cellular networks across global frequency bands
- Extended-Length Design: 110mm active antenna element with 2-meter total length for flexible installation options
- Adhesive Mounting System: Plaster-type attachment provides secure bonding to non-metallic surfaces without tools or brackets
- Omnidirectional Pattern: Vertical polarization with 360° reception ensures consistent signal coverage from all directions
- High-Gain Performance: 3.0 dBi gain delivers extended range and improved reception in challenging environments
- Low-Profile Construction: Sleek, compact design integrates seamlessly with devices and equipment housings
- Premium Cable: RG-174 low-loss coaxial cable ensures efficient signal transfer over the extended 2-meter length
- Durable ABS Housing: High-quality materials resist damage from environmental exposure and UV degradation
- Industrial Temperature Rating: Reliable operation across -40°C to +85°C temperature range for all-weather applications
Specifications
- Product Model: 2G/3G/4G NB-IoT L=2000, Plaster Antenna
- Part Number: AH35.403
- Frequency Range: 800-2170 MHz
- Network Support: 2G, 3G, 4G, NB-IoT, CAT.18.4
- Impedance: 50Ω
- VSWR: <2.0
- Gain: 3.0 dBi
- Polarization: Vertical / Omnidirectional
- Connector Type: SMA-J (Male)
- Cable: RG-174, 2-meter length
- Material: ABS in Black finish
- Mounting Method: Adhesive Plaster

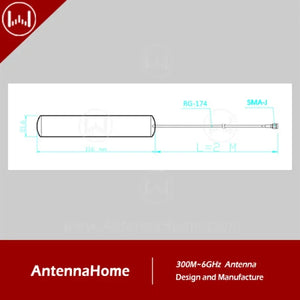

- Dimensions: L110×W21.5 mm (antenna element)
- Total Length: 2000 mm (2 meters)
- Weight: 35.0 g/pcs
- Operating Temperature: -40°C to +85°C
Applications
The 2G/3G/4G NB-IoT L=2000 Plaster Antenna is ideal for:
- IoT Devices: Smart meters, sensors, and connected infrastructure requiring compact antenna solutions
- Telemetry Systems: Utility meters, environmental monitors, and remote data acquisition
- Hidden Installations: Applications where aesthetics are important and antennas must be concealed
- Non-Metallic Surfaces: Plastic enclosures, composite materials, and non-conductive mounting locations
- Limited Space Deployments: Compact devices where traditional magnetic mounts aren't practical
- Smart Building Technology: Building automation, access control, and facility management systems
- Medical Devices: Healthcare monitoring equipment and portable medical systems
- Retail Systems: Point-of-sale terminals, inventory management, and customer analytics
- Wearable Technology: Tracking devices, personal safety equipment, and mobile health monitors
Shipping List
Each order includes:
- 2G/3G/4G NB-IoT L=2000 Plaster Antenna with pre-attached 2-meter RG-174 cable and SMA-J connector
- Technical specification sheet with detailed electrical parameters
- Surface preparation guide for optimal adhesive mounting
- Performance test report verifying VSWR and gain characteristics
- Quality assurance certificate
- Protective packaging for safe transportation
The 2G/3G/4G NB-IoT L=2000 Plaster Antenna delivers exceptional cellular network connectivity across multiple frequency bands with its low-profile adhesive design. The 2-meter extended cable length provides unparalleled installation flexibility, allowing optimal antenna placement while maintaining device connectivity. This professional-grade antenna represents the ideal solution for system integrators and IoT developers requiring discreet, reliable wireless communication for embedded systems and space-constrained applications.
