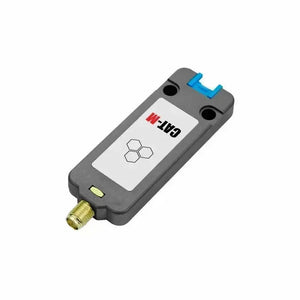

CatM Unit is an international version of a dual-mode wireless communication module. It is based on the 'SIM7080G' module, which supports both 'CAT-M' (Category M) and 'NB-IoT' (Narrowband Internet of Things) communication technologies. This module provides reliable communication for IoT (Internet of Things) applications.
CatM Unit offers adaptive response rates, meaning it can adjust its communication speed based on the requirements of the application. This flexibility allows for efficient and optimized data transmission. Additionally, the module supports various types of protocols, ensuring compatibility with different communication standards and systems.
To enhance communication quality and signal stability, CatM Unit is equipped with an integrated SMA external antenna interface. This feature enables the use of an external antenna, which can improve signal reception and ensure reliable connectivity.
CatM Unit is particularly well-suited for a range of IoT applications, including remote control, remote monitoring, remote medical, and other similar use cases. Its dual-mode capability, adaptive response rates, and reliable communication make it a valuable component in building IoT solutions that require remote connectivity and data transfer.
Product Features
-
SIM7080G/UARTinterface,AT Commandcontrol - Dual Mode supports
CatMandNBIoT - Support frequency band:
- Up and down speed:
- Cat-M: Uplink:
1119KbpsDownlink:589Kbps - NB-IoT: Uplink:
150KbpsDownlink:136Kbps
- Cat-M: Uplink:
- Protocol Support:
- TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT and other communication protocols

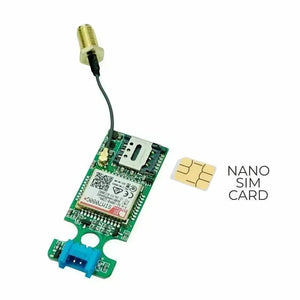

- Card slot specification: Nano
- Development Platform:
- Arduino, UIFlow
- Module certification:
- Softbank/Telec/RoHS/REACH/JATE/Docomo/KDDI/RCM/CE(RED)/GCF
- Deutsche Telekom/FCC/PTCRB/AT&T/Verizon/T-Mobile/US Cellular/IC
Include
- 1x CardKB Unit
- 1x HY2.0-4P cable
- 1x hexagon wrench
Application
- Remote Data Collection/Cloud
Specification
| Specifications | Parameters |
|---|---|
| Module Model | SIM7080G |

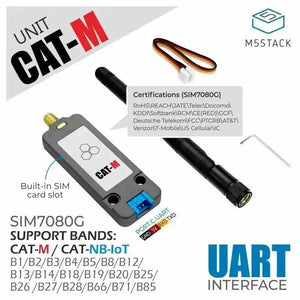

| Support CAT-M band | B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26 /B27/B28/B66/B85 |
| Support CAT-NB frequency band | B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28 /B66/B71/B85 |
| Cat-M uplink and downlink speed | Uplink: 1119Kbps Downlink: 589Kbps |
| NB-IoT uplink and downlink speed | Uplink: 150Kbps Downlink: 136Kbps |
| RF Power Class | Class 5 (Typ. 21dbm) |
| Standby working current | 49.4mA |

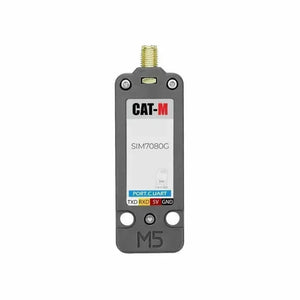

| Communication interface | UART: baud 115200 8N1 |
| Net weight | 19.4g |
| Gross weight | 44g |

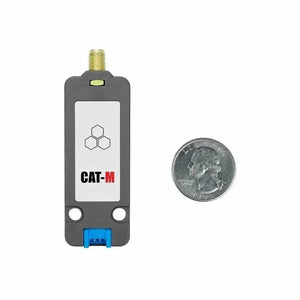

| Product size | 72 * 24 * 8 mm |
| Packing size | 95 * 65 * 25mm |
