Seeed Studio XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic
The Seeed Studio XIAO nRF52840 & Wio-SX1262 Kit is a versatile and compact solution ideal for Meshtastic networks, LoRa/LoRaWAN exploration, and cross-domain wireless communication. Incorporating the Nordic nRF52840 microcontroller and the Semtech SX1262 LoRa module, this kit offers powerful features packed into a miniaturized design, perfect for portable applications and remote communication systems.
With integrated Bluetooth 5.0/NFC, dual-core communication capability, and long-range 868/915 MHz LoRa performance, this kit delivers both flexibility and reliability, making it the ideal choice for IoT developers, network expansion projects, and environmental monitoring applications.
Key Features
-
Versatile Microcontroller:
Built with the Nordic nRF52840 chip featuring FPU, operating up to 64 MHz, and supported by Arduino, CircuitPython, and Micropython. -
Powerful LoRa Performance:
Based on the Semtech SX1262 module, supporting long-range communication over 868/915 MHz bands. -
Dual-core Communication:
Supports both Bluetooth and LoRa dual modes, enabling seamless cross-domain device interaction. -
Ultra-Compact Design:
With dimensions of only 8mm × 22mm × 23mm, it features an integrated antenna design for enhanced portability.
Specification
| Parameters | Details |
|---|---|
| Microcontroller | Nordic nRF52840, ARM® Cortex®-M4 with FPU, up to 64 MHz |
| LoRa Module | Based on Semtech SX1262, supports 862–930 MHz |
| Wireless Connectivity | Bluetooth 5.0 / NFC |
| Interface |
XIAO nRF52840: 1x UART, 1x IIC, 1x SPI (connect to SX1262), 1x NFC, 1x SWD, 11x GPIO (PWM), 6x ADC Wio-SX1262: 1x User Button, 1x SPI (connect to XIAO nRF5280) |
| Power Supply | 5V (USB Type-C), 4.2V (BAT input) |
| Charging Current | 50mA / 100mA |
| Standby Power Consumption | < 5µA |
| Working Temperature Range | -40°C ~ 65°C |
| Module Dimensions | 21 × 17.8 mm |
Hardware Overview
XIAO nRF52840
-
Onboard
- PinOut

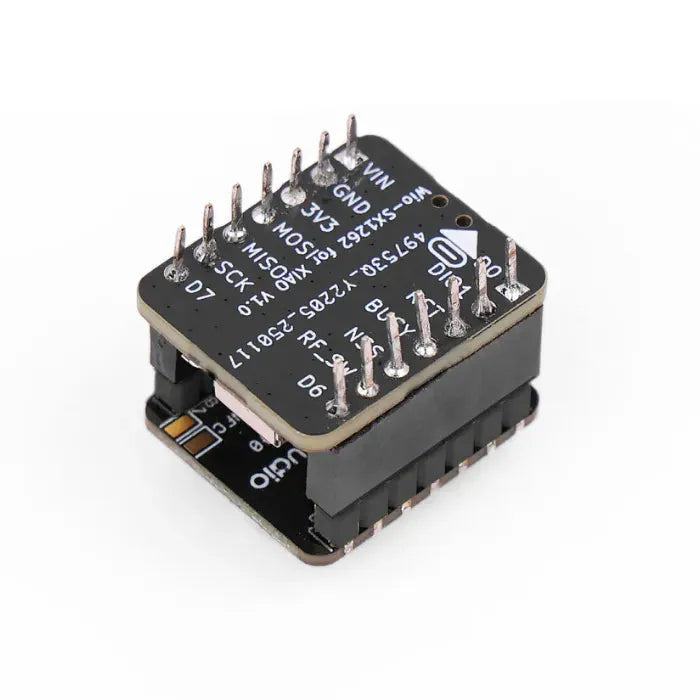

Wio-SX1262
-
Onboard
- PinOut
Application Scenarios
- Meshtastic Node&Router: An ultra-small node that can serve as a portable device or as a fixed router to expand the Meshtastic network.
-
LoRa/LoRaWAN Sensor: A mini LoRaWAN sensor, ideal for beginners exploring LoRa/LoRaWAN.
For example, when combined with a GPS module (such as the XIAO L76K), it can be used to track the locations of logistics vehicles, livestock, and valuable equipment. Thanks to the long-distance coverage of LoRa (2-5 km in urban areas and over 10 km in suburban areas), it can reduce the cost of base station deployment. -
The distance between the two nodes can reach up to 2KM (subject to the environment).
| HSCODE | 8543709990 |
| USHSCODE | 8471500150 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |

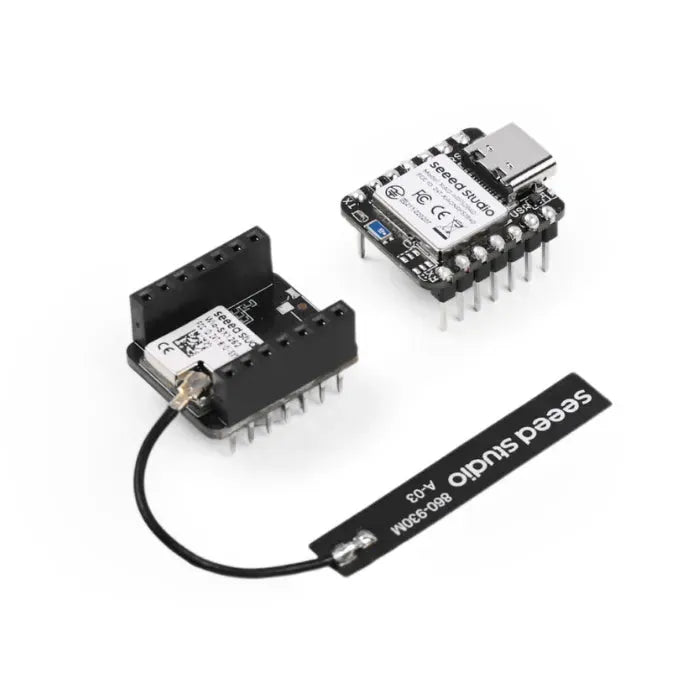

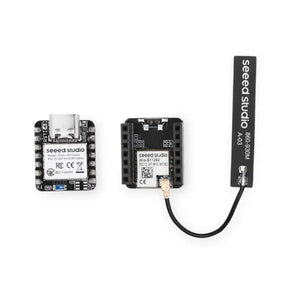

Shipping List
-
XIAO nRF52840 ×1
-
Wio-SX1262 Extension Board ×1
-
LoRa Antenna ×1
