Seeed Studio SenseCAP Card Tracker T1000-E for LoRaWAN
SenseCAP Card Tracker T1000-E features open-source software. It integrates diverse sensors and positioning tech, transmitting data to the cloud via LoRaWAN for real-time device monitoring and management. As an open-source device, LoRaWAN Tracker T1000-E offers full source code, enabling developers to customize and expand functions freely.
Feature
- Open - source Software: Offer full source code, enabling community contributions and custom dev.
- Multi - sensor Integration: Integrate temp, light, 3 - axis accel sensors. Support GNSS, WiFi & Bluetooth for indoor/outdoor positioning.
- Easy Configuration: Via SenseCraft App, users can easily configure device params.
- Strong LoRaWAN Support: Ensure quick device network access and config.
- User - friendly Buttons: Simple button ops for power on/off, Bluetooth setup, SOS alarm, etc.
Specification
|
General Parameters |
|
|
Product Model |
T1000-E |
|
Backhaul |
LoRaWAN® (v1.0.4 Class A) |
|
Bluetooth |
Bluetooth v5.1, setting via SenseCraft App |
|
LoRaWAN Channel Plan |
IN865/EU868/US915/AU915/AS923/ KR920/RU864 |
|
Temperature |
Range: -20 to 60℃; Accuracy: ± 1℃; Resolution: 0.1℃ |
|
Light |
0 to 100% (0 is dark, 100% is brightest ) |
|
3-Axis Accelerometer |
3-Axis Accelerometer to detect movement |
|
LED and Buzzer |
1*LED and 1* buzzer to indicate status |
|
Button |
1*Button to operate and trigger events(SOS) |
|
Antenna |
Internal (GNSS/LoRa/Wi-Fi/BLE) |
|
Communication Distance |
2 to 5km (depending on gateway antenna, installation, and environments) |
|
IP Rating |
IP65 |
|

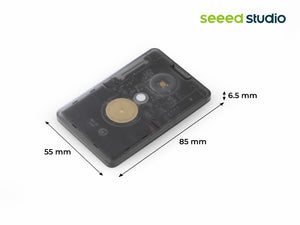

Dimensions |
85 x 55 x 6.5 mm |
|
Device Weight |
32g |
|
Operating Temperature |
-20℃ to +60℃ |
|
Operating Humidity |
5% - 95% (No condensation) |
|
Certification |
CE /FCC /RoHS |
|
Location |
|
|
GNSS Constellation |
GPS/GLONASS/Galileo/ BeiDou/QZSS |
|
GNSS Sensitivity |
-145dBm cold start / -160 dBm Tracking |
|
GNSS Location Accuracy |
~1m CEP, GPS, -130dBm |
|
Wi-Fi Positioning |
Passive scanning, uploads the scanned 3~5 MAC addresses |
|
Bluetooth Positioning |
uploads the scanned 3 best signal MAC addresses of Beacon |
|
Battery |
|
|
Battey Capacity |
Rechargeable lithium battery, 700mAh |
|
*Battery Life Estimates |
3 months on a single charge(uplink every 1 hour, only GNSS data) |
|
Battery Life Monitoring |
Periodic uplink battery level |
|
Charge Cable (Adapter not included) |
USB magnetic charging cable, 1 meter |
|
Power Input Voltage |
4.7 to 5.5V DC |
|
Charging Temperature |
0 to +45℃ |
Hardware Overview
Application
- Asset Tracking: Monitor asset status and location remotely. Transmit location data to the cloud via LoRaWAN. Users can view real - time position and trajectory on mobile or PC management platforms.
- Environmental Monitoring: Leverage built - in thermal, photosensitive sensors and 3 - axis accelerometer. Collect and upload environmental data in real time via LoRaWAN for remote parameter monitoring.
- Logistics Management: Install on vehicles or packages. Track cargo transport status (routes, stops, on - time arrival) in real time, aiding logistics firms in scheduling and management.
| HSCODE | 9031809090 |
| USHSCODE | 8517620090 |
| UPC | |
| EUHSCODE | 9013101000 |
| COO | CHINA |

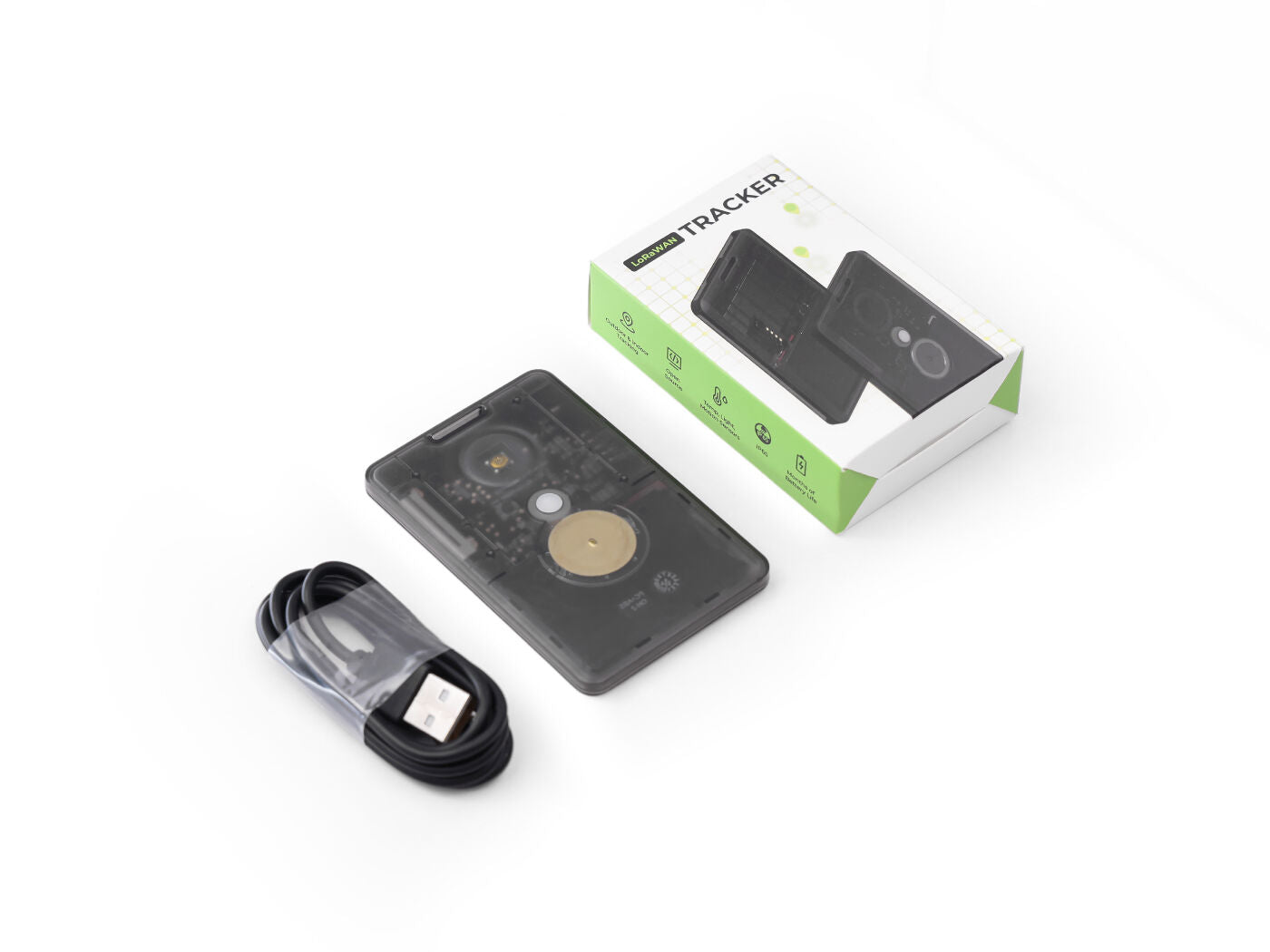

Part List
|
Tracker T1000-E |
x1 |
|
USB Cable (Adapter not included) |
x1 |
