Seeed Studio ReSpeaker XMOS XVF3800 with Case without XIAO ESP32S3
Seeed Studio ReSpeaker XMOS XVF3800 with Case without XIAO ESP32S3
Seeed Studio ReSpeaker XMOS XVF3800 with Case AI-powered 4-Mic Array is a professional 4-microphone circular array built around the XMOS XVF3800 for clear far-field voice capture and robust voice interaction. For this product, the most relevant ecosystem direction is Home Assistant, where the XVF3800 can be used for local voice interaction, wake word processing, and smart home control workflows.
Official Seeed materials highlight strong AEC, AGC, DoA, VAD, beamforming, and noise suppression performance, along with dedicated Home Assistant integration guides and firmware notes. If you are building a voice-enabled Home Assistant setup, this is the key use case to focus on.
Features
- XMOS XVF3800 based professional voice front-end for reliable far-field capture
- 4-microphone circular array with 360 degree pickup and up to 5m voice capture distance
- Advanced DSP pipeline including AEC, AGC, DoA, VAD, beamforming, de-reverberation, and noise suppression
- USB plug-and-play design for quick setup and voice development workflows
- Home Assistant ready direction with dedicated Seeed firmware and tutorial support for smart home voice assistant projects
- Encased design for cleaner deployment and better protection in desktop and smart home environments
Specifications
| Parameter | Details |
|---|---|
| Brand | Seeed Studio |
| Model | ReSpeaker XMOS XVF3800 with Case AI-powered 4-Mic Array |
| Core Chip | XMOS XVF3800 |
| Digital Microphones | High-performance digital microphones x4 |
| Sensitivity | -26 dBFS |
| Acoustic Overload Point | 120 dB SPL |
| SNR | 64 dBA |
| Power Supply | USB 5V, external 5V |
| Dimensions | 102 mm x 102 mm x 10 mm |
| Audio Output | Speaker connector / 3.5 mm headphone jack |
| Maximum Sampling Rate | 16 kHz |
| Speaker Support | Supports 5W amplifier speakers |

Applications
- Home Assistant voice assistant projects for local smart home voice interaction
- Voice-controlled home automation using wake word detection, command pickup, and smart device orchestration
- ESPHome based voice terminals using Seeed tutorials and firmware prepared for Home Assistant workflows
- Local AI audio interfaces where privacy-aware and low-latency voice capture is important

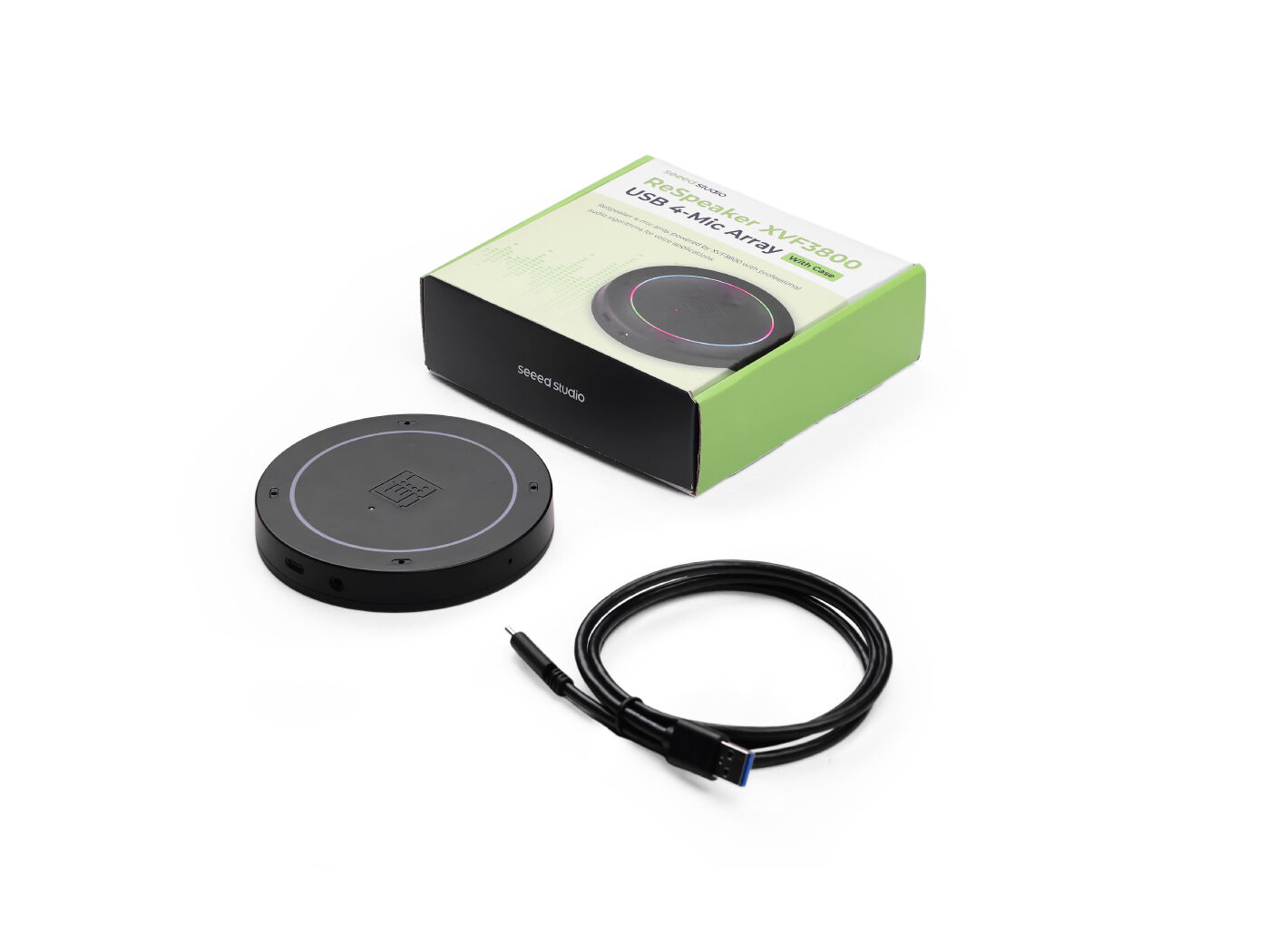

Packing List
- ReSpeaker XVF3800 with Case USB 4-Mic Array x1
Other Content
The most important extension path for this product is Home Assistant. Seeed provides a dedicated Home Assistant smart voice control guide and the official reSpeaker XVF3800 introduction also documents a dedicated Home Assistant firmware path for this microphone array family.


Resources
- Getting Started with reSpeaker XVF3800 USB Mic Array
- Smart Home Voice Control with Home Assistant
- Home Assistant Official Website
- XMOS XVF3800 v3.2.1 Documentation
- reSpeaker XVF3800 Flyer
- reSpeaker XVF3800 Flyer Chinese
FAQ
Can this microphone array be used with Home Assistant?
Yes. Seeed provides a dedicated Home Assistant guide for the ReSpeaker XVF3800 family, and the product direction here is focused on Home Assistant smart voice control.
Why is XVF3800 useful for Home Assistant voice projects?
The XVF3800 provides far-field voice pickup, beamforming, noise suppression, and related DSP functions that help improve command capture in smart home environments.
What audio and connection options are available?
The board supports USB 5V power, speaker connector, and a 3.5 mm headphone jack according to official specifications.
What is included in the package?
The official part list includes ReSpeaker XVF3800 with Case USB 4-Mic Array x1.
