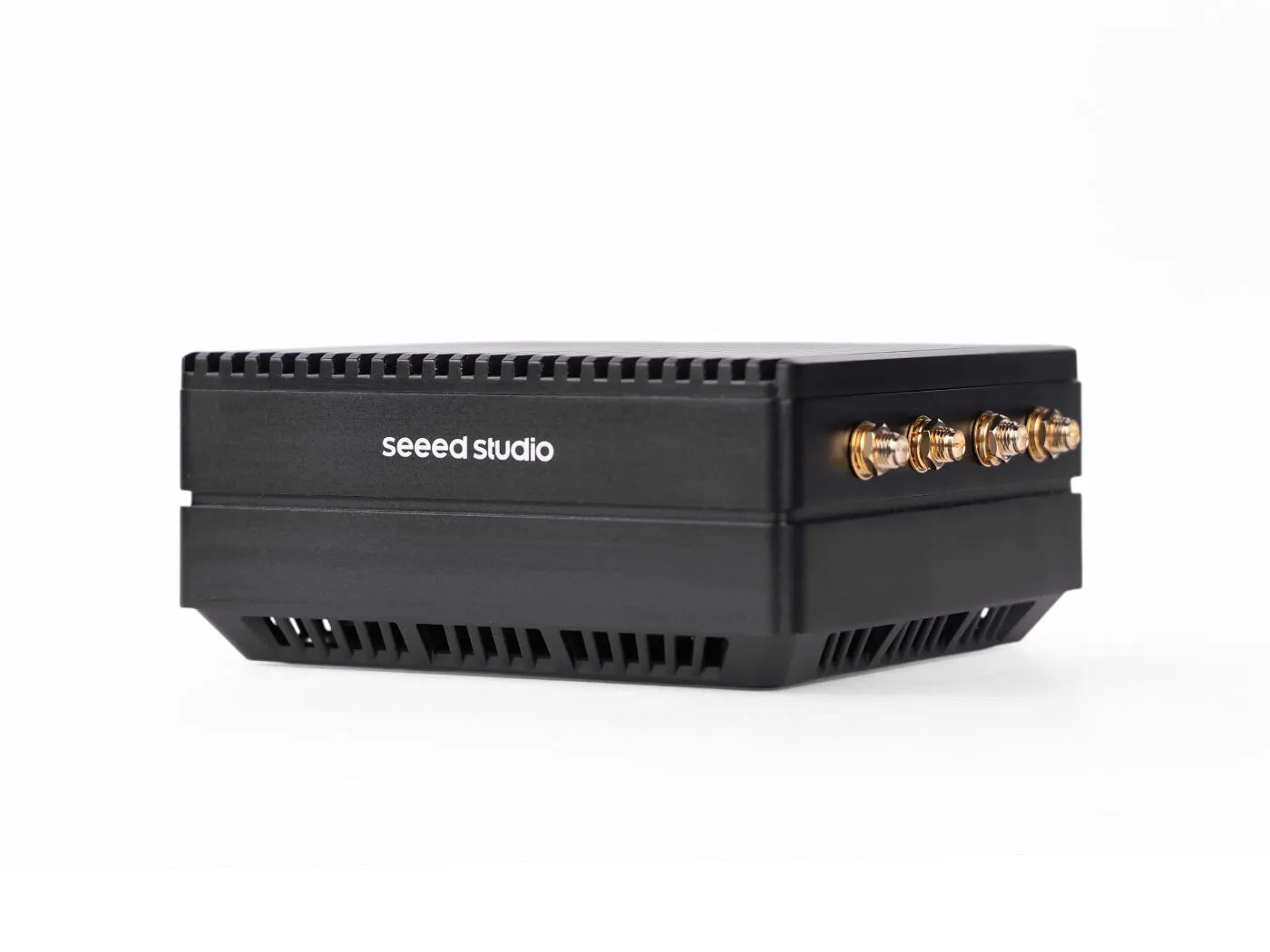

Seeed Studio reComputer J4012B Edge AI Computer NVIDIA® Orin™ NX 16GB
The Seeed Studio reComputer J4012B is a compact, high-performance edge AI device powered by the NVIDIA Jetson Orin NX 16GB module. Delivering up to 100 TOPS of AI performance, it is ideal for applications such as robotics, smart cities, industrial automation, and healthcare.
Feature
-
Powerful AI Performance: Powered by a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, offering up to 100 TOPS for real-time AI inferencing.
-
Rich Connectivity: Includes 4× USB 3.2, HDMI 2.1, Gigabit Ethernet, M.2 Key E for Wi-Fi, M.2 Key M for SSD, mini-PCIe for LTE, CAN bus, and a 40-pin GPIO header.
-
Ample Storage: Comes pre-installed with a 128GB NVMe SSD for fast boot and data storage.
-
Efficient Cooling & Compact Design: Compact aluminum chassis (130 × 120 × 58.5 mm) with built-in fan and heatsink for effective thermal management.
-
Developer-Friendly Software: Preloaded with NVIDIA JetPack 5.1.1 and supports frameworks like CUDA-X, DeepStream, TAO Toolkit, and Riva.
-
Long-Term Support: Certified with CE, FCC, RoHS, and supported through 2032, making it a reliable choice for commercial and industrial deployment.
Specification
|
Parameter |
Description |
|
Hardware Spec |
|
|
Product Series |
reComputer J4012B |
|
Module |
Jetson Orin NX 16GB |
|
AI performance |
100 TOPS 157 TOPS under super mode |
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
|
GPU Max Frequency |
918 MHz |
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|
CPU Max Frequency |
2 GHz |
|
Memory |
16GB 128-bit LPDDR5 102.4 GB/s |
|
DL Accelerator |
2x NVDLA v2 |
|
DLA Max Frequency |
614 MHz |
|
Vision Accelerator |
1x PVA v2 |
|
Storage |
pre-installed 128GB NVMe SSD |
|
Video Encoder |
1x 4K60 (H.265) | 3x 4K30 (H.265) 6x 1080p60 (H.265) | 12x 1080p30 (H.265) |
|
Video Decoder |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
|
Interfaces |
|
|
Display |
1x HDMI 2.1 |
|
CSI |
2x CSI （2-lane 15pin） |
|
Networking |
1x Gigabit Ethernet (10/100/1000M) |
|
USB |
2x USB 3.2 Type-A (10Gbps); 1x USB2.0 Type-C (Device Mode) |
|
M.2 Key M |
1x M.2 Key M for SSD |
|
M.2 Key E |
1x M.2 Key E for Wi-Fi module* |
|
mini-PCIe |
1x mini-PCIe for LTE module* |
|
Fan |
1x JST 4pin Fan Connector(5V PWM) |
|
CAN |
1x CAN |
|
Multifunctional Port |
1x 40-Pin Expansion header; 1x 12-Pin Control and UART header |
|
RTC |
RTC 2-pin, RTC socket (supports CR1220*) |
|
Power Supply |
DC 9-19V via 5525 DC jack |
|
Standards |
|
|
Certification |
CE, FCC, KC,TELEC |
|
UKCA, REACH,RoHS |
|
|
Ambient Conditions |
|
|
Operating Temperature |
-10~60 °C |
|
Others |
|
|
Dimension |
130mm x120mm x 58.5mm |
|
Weight |
451.9g |
|
Warranty |
2 years |
|
Production Lifetime |
Until 2032 |
|
Statement |
Options marked with * require additional purchase |
Hardware Overview
Application
Smart Lamppost
Smart lampposts monitor traffic with sensors and transmit data for better traffic control. They integrate solar power, store energy for night use, and may feed excess power to the grid.
EV Battery Swapping/Charging System
Battery swapping eases EV range anxiety. Charging stations, connected to the smart grid, optimize charging times. Some EVs can also supply power to the grid.
Smart Recycling Center
Sensors in recycling bins reduce waste collection trips. Energy - efficient equipment runs during off - peak hours, and recycled materials are used for smart grid and EV components.
Documents
| HSCODE | 8471504090 |
| USHSCODE | 8523510000 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
Part List
|
NVIDIA Jetson Orin™ module |
x1 |
|
Seeed carrier board (reComputer J401B） |
x1 |
|
128GB NVMe SSD |
x1 |
|
Aluminum heatsink with fan |
x1 |
|
Aluminum case (black) |
x1 |
|
Power Adapter（12V/5A） |
x1 |
