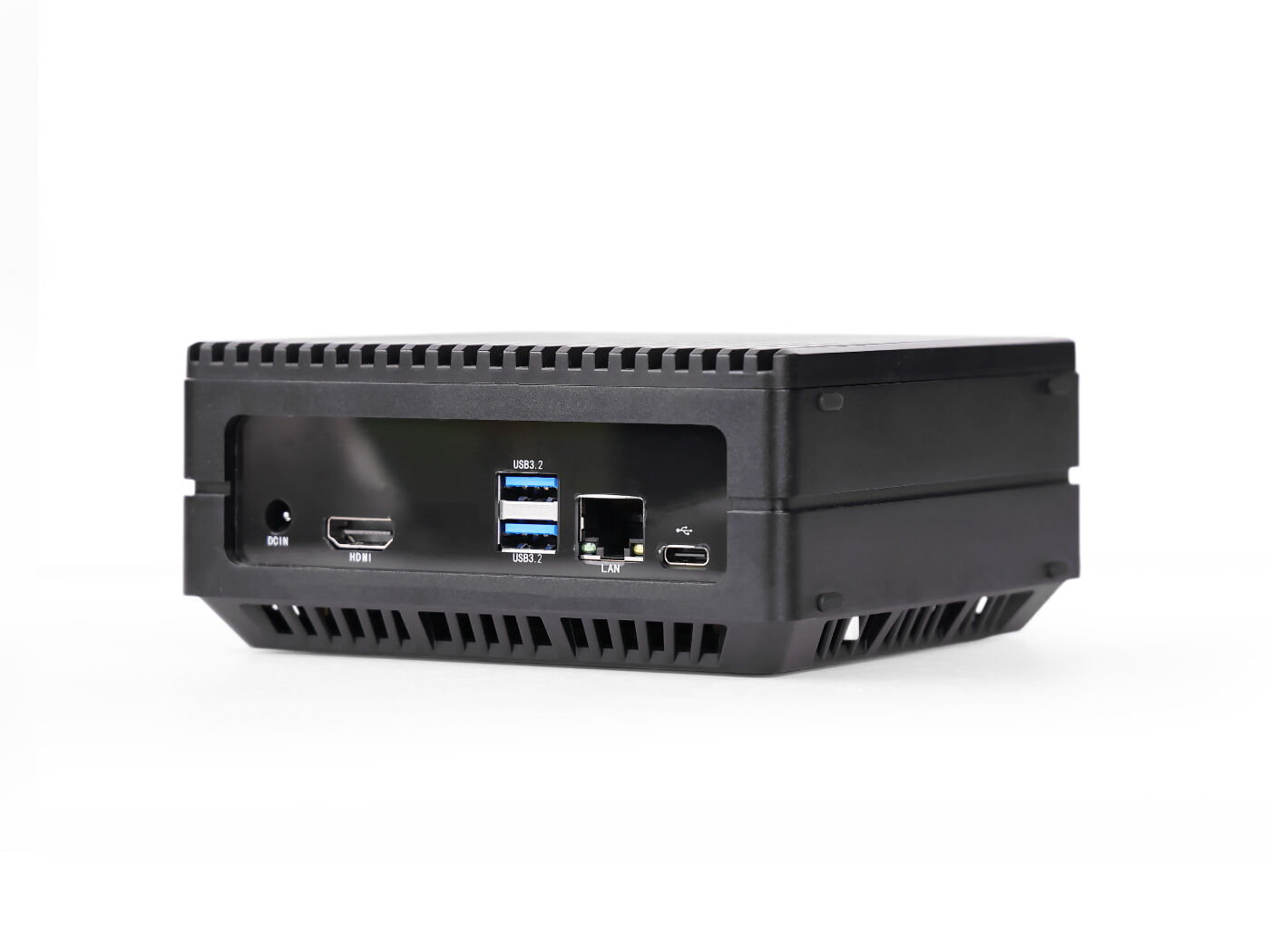

Seeed Studio reComputer J3011B Edge AI Computer NVIDIA® Orin™ Nano 4GB
The Seeed Studio reComputer J3011B is a compact edge AI computer powered by the NVIDIA Jetson Orin Nano 8GB module, delivering up to 40 TOPS of AI performance. Designed for applications in robotics, smart cities, industrial automation, and more, it offers a rich set of interfaces and expansion options.
Feature
-
AI Performance: Equipped with a 6-core Arm Cortex-A78AE CPU and a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, providing up to 40 TOPS for real-time AI inferencing.
-

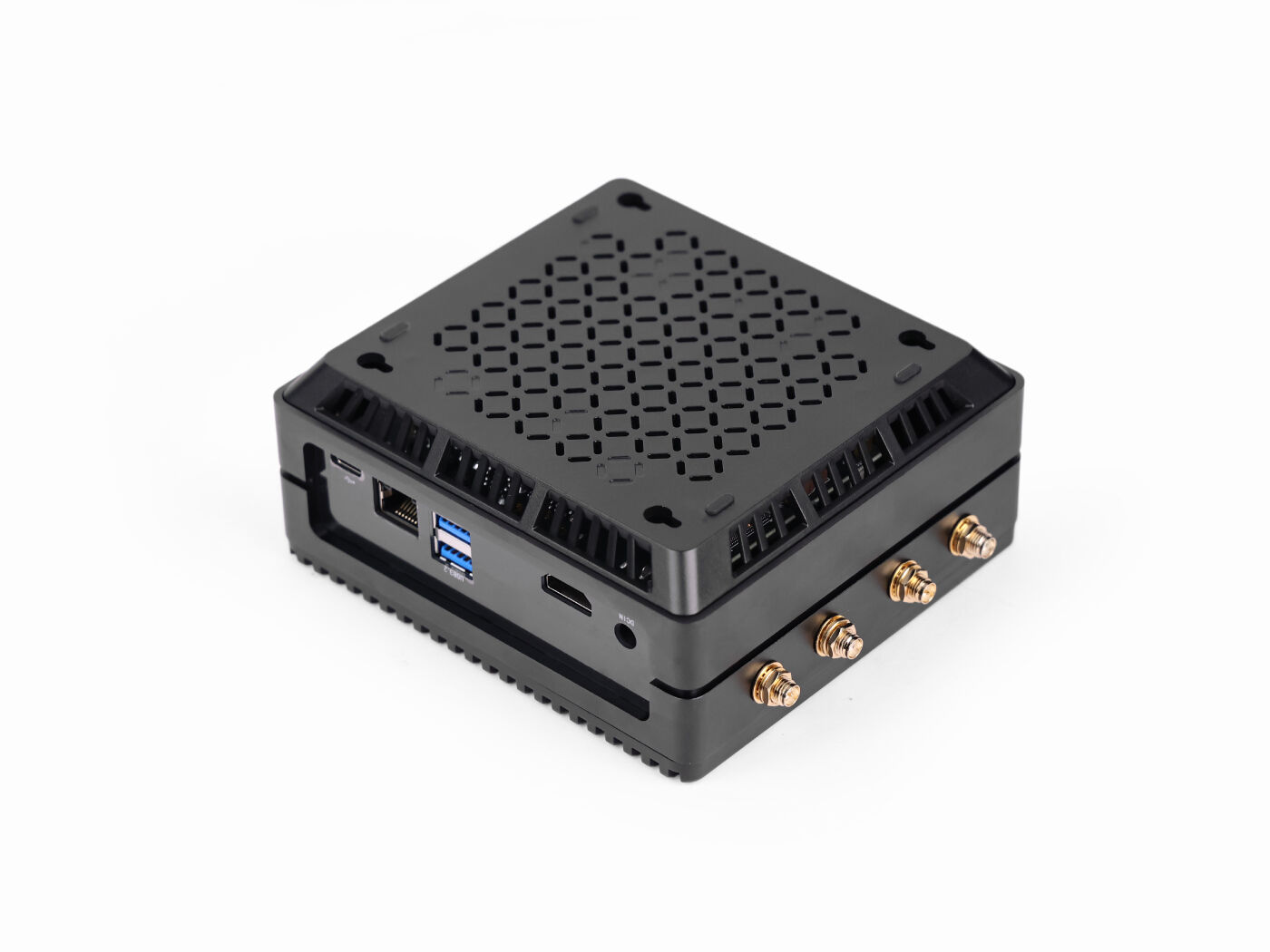

Connectivity: Includes 4× USB 3.2 Type-A ports, HDMI 2.1, Gigabit Ethernet, M.2 Key E for Wi-Fi/Bluetooth, M.2 Key M for SSD, mini-PCIe for LTE modules, CAN bus, and a 40-pin GPIO header.
-
Storage: Comes with a pre-installed 128GB NVMe SSD, facilitating immediate development and deployment.
-

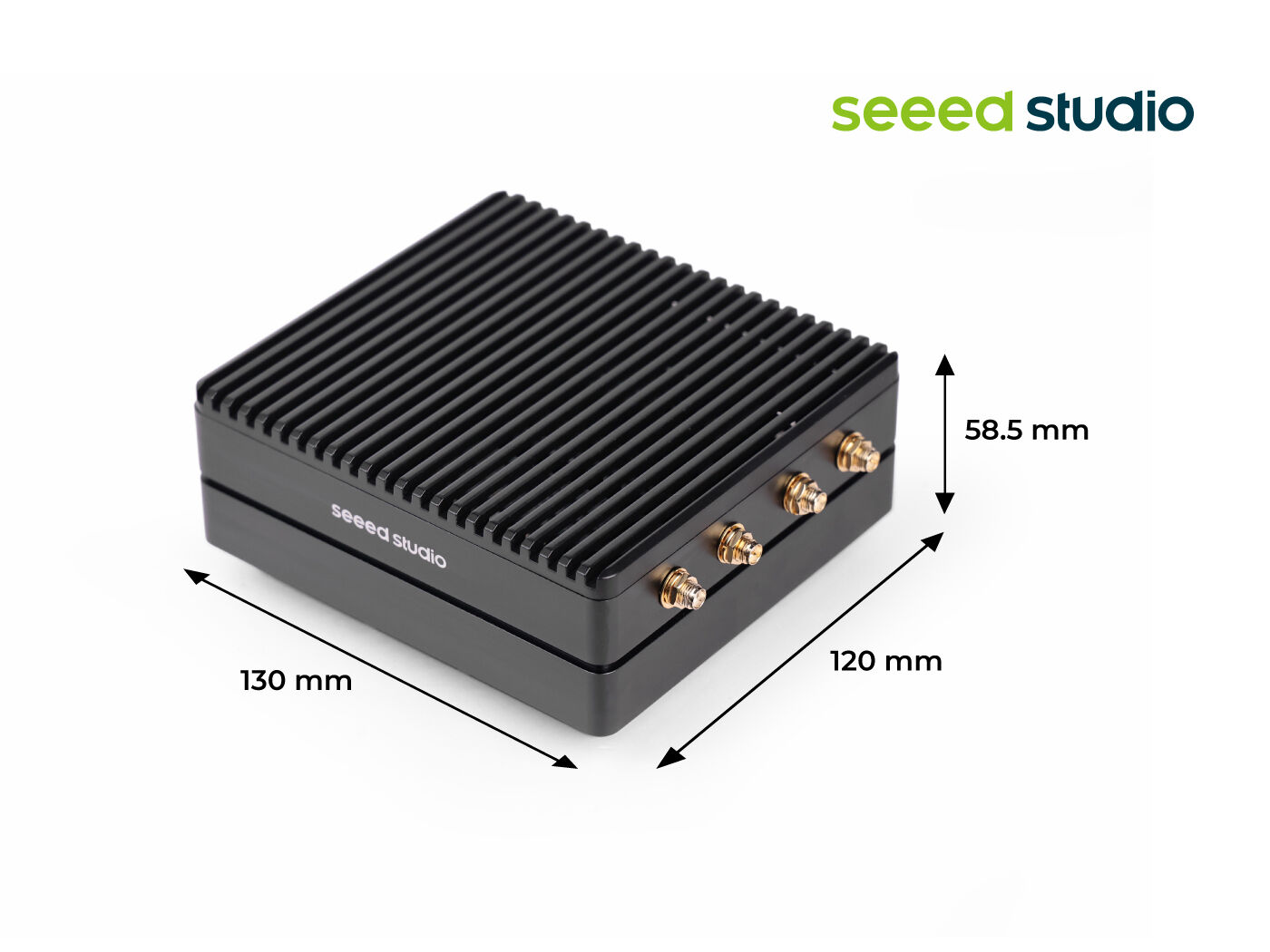

Design: Compact dimensions of 130mm × 120mm × 58.5mm, housed in an aluminum case with an integrated heatsink and fan for efficient thermal management.
-
Software: Pre-installed with NVIDIA JetPack 5.1.1, supporting CUDA-X, DeepStream, TAO Toolkit, and Riva for AI development.
-
Long-Term Support: Certified with CE, FCC, RoHS, and supported through 2032, making it a reliable choice for commercial and industrial deployment.
Specification
|
Parameter |
Description |
|
Hardware Spec |
|
|
Product Series |
reComputer J3010B |
|
Module |
Jetson Orin Nano 4GB |
|
AI performance |
20 TOPS 34 TOPS under super mode |
|
GPU |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
|
GPU Max Frequency |
625 MHz |
|
CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
|
CPU Max Frequency |
1.5 GHz |
|
Memory |
4GB 64-bit LPDDR5 34 GB/s |
|
Storage |
pre-installed 128GB NVMe SSD |
|
Video Encoder |
1080p30 supported by 1-2 CPU cores |
|
Video Decoder |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
|
Interfaces |
|
|
Display |
1x HDMI 2.1 |
|
CSI |
2x CSI （2-lane 15pin） |
|
Networking |
1x Gigabit Ethernet (10/100/1000M) |
|
USB |
2x USB 3.2 Type-A (10Gbps); 1x USB2.0 Type-C (Device Mode) |
|
M.2 Key M |
1x M.2 Key M for SSD |
|
M.2 Key E |
1x M.2 Key E for Wi-Fi module* |
|
mini-PCIe |
1x mini-PCIe for LTE module* |
|
Fan |
1x JST 4pin Fan Connector(5V PWM) |
|
CAN |
1x CAN |
|
Multifunctional Port |
1x 40-Pin Expansion header; 1x 12-Pin Control and UART header |
|
RTC |
RTC 2-pin, RTC socket (supports CR1220*) |
|
Power Supply |
DC 9-19V via 5525 DC jack |
|
Standards |
|
|
Certification |
CE, FCC, KC,TELEC |
|
UKCA, REACH,RoHS |
|
|
Ambient Conditions |
|
|
Operating Temperature |
-10~60 °C |
|
Others |
|
|
Dimension |
130mm x120mm x 58.5mm |
|
Weight |
451.9g |
|
Warranty |
2 years |
|
Production Lifetime |
Until 2032 |
|
Statement |
Options marked with * require additional purchase |
Hardware Overview
Application
Smart Lamppost
Smart lampposts monitor traffic with sensors and transmit data for better traffic control. They integrate solar power, store energy for night use, and may feed excess power to the grid.
EV Battery Swapping/Charging System
Battery swapping eases EV range anxiety. Charging stations, connected to the smart grid, optimize charging times. Some EVs can also supply power to the grid.
Smart Recycling Center
Sensors in recycling bins reduce waste collection trips. Energy - efficient equipment runs during off - peak hours, and recycled materials are used for smart grid and EV components.
Documents
| HSCODE | 8471504090 |
| USHSCODE | 8523510000 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |

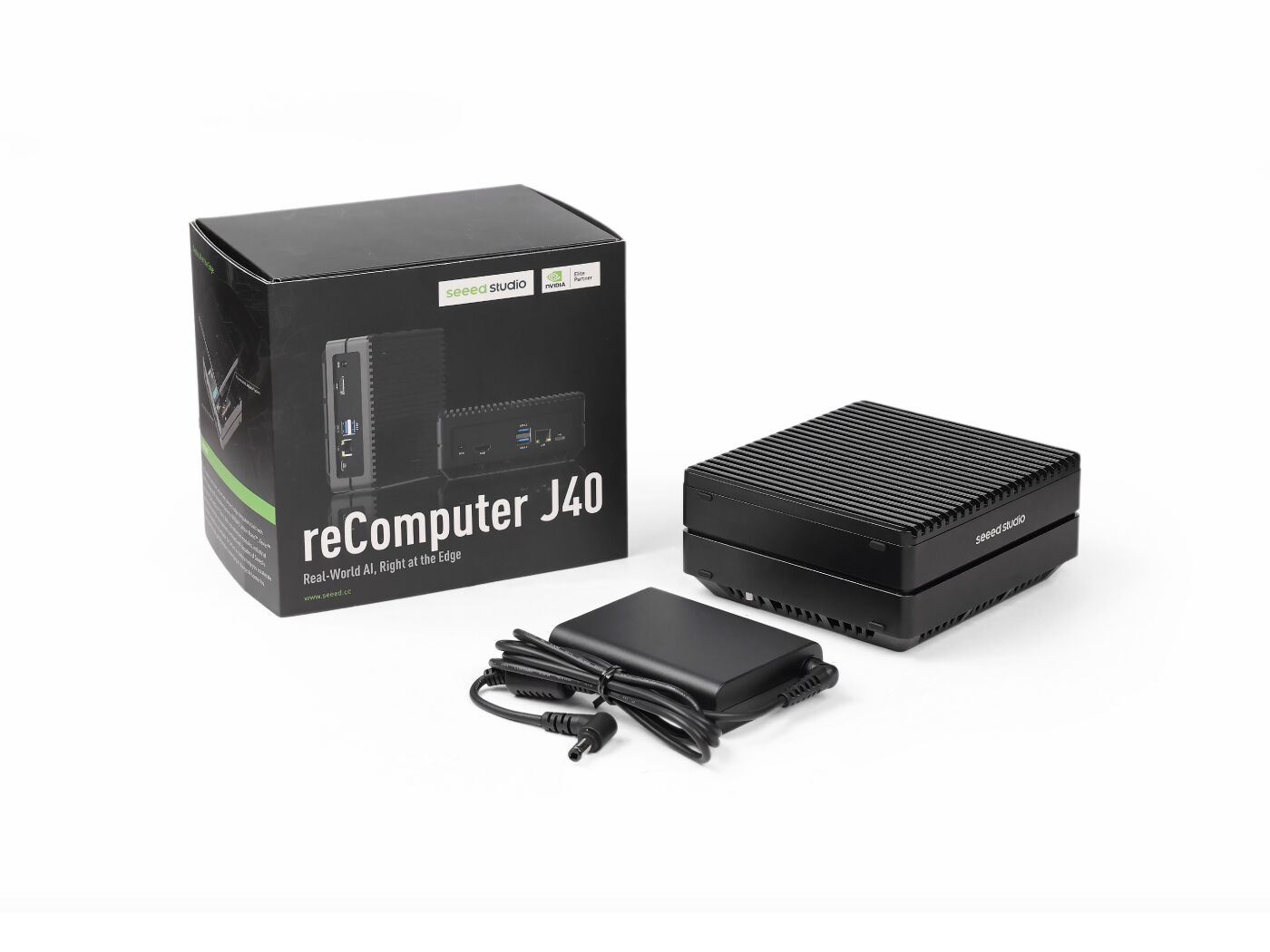

Part List
|
NVIDIA Jetson Orin™ module |
x1 |
|
Seeed carrier board (reComputer J401B） |
x1 |
|
128GB NVMe SSD |
x1 |
|
Aluminum heatsink with fan |
x1 |
|
Aluminum case (black) |
x1 |
|
Power Adapter（12V/5A） |
x1 |
