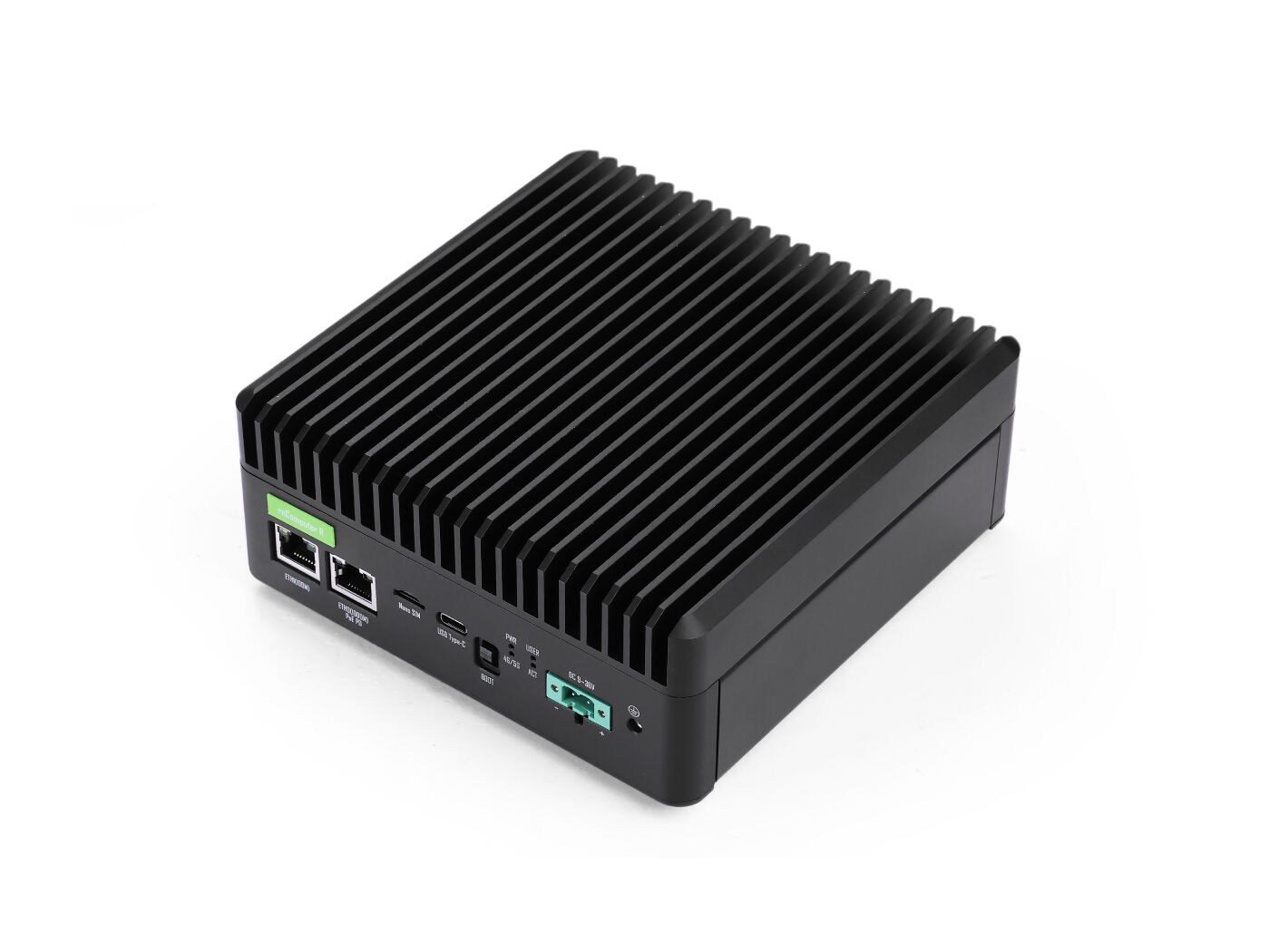

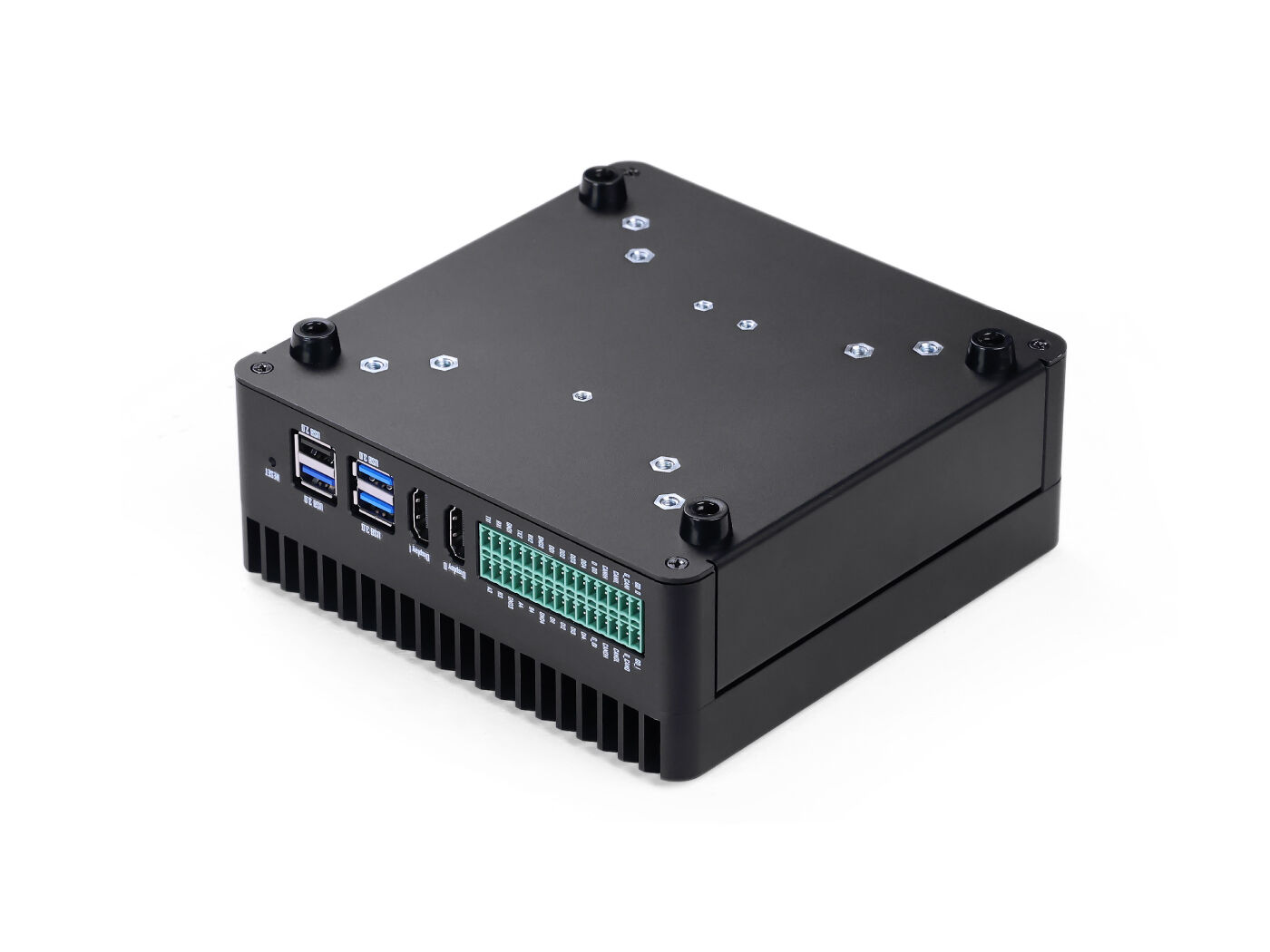

Seeed Studio reComputer Industrial R2145-12 Hailo-8 26 TOPS 16GB
📦 Location of the warehouse: China
Free Shipping from 30€ in Germany, 50€ in the EU!
- EU & US Countries Delivery Time: 5~10 working days.
- Other Countries Delivery Time: 2~2.5 weeks.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished. For specific delivery times, please feel free to contact us for inquiries.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
Seeed Studio reComputer Industrial R2145-12 Hailo-8 26 TOPS 16GB

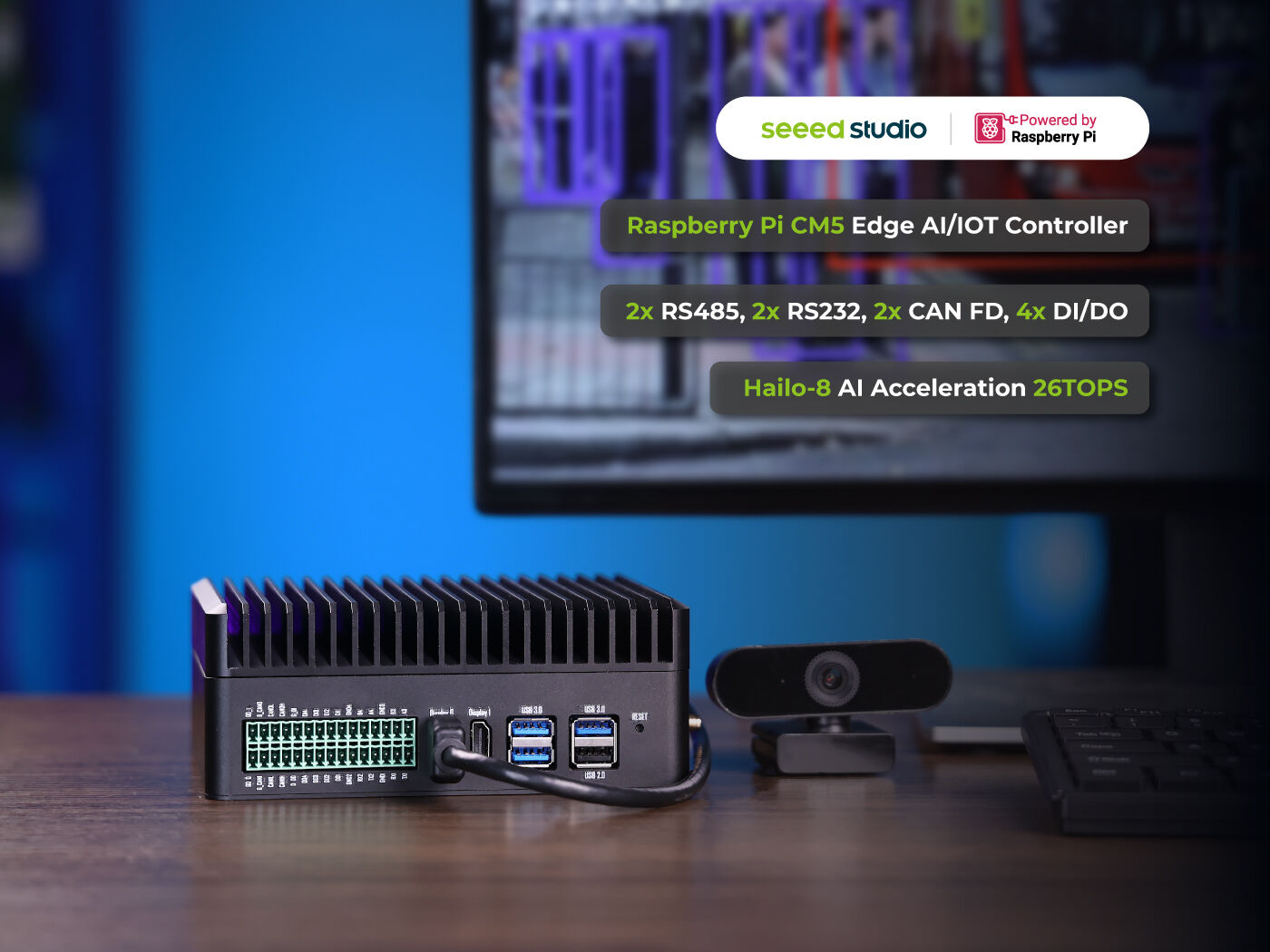

🧠 Industrial-Grade Edge AI/IoT Controller Powered by Raspberry Pi CM5 and optionally enhanced with Hailo-8 AI acceleration ⚡ (up to 26 TOPS), this rugged controller is built for high-performance edge computing.
-
🛠️ Rich industrial I/O interfaces for seamless integration
-
📡 Flexible wireless connectivity options (Wi-Fi, BLE, etc.)
-
❄️ Fanless thermal design for silent operation
-
🌡️ Wide operating temperature range: –20°C to +65°C
-
🏭 Long-term production support for stable deployment
🚀 Designed for reliable AI inference and robust connectivity in demanding environments—from smart factories to edge robotics and industrial automation.
Features
🚀 High-Performance Edge Computing with Raspberry Pi CM5 Powered by the Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz 🧠, this controller delivers robust processing for AI and IoT workloads. Supports up to 16GB RAM and 64GB eMMC for smooth multitasking and data handling.

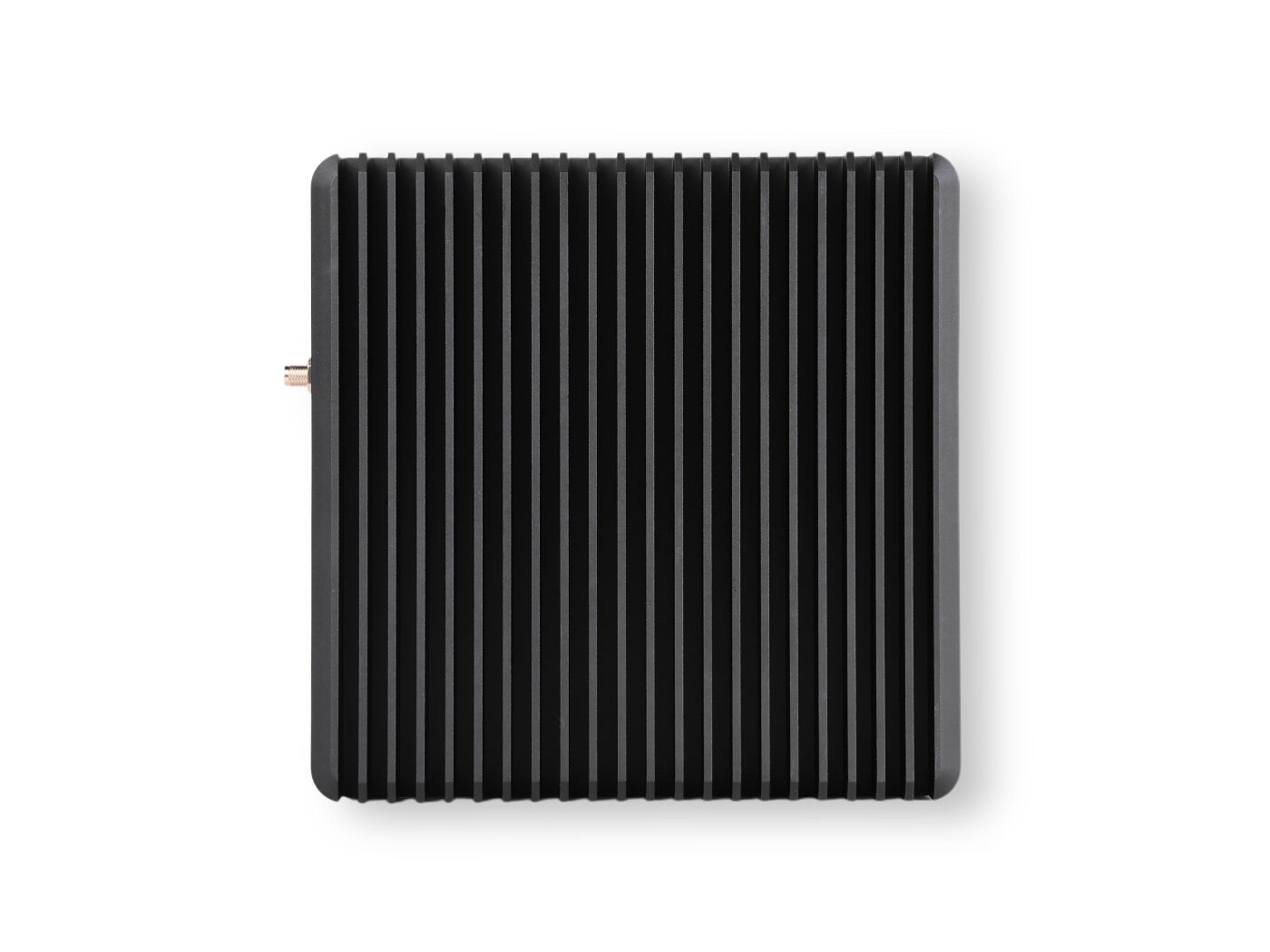

❄️ Robust Thermal Design Fanless cooling system engineered to withstand the heat of intensive AI tasks. Operates reliably across extreme temperatures: –20°C to +65°C 🌡️.
🏭 Industrial-Grade Reliability Built for mission-critical deployments with:
-
⏱️ High-accuracy RTC
-
🛡️ Hardware watchdog
-
🔋 Optional UPS supercapacitor
-
🔐 Optional TPM / ATECC608A
-
🧱 IP40-rated aluminum alloy enclosure
-

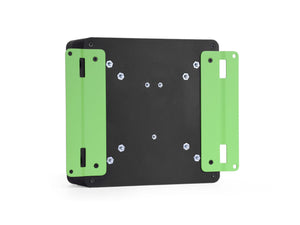

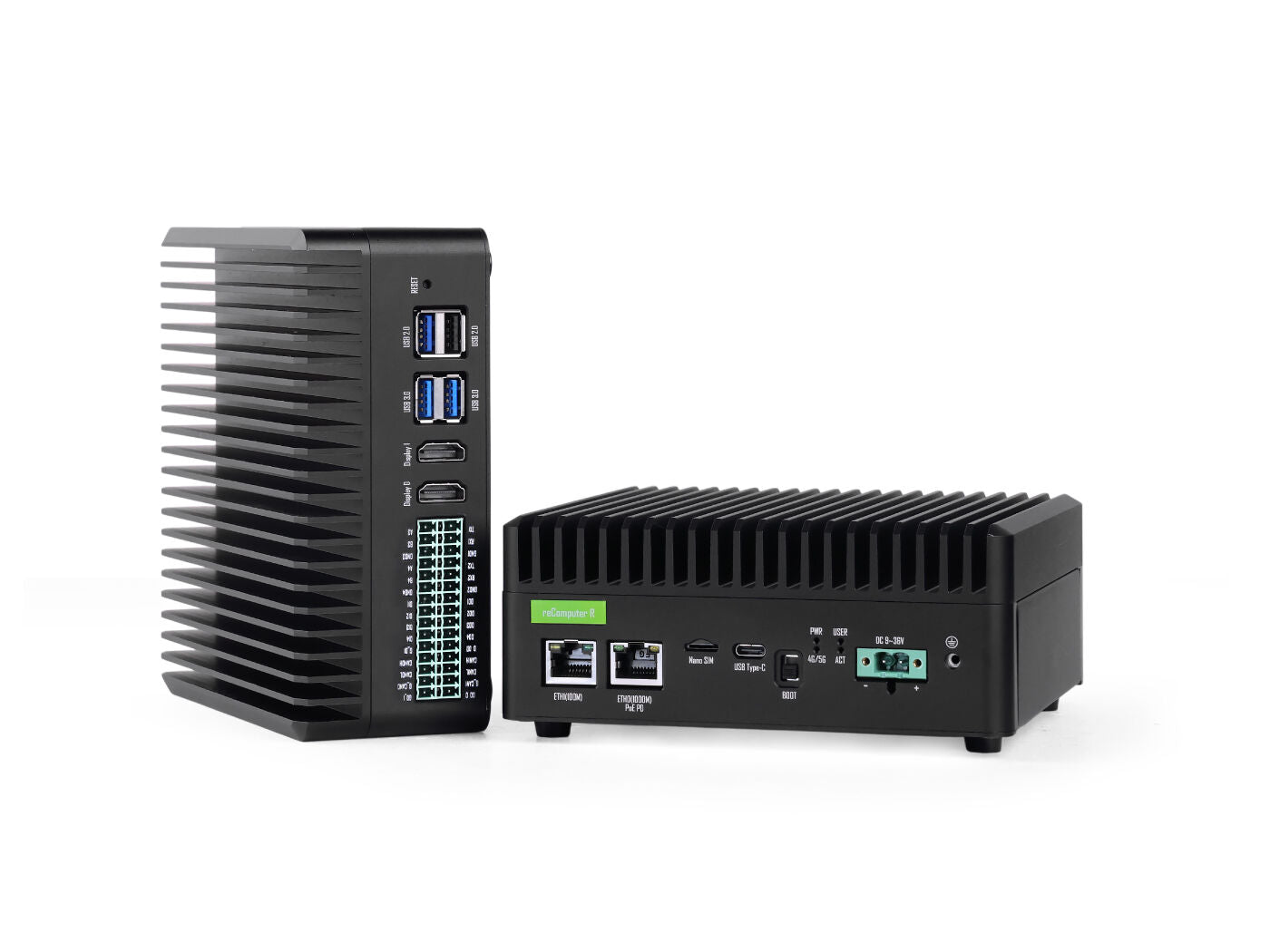

🧲 Supports DIN-rail and wall mounting
-
📆 Guaranteed production through December 2036
⚡ AI-Optimized Performance Optional Hailo-8 AI accelerator delivers up to 26 TOPS, enabling real-time, multi-channel AI vision processing 🤖.

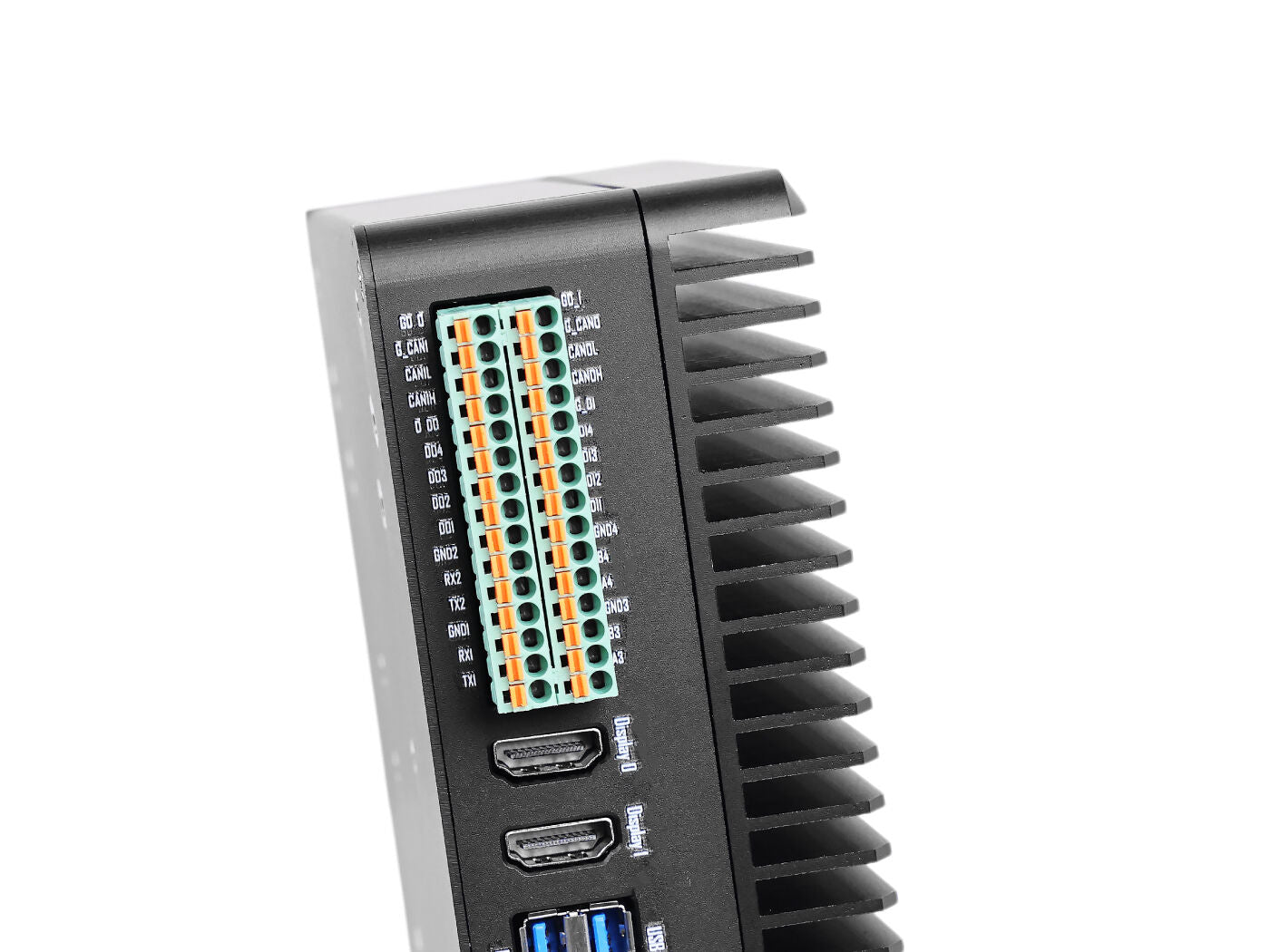

🔌 Comprehensive Industrial I/O
-
2× RS485, 2× RS232, 2× CAN FD
-
4× DI, 4× DO (all isolated)
-
1× Gigabit Ethernet (PoE), 1× Fast Ethernet
-
2× HDMI 2.0
-
3× USB 3.0 Type-A, 1× USB 2.0 Type-A, 1× USB 2.0 Type-C (for OS updates)
-
1× Nano SIM slot 📶
📡 Flexible Wireless Connectivity
-
Onboard Wi-Fi & BLE
-
Mini-PCIe slot for LTE, LoRa®, Zigbee
-
M.2 B-Key slot for 4G/5G expansion
Specification
|
Hardware Specification |
||
|
Product Series |
R21xx-12 |
R21xx-10 |
|
CPU |
Raspberry Pi Compute Module 5, 2.4GHz quad-core 64-bit Arm Cortex-A76 |
|
|
AI Processor |
1x Pre-installed Hailo-8 M.2 AI Acceleration, 26TOPS |
* |
|
Operating System |
Raspbian, Debian |
|
|
Memory & Storage |
2GB/4GB/8GB/16GB RAM, 16GB/32GB/64GB eMMC |
|
|
System Specification |
||
|
Power Input |
DC 9V~36V, 2-pin Terminal Block |
|
|
PoE(as powered device) |
IEEE 802.3 at Standard 25.5W PoE |
|
|
Power Switch |
No |
|
|
Reboot Switch |
Yes |
|
|
Interface |
||
|
Ethernet & USB |
1x 10/100/1000 Mbps(supports PoE PD); 1x 10/100 Mbps IEEE 802.3/802.3u |
|
|
3x USB-A 3.0 Host; 1x USB-A 2.0 Host; 1x USB-C 2.0 (For flashing OS & Debug) |
||
|
COM and I/O |
2x RS485(Isolated); 2x RS232(Isolated); 2x CAN FD(Isolated) |
|
|
4x DI Ports(Isolated), input Voltage: 5~24V DC; 4x DO Ports(Isolated), output Voltage: <60V DC |
||
|
SIM Card |
1x Nano SIM Card Slot |
|
|
M.2 Slot |
1x M.2 M-key 2280 Slot for NVMe SSD; 1x M.2 M-key 2280 Slot for AI Accelerator (pre-installed Hailo-8 M.2 AI Acceleration 26TOPS); 1x M.2 B-key 3042/3052 Slot for 5G/4G LTE |
1x M.2 M-key 2280 Slot for NVMe SSD； 1x M.2 M-key 2280 Slot for AI Accelerator; 1x M.2 B-key 3042/3052 Slot for 5G/4G LTE |
|
Mini-PCIe |
1x Mini-PCIe for LoRa module |
|
|
Control & Indication |
4x LEDs; 1x Buzzer; 1x Reset Button |
|
|
HDMI |
2 x HDMI 2.0 |
|
|
Wireless Communication |
Wi-Fi 2.4/5.0 GHz(On-chip); BLE 5.0(On-chip); |
|
|
USB LoRa®*/SPI LoRa®* |
||
|
4G LTE/5G* |
||
|
USB Zigbee* |
||
|
Standards |
||
|
EMC |
ESD: EN61000-4-2, Level 3; EFT: EN61000-4-4, Level 2; Surge: EN61000-4-5, Level 2 |
|
|
Certification |
CE, FCC, TELEC, RoHS, REACH |
|
|
Device Specification |
||
|
Ingress Protection |
IP40 |
|
|
Temperature |
Operating Temperature -20~65°C Storage Temperature -40~85°C |
|
|
Operating Humidity |
10~95% RH |
|
|
Reliability |
SuperCAP UPS LTC3350 Module* |
|
|
Hardware Watchdog: 1~255s |
||
|
High Accuracy RTC |
||
|
Security |
Encryption Chip TPM 2.0* |
|
|
ATECC608A* |
||
|
Heat Dissipation |
Fanless |
|
|
Warranty |
2 years |
|
|
Production Lifetime |
Until December 2036 |
|
|

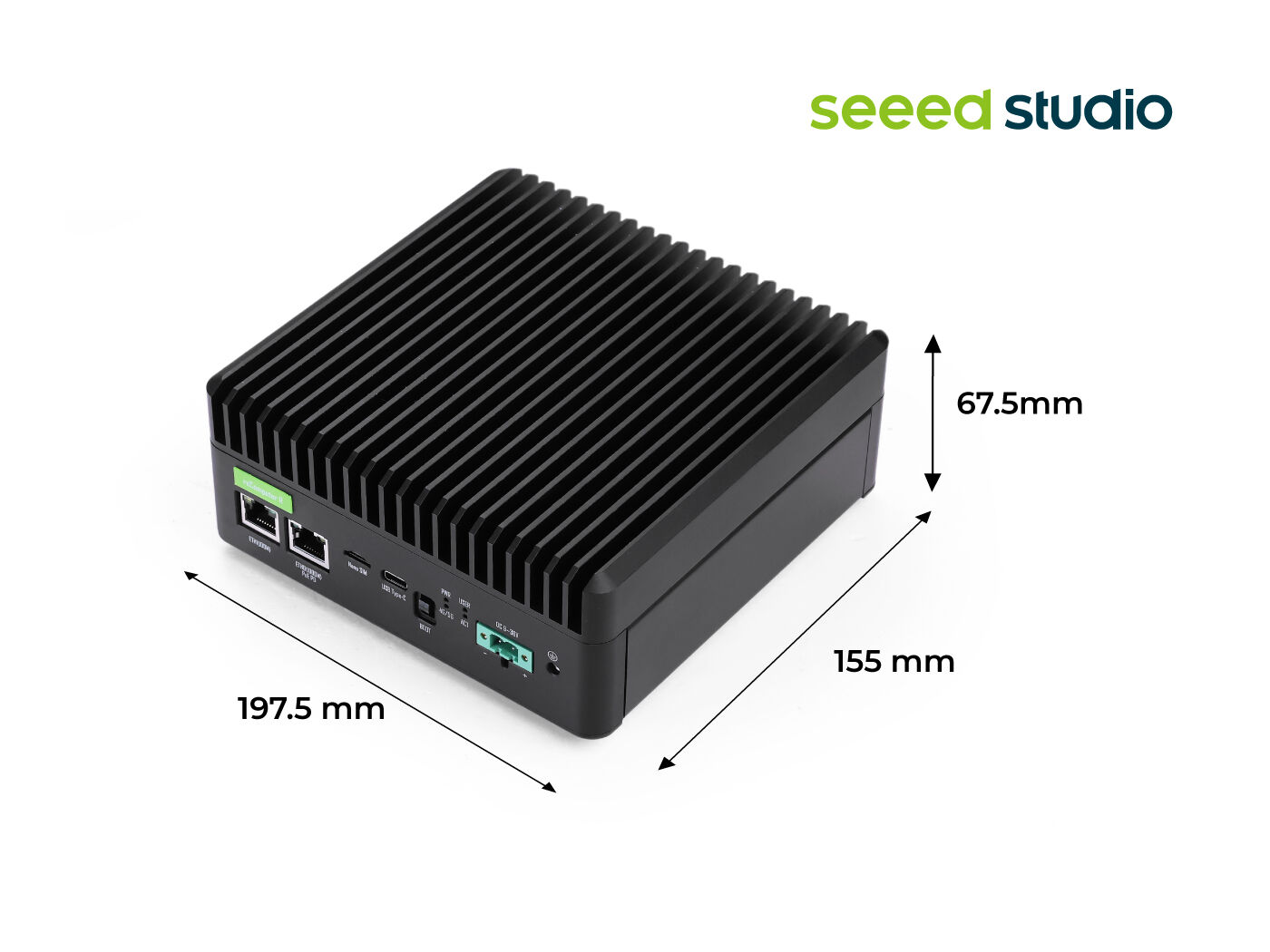

Dimension(W x H x D) & Weight(Net) |
197.5 mm x 155 mm x 67.5 mm, 1280g |
|
|
Enclosure |
6063 aluminum alloy heat sink, 5052 aluminum alloy enclosure |
|
|

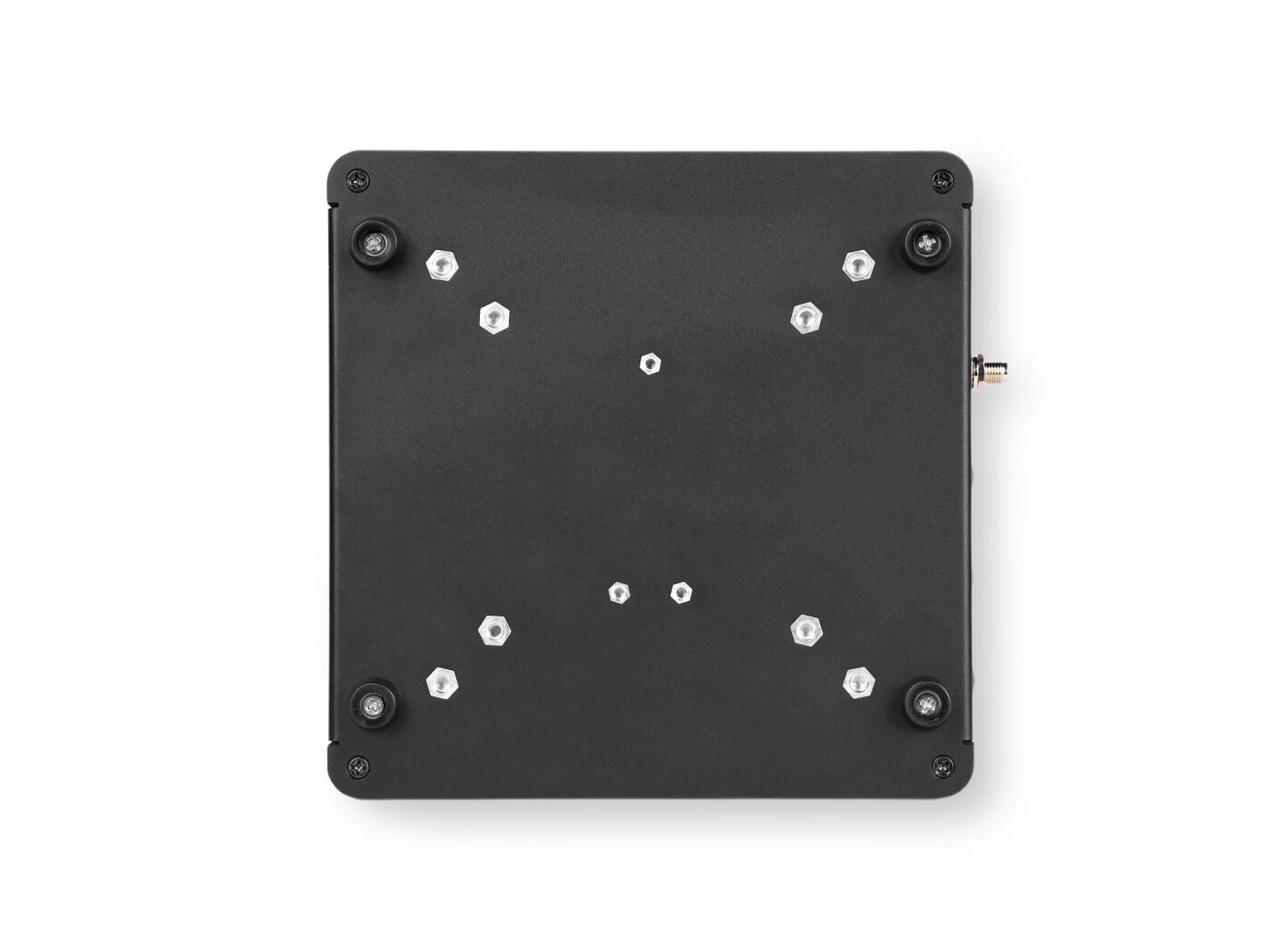

Mounting |
DIN-rail/Wall |
|
|
Statement |
Options marked with * require additional purchase according to the bundle. |
|
Application
🧠 AI-Driven Intelligence at the Edge Equipped with advanced capabilities including object detection, recognition, tracking, OCR, and abnormal event detection with real-time alerts 🚨, this industrial-grade Edge AI/IoT controller delivers exceptional performance—even in resource-constrained environments.
🏭 Manufacturing & Industrial Automation Seamlessly integrates with sensors, PLCs, and industrial machinery via rich I/O interfaces 🔌. Supports multiple protocols for real-time data acquisition and remote equipment control, enabling smarter, more efficient factories.
🎥 AI-Powered Video Analytics & Surveillance Ideal for NVR systems, enabling real-time video analysis including:
-
🔍 Anomaly detection
-
🧍 Crowd monitoring
-
🧠 Behavior analysis Boosts situational awareness and enhances security operations.
🚦 Smart Transportation Functions as an edge AI gateway for processing visual data from cameras and sensors in real time. Enables:
-
🚗 Intelligent traffic flow analysis
-
🅿️ Smart parking management Improves urban mobility and transport oversight.
🏢 Smart Building Management Connects with IoT sensors to optimize lighting, HVAC, and security systems. Uses AI for:
-
⚡ Energy efficiency
-
🔧 Predictive maintenance
-
🛋️ Occupant comfort Delivers intelligent building automation.
🛍️ Smart Retail Innovation Empowers next-gen retail experiences with:
-
🛒 Real-time product recognition
-
🎯 Personalized shopping journeys
-
📊 Customer behavior analytics Optimizes store operations and enhances engagement.

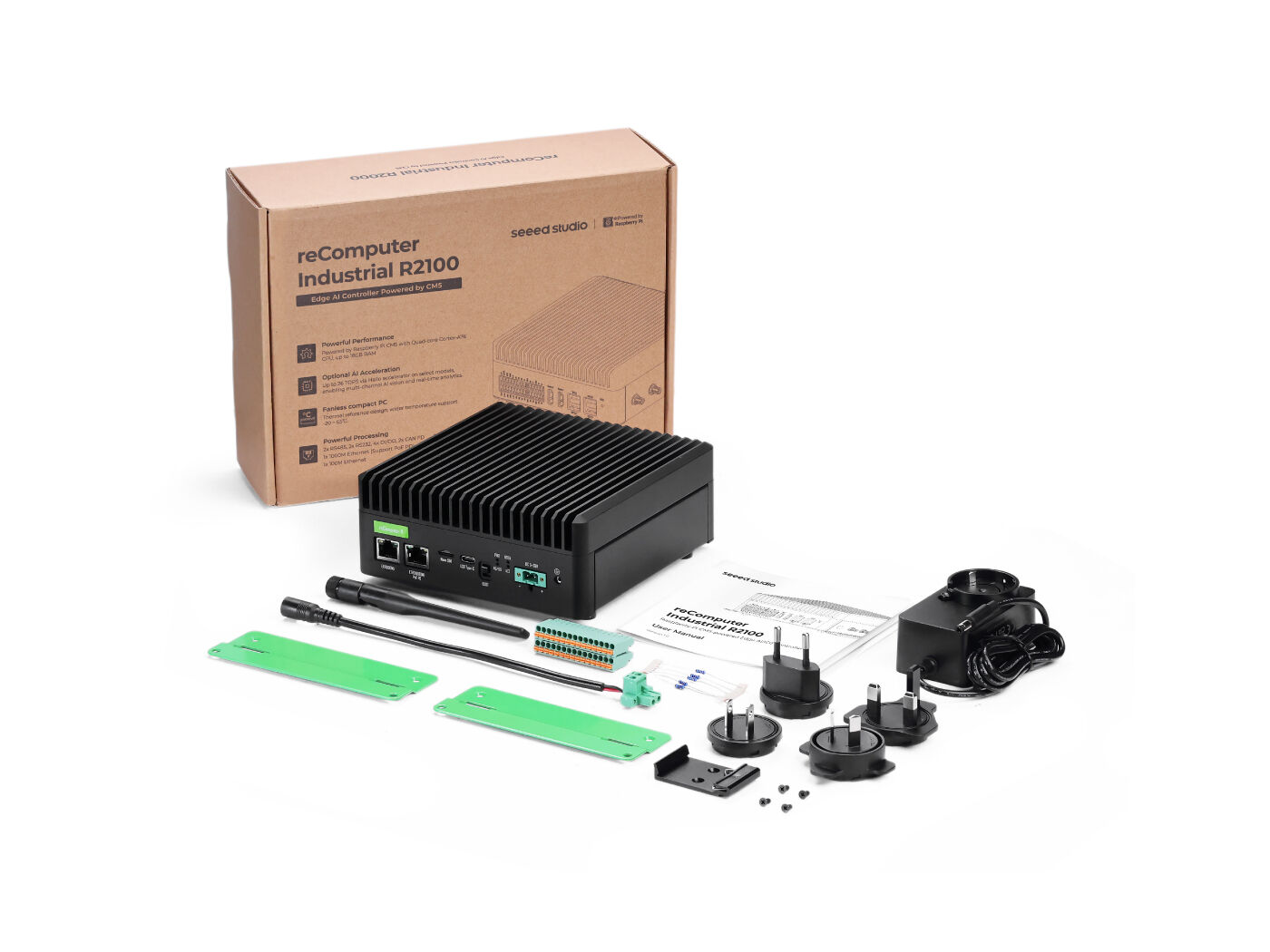

Part List
|
reComputer Industrial R2145-12 |
x 1 |
|

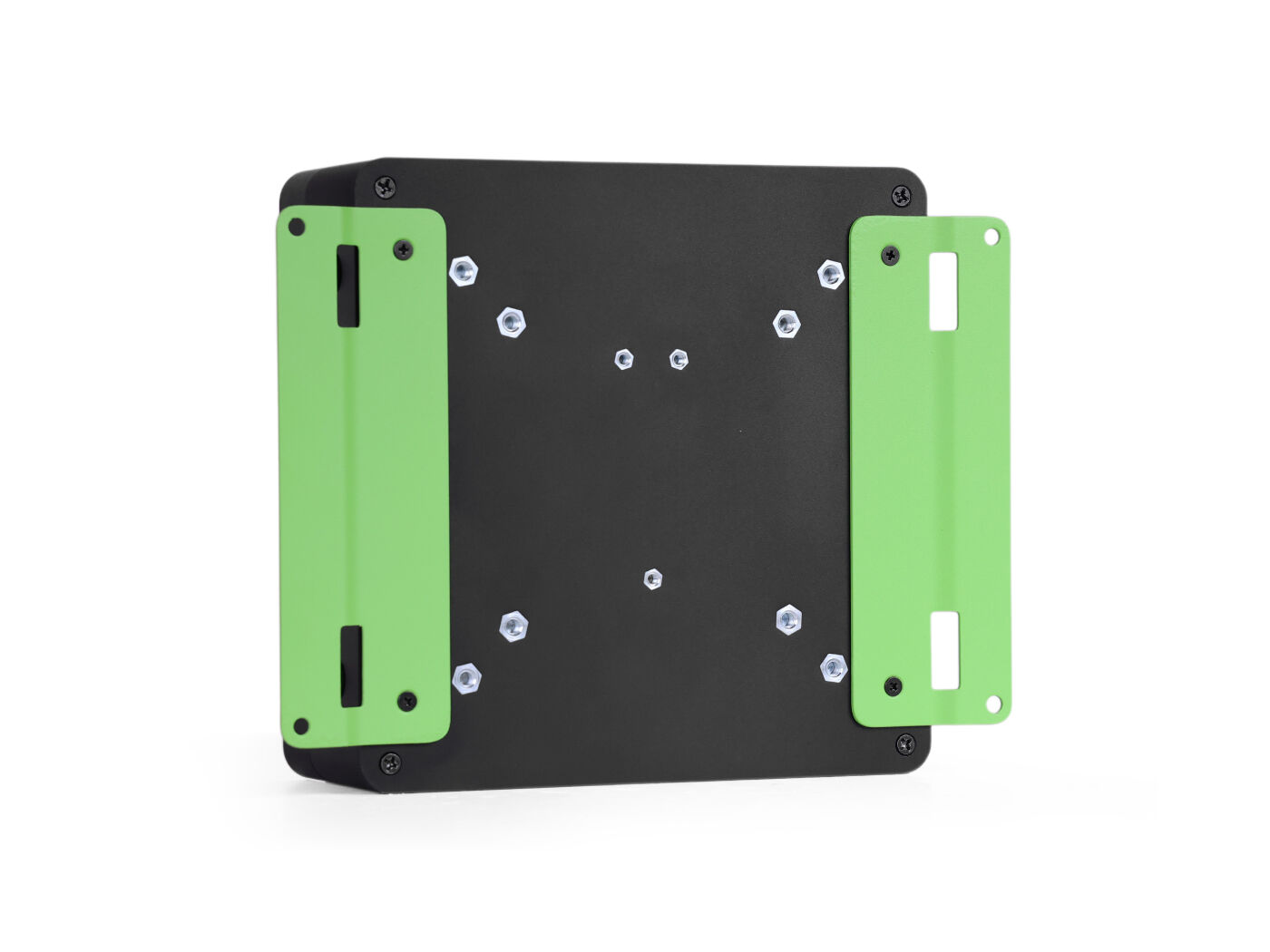

Mounting Bracket |
x 2 |
|
Bracket Screw |
x 4 |
|
DIN-rail Clip |
x 1 |
|
DC Power Female Jack to Screw Terminal Adapter |
x 1 |
|
12V/3A Power Adapter (with 4 interchangeable adapter plugs) |
x 1 |
|
15*2-pin Terminal Block Connector (Male) |
x 1 |
|
120Ω Resistor |
x 5 |
|
Wi-Fi/BLE Antenna |
x 1 |
|
User Manual |
x 1 |
